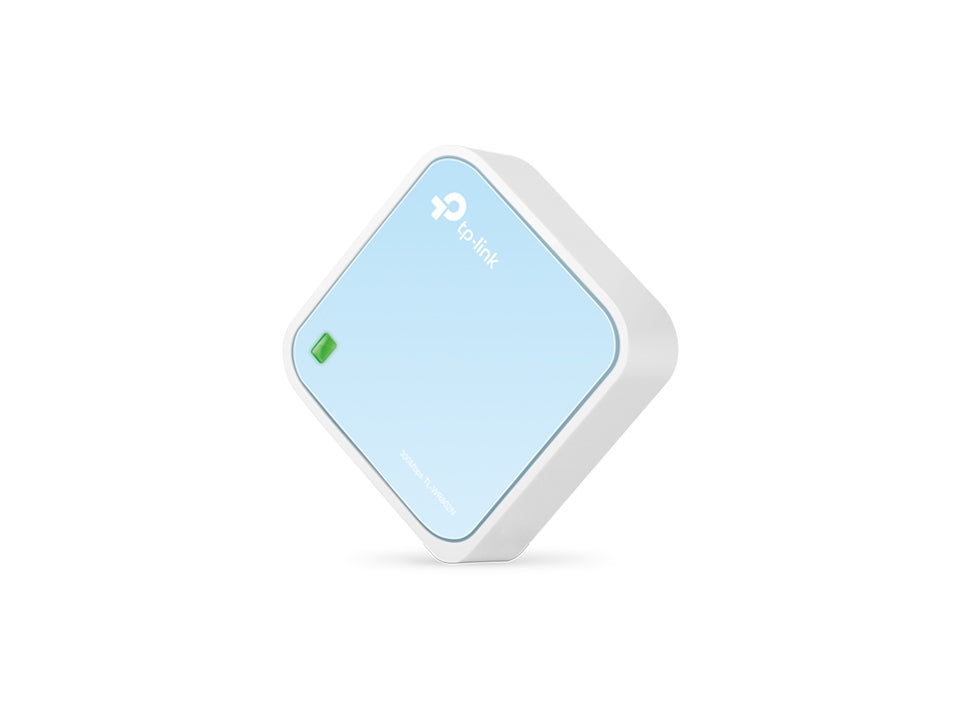

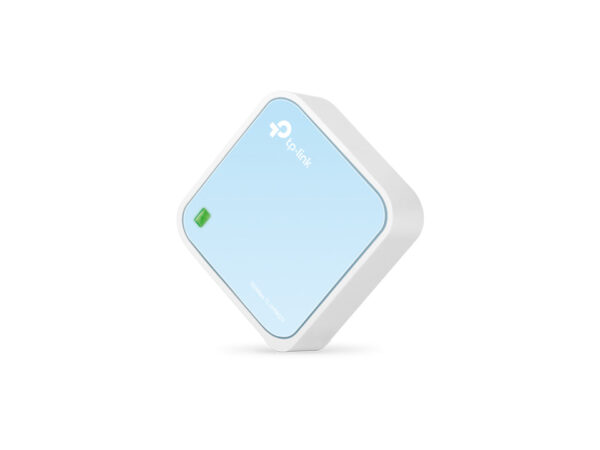

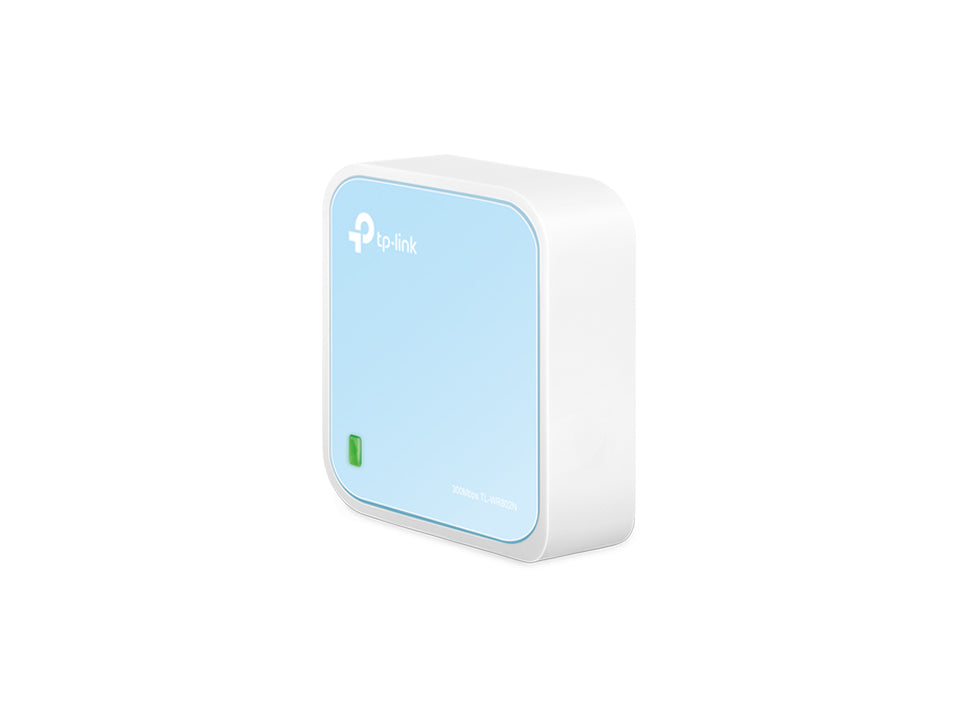

TP-Link TL-WR802N 300Mbps Wireless N Nano Router

• Description
• Specifications
• Downloads

• TP-Link TL-WR802N 300Mbps Wireless N Nano Router

  Wi-Fi on the go !
  300Mbps Wireless N Nano Router

  Multiple Operating Modes
  Ideal for Home and Travel Use
  To meet the wireless needs of almost any situation you might encounter, the TL-WR802N supports Router, Hotspot, Range Extender, Client and Access Point Modes.

  During Travel
  Router mode
  Instantly create a private wireless network and share Internet access with multiple Wi-Fi devices. Ideal for setup in most hotels.

  Hotspot Mode
  Enjoy wireless Internet access by connecting to an outdoor WISP Access Point.

  At Home
  Range Extender Mode
  Extend existing Wi-Fi to improve signal strength and maximize coverage.

  Client Mode
  Allow devices that require a wired connection to access an existing Wi-Fi network.

  Access Point Mode
  Create a wireless network for Wi-Fi devices.

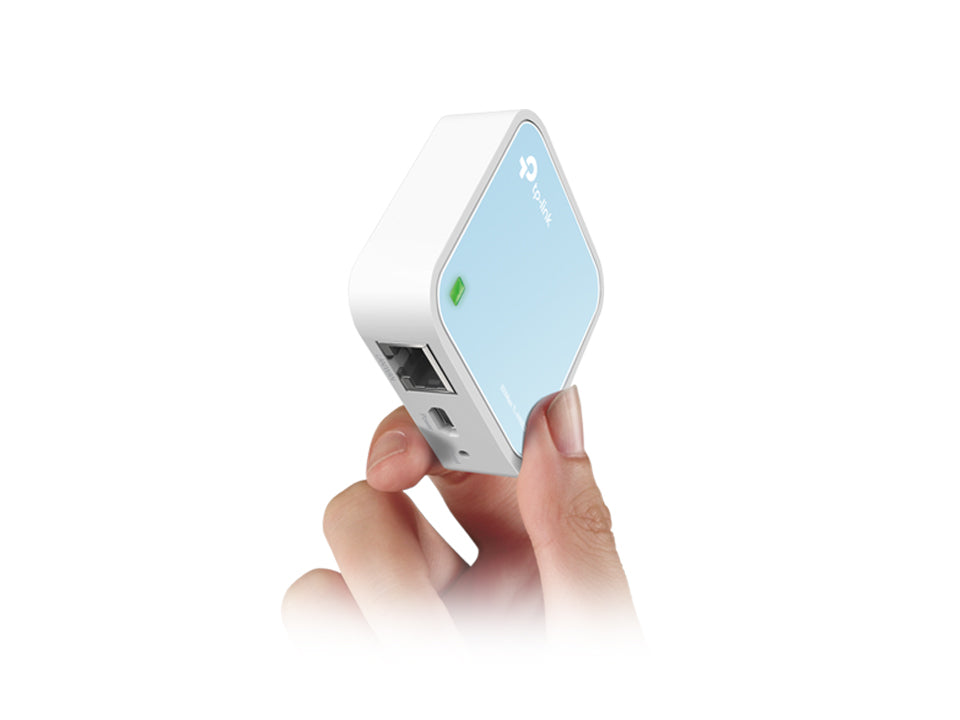

  Portable and Compact – Suitable for Home and Travel
  The TL-WR802N is the smallest wireless router in the world. It is very easy to use and is a perfect choice for travelers, students, and anyone else who lives life on the go.

  Flexible Power Supply – Find Power Wherever You Are
  The TL-WR802N can be powered using the included power adapter or using a smartphone /USB charger.

• Category	Details
  WIRELESS
  Standards	Wi-Fi 4
  	IEEE 802.11n/b/g 2.4 GHz
  WiFi Speeds	N300
  	2.4 GHz: 300 Mbps (802.11n)
  WiFi Range	2 Bedroom Houses
  	2× Fixed Antennas
  WiFi Capacity	Legacy
  Working Modes	Router Mode
  	Access Point Mode
  	Range Extender Mode
  	Client Mode
  	Hotspot Mode (WISP Mode)
  SECURITY
  Network Security	SPI Firewall
  	Access Control
  	IP & MAC Binding
  	Application Layer Gateway
  Guest Network	1× 2.4 GHz Guest Network
  WiFi Encryption	WEP
  	WPA
  	WPA2
  	WPA/WPA2-Enterprise (802.1x)*
  HARDWARE
  Processor	Single-Core CPU

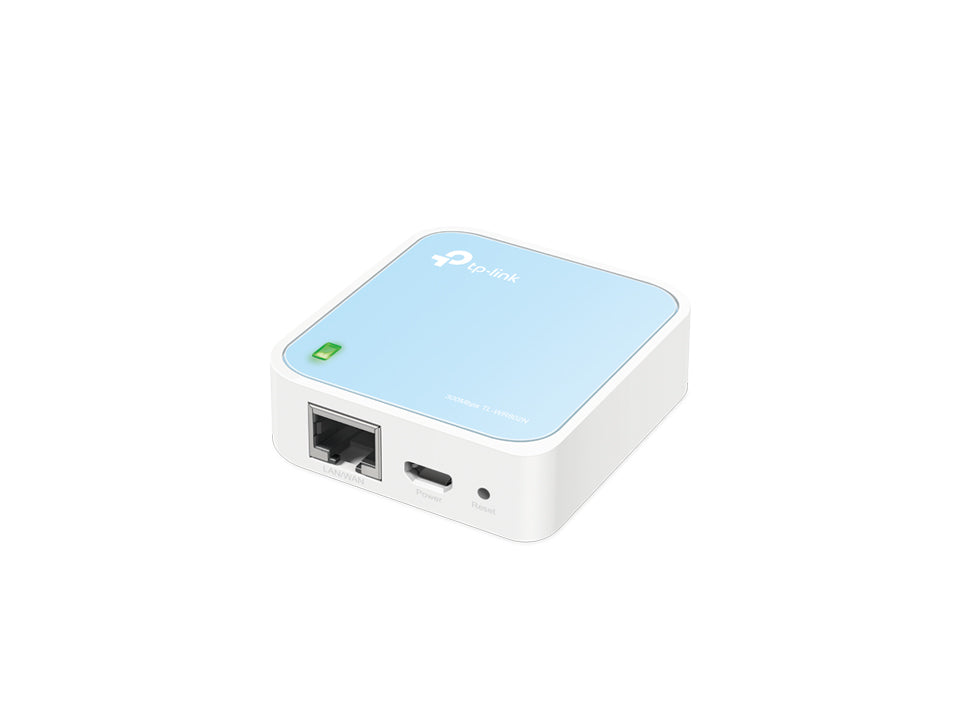

  Ethernet Ports	1× 10/100 Mbps WAN/LAN Port
  Buttons	Reset Button
  Power	5 V ⎓ 1 A
  SOFTWARE
  Protocols	IPv4
  	IPv6
  Parental Controls	URL Filtering
  	Time Controls
  WAN Types	Dynamic IP
  	Static IP
  	PPPoE
  	PPTP
  	L2TP
  Quality of Service	QoS by Device
  NAT Forwarding	Virtual Server
  	Port Forwarding
  	Port Triggering
  	DMZ
  	UPnP
  IPTV	IGMP Proxy
  DHCP	Address Reservation
  	DHCP Client List
  	Server
  DDNS	NO-IP
  	Comex
  	DynDNS
  Management	Tether App
  	Webpage
  OTHER
  System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  	Cable or DSL Modem (if needed)
  	Subscription with an internet service provider (for internet access)
  Certifications	FCC
  Environment
  Operating Temperature	0℃~40℃ (32℉ ~104℉)
  Storage Temperature	-40℃~70℃ (-40℉ ~158℉)
  Operating Humidity	10%~90% non-condensing
  Storage Humidity	5%~90% non-condensing
  PHYSICAL
  Dimensions (W×D×H)	2.2 × 2.2 × 0.7 in
  	(57 × 57 ×18 mm)
  Package Contents	Wi-Fi Router TL-WR802N
  	Power Adapter
  	USB Cable
  	RJ45 Ethernet Cable
  	Quick Installation Guide
  	Resource CD
