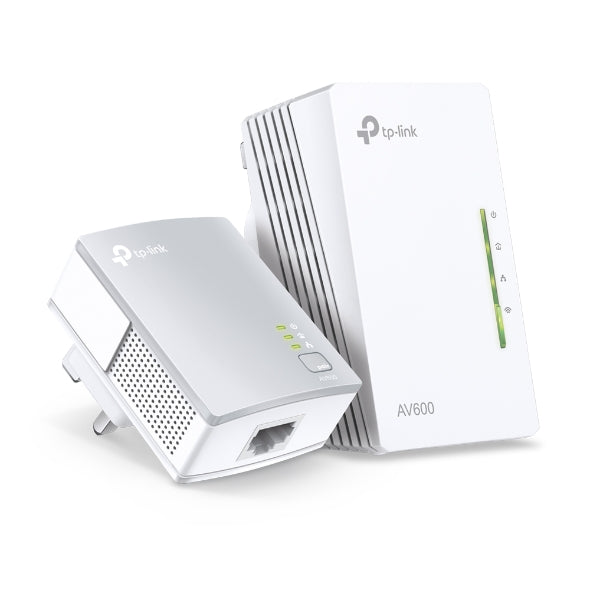

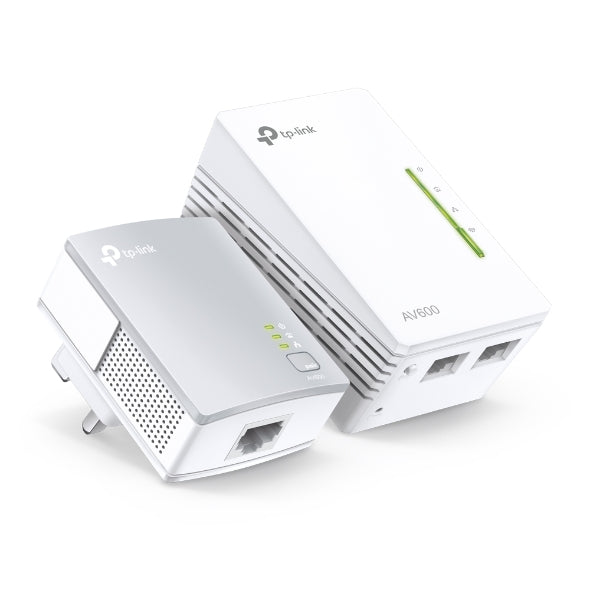

TP-Link TL-WPA4220 KIT AV600 Powerline Wi-Fi Kit

• Description
• Specifications
• Downloads

• TP-Link TL-WPA4220 KIT AV600 Powerline Wi-Fi Kit


  Wired or Wireless? Why not Both!
  Internet Goes Further
  with Your Home’s Electricity System

  AV600 Powerline Wi-Fi Kit

  TL-WPA4220 KIT

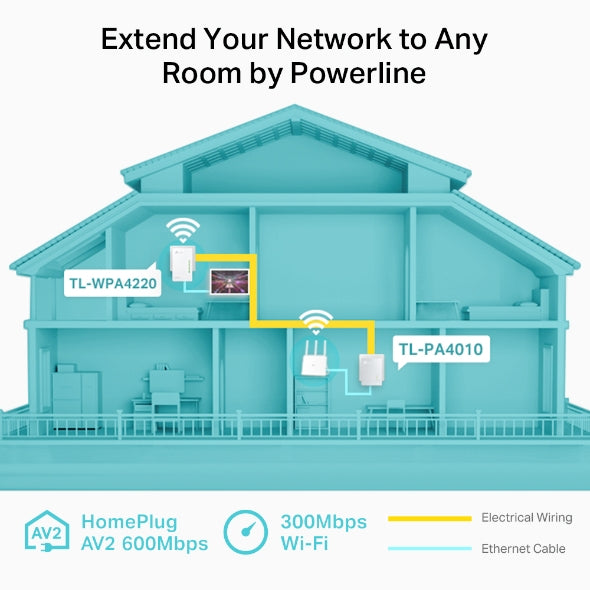

  Extend Wired and Wireless Network to Any Room Using Existing Powerline
  Based on the Powerline technology, your network extension is never limited to the primary coverage of your router. With advanced HomePlug AV600, the TL-WPA4220 KIT transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling and brings wired and wireless network to anywhere there is a power outlet.

  AV600 Speeds and 300 Meters Range
  Using advanced HomePlug AV2 technology, TL-WPA4220 KIT provides stable and high-speed data transmissions of up to 600 Mbps* for ranges up to 300 meters where there is a power outlet. No interference on electrical or electronic equipment. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

  Plug and Play with No Configuration Required
  Ditch the complicated setup process for good. Get started with powerline in just two steps :

  Step1 : connect TL-PA4010 to your router.
  Step2 : plug in TL-WPA4220 wherever you need wired and wireless internet service.
  Pair for more security
  Press the “Pair” button on each adapter to create a more secure network.

  Wi-Fi Auto-Sync for Unified Wi-Fi Network
  Wi-Fi Auto-Sync creates a simple, intuitive powerline experience. Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.

  Two Fast Ethernet Ports for Wired Connections
  With two fast Ethernet ports, the TL-WPA4220 can run multiple high-speed and reliable wired connections at the same time for devices like smart TVs, PCs, and game consoles. Two Ethernet cables are included in the box.

  Powerline Management on Your Smartphone
  The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices. You can download the intuitive new tpPLC Utility for your PC at www.tp-link.com/support/download/.

• HARDWARE FEATURES
  Transmission Speeds	Powerline: up to 600 Mbps
  	Ethernet: 10/100 Mbps
  Standards and Protocols	HomePlug AV2, HomePlug AV, IEEE 1901,
  	IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n
  Compatibility	Compatible with all HomePlug AV &
  	AV2 standard powerline adapters
  Plug Type	UK
  Interface	TL-WPA4220: 2 Ethernet Ports
  	TL-PA4010: 1 Ethernet Port
  Button	Pair, Reset, Wi-Fi Clone
  Power Consumption	TL-WPA4220: Maximum: 5.6W, Typical: 5.2W
  	TL-PA4010: Maximum: 2.6W, Typical: 2.3W
  LED Indicator	Power, Powerline, Ethernet, Wi-Fi
  Dimensions (W x D x H)	TL-WPA4220: 2.1 × 1.6 ×3.7 in (54 × 40 × 94 mm)
  	TL-PA4010: 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm)
  Range	Up to 300 meters/1000 feet over existing electrical wiring

  WIRELESS FEATURES
  Wireless Security	WPA-PSK / WPA2-PSK, WEP Encryptions

  SOFTWARE FEATURES
  Management	TP-Link tpPLC App
  	Or download new tpPLC Utility on PCs: www.tp-link.com.
  Modulation Technology	OFDM (PLC)
  Encryption	Powerline Security: 128-bit AES Encryption
  	Wireless Security: WPA-PSK / WPA2-PSK, WEP Encryptions

  OTHERS
  Certification	CE, RoHS
  Package Contents	AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA4010
  	2× Ethernet Cables
  	1× Quick Installation Guide
  System Requirements	Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
  Environment	Operating Temperature: 0 °C40 °C (32 °F104 °F)
  	Operating Humidity: 10%~90% non-condensing
  	Storage Humidity: 5%~90% non-condensing
