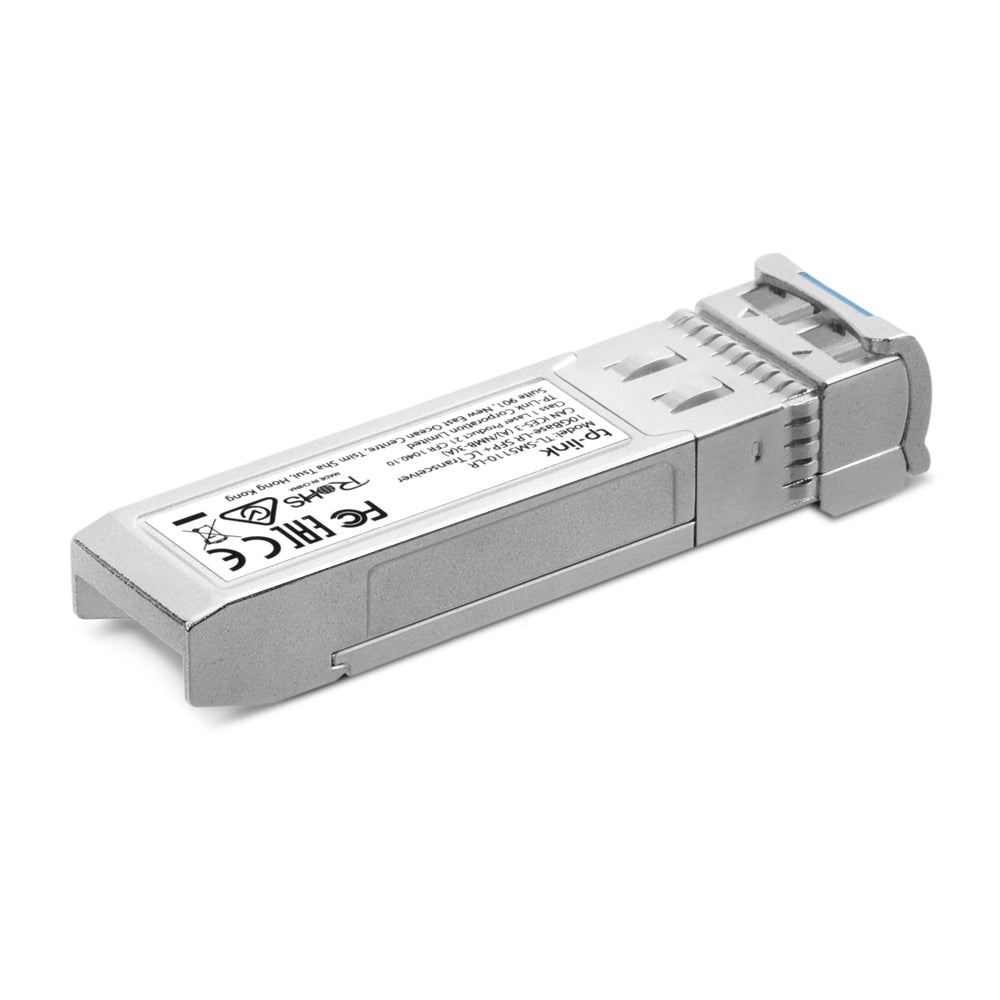

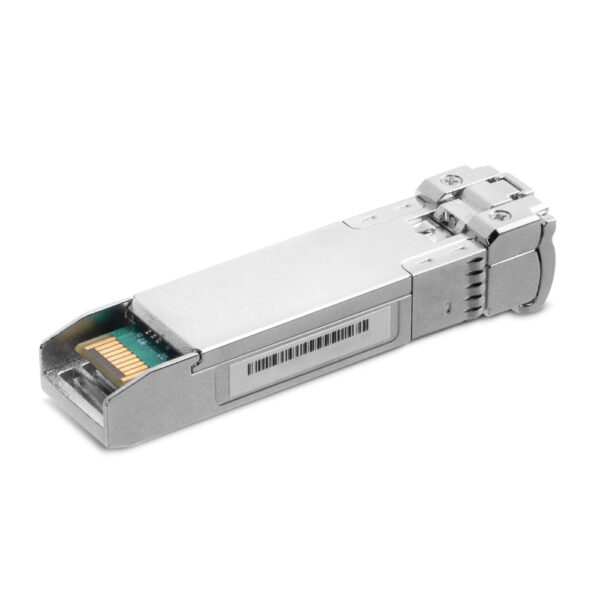

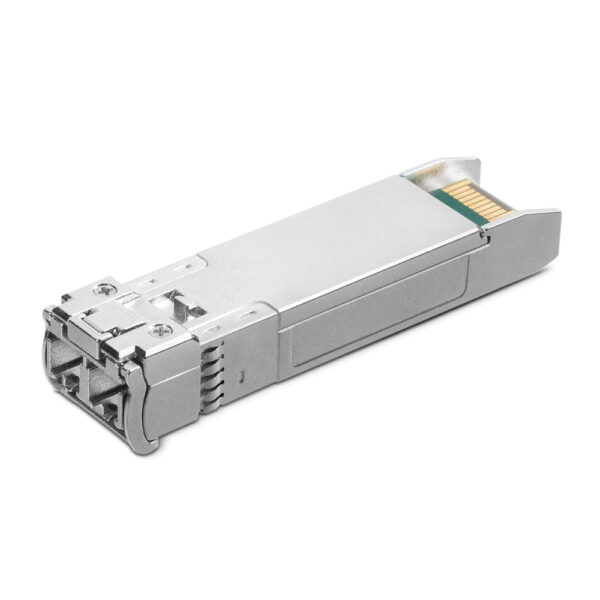

• TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver


  The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

  Single-mode SFP+ LC Transceiver
  Hot-Pluggable with maximum flexibility
  Supports Digital Diagnostic Monitoring (DDM)
  Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
  Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

• PACKAGE CONTENTS
  Package Contents	• 10G SFP+ Module TL-SM5110-LR <br> • Installation Guide

  HARDWARE FEATURES
  DDM	Yes
  SFP-MSA	Yes
  Hot Swappable	Yes

  MEDIA CONVERTER & MODULE
  Dimensions (WDH)	2.20.50.4 in (56.713.910.35 mm)

  TRANSCEIVER
  Standards and Protocols	IEEE 802.3ae, TCP/IP
  Wave Length	1310 nm
  Power Supply	3.3V
  Fiber Type	9/125um Single-Mode
  Max. Cable Length	10 km
  Data Rate	10 Gbps
  Port Type	LC Duplex
  Safety & Emission	FCC, CE
  Environment	Operating Temperature: 0–70 °C (32–158 °F) <br> Storage Temperature: -40–85 °C ( -40–185 °F) <br> Operating Humidity: 10–90% RH, Non-Condensing <br> Storage Humidity: 5–90% RH, Non-Condensing
