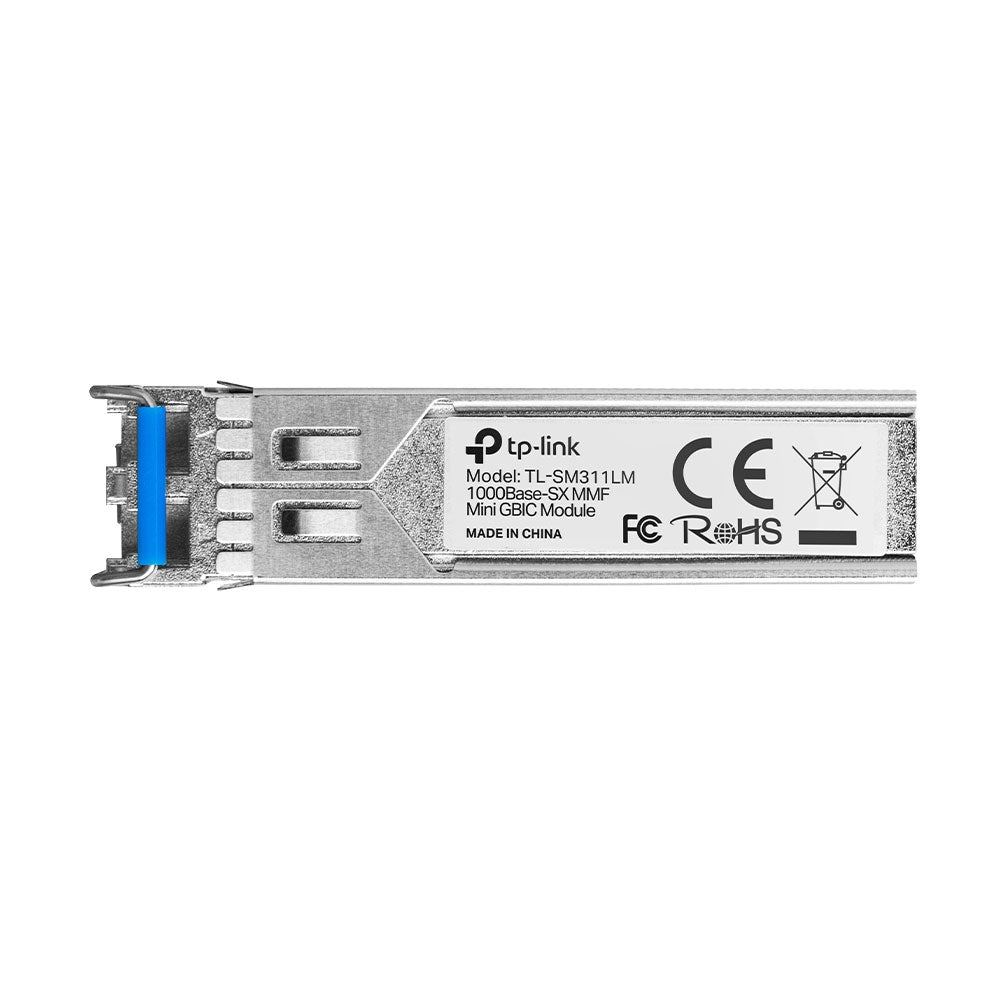

TP-Link TL-SM311LM MiniGBIC Module

• Description
• Specifications
• Downloads

• TP-Link TL-SM311LM MiniGBIC Module


  The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

  Multi-mode MiniGBIC module

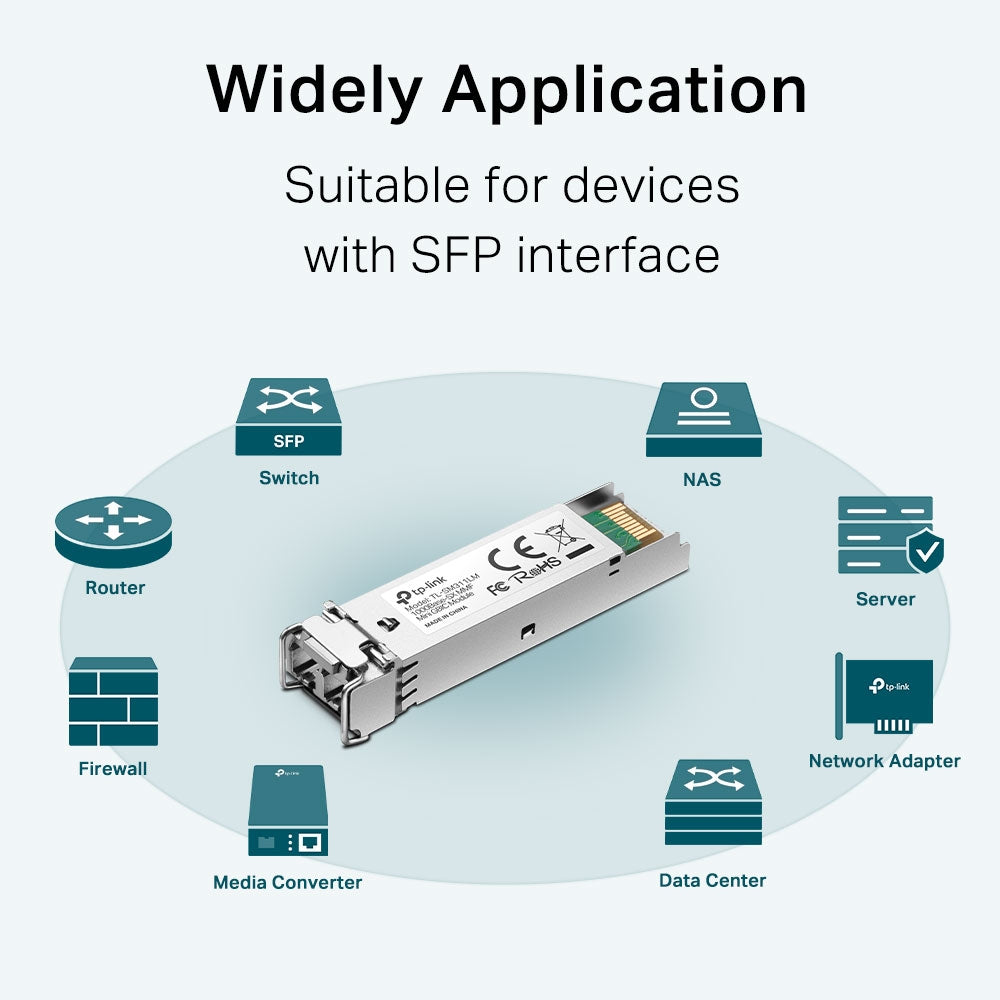

  Compatible with all SFP ports on TP-Link product including JetStream switches, and media converter MC220L.
  Work with MC200CM with a multi-mode fiber connection
  Up to 550m range with 50/125 μm multi-mode fiber
  Up to 275m range with 62.5/125 μm multi-mode fiber

• MEDIA CONVERTER & MODULE
  Standards and Protocols	IEEE 802.3z, CSMA/CD, TCP/IP
  Wave Length	850nm
  Dimensions (WDH)	2.20.50.5 in (55.413.712.9 mm)
  Power Supply	3.3V
  Safety & Emission	FCC, CE
  Cable	Multi-mode Fiber
  Fiber Type	50/125μm or 62.5/125μm Multi-mode
  Max. Cable Length	550m
  Data Rate	1.25Gbps
  Port Type	LC/UPC
  Environment

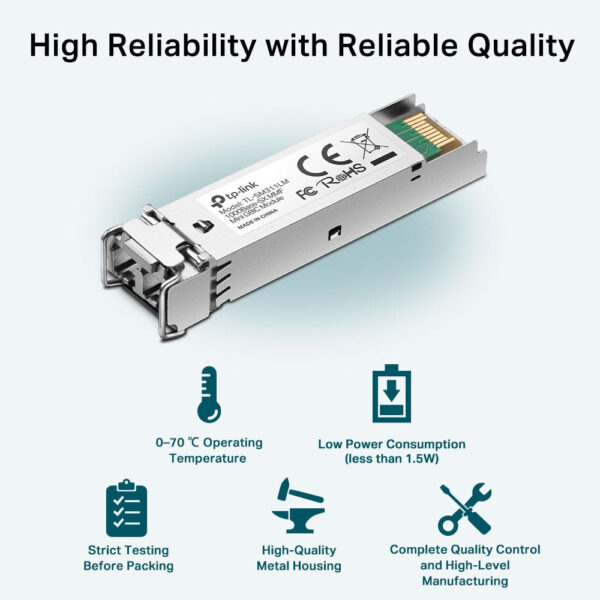

  Operating Temperature	0℃70℃ (32℉158℉)
  Storage Temperature	-40℃80℃ (-40℉176℉)
  Operating Humidity	10%~90% non-condensing
  Storage Humidity	5%~90% non-condensing
