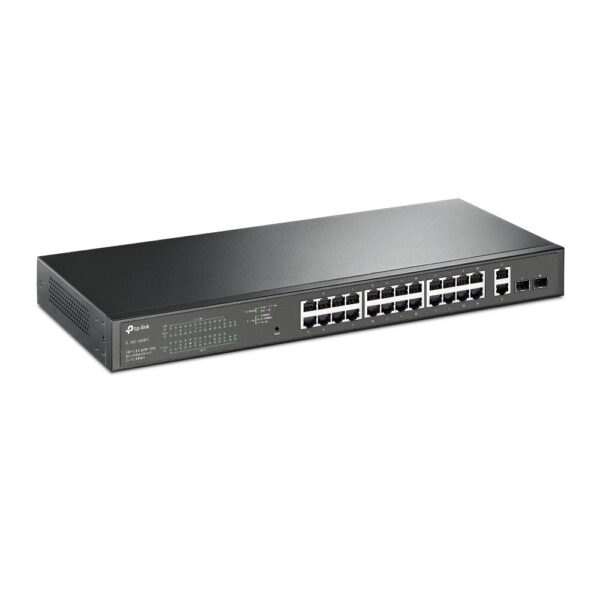

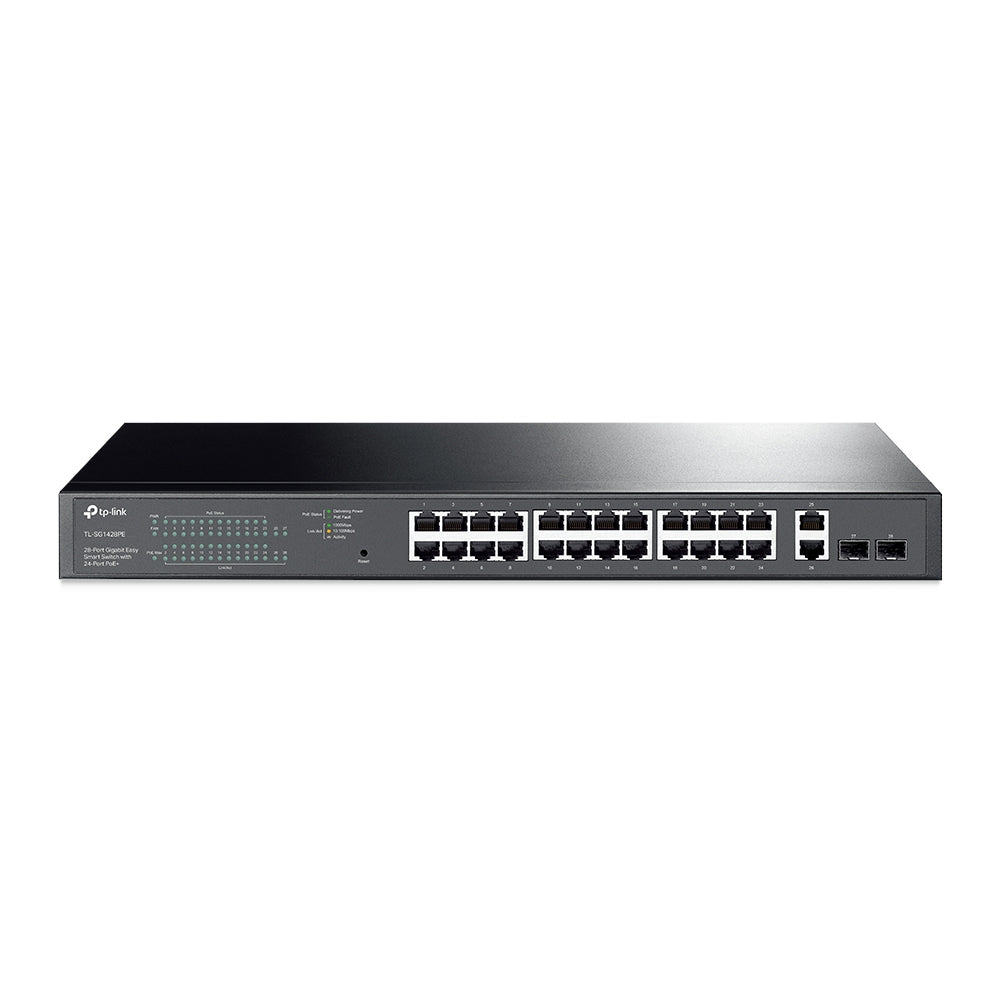

TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart PoE Switch with 24-Port PoE+

• Description
• Specifications
• Downloads

• TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart PoE Switch with 24-Port PoE+


  Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
  Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

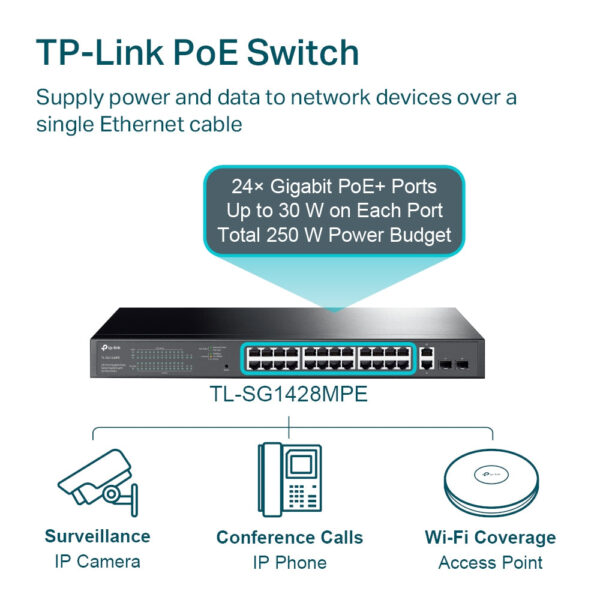

  Multiple Application Scenarios
  The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

  Surveillance
  Works with IP Cameras

  Conference Call
  Works with IP Phones

  Wi-Fi Coverage
  Works with Omada EAPs

  Wired Connections
  Works with PCs and Printers

  Dedicated 24 PoE+ Ports (250 W Budget) for
  Numerous Applications
  Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

  Easy to Use

  Value-Added Features Bring Unexpected Experiences

  QoS for a Lag-Free Experience
  Ensures smooth traffic for latency-sensitive applications, such as voice and video

  IGMP Snooping for Multicast Optimization
  Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

  VLAN for Security
  Helps to create a network with higher security and better overall performance by dividing the network into smaller groups

  Making Management Easy
  TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

  Multiple Factors Guarantee Stable Operation

  System Self-Healing with PoE Auto Recovery
  The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

  Intelligent Power Management to Prevent Power Overload
  Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.

  Great Compatibility with PD Detection
  Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

  Wide Operating Temperature with Good Heat Dissipation
  Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

• Hardware Features	Description
  Standards and Protocols	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at, 802.1q, 802.1p
  Interface	26 x 10/100/1000 Mbps RJ45 Ports, 2 x Gigabit SFP Ports
  Network Media	See below
  Fan Quantity	2 Fans
  Physical Security Lock	Yes

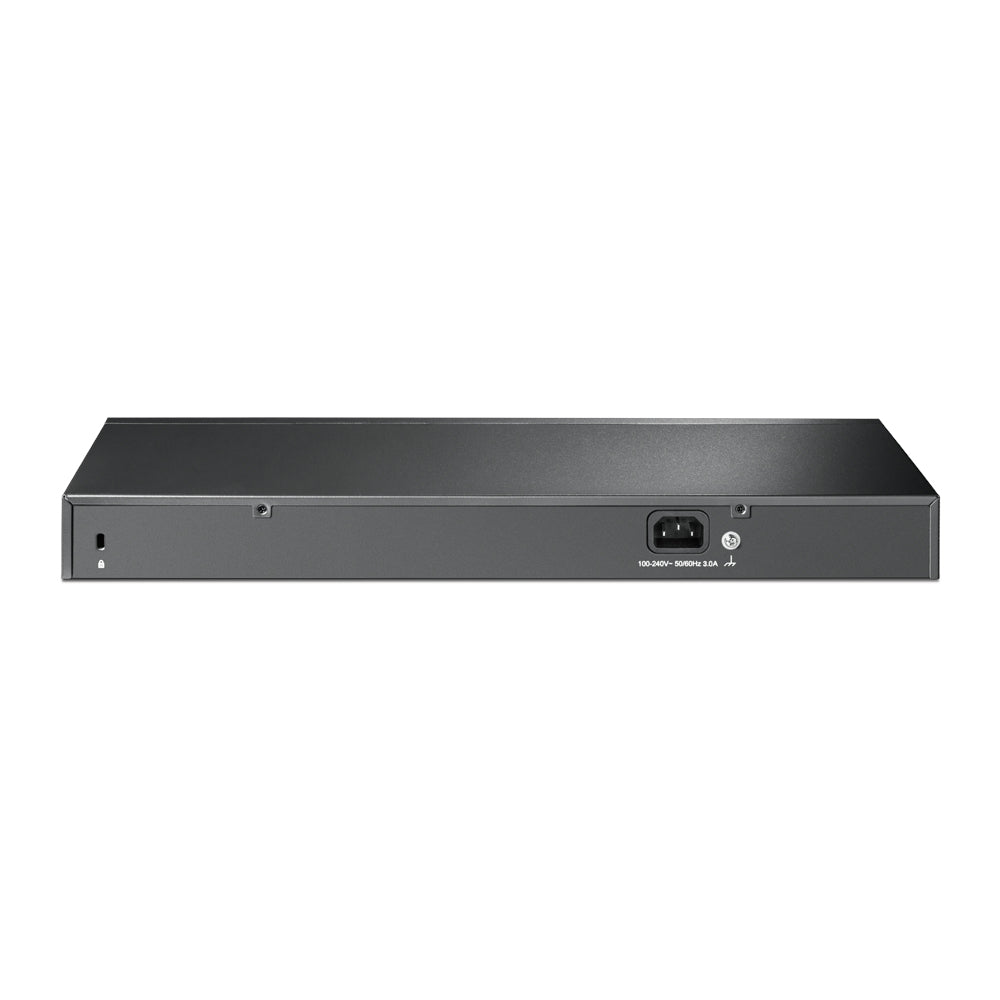

  Power Supply	100-240V AC, 50/60 Hz
  PoE+ Ports(RJ45)	Standard: 802.3at/802.3af compliant, PoE+ Ports: 24, Power Supply: 250 W
  Dimensions (W x D x H)	17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
  Mounting	Rack Mountable
  Max Power Consumption	27 W (no PD connected), 304.7 W (with 250 W PD connected)
  Max Heat Dissipation	92.07 BTU/h (no PD connected), 1039.03 BTU/h (with 250 W PD connected)

  Performance	Description
  Switching Capacity	56 Gbps
  Packet Forwarding Rate	41.7 Mbps
  MAC Address Table	8K
  Packet Buffer Memory	4.1 Mbit
  Jumbo Frame	9 KB

  Software Features	Description
  Quality of Service	See below
  L2 Features	IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, PoE Auto Recovery
  VLAN	See below
  Management	Web-Based GUI, Easy Smart Configuration Utility
  Transmission Method	Store-And-Forward

  Others	Description
  Certification	CE, FCC, RoHS
  Package Contents	TL-SG1428PE, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
  Environment	See below

  Network Media
  10BASE-T	UTP category 3, 4, 5 cable (max 100m)
  	EIA/TIA-568 100Ω STP (max 100m)
  100BASE-TX	UTP category 5, 5e cable (max 100m)
  	EIA/TIA-568 100Ω STP (max 100m)
  1000BASE-T	UTP category 5, 5e, 6 or above cable (max 100m)
  	EIA/TIA-568 100Ω STP (max 100m)
  1000BASE-X	MMF, SMF

  Quality of Service
  Support	Port-based 802.1p/DSCP priority, 4 priority queues, Rate Limit, Storm Control

  VLAN
  Support	Up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN

  Environment
  Operating Temperature	0°C50°C (32°F122°F)
  Storage Temperature	-40°C70°C (-40°F158°F)
  Operating Humidity	10% ~ 90% non-condensing
  Storage Humidity	5%~90% non-condensing
