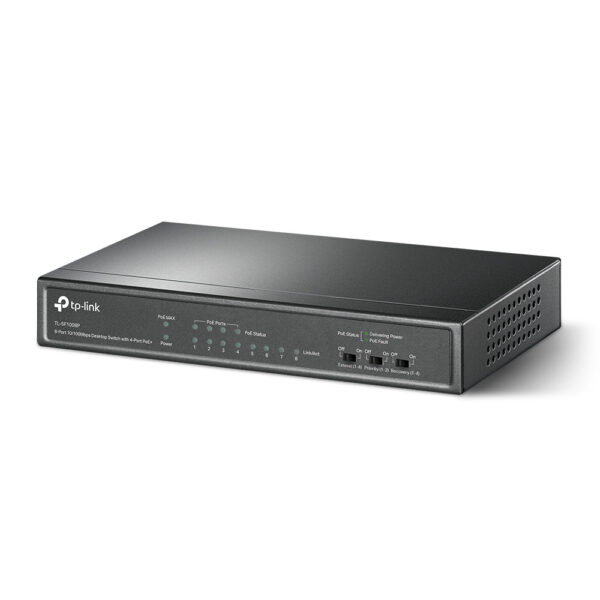

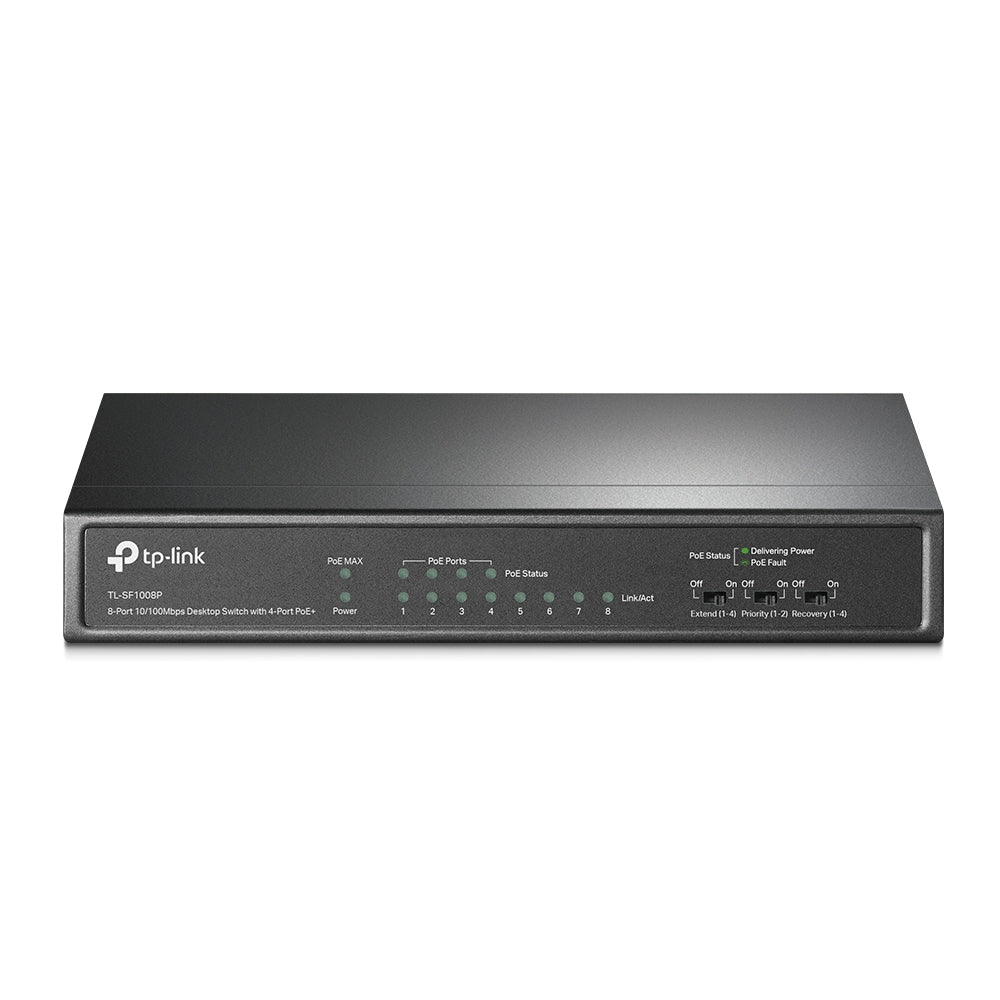

• TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE+


  Professional High-Power 8-Port Unmanaged Switch with 4 PoE+ Ports
  Plug and Play, with PoE Transmission for Surveillance up to 250 m
  TL-SF1008P

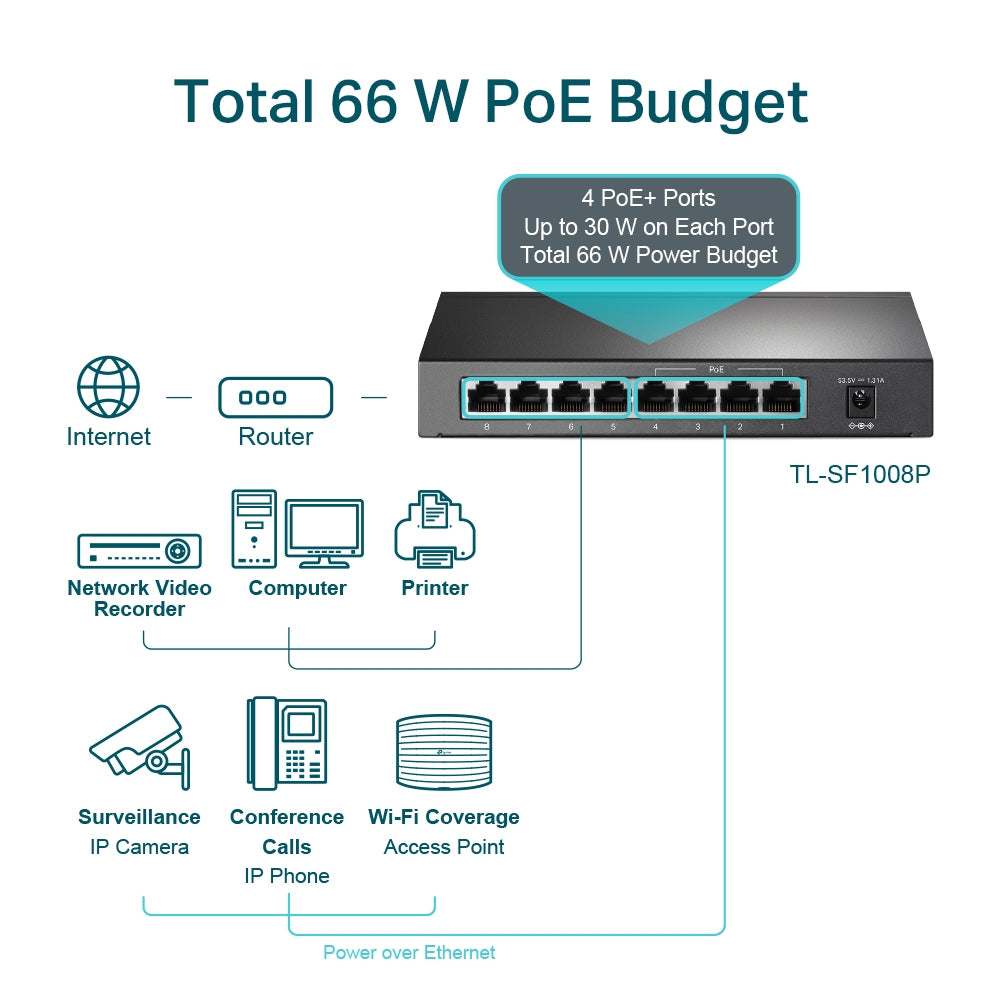

  Dedicated 8-Port Switch with 4-Port PoE+ (66 W Budget) for Numerous Applications
  Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 66 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

  Plug and Play, No Configuration Required

  Dedicated Design for IP Surveillance
  —Up to 250 m Transmissions
  With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.

  *The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

  Priority Video
  Quality Guaranteed
  Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

  System Self-Healing
  with PoE Auto Recovery
  The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

  Intelligent Power Management
  When total power consumption exceeds 66 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

  Durable Metal Casing
  The interior components of TL-SF1008P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008P delivers switching performance you can depend on.

• HARDWARE FEATURES

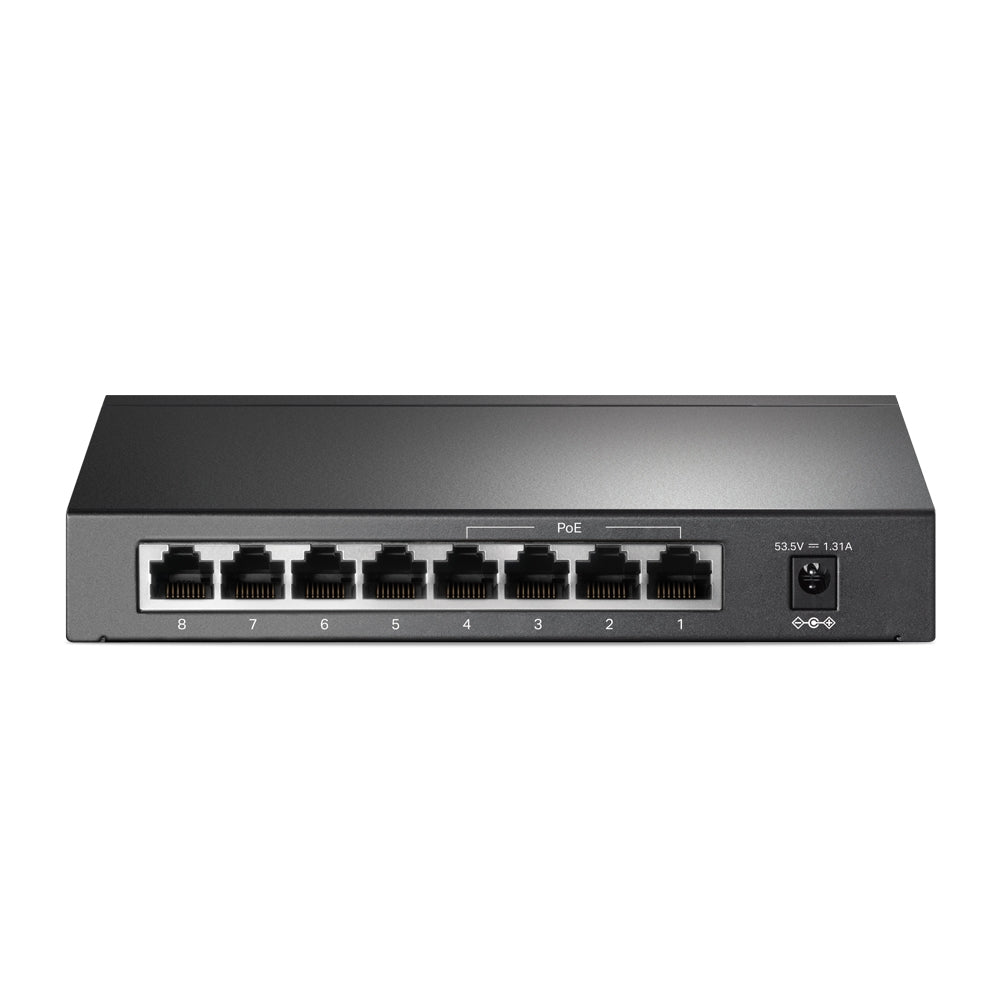

  Interface	8× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports), AUTO Negotiation, AUTO MDI/MDIX
  Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
  Fan Quantity	Fanless
  Physical Security Lock	Yes
  External Power Supply	External Power Adapter (Output: 53.5 V DC / 1.31 A)
  Packet Forwarding Rate	1.1904 Mpps
  PoE Ports (RJ45)	Standard: 802.3 af/at compliant; PoE Ports: Ports 1–4; Power Supply: 66 W
  Mac Address Table	2K
  Jumbo Frame	2 KB
  Switching Capacity	1.6 Gbps
  Dimensions (W x D x H)	6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
  Max Power Consumption	2.27 W (220 V/ 50 Hz. no PD connected); 75.33 W (220 V/ 50 Hz. with 66 W PD connected)
  Max Heat Dissipation	7.74 BTU/h (no PD connected); 256.88 BTU/h (with 66 W PD connected)

  SOFTWARE FEATURES
  Transmission Method	Store-And-Forward
  Advanced Functions	Extend Mode Button (Ports 1–4); Priority Mode Button (Ports 1–2); PoE Auto Recovery Button (Ports 1–4); Mac Address Auto-Learning and Auto-Aging

  OTHERS
  Certification	FCC, CE, RoHS
  Package Contents	TL-SF1008P, Power Adapter, Installation Guide, Rubber Feet
  Environment	Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
