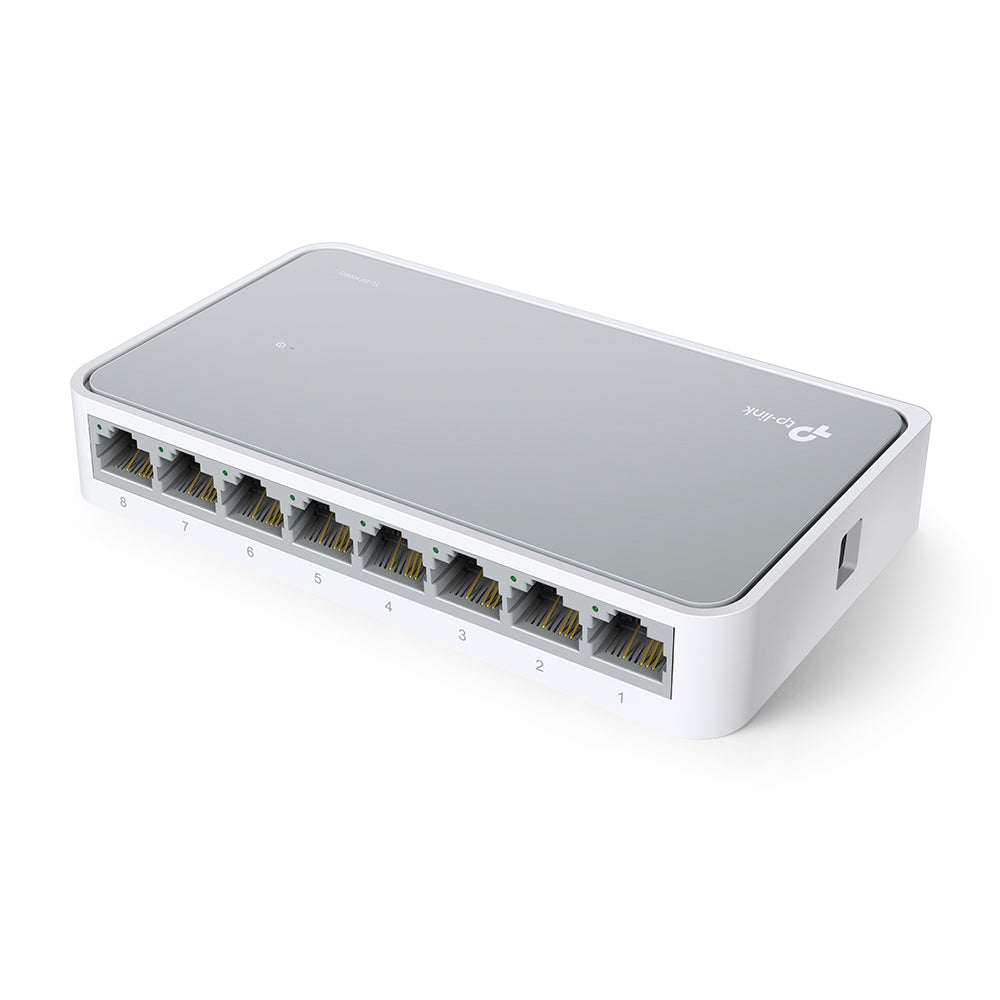

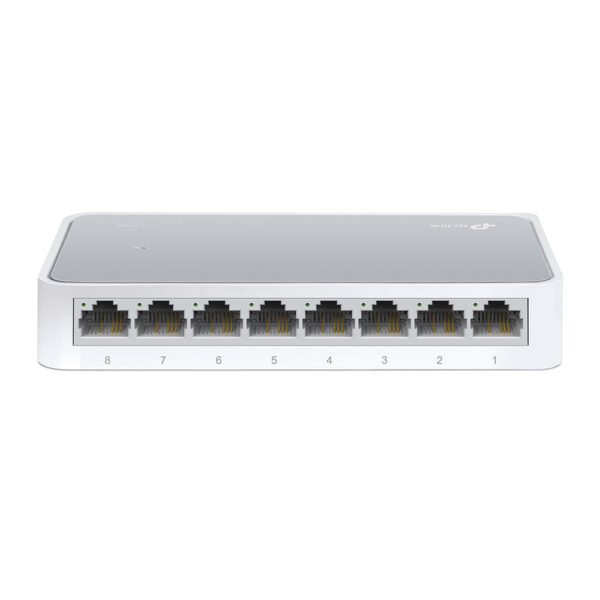

TP-Link TL-SF1008D 8-Port 10/100Mbps Desktop Switch

• Description
• Specifications
• Downloads

• TP-Link TL-SF1008D 8-Port 10/100Mbps Desktop Switch


  What This Product Does
  The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.

  High Performance
  TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

  Easy to Use
  The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

• HARDWARE FEATURES
  Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, CSMA/CD
  Interface	8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
  Fan Quantity	Fanless
  Power Supply	External Power Adapter (Output: 5.0VDC / 0.6A)
  External Power Supply	100-240VAC, 50/60Hz
  Buffer Size	768Kb
  Data Rates	10/100Mbps at Half Duplex; 20/200Mbps at Full Duplex
  LED Indicator	Power, 1, 2, 3, 4, 5, 6, 7, 8
  Dimensions (W x D x H)	5.3 x 3.1 x 0.9 in. (134.5 x 79 x 22.5mm)
  Max Power Consumption	2.05W (220V/50Hz)
  Max Heat Dissipation	6.99 BTU/h

  SOFTWARE FEATURES
  Transfer Method	Store and Forward
  Advanced Functions	Green Technology
  	802.3X Flow Control, Back Pressure

  OTHERS
  Certification	FCC, CE, RoHS
  Package Contents	8-Port 10/100Mbps Desktop Switch
  	Power Adapter
  	Installation Guide
  Environment	Operating Temperature: 0°C40°C (32°F104°F)
  	Storage Temperature: -40℃60℃ (-40°F140°F)
  	Operating Humidity: 10%~90% non-condensing
  	Storage Humidity: 5%~90% non-condensing
