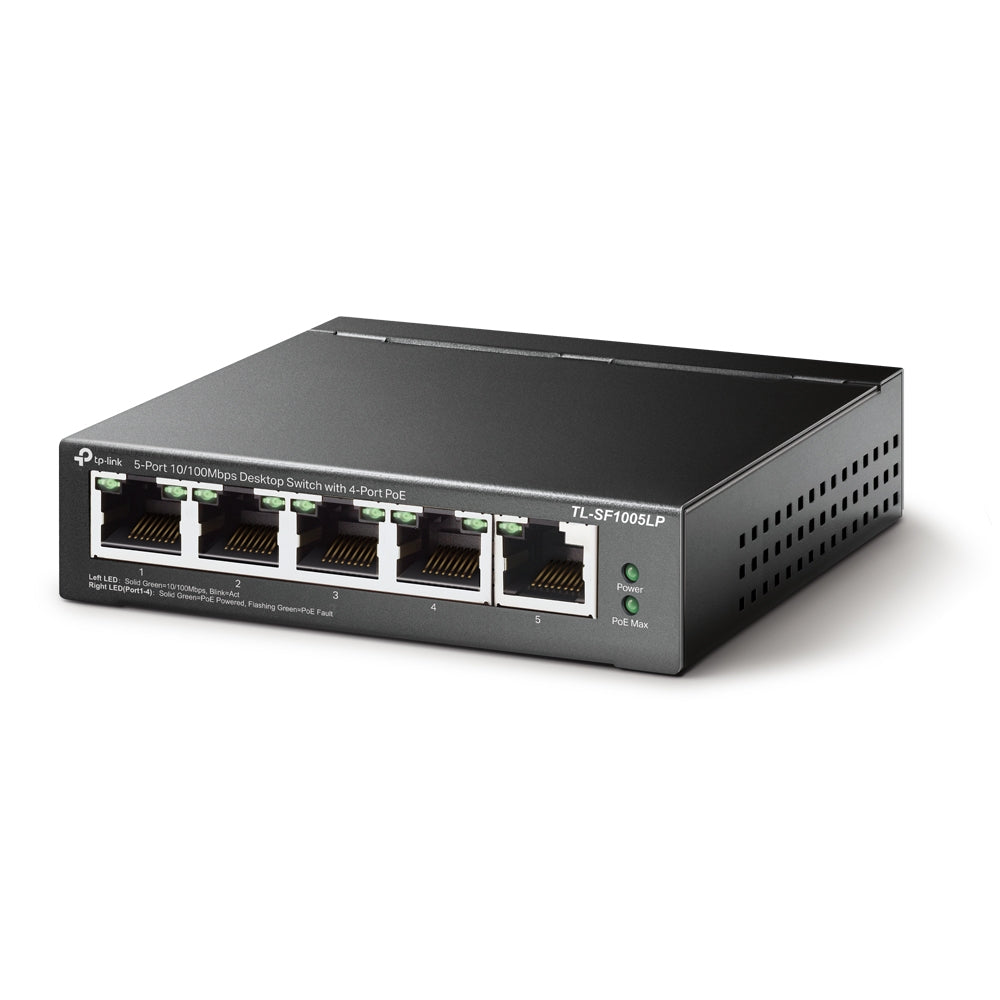

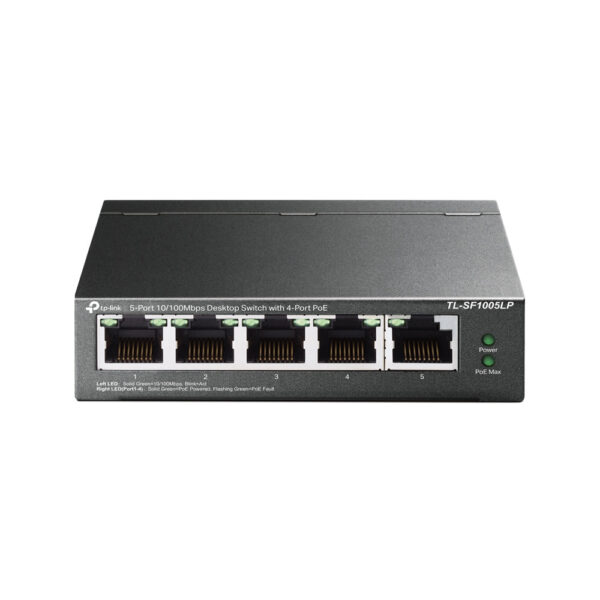

• TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE


  Professional Fast Ethernet Switch with 4 PoE Ports
  Plug and Play, with PoE Transmission for Surveillance up to 250 m
  TL-SF1005LP

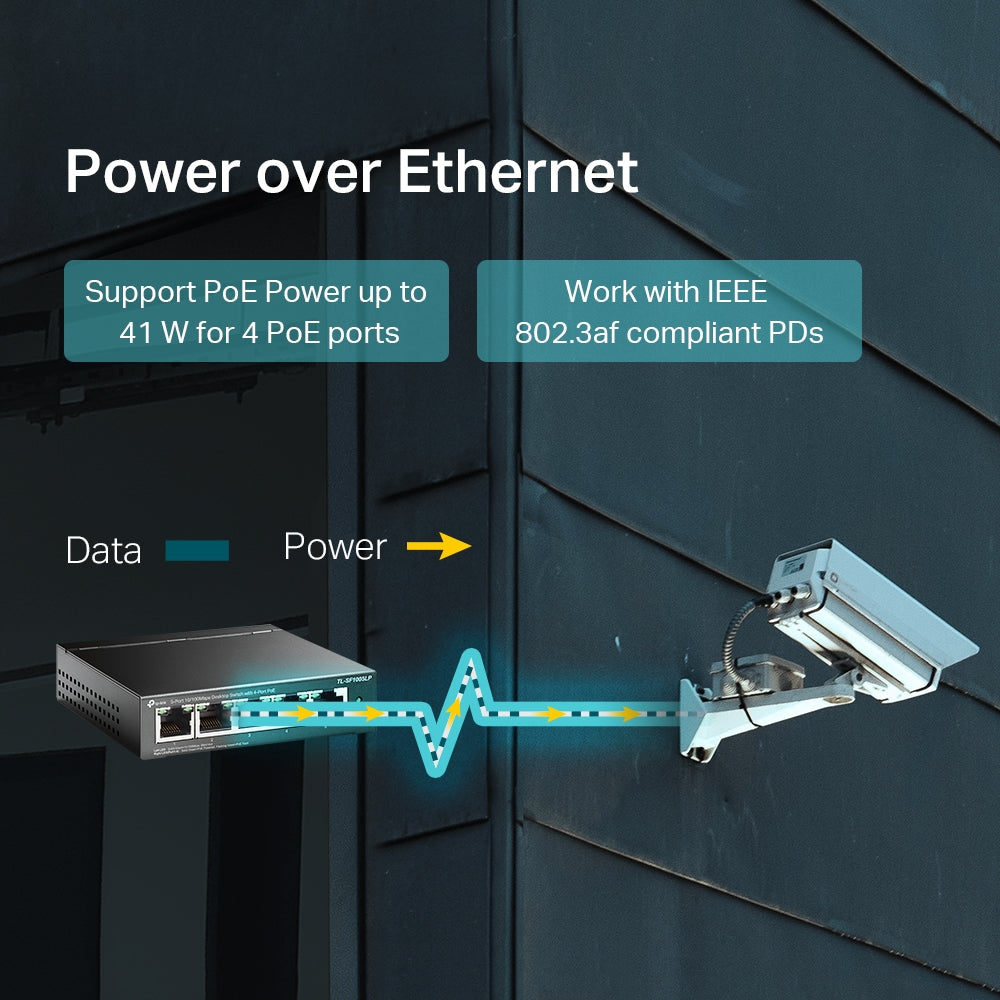

  Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
  Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

  Plug and Play, No Configuration Required

  Ideal for IP Surveillance
  —Up to 250 m Transmissions
  With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

  Priority Video
  Quality Guaranteed
  Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

  Intelligent Power Management
  When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

  Durable Metal Casing
  The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.

• HARDWARE FEATURES
  Interface	• 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX
  Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
  Fan Quantity	Fanless
  Physical Security Lock	Yes
  External Power Supply	External Power Adapter (Output: 53.5 V DC / 0.81 A)
  Packet Forwarding Rate	0.744 Mpps
  PoE Ports (RJ45)	• Standard: 802.3 af compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W
  Mac Address Table	2K
  Jumbo Frame	2 KB
  Switching Capacity	1 Gbps
  Dimensions ( W x D x H )	3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
  Max Power Consumption	• 1.9 W (220 V / 50 Hz, no PD connected) • 47 W (220 V / 50 Hz, with 41 W PD connected)
  Max Heat Dissipation	• 6.48 BTU/h(no PD connected) • 160.27 BTU/h(with 41 W PD connected)

  SOFTWARE FEATURES
  Transmission Method	Store-And-Forward
  Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

  OTHERS
  Certification	FCC, CE, RoHS
  Package Contents	• TL-SF1005LP • Power Adapter • Installation Guide
  Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
