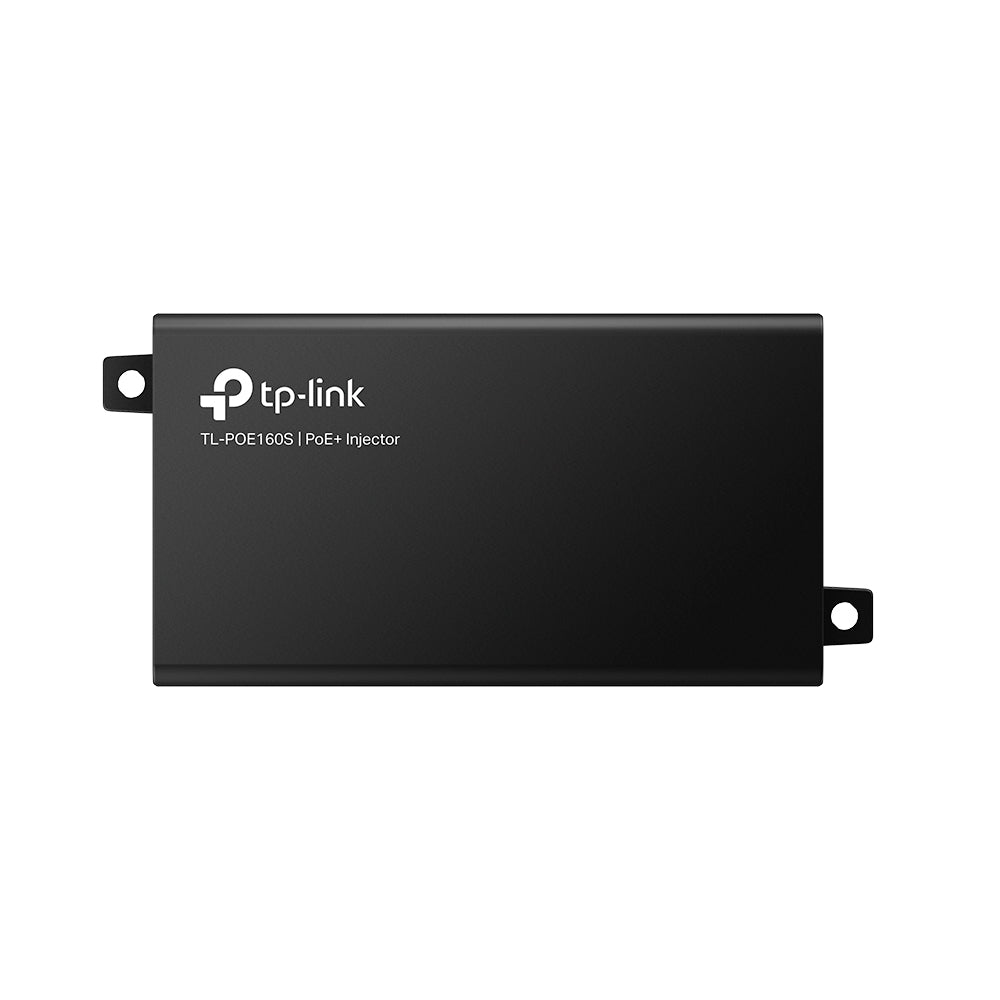

TP-Link TL-POE160S PoE+ Injector

• Description
• Specifications
• Downloads

• TP-Link TL-POE160S PoE+ Injector


  The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

• NETWORK
  Standards and Protocols	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
  GENERAL
  Certification	FCC, CE, RoHS
  Environment
  Operating Temperature	0°C to 40°C (32°F to 104°F)
  Storage Temperature	-40°C to 70°C (-40°F to 158°F)
  Operating Humidity	10% to 90%RH non-condensing
  Storage Humidity	5% to 90%RH non-condensing
  PACKAGE CONTENTS
  Package Contents	PoE+ Injector TL-POE160S, Installation Guide, Power Cord, RJ45 Cable, Wall Mounting Kits
  HARDWARE FEATURES
  Network Media

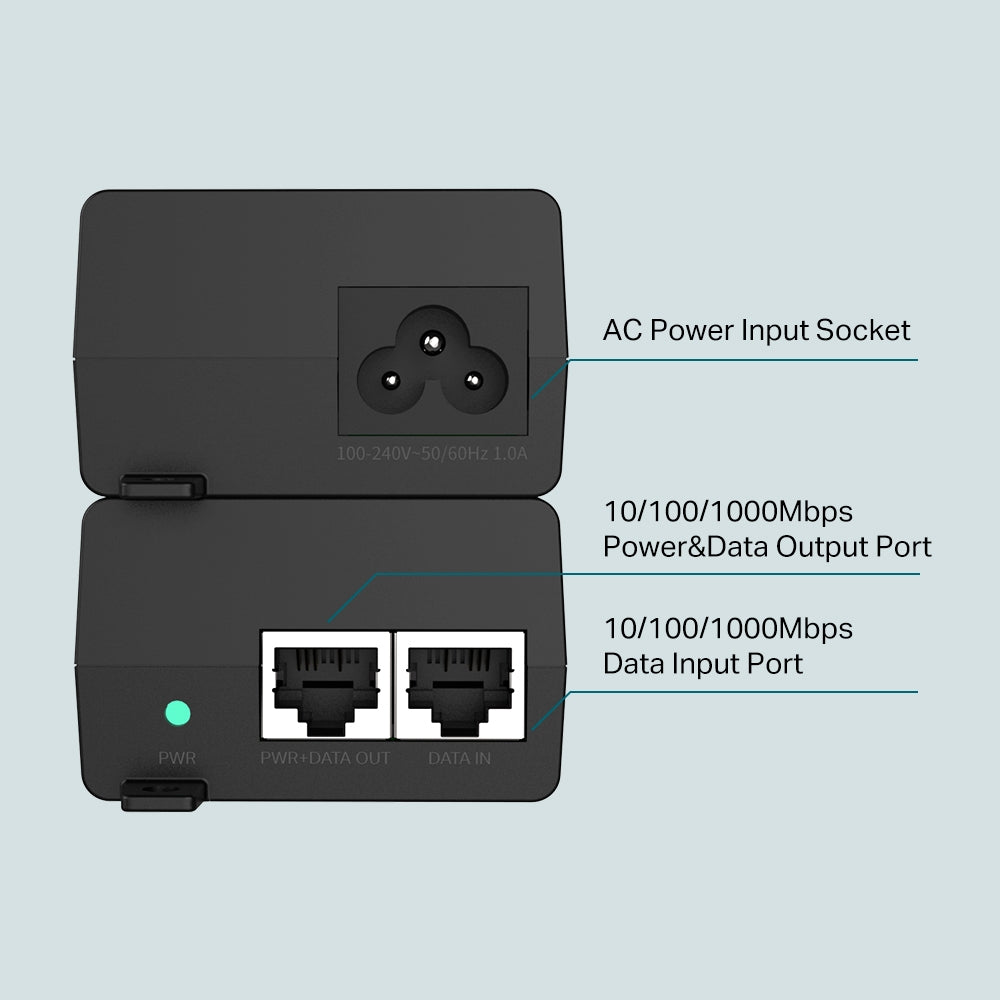

  Ports	1 10/100/1000Mbps RJ45 data-in port, 1 10/100/1000Mbps RJ45 power+data-out port, 1 AC socket
  Power Consumption	Input: 100-240 V, 50/60 Hz, Output: Auto-determine the necessary power requirements (max. 30 W)
  Basic Function	Auto-Sensing Algorithm enables providing power with 802.3af/at PD, Auto-determine the necessary power requirements, Wall-mounting and desktop installation supported, Plug-and-Play
  LED Indicator	ON: Supplying power normally, OFF: No power supply
  Dimensions (W x D x H)	4.9 x 2.3 x 1.4 in (125 x 59.4 x 36.8 mm)
