TP-Link TL-POE150S V3 Network Splitter Black Power Over Ethernet

TP-Link TL-POE150S V3 Network Splitter Black Power Over Ethernet

• Description
• Specifications
• Downloads

• TP-Link TL-POE150S V3 Network Splitter Black Power Over Ethernet


  IEEE 802.3af compliant
  Auto-determine the necessary power requirements
  Gigabit speed support
  Plug-and-Play, requires no configuration

  The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

• Hardware Features

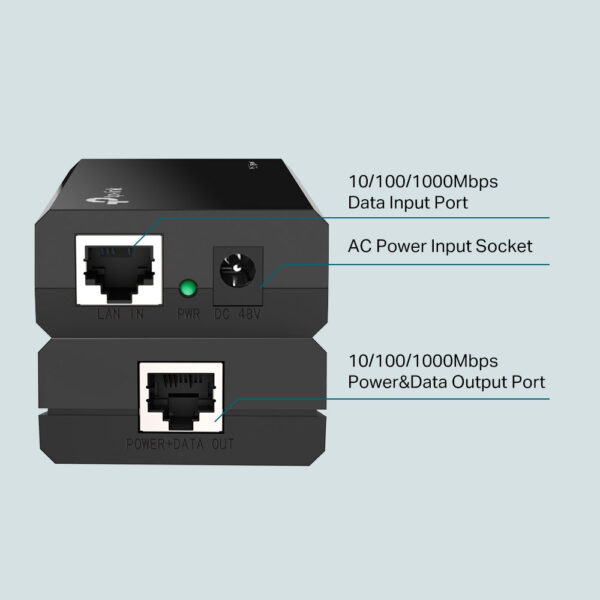

  Interface	2 10/100/1000Mbps RJ45 Port
  	AUTO Negotiation/AUTO MDI/MDIX
  	1 48VDC POWER INPUT PORT
  Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
  	EIA/TIA-568 100Ω STP (Max 100m)
  	100BASE-TX: UTP category 5, 5e cable (Max 100m)
  	EIA/TIA-568 100Ω STP (Max 100m)
  	1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
  Power Supply	15.4W (Max. 48VDC)
  LED Indicator	PWR
  Dimensions (W x D x H)	3.22.10.9 in.(80.85424 mm)
  Software Features
  Basic Function	Compatible With IEEE 802.3af Compliant PDs
  	Delivers Power Up To 100 Meters
  	Auto-Determine The Necessary Power Requirements
  Others
  Certification	FCC, CE, RoHS
  Package Contents	Gigabit PoE Injector TL-POE150S, Power Adapter, RJ45 Cable, Installation Guide
  System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
  Environment
  Operating Temperature	0℃~40℃ (32℉~104℉)
  Storage Temperature	-40℃~70℃ (-40℉~158℉)
  Operating Humidity	10%~90% non-condensing
  Storage Humidity	5%~90% non-condensing

• Description	Downloads
  TP-Link TL-POE150S V3 Network Splitter Black Power Over Ethernet Installation Guide	Downloads
