TP-Link TL-POE10R V4 Network Splitter Black Power Over Ethernet
- Description
- Specifications
- Downloads
-

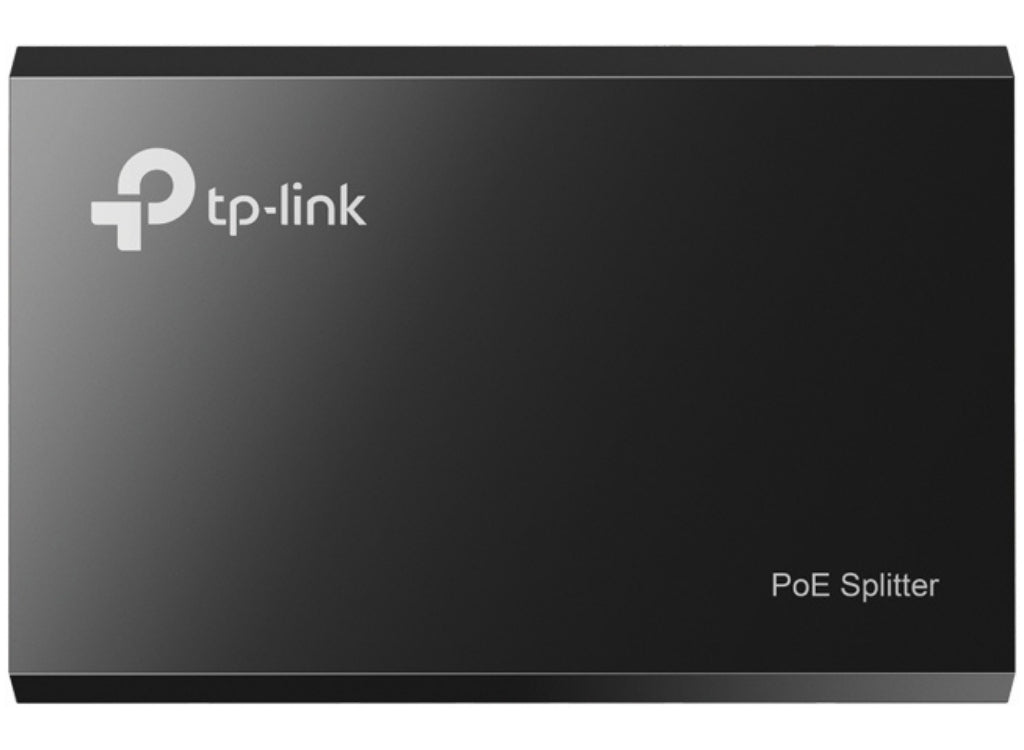

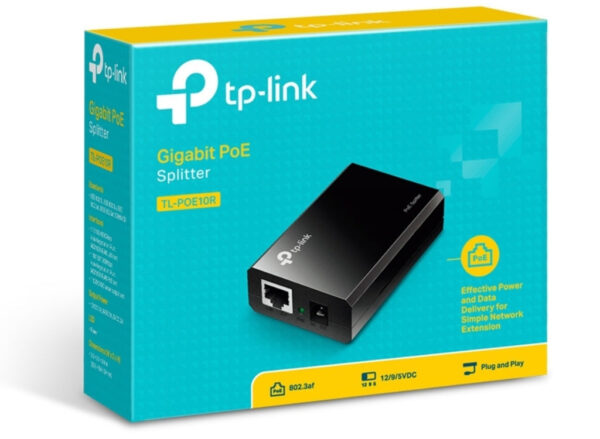

TP-Link TL-POE10R V4 Network Splitter Black Power Over Ethernet
IEEE 802.3af compliant
Output: 12VDC 1A, 9VDC 1A, 5VDC 2A selectable
Gigabit speed support
Plug-and-Play, requires no configurationThe PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK’s T1600G-52PS, TL-SG1008PE or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
-
Feature Details Interface 2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 POWER OUTPUT PORT (5.5 mm round barrel) Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) Power Supply 12VDC 1A, 9VDC 1A, 5VDC 2A selectable Basic Function Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Output LED Indicator PWR Dimensions (W x D x H) 3.2 × 2.1 × 0.9 in. (81 × 54 × 24 mm) SOFTWARE FEATURES Basic Function Compatible with IEEE 802.3af compliant power sources (PSE) Delivers power up to 100 meters Selectable 12VDC, 9VDC or 5VDC power output OTHERS Certification FCC, RoHS Package Contents PoE Splitter TL-POE10R Power Cord RJ45 Cable Installation Guide Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing -
Description Downloads TP-Link TL-POE10R V4 Network Splitter Black Power Over Ethernet Installation Guide Downloads TP-Link TL-POE10R V4 Network Splitter Black Power Over Ethernet DataSheet Downloads
