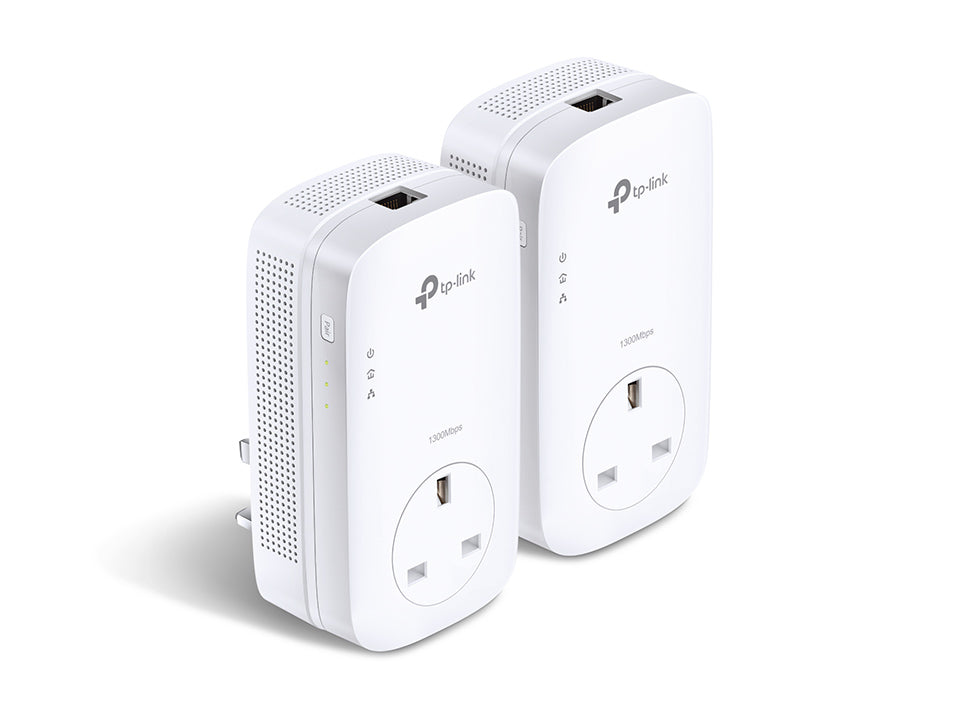

TP-Link TL-PA8010P KIT V2/AV1300 Gigabit Passthrough Powerline Starter Kit

• Description
• Specifications
• Downloads

• TP-Link TL-PA8010P KIT V2/AV1300 Gigabit Passthrough Powerline Starter Kit

  AV1300 Powerline Kit
  Bring Your Home Network Into New Era

  HomePlug AV2

  AV1300 Gigabit Passthrough
  Powerline Starter Kit
  TL-PA8010P KIT

  Line-Neutral / Line-Ground
  with Beamforming
  Larger Range
  MIMO Technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets.

  Long distance Long distanceMIMO SISO
  Higher Transmission Capacity &
  More Stable Connections
  MIMO Technology means the TL-PA8010P KIT can use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections.

  Gigabit Port for Ultra-fast Data Transfer Speed
  With one Gigabit Ethernet port, TL-PA8010P KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA8010P KIT the perfect home entertainment companion.

  Plug and Play,
  No Configuration Required
  Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet – and you’re done!

  Extra Power Socket for Additional Devices
  The integrated power socket, with power output of up to 16A*, means the powerline can be used like a traditional electrical socket. Simply plug in your device or extension lead as though it were a normal wall socket. The built-in noise filter also helps to prevent electrical signal noise from affecting Powerline performance.

  Power Save by
  Up to 85%
  TL-PA8010P KIT is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular “Working” mode to “Power-Saving” mode reducing energy consumption by up to 85%.

• HARDWARE FEATURES
  Standards and Protocols	HomePlug AV2, HomePlug AV, IEEE1901, IEEE802.3, IEEE802.3u, IEEE802.3ab
  Plug Type	EU, UK
  Interface	1 * Gigabit Ethernet Port, Power Socket
  Button	Pair Button
  Power Consumption	Maximum: 6W (220V/50Hz) Typical: 6W (220V/50Hz) Standby: 0.5W (220V/50Hz)
  LED Indicator	PWR, PLC, ETH
  Dimensions (W x D x H)	5.2×2.8×1.7 in. (131×72×42 mm)
  Range	300 Meters over electrical circuit
  Power Output to Integrated Socket	16 A

  SOFTWARE FEATURES
  Modulation Technology	OFDM (PLC)
  Encryption	Powerline Security: 128-bit AES

  OTHERS
  Certification	CE, RoHS
  Package Contents	Powerline Ethernet Adapter 6.5 ft. (2 m) Ethernet cable (RJ45) Quick Installation Guide
  System Requirements	Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux

  Environment
  Operating Temperature	0°C~40°C (32°F ~104°F)
  Storage Temperature	-40°C~70°C (-40°F ~158°F)
  Operating Humidity	10%~90% non-condensing
  Storage Humidity	5%~90% non-condensing
