• TP-Link TL-FC111A-20 10/100 Mbps WDM Media Converter


  TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

  How This Product Works
  TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.

  Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  9/125 μm SMF (Single-Mode Fiber)
  Bidirectional WDM communication on a single fiber
  Ranges up to 20km (12.4 miles)
  Work with TL-FC111B-20 as a pair

• Feature	Description
  Standards and Protocols	IEEE802.3, IEEE802.3i, IEEE802.3u

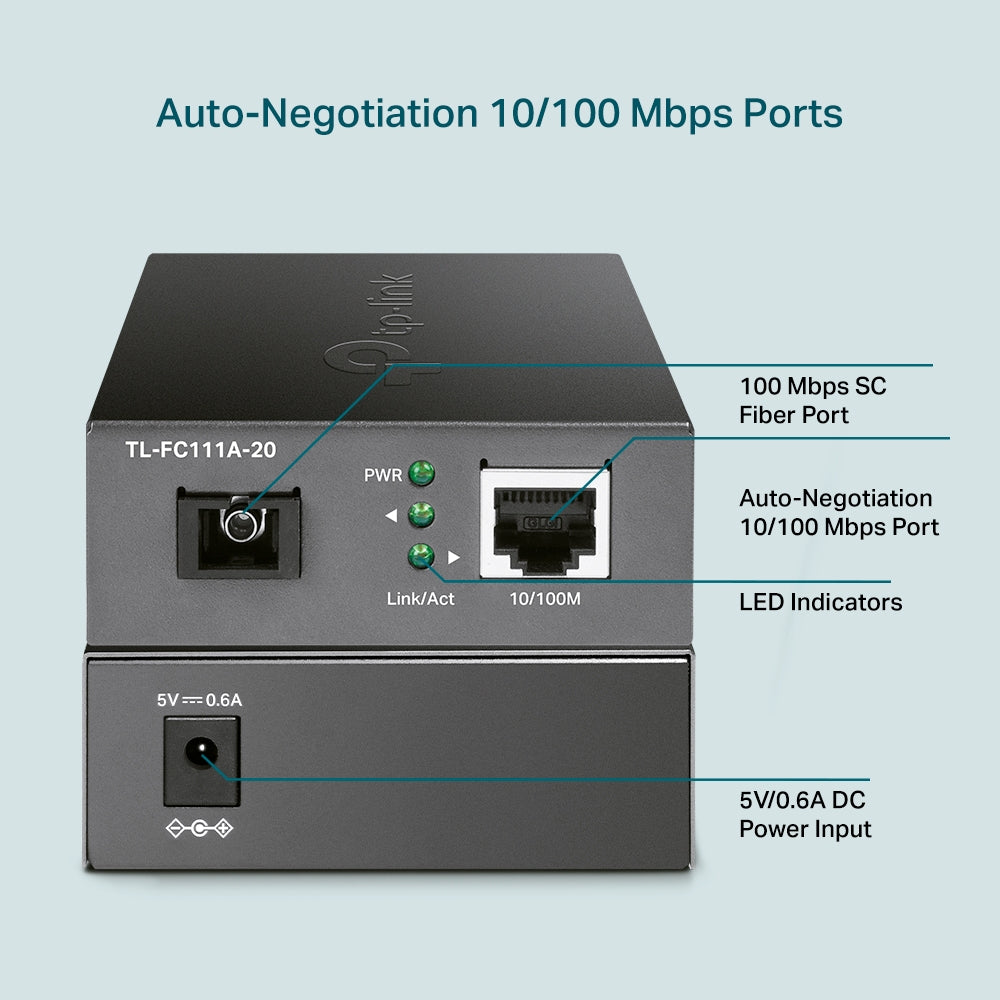

  Interface	1× 100 Mbps SC Fiber Port
  	1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
  Network Media	100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
  Power Supply	External Power Adapter: 5 V/0.6 A
  LED	PWR, Link/Act
  Dimensions	94.57327 mm
  Wave Length	1550 nm TX, 1310 nm RX

  Media Converter & Module:

  Feature	Description
  Standards and Protocols	IEEE 802.3, IEEE 802.3i, IEEE802.3u
  Basic Function	Auto-negotiation of half-duplex / full-duplex transfer mode
  	Full-duplex flow control (IEEE 802.3x)
  	Half-duplex flow control (Backpressure)
  	Extends fiber distance up to 20km (12.4 miles)
  Ports	1x 100M single SC/UPC port
  	1x 10/100M RJ45 port (Auto MDI/MDIX)
  WDM TX	1550 nm
  WDM RX	1310 nm
  Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  	100BASE-T: UTP category 5, 5e cable (maximum 100m)
  	100BASE-FX: Single-mode fiber
  LED Indicators	PWR, Link/Act

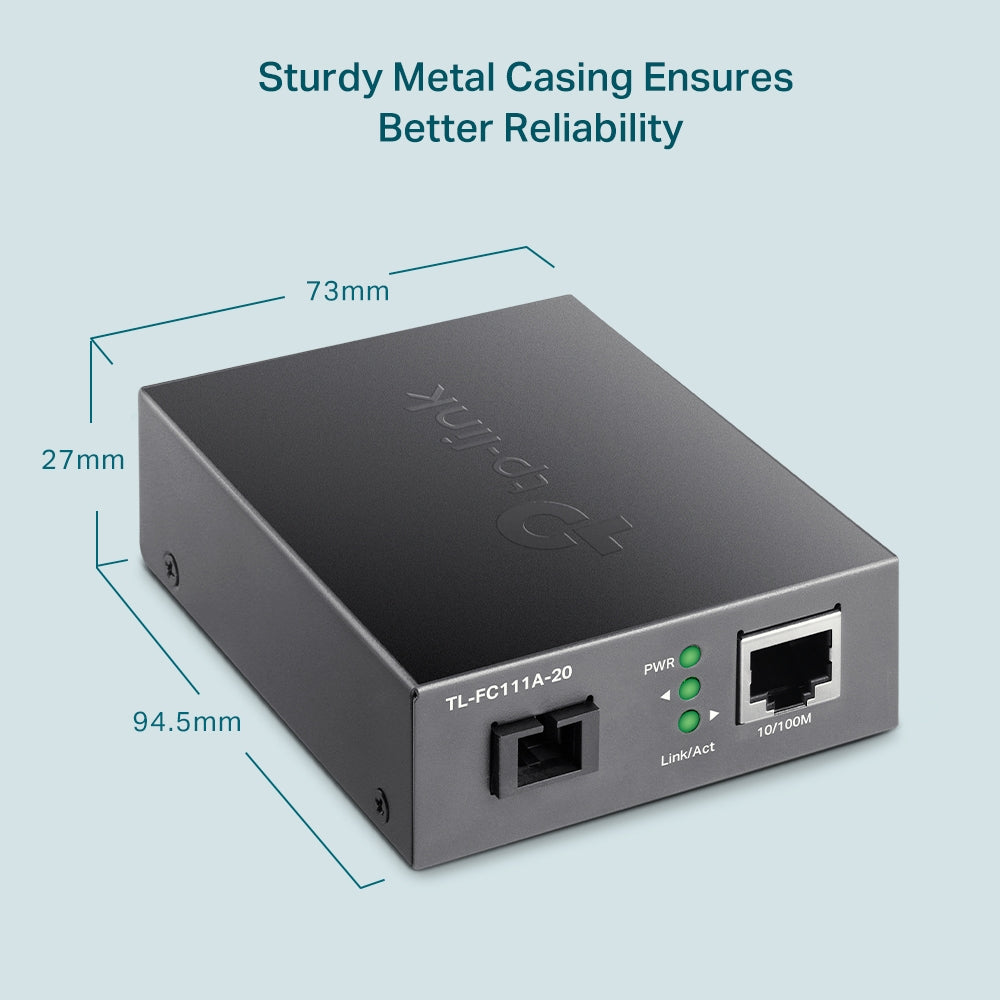

  Dimensions	3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm)
  Power Supply	External Power Adapter: 5 V/0.6 A
  Safety & Emission	FCC, CE, RoHS
  Fiber Type	9/125 μm single-mode fiber (≤20 km)
  Environment	Operating Temperature: 0℃50℃ (32℉122℉)
  	Storage Temperature: -40℃70℃ (-40℉158℉)
  	Operating Humidity: 10%~90% non-condensing
  	Storage Humidity: 5%~90% non-condensing
