• TP-Link TD-W9960 300Mbps Wireless N VDSL/ADSL Modem Router


  Simple yet Powerful
  The Best VDSL for Every Home

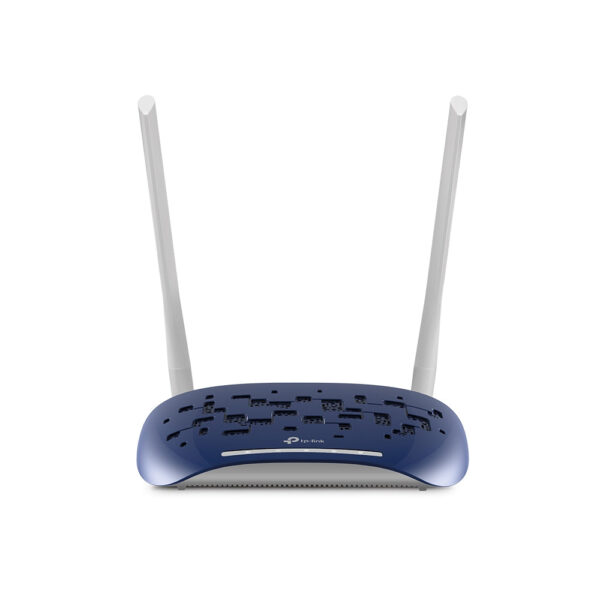

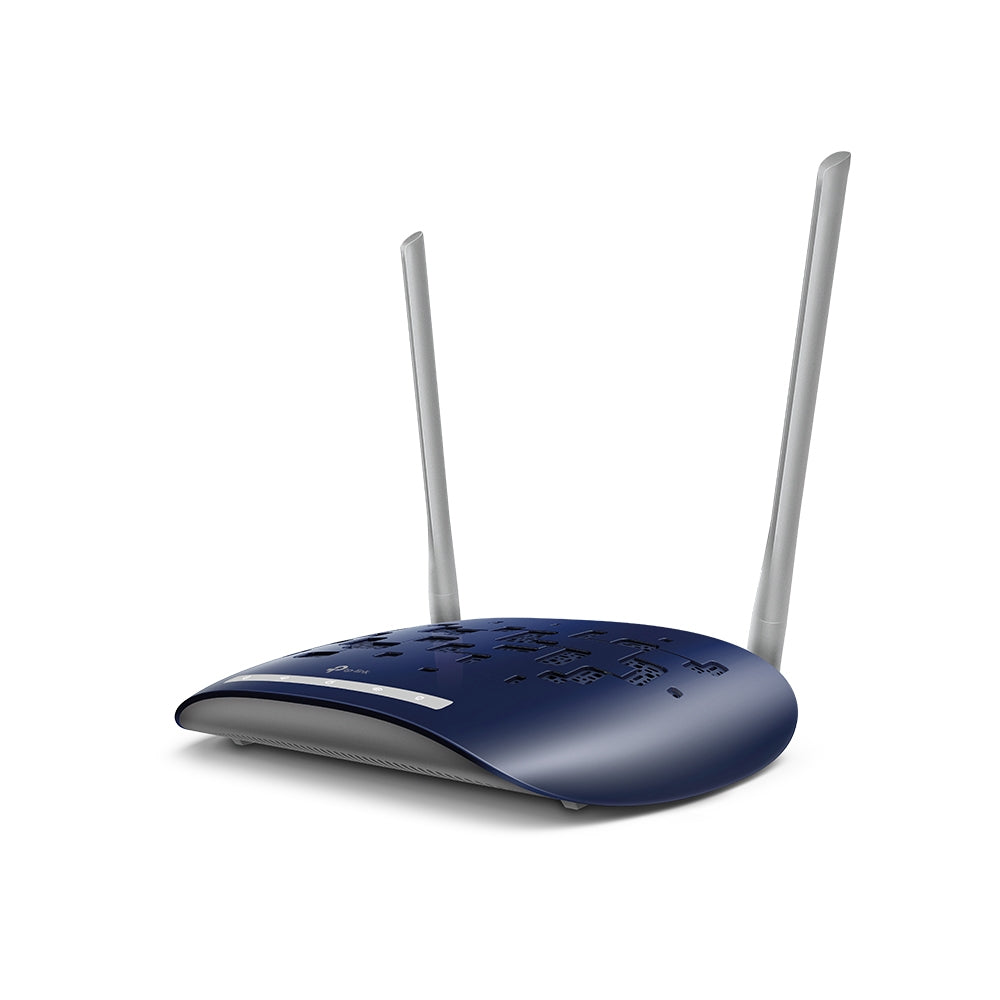

  300Mbps Wireless N VDSL/ADSL Modem Router
  TD-W9960

  Superfast VDSL Modem Router
  VDSL2 technology delivers VDSL broadband speeds of up to 100Mbps simultaneously in both the upstream and downstream directions. The integrated DSL port supports all standard DSL connections* for compatibility with most ISPs.

  *The TD-W9960 is compatible with VDSL2, ADSL2+, ADSL2 and ADSL.

  Wi-Fi Speed Up to 300Mbps
  With 300Mbps wireless speeds on the 2.4GHz band and 4 megabit LAN ports, the TD-W9960 is perfect for streaming in HD, online gaming and other bandwidth-intensive applications.

  Easy Setup and Management
  Set up the TD-W9960 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Control your home network whenever and wherever you are.

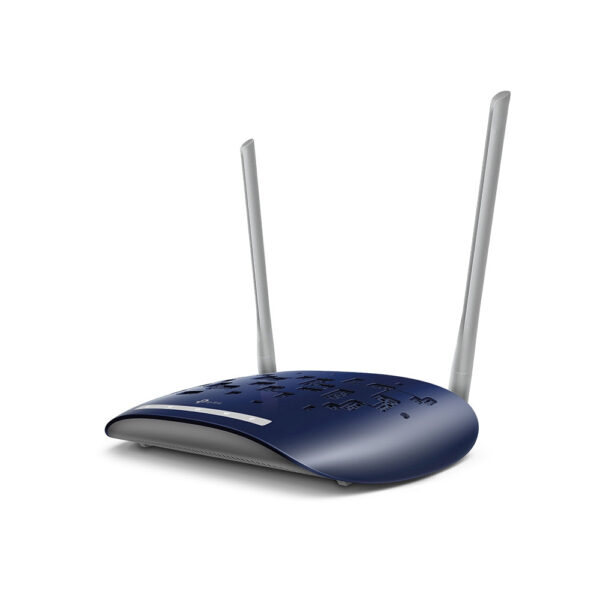

  Powerful Antennas
  Two external 5dBi high-gain antennas beam signal to every corner of your home, creating a strong, stable Wi-Fi network.

  6kV Lightning Protection
  Lightning protection shields TD-W9960 from electrical damage caused by thunderstorms, so even in bad weather, you can enjoy internet with peace of mind.

  Secure Surfing
  Parental Controls limit the online time and access of specified devices. Guest Network creates a separate Wi-Fi network for visitors, keeping your main network secure.

• HARDWARE FEATURES

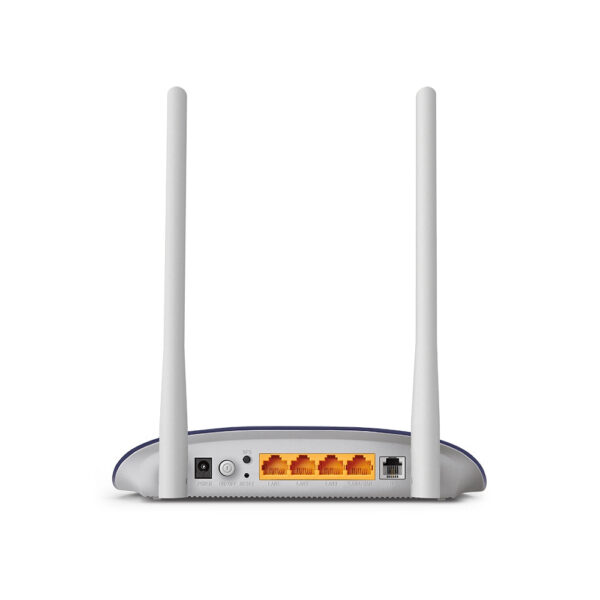

  Interface	3 x 10/100Mbps RJ45 LAN Ports
  	1 x 10/100Mbps RJ45 LAN/WAN Port
  	1 x RJ11 Port
  Button	WPS, RESET, Power ON/OFF
  External Power Supply	9VDC/0.6A
  IEEE Standards	IEEE 802.3, 802.3u
  VDSL2 Standards	ITU-T G.993.2
  	ITU-T G.993.5 (G.vector)
  	ITU-T G.998.4 (G.INP)
  Dimensions (W x D x H)	181.6 x 129.7 x 36.2mm
  Antenna Type	Omni directional, Fixed
  Antenna Gain	2 x 5dBi
  WIRELESS FEATURES
  Wireless Standards	IEEE 802.11b, 802.11g, 802.11n
  Frequency	2.400-2.4835GHz
  Transmit Power	<20dBm(EIRP)
  Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2, Wireless MAC Filtering
  SOFTWARE FEATURES
  Quality of Service	WMM, Bandwidth Control (IP QoS)
  Advanced Features	Parental Controls, NAT, Port Mapping, Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
  Security	NAT Firewall, SPI Firewall, DoS Protection, IP & MAC Binding, Service Filtering, Access Control, Parental Controls
  Operating Modes	VDSL/ADSL Modem Router, Wireless Router
  Management	Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools
  VPN Pass-Through	IPSec VPN
  Protocols	Supports IPv4 and IPv6
  ATM/PPP Protocols	PPPoE (RFC2516), PPPoA (RFC 2364), MER\IPoE (RFC 1483 Routed), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge)
  APP	Tether App
  NAT	Virtual Server, Port Triggering, DMZ, ALG, UPnP
  OTHERS
  Certification	CE, RoHS
  Package Contents	TD-W9960, External DSL Splitter, RJ-11 DSL Cable, RJ-45 Ethernet Cable, Quick Installation Guide, Power Adapter
  System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser, Subscription with an internet service provider (for internet access)
  Environment	Operating Temperature: 0℃40℃(32℉104℉), Storage Temperature: -40℃70℃(-40℉158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
