• TP-Link RE220/AC750 Wi-Fi Range Extender


  Eliminate Wi-Fi Dead Spots Extend High-Speed Wi-Fi Across Your Home
  AC750 Wi-Fi Range Extender
  RE220

  Boost Your Wi-Fi to hard-to-reach Areas
  Place the RE220 between your wireless router and wireless devices, expanding Wi-Fi coverage while eliminating Wi-Fi dead zones. The dual-band Wi-Fi up to 750 Mbps can not only extend to 32,00 sq. ft. (300m2) with the router, but also make good use of your high ISP speed , ideal for HD video streaming, online gaming and other bandwidth-intensive tasks.

  Stable Dual Band Connection for More Devices
  The RE220’s Wireless AC technology creates faster and stronger Wi-Fi connections across your home and extends dual band Wi-Fi up to 750 Mbps. Dual 2.4 GHz and 5 GHz bands provide Wi-Fi connections to up to 32 devices, allowing you to enjoy stable and drop-free experience on all your devices.

  Simple Two-Step Setup
  Step 1: Press the WPS button on the router and RE220 to easily connect the extender to the network. Or connect the
  extender via Tether app or Web UI if your router doesn’t support WPS.

  Step 2: Relocate the extender to a better location for optimal Wi-Fi coverage with the help of the smart signal indicator light.

  An Access Point as well as a Wireless Adapter

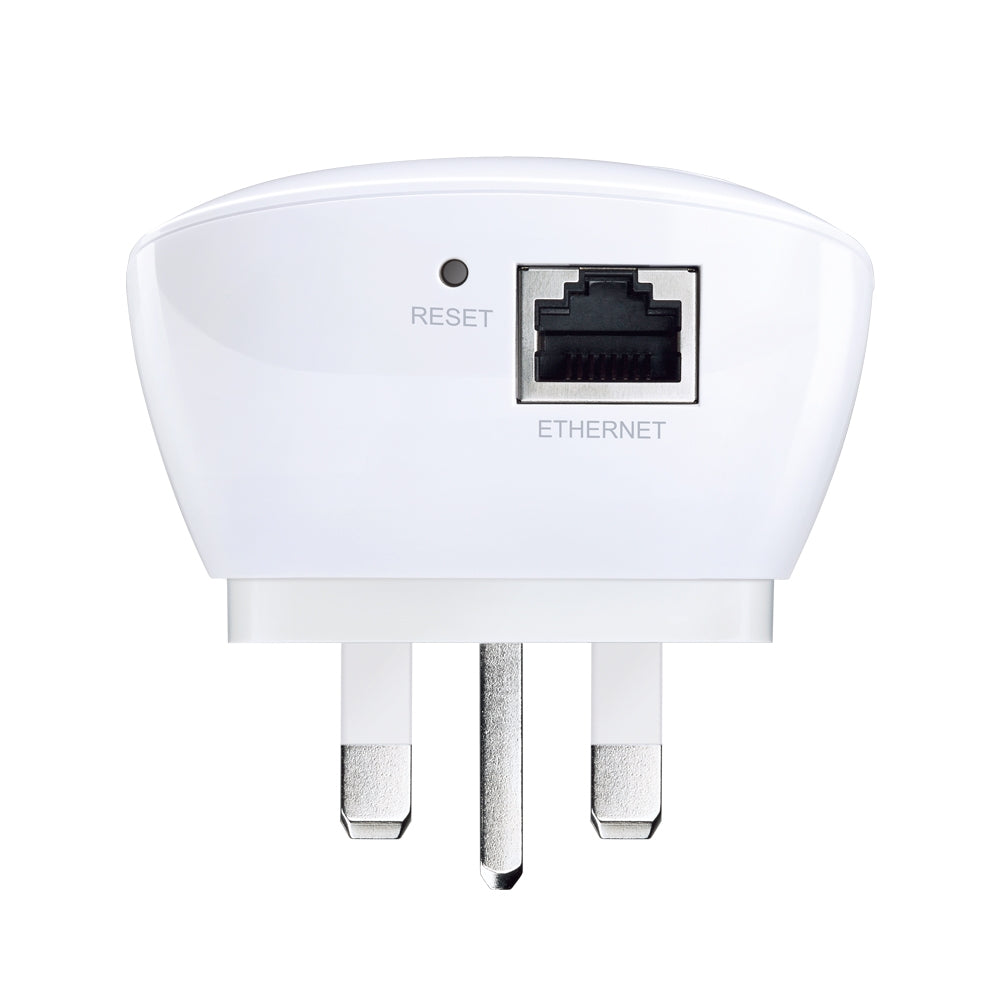

  The Ethernet port of RE220 can easily turn your wired Internet connection into a wireless access point. And it can also function as a wireless adapter to connect wired devices.

  High Speed Mode for Maximized Performance
  High Speed Mode uses one dedicated Wi-Fi band as backhaul and another dedicated Wi-Fi band as an access point to maximize the bandwidth on extender Wi-Fi.

  Universal Compatibility
  The RE220 is compatible with any of your existing Wi-Fi router or access point, making it easy to expand and strengthen your Wi-Fi network.

  Smart Management by Tether App
  Set up and manage your Wi-Fi through the TP-Link Tether app on you smartphone (Android, iOS).

• Category	Specification
  WIRELESS
  Working Modes	Range Extender/Access Point
  HARDWARE FEATURES
  Standards and Protocols	IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  Plug Type	EU, UK, US, AU
  Interface	1 x 10/100M Ethernet Port (RJ45)
  Ports	1 x 10/100Mbps Ethernet Port (RJ45)
  Button	RE (Range Extender) Button, Reset Button
  Input Power	100-240V~50/60Hz
  Power Consumption	About 6.5W
  Dimensions (W x D x H)	4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
  Antenna	3 x internal
  WIRELESS FEATURES
  Wireless Standards	IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
  Frequency	2.4GHz & 5GHz
  Signal Rate	5GHz: Up to 433Mbps
  	2.4GHz: Up to 300Mbps
  Working Modes	Range Extender/Access Point
  Reception Sensitivity	2.4G:
  	270M: -70dBm@10% PER
  	130M: -70dBm@10% PER
  	108M: -73dBm@10% PER
  	54M: -75dBm@10% PER
  	11M: -86dBm@8% PER
  	6M: -92dBm@10% PER
  	1M: -94dBm@8% PER
  	5G:
  	390M: -60dBm@10% PER
  	29.3M: -83dBm@10% PER
  	180M: -64dBm@10% PER
  	13.5M: -87dBm@10% PER
  	78M: -68dBm@10% PER
  	6.5M: -90dBm@10% PER
  	54M: -75dBm@10% PER
  	6M: -90dBm@10% PER
  Transmit Power	< 20 dBm (EIRP)
  Wireless Modes	Range Extender
  Wireless Functions	WMM (Wi-Fi Multimedia)
  	Wireless Statistic
  	Domain Login Function
  Wireless Security	64/128/152-bit WEP
  	WPA-PSK / WPA2-PSK
  Transmission Power	< 20 dBm (EIRP)
  OTHERS
  Certification	CE, FCC, RoHS
  Package Contents	AC750 Wi-Fi Range Extender RE200
  	Quick Installation Guide
  System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista or
  	Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
  Environment	Operating Temperature: 0°C40°C (32°F104°F)
  	Storage Temperature: -40°C70°C (-40°F158°F)
  	Operating Humidity: 10%~90% non-condensing
  	Storage Humidity: 5%~90% non-condensing
