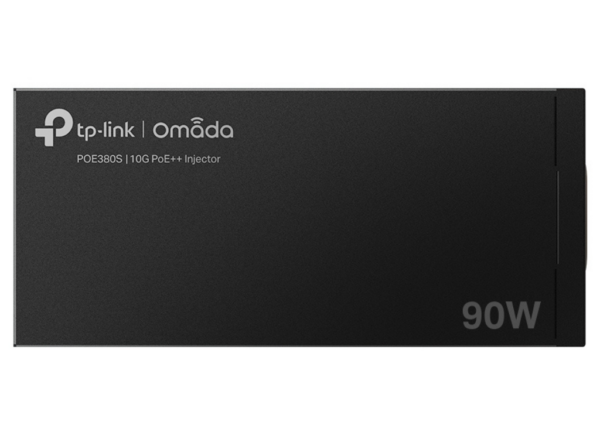

TP-Link Omada POE380S PoE++ Injector

• Description
• Specifications

• TP-Link Omada POE380S PoE++ Injector

  90W 10G PoE++ Injector
  Unlocks peak performance for your 10G/Multi-Gig bandwidth and devices

  10G Ports Ensure Faster Connection


  10 Gbps Speed
  Auto-negotiation for 6-speed (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps /10 Mbps)

  Auto Detect the Required Power, Up to 90 W
  Standard 802.3af/at/bt for Various Powered Devices


  Up to 90 W Power Supply
  Note: It can’t supply power for passive PoE devices

  Plug and Play
  1-Plug In
  2-Connect Devices
  3-Enjoy

• Category	Specification
  Standards and Protocols	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*

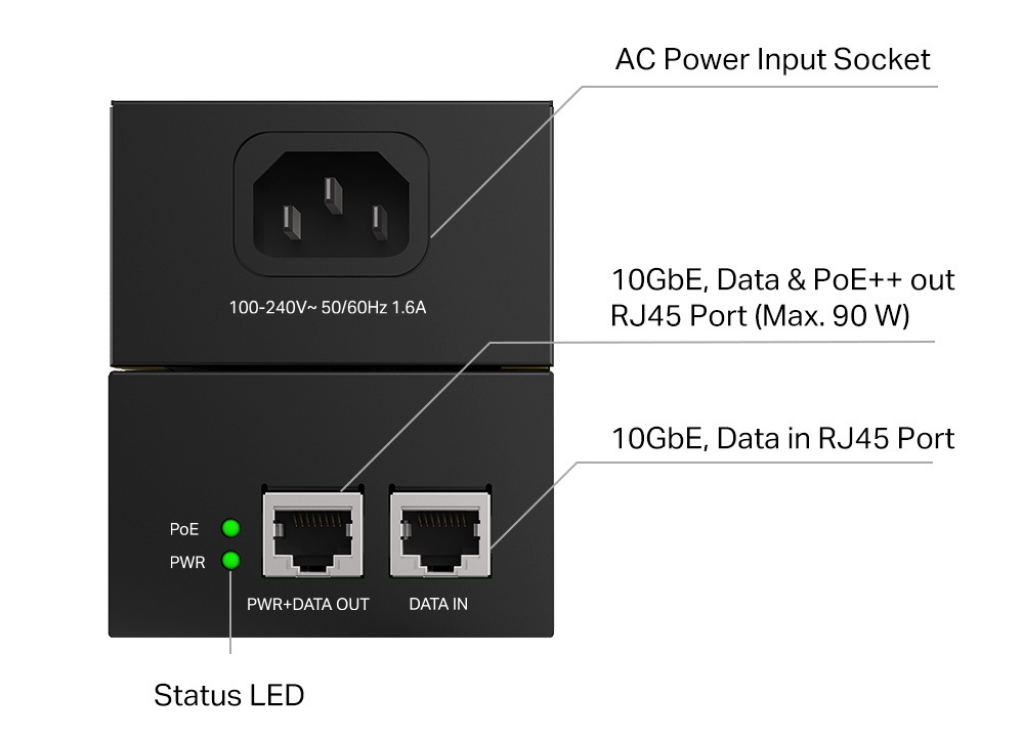

  Interface	1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port
  	1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W)
  	1× AC socket
  Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
  	EIA/TIA-568 100Ω STP (maximum 100 m)
  	100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
  	EIA/TIA-568 100Ω STP (maximum 100 m)
  	1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m)
  Max. Power Consumption	Input: 100-240 V, 50/60 Hz, 1.6A
  	Output: Auto-determine the necessary power requirements (max. 90 W)
  Basic Function	Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
  	Auto-determine the necessary power requirements
  	Wall-mounting and desktop installation
  	Plug-and-Play
  LED	Power / PoE
  Dimensions (W x D x H)	6.12.81.7 in (1557042 mm)
  Certification	FCC, CE, RoHS
  Package Content	POE380S, Power Cord, Installation Guide
  Environment	Operating Temperature: 0°C to 45°C (32°F to 113°F)
  	Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  	Operating Humidity: 10% to 90%RH non-condensing
  	Storage Humidity: 5% to 90%RH non-condensing
