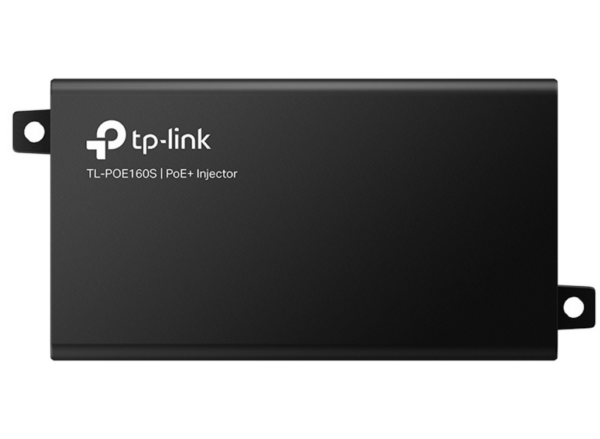

• TP-Link Omada PoE+ Injector  | POE160S

  2 Gigabit ports ensure faster transmission

  Complies with IEEE802.3af/at standards, supplies up to 30 W

  Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

  Automatically determines and supplies the exact power to meet the device’s need

  Wall-mounting and desktop design accommodates most installation scenarios

  Plug & Play installation, requires no configuration

  Integrated power supply

• Category	Specification
  Ethernet Interface Type	Gigabit Ethernet
  Ethernet LAN Data Rates	10, 100, 1000 Mbit/s
  Cabling Technology	10/100/1000
  Power over Ethernet (PoE)	Yes
  Networking Standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
  Cable Types Supported	Cat3, Cat4, Cat5, Cat5e
  Features	– Product colour: Black
  	– Wall mountable: Yes
  	– Plug and Play: Yes
  	– Maximum operating distance: 100 m
  	– LED indicators: Power
  Ports & Interfaces	– Ethernet LAN (RJ-45) ports: 2
  	– RJ-45 input ports: 1
  	– RJ-45 output ports: 1
  Power	– Output power: 30 W
  	– AC adapter input voltage: 100 – 240 V
  	– AC adapter frequency: 50/60 Hz
  Operational Conditions	– Operating temperature (T-T): 0 – 40 °C
  	– Operating relative humidity (H-H): 10 – 90%
  	– Storage temperature (T-T): -40 – 70 °C
  	– Storage relative humidity (H-H): 5 – 90%
  Weight & Dimensions	– Width: 125 mm
  	– Depth: 59.4 mm
  	– Height: 36.8 mm
