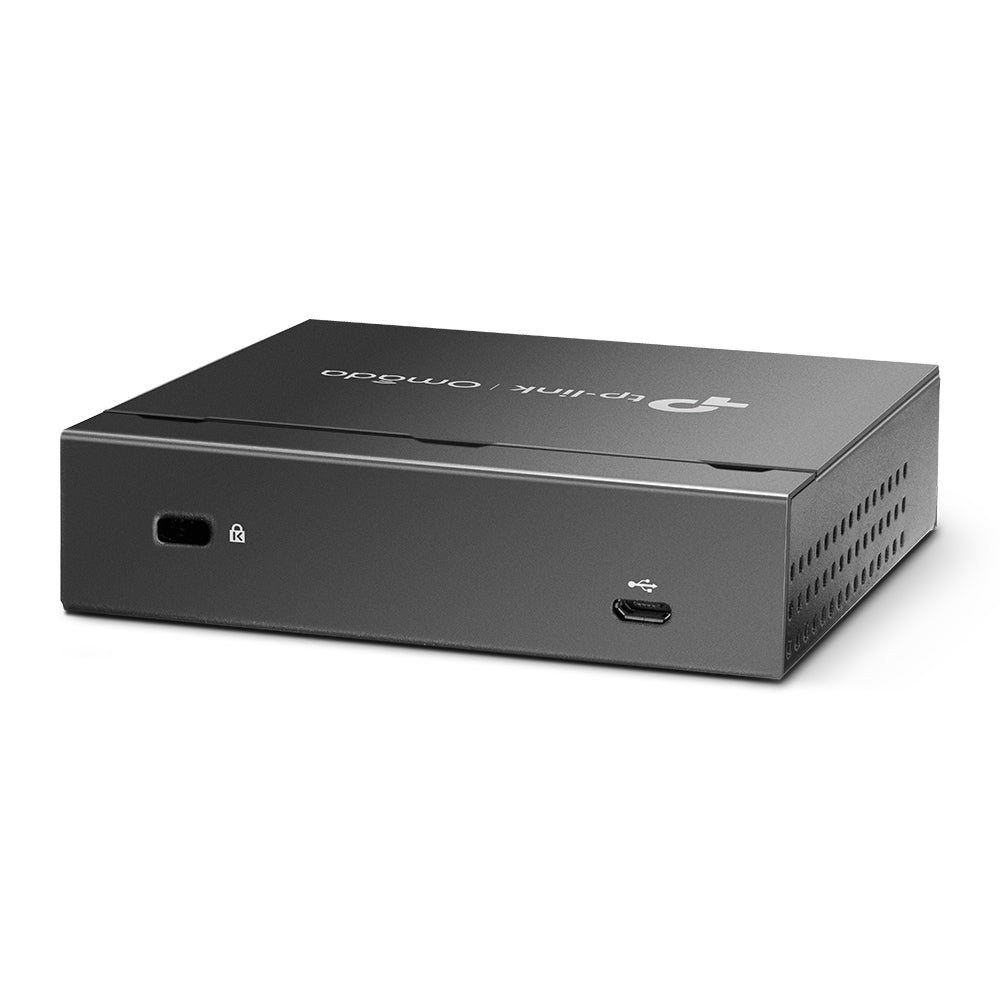

TP-Link OC200 Omada Hardware Controller

• Description
• Specifications
• Downloads

• TP-Link OC200 Omada Hardware Controller


  TP-Link | OmadaHardware Controller
  A Professional Omada SDN Controller with No Need to Run a PC/Server

  Centralized Management for
  Access Points, Switches, and Routers
  OC200, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, JetStream switches, and Omada routers—all controlled from a single interface.

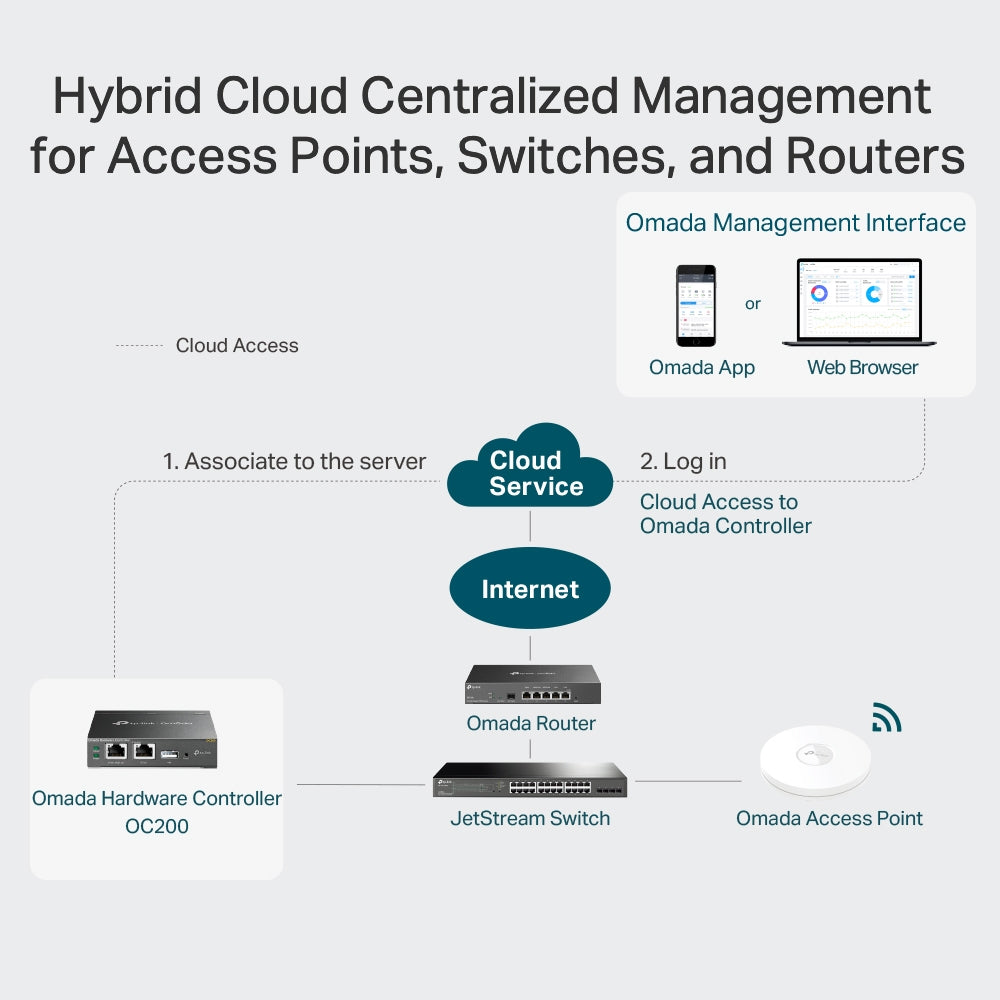

  Hybrid Cloud for Maximum Convenience
  Featuring hybrid cloud technology, the Omada Hardware Controller OC200 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.

  Industry-Leading Hardware Design
  Equipped with an advanced design and the latest chipset, OC200 has enough processing power to support the massive management of your business network.

  Easy and Intelligent Network Monitoring
  The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.

  Multiple Factors Guarantee Easier Network Maintenance

  WiFi Heatmap Simulator
  Generate a Wi-Fi solution by simulating the wireless coverage effect of APs in the actual site. Determine the appropriate number and location of APs according to the coverage requirements.

  Visualizable Network Report for Conveniently Summary
  Help service providers easily report network service quality to their customers through reports. IT administrators also easily report network operation status through reports.

  Batch Management, Multi-Site Management, and Remote Firmware Updates
  Improve network maintenance without needing to configure on-site or manage devices one by one.

  Powerful Scheduling
  Maintain your network easily with more agile and effective processing. No manual tasks required.

  Greater Convenience with the Omada App
  Remotely access and configure your whole network with a tap of your phone from anywhere in the world.

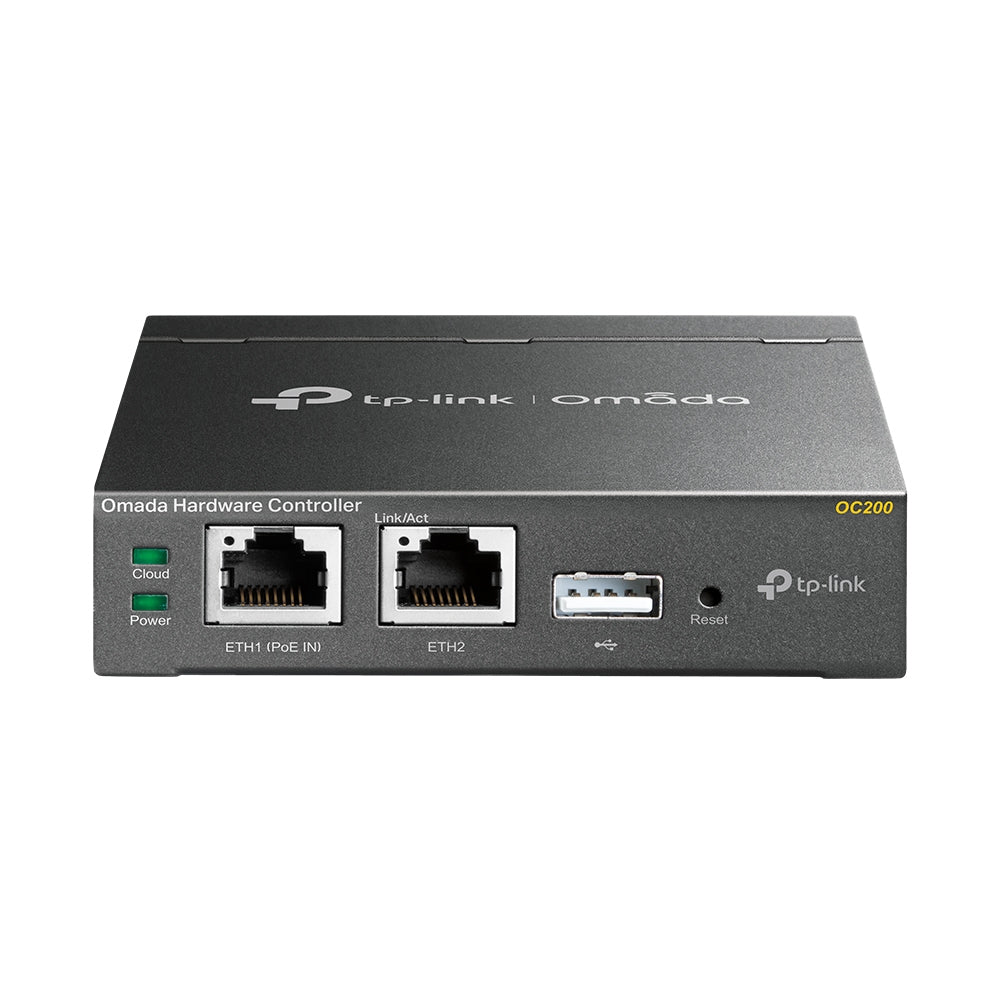

• HARDWARE FEATURES
  Interface	• 2× 10/100 Mbps Ethernet Port
  	• 1× USB 2.0 Port
  	• 1× Micro USB Port
  Power Supply	802.3af/at PoE or Micro USB (DC 5V/Min. 1A)
  Dimensions	3.9×3.9×1.0 in (100×98×25 mm)

  MANAGEMENT
  Omada App	Yes
  Centralized Management	• Up to 100 Omada access points,
  	20 JetStream switches, and 10 Omada
  	routers
  	• Up to 1,000 Clients
  Cloud Access	Yes
  L3 Management	Yes
  Multi-site Management	Yes
  Management Features	• Automatic Device Discovery
  	• Batch Configuration
  	• Batch Firmware Upgrading
  	• Intelligent Network Monitoring
  	• Abnormal Event Warnings
  	• Unified Configuration
  	• Reboot Schedule
  	• Captive Portal Configuration

  OTHERS
  Certification	CE, FCC, RoHS
  Package Contents	• Omada Hardware Controller OC200
  	• Quick Installation Guide
  	• Ethernet Cable
  System Requirements	Microsoft Windows 10, 8, 7, Vista, XP,
  	or MAC OS, NetWare, UNIX, or Linux
  Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉)
  	• Storage Temperature: -40–70 ℃ (-40–158 ℉)
  	• Operating Humidity: 10–90% RH non-condensing
  	• Storage Humidity: 5–90% RH non-condensing
