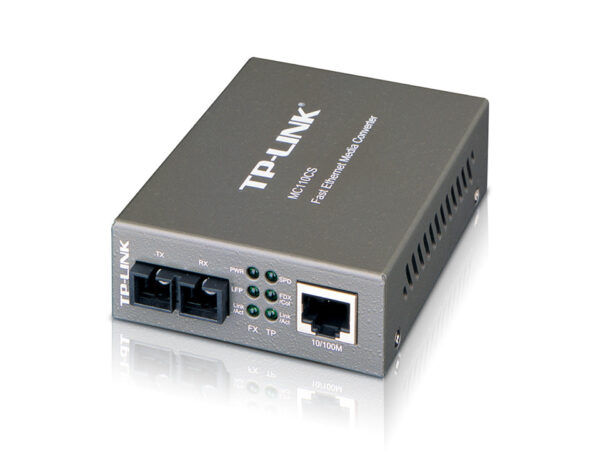

• TP-Link MC110CS 10/100Mbps Single-Mode Media Converter


  The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

  Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

  Complies with 802.3u 10/100Base-TX, 100Base-FX standards.
  Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port.
  Extends fiber distance up to 20km

• MEDIA CONVERTER & MODULE
  Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  Basic Function	Half/Full-Duplex transfer mode for FX port
  	Full Duplex Flow Control (IEEE 802.3x)
  	Half Duplex Flow Control (Backpressure)
  	Extends fiber distance up to 20km
  Ports	1 100M SC/UPC port
  	1 100M RJ45 port (Auto MDI/MDIX)
  Wave Length	1310nm
  Network Media 10BASE-T	UTP category 3, 4, 5 cable (maximum 100m)
  	EIA/TIA-568 100Ω STP (maximum 100m)
  Network Media 100BASE-T	UTP category 5, 5e cable (maximum 100m)
  	EIA/TIA-568 100Ω STP (maximum 100m)
  Network Media 100BASE-FX	Single-mode Fiber
  LED Indicators	PWR, FDX/Col, Link/Act, SPD
  Dimensions (WDH)	3.72.91.1 in. (94.573.027.0 mm)
  Power Supply	External power supply
  Max Power Consumption	1.52W
  Safety & Emission	FCC, CE, RoHS
  Package Contents	• Media Converter MC110CS
  	• Power Adapter
  	• Installation Guide
  Environment	Operating Temperature: 0℃40℃ (32℉104℉)
  	Storage Temperature: -40℃70℃ (-40℉158℉)
  	Operating Humidity: 10%~90% non-condensing
  	Storage Humidity: 5%~90% non-condensing
