TP-Link LS105G 5-Port 10/100/1000Mbps Desktop Network Switch

• Description
• Specifications
• Downloads

• TP-Link LS105G 5-Port 10/100/1000Mbps Desktop Network Switch


  Increase Your Network Speed and Save Energy
  5-Port Gigabit Desktop Switch

  Let Bring You Lighter Network Life
  The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

  Plug and Play

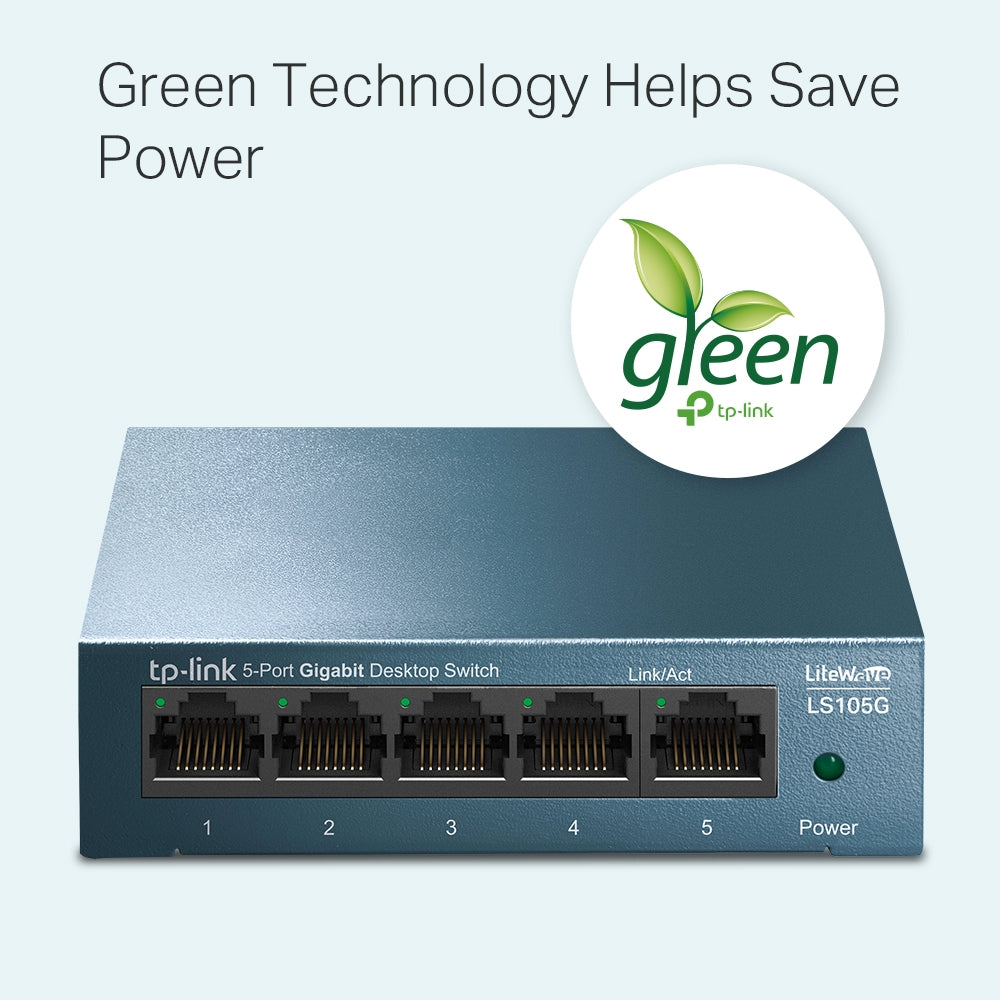

  Go Green with Your Ethernet
  The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

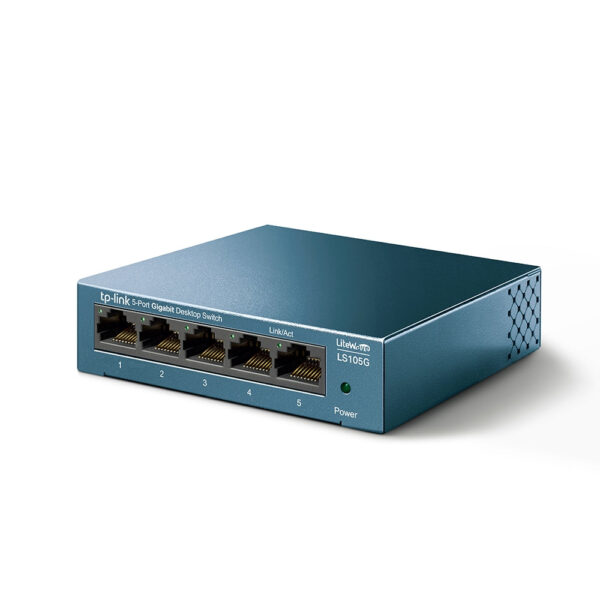

  Durable Metal Casing
  The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

  Use Where You Need, However You Need

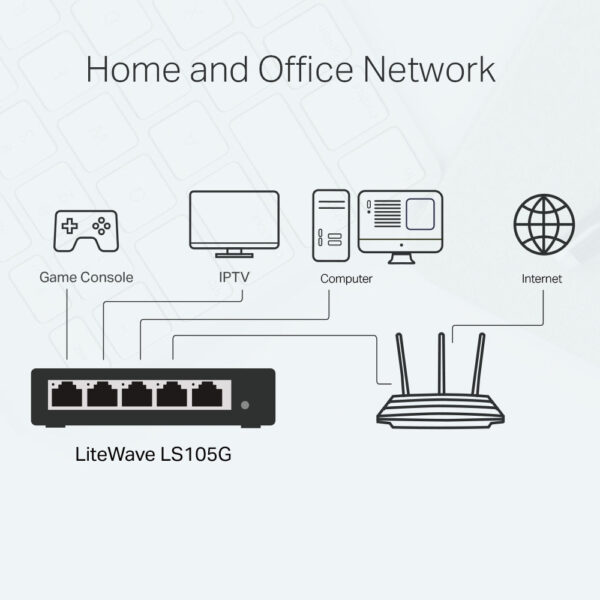

  The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

• Hardware Features
  Standards and Protocols	IEEE 802.3i/802.3u/802.3ab/802.3x, IEEE 802.1p
  Interface	5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
  Fan Quantity	Fanless
  External Power Supply	External Power Adapter (Output: 5VDC / 0.6A)
  LED Indicator	System Power <br> Link/Act indicators per port built into each RJ-45 port
  Dimensions (W x D x H)	3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
  Max Power Consumption	2.776W (220V/50Hz)
  Max Heat Dissipation	9.466 BTU/h
  Performance
  Packet Forwarding Rate	7.4 Mpps
  MAC Address Table	2K
  Packet Buffer Memory	1 Mb
  Jumbo Frame	16 KB
  Software Features
  Advanced Features	Green Technology <br> 802.3X Flow Control <br> 802.1P/DSCP QoS
  Transfer Method	Store and Forward
  Others
  Certification	CE, FCC, RoHS
  Package Contents	5-Port 10/100/1000Mbps Desktop Switch <br> Power Adapter <br> Installation Guide
  Environment
  Operating Temperature	0°C40°C (32°F104°F)
  Storage Temperature	-40°C70°C (-40°F158°F)
  Operating Humidity	10% ~ 90% non-condensing
  Storage Humidity	5%~90% non-condensing
