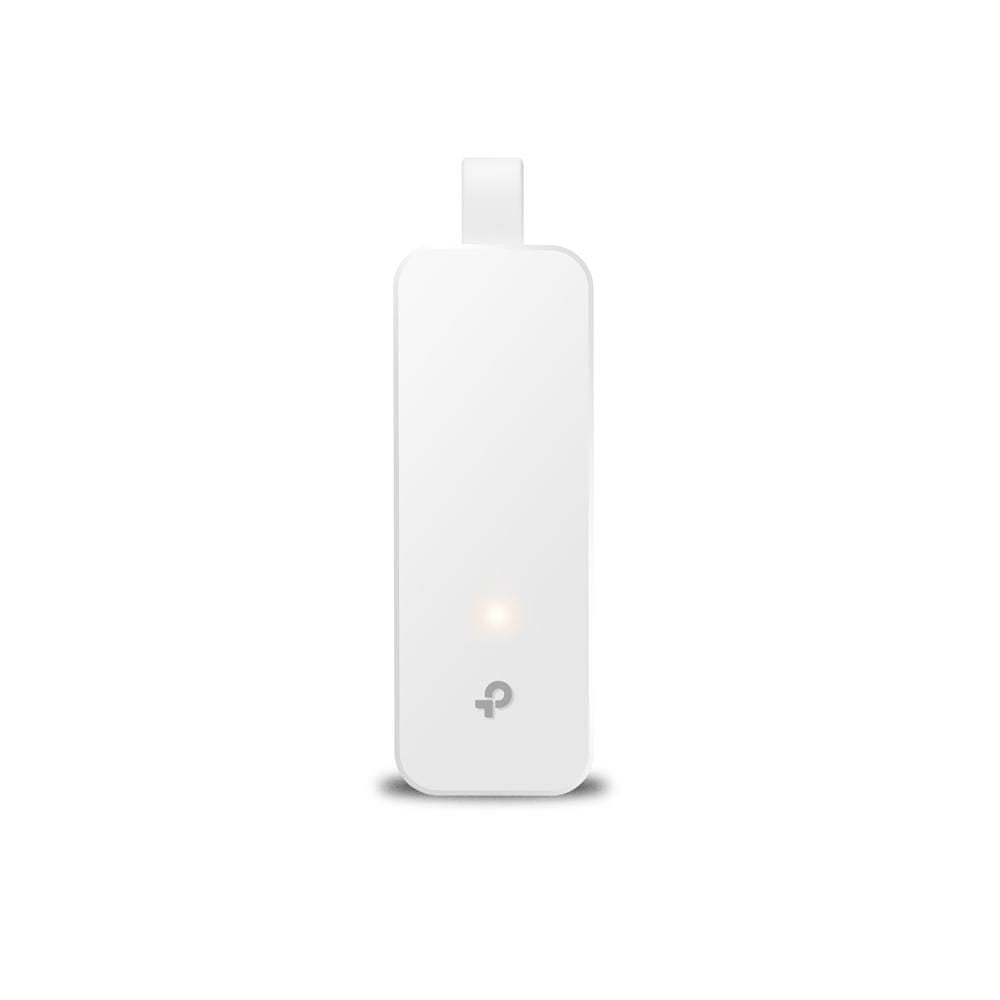

TP-Link Ethernet 1000 Mbit/s Network Card | UE300

• Description
• Specifications
• Downloads

• TP-Link Ethernet 1000 Mbit/s Network Card


  Compact and Portable Design
  A foldable cord design enables a more convenient way for storage or travelling.

  Plug & Play without installing driver
  UE300 supports Plug and Play feature for devices running Windows (Windows XP/Vista/7/8/8.1/10), *Mac OS X (10.9/10.10) and Linux OS.

  Fast and Stable Data Transfer

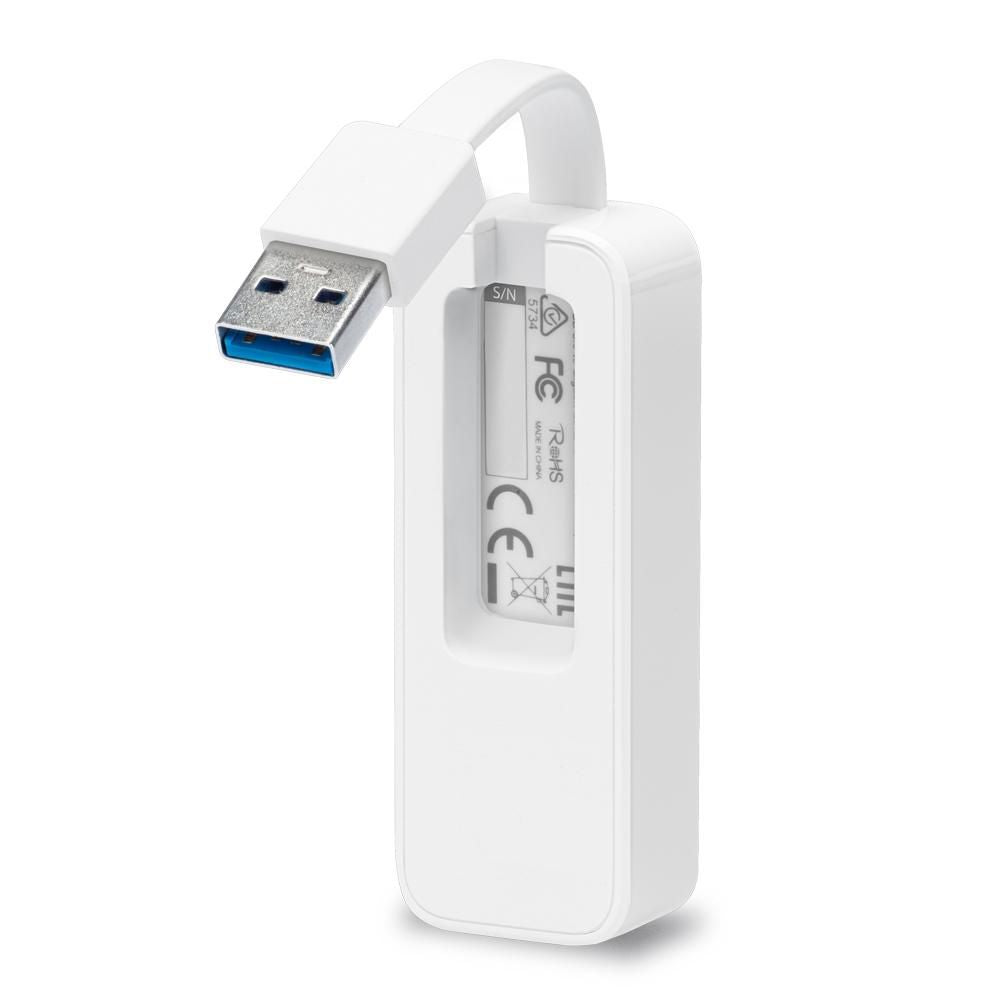

  Equipped with a USB 3.0 port and Gigabit Ethernet port, UE300 provides a high speed data transfer rate up to 1000 Mbps.

  Expand the Connectivity

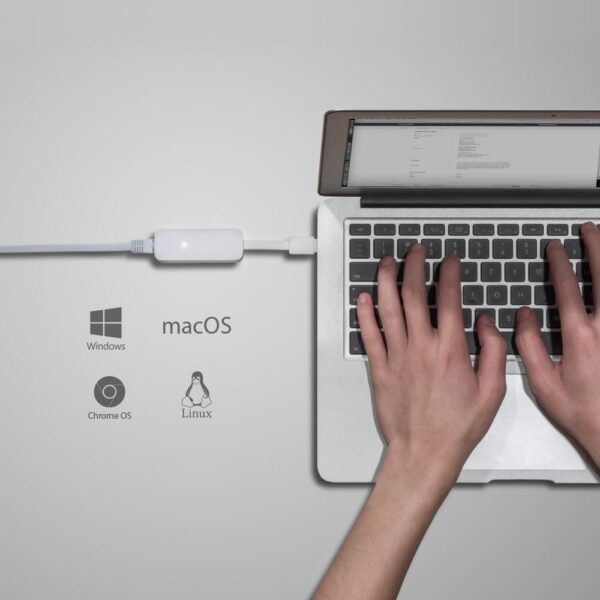

  UE300 adds Gigabit Ethernet network connectivity to those devices without Ethernet LAN port, such as Ultrabook or MacBook Air, through a USB 3.0 port, also being compatible with USB 2.0 and USB1.1 standard.

• Category	Feature	Details
  Design	Chipset	Realtek RTL8153
  	Internal	No
  	LED Indicators	Yes
  	Plug and Play	Yes
  	Product Color	White
  Legal Information	EU ECCN Code	N/A
  	UNSPSC Code	43201404
  	US ECCN Code	5A991
  Logistics Data	Harmonized System (HS) Code	85176990
  Network	Cabling Technology	10/100/1000BaseT(X)
  	Ethernet Interface Type	Gigabit Ethernet
  	Ethernet LAN	Yes
  	Ethernet LAN Data Rates	10/100/1000 Mbit/s
  	Maximum Data Transfer Rate	1000 Mbit/s
  	Networking Standards	IEEE 802.3 / IEEE 802.3ab / IEEE 802.3u
  	Wi-Fi	No
  Package Dimensions	Depth (Verified)	8.6 cm
  	Gross Weight (Verified)	0.1 kg
  	Height (Verified)	2 cm
  	Width (Verified)	18.2 cm
  Packaging Content	Quick Installation Guide	Yes
  Ports & Interfaces	Connectivity Technology	Wired
  	Ethernet LAN (RJ-45) Ports	1
  	Host Interface	USB
  	Interface	Ethernet
  	USB Connector Form Factor	Straight
  	USB Ports Quantity	1
  	USB Version	3.2 Gen 1 (3.1 Gen 1)
  Power	USB Powered	Yes
  Product Dimensions	Net Weight (Product)	0.09 kg
  	Depth	2.6 cm
  	Height	1.62 cm
  	Width	7.1 cm
  System Requirements	Linux Operating Systems Supported	Yes
  	Mac OS Supported	macOS X 10.5 to 10.14 (Mojave)
  	Windows OS Supported	Windows XP, Vista, 7, 8, 8.1, 10 (All Editions)
  Vendor Information	Brand Name	TP-Link
  	Warranty	1 Year(s)
  Categories	Main Category	Network
  	Subcategories	Accessories, Networking Cards

• Description	Downloads
  TP-Link Ethernet 1000 Mbit/s Network Card | UE300 DataSheet	Downloads
  TP-Link Ethernet 1000 Mbit/s Network Card | UE300 User Guide	Downloads
