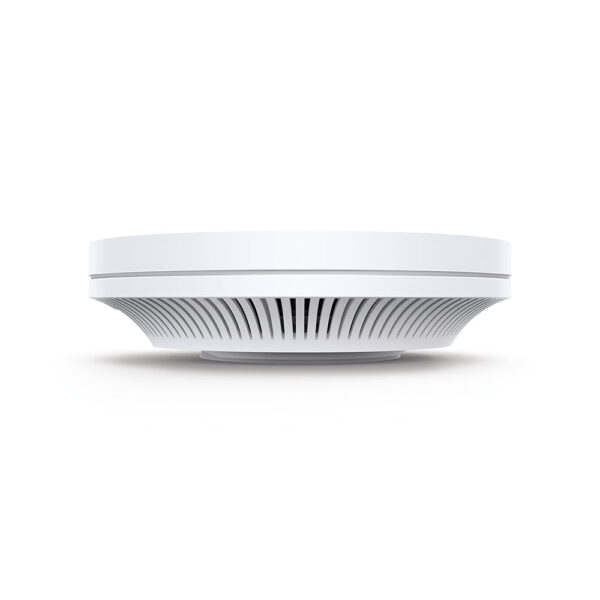

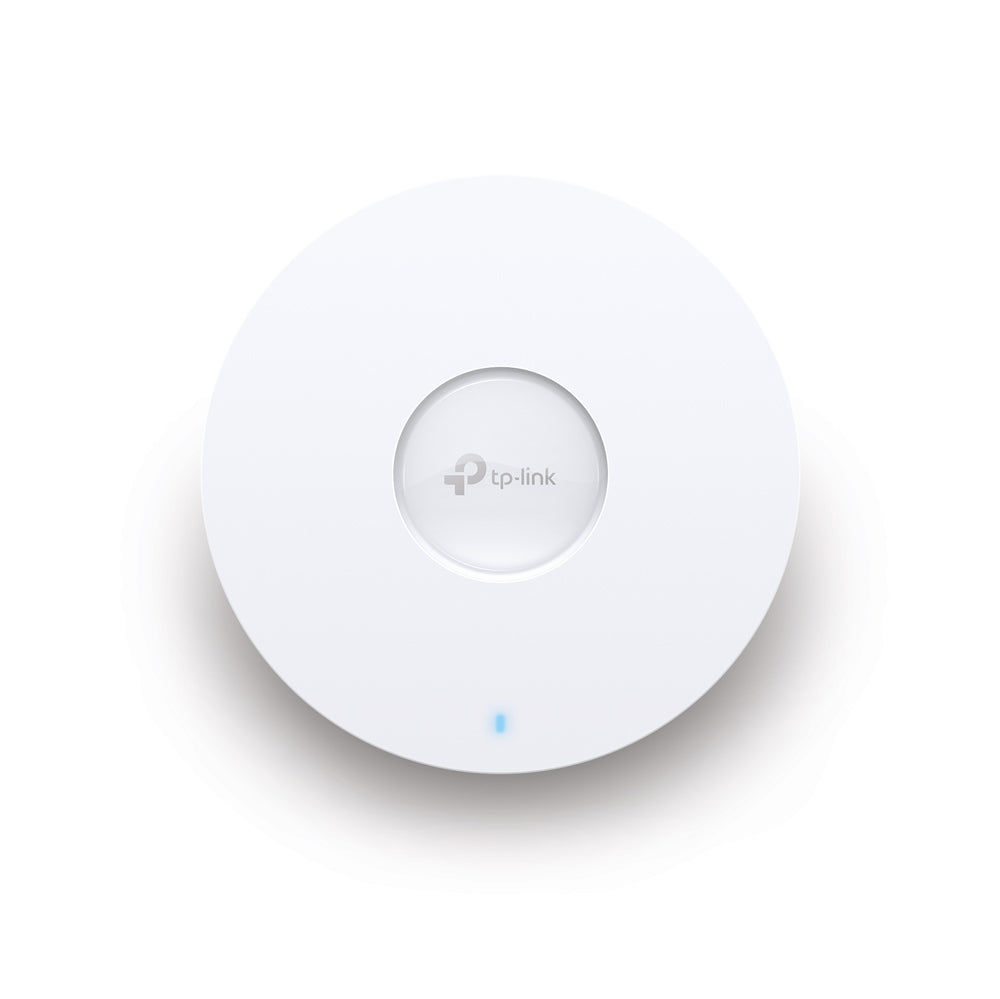

TP-Link EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point

• Description
• Specifications
• Downloads

• TP-Link EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point


  Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†
  High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
  Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
  Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
  Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
  PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
  Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

  Ultra-High Performing
  AX3600 Enterprise Wireless for
  High-Density Environments

  High-Density Connectivity with 4× Increased Capacity
  OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.

  Hospitality
  High Quality and Full Coverage Wi-Fi

  Restaurant
  Full Wi-Fi Coverage
  in High-Density
  Environment

  Shopping Mall
  Social Marketing
  for O2O

  Meeting Room
  Wireless and Wired
  Connections for
  dense usage

  Railway Station
  High-Density Wi-Fi

  Blazing Fast Speed with 8 Spatial Streams
  The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

  Omada SDN—Smarter Cloud Solution for Business Networking
  Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

  Optimized Wired Performance with 2.5 GE PoE+ Port
  Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

  Seamless Roaming
  802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.△ This allows sensitive applications like VoIP and video conferences to go uninterrupted.

  Boost Network Efficiency in All Aspects
  With Rich Advanced Features

  Band Steering
  Automatically moves dual band devices onto the wider 5GHz band for faster connections.

  Load Balance
  ensures large numbers of users have smooth network experiences in high-density business networks

  Airtime Fairness
  Increases average network throughput in heavily congested environments

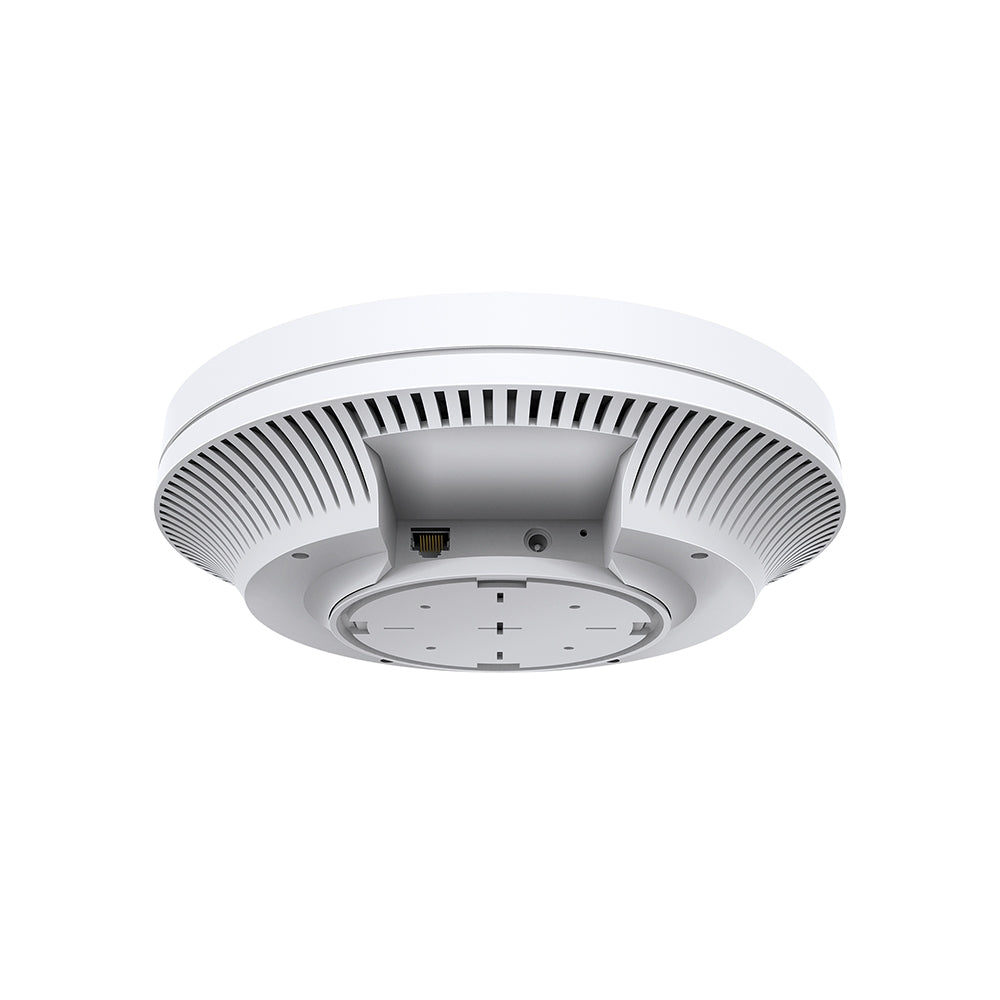

  Easy to Mount with Refined Industrial Design

  Secure Guest Network with Facebook Wi-Fi and SMS Login
  Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

• HARDWARE FEATURES
  Interface	1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
  Button	Reset
  Power Supply	• 802.3at PoE
  	• 12 V DC
  Power Consumption	• EU: 18.5 W
  	• US: 21.5 W
  Dimensions (W x D x H)	9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
  Antenna Type	Internal Omni
  	• 2.4 GHz: 4× 4 dBi
  	• 5 GHz: 4× 5 dBi
  Mounting	Ceiling / Wall Mounting (Kits included)

  WIRELESS FEATURES
  Wireless Client Capacity	1,000+***
  Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
  Frequency	2.4 GHz and 5 GHz
  Signal Rate	• 5 GHz: Up to 2402 Mbps
  	• 2.4 GHz: Up to 1148 Mbps
  Wireless Functions	• 1024-QAM
  	• 4× Longer OFDM Symbol
  	• OFDMA
  	• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  	• Enable/Disable Wireless Radio
  	• Automatic Channel Assignment
  	• Transmit Power Control (Adjust Transmit Power on dBm)
  	• QoS(WMM)
  	• MU-MIMO
  	• Seamless Roaming
  	• Band Steering
  	• Load Balance
  	• Airtime Fairness
  	• Beamforming
  	• Rate Limit
  	• Reboot Schedule
  	• Wireless Schedule
  	• Wireless Statistics based on SSID/AP/Client
  Wireless Security	• Captive Portal Authentication
  	• Access Control
  	• Wireless Mac Address Filtering
  	• Wireless Isolation Between Clients
  	• SSID to VLAN Mapping
  	• Rogue AP Detection
  	• 802.1X Support
  	• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  Transmission Power	• CE:
  	<20 dBm(2.4 GHz, EIRP)
  	<23 dBm(5 GHz, EIRP)
  	• FCC:
  	<26 dBm (2.4 GHz)
  	<26 dBm (5 GHz)

  MANAGEMENT
  Omada App	Yes
  Centralized Management	• Omada Cloud-Based Controller
  	• Omada Hardware Controller (OC300)
  	• Omada Hardware Controller (OC200)
  	• Omada Software Controller
  Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
  Email Alerts	Yes
  LED ON/OFF Control	Yes
  Management MAC Access Control	Yes
  SNMP	v1, v2c, v3
  System Logging	Local/Remote Syslog
  SSH	Yes
  Web-based Management	HTTP/HTTPS
  L3 Management	Yes
  Multi-site Management	Yes
  Management VLAN	Yes
  Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

  OTHERS
  Certification	CE, FCC, RoHS

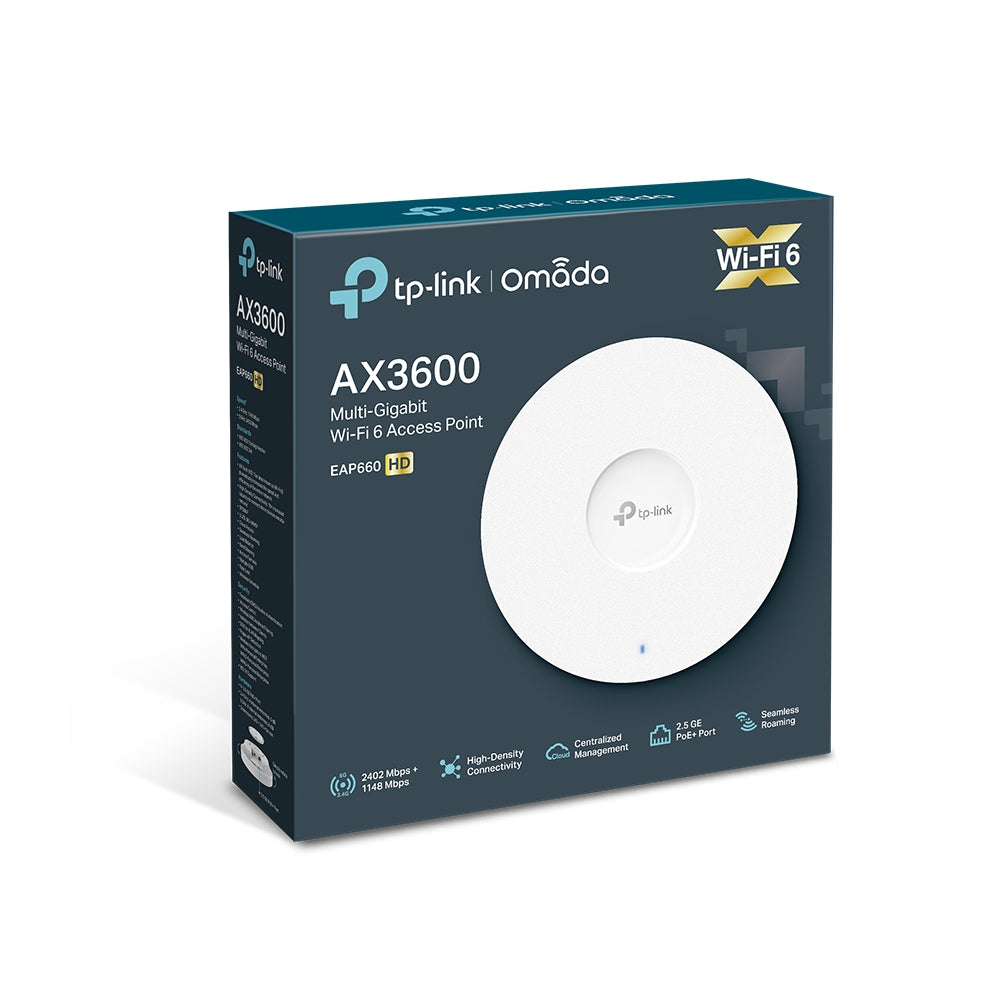

  Package Contents	• EAP660 HD
  	• Power Adapter
  	• Ceiling/Wall Mounting Kits
  	• Installation Guide
  System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Linux
  Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉)
  	• Storage Temperature: -40–70 ℃ (-40–158 ℉)
  	• Operating Humidity: 10–90% RH non-condensing
  	• Storage Humidity: 5–90% RH non-condensing
