• TP-Link EAP230-WALL Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

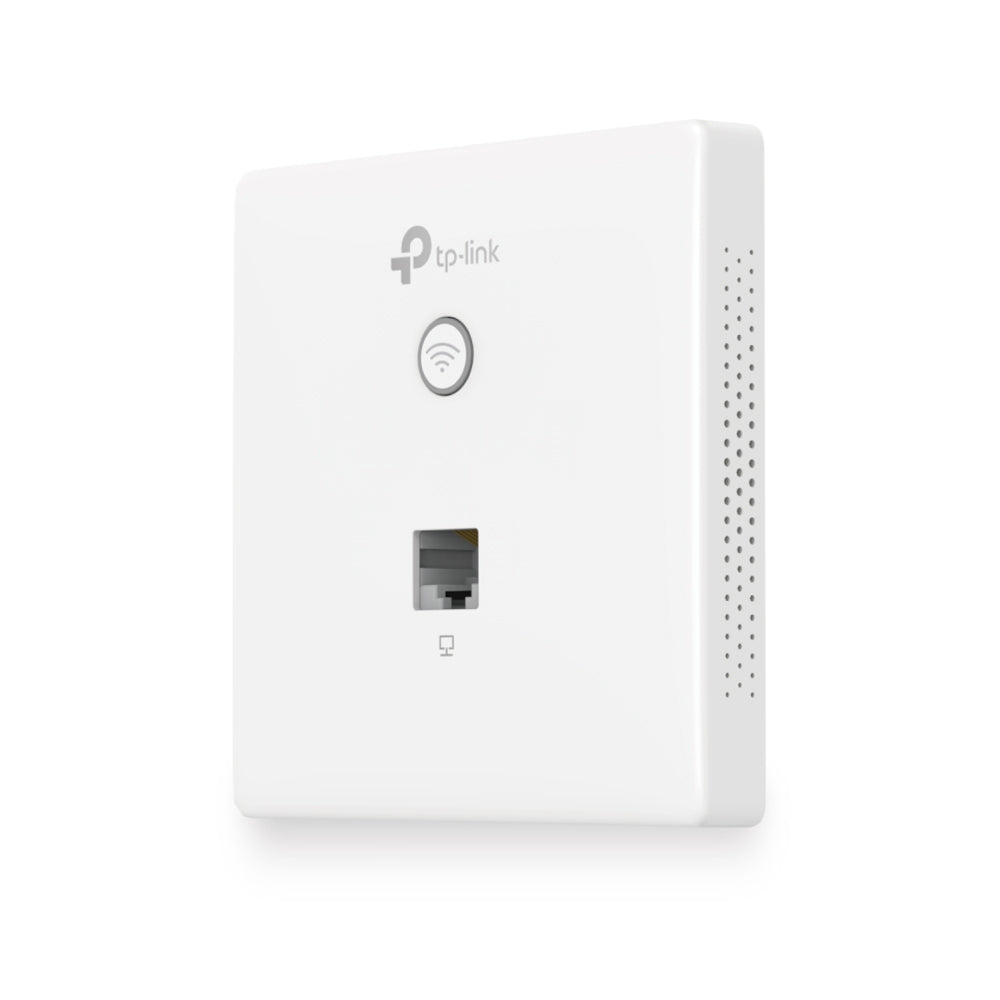

  Unprecedented Thin Design with 11mm
  Omada EAP230-Wall
  AC Access Point

  Private Connection for Every Room.
  EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.

  MU-MIMO + Dual-Band: Faster Connection for More Devices
  802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.

  Seamlessly Blends with any Décor

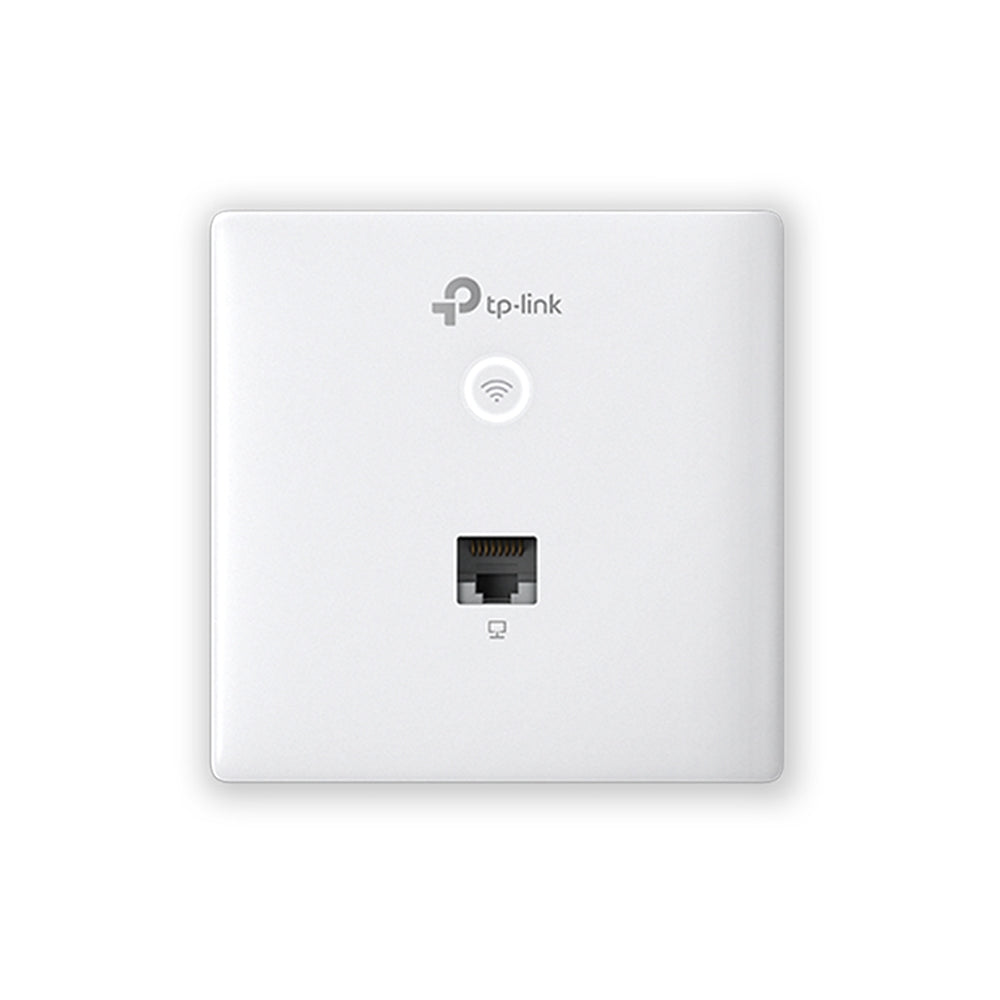

  The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.

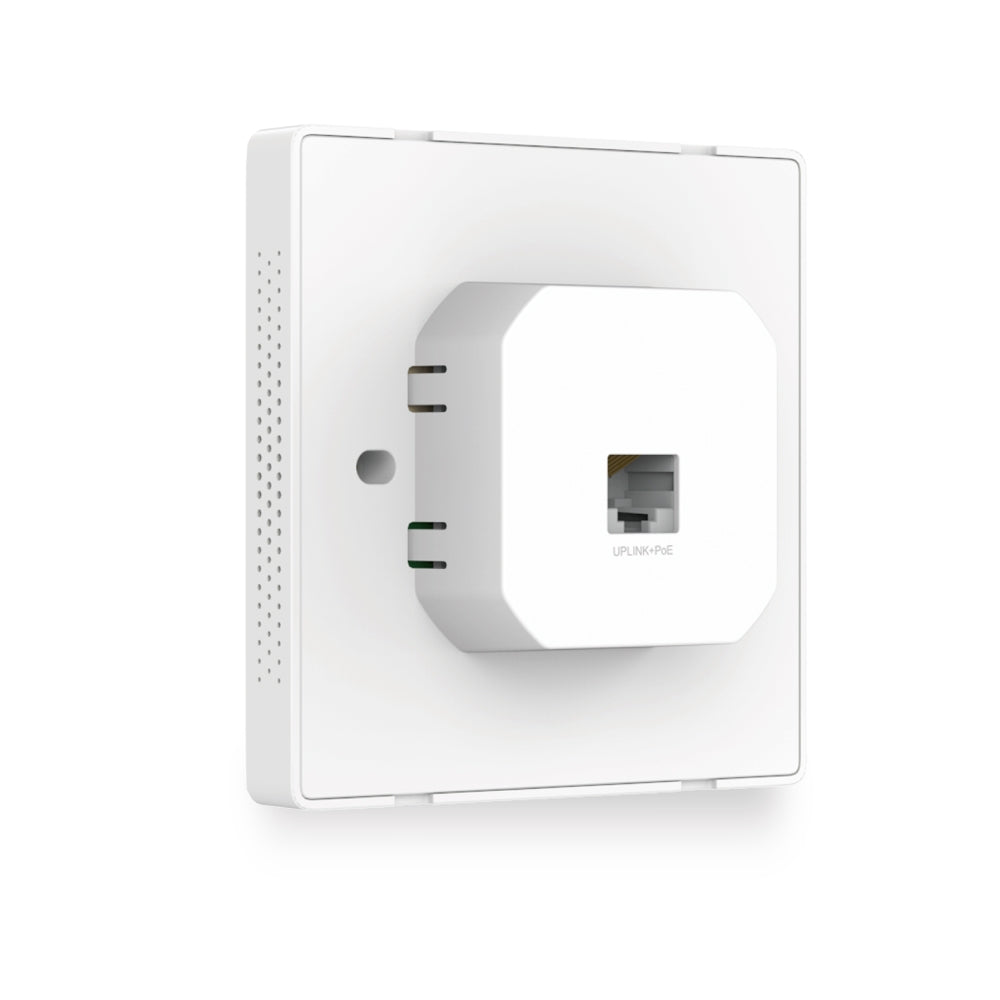

  High-Speed Gigabit Port
  Equipped with a Gigabit port to deliver the fastest possible wired transmission.

  Effortless Deployment with Power over Ethernet
  802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.

  Quick, Simple Installation
  1.Detach and remove the faceplate of the junction box.
  2.Plug an Ethernet cable in to the port.
  3.Secure the Access Point to the wall using the provided screws.
  4.Press the faceplate back into position.

  Omada SDN—Smarter Cloud Solution for Business Networking
  Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

  Easy Management with the Omada App
  Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

• HARDWARE FEATURES
  Interface	Uplink: 1× 10/100/1000 Mbps Ethernet Port <br> Downlink: 1× 10/100/1000 Mbps Ethernet Port
  Physical Security Lock	No
  Button	LED/Wi-Fi Button, RESET
  Power Supply	802.3af/802.3at PoE
  Power Consumption	7 W
  Dimensions (W x D x H)	3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
  Antenna	2 Dual-Band Antennas <br> • 2.4 GHz: 2× 4 dBi <br> • 5 GHz: 2× 3.6 dBi
  Mounting	Wall Plate Mounting
  Hardware Watch Dog	Yes

  WIRELESS FEATURES
  Wireless Client Capacity	200+*
  Wireless Standards	IEEE 802.11n/g/b/ac
  Frequency	2.4 GHz and 5 GHz
  Signal Rate	• 5 GHz: Up to 867 Mbps <br> • 2.4 GHz: Up to 300 Mbps
  Wireless Functions	• 16 SSIDs (Up to 8 SSIDs on each band) <br> • Enable/Disable Wireless Radio <br> • Automatic Channel Assignment <br> • Transmit Power Control (Adjust Transmit Power on dBm) <br> • QoS(WMM) <br> • Load Balance <br> • Rate Limit <br> • Reboot Schedule <br> • Wireless Schedule <br> • Wireless Statistics based on SSID/AP/Client <br> • MU-MIMO <br> • Band Steering <br> • Beamforming
  Wireless Security	• Captive Portal Authentication <br> • Access Control <br> • Wireless Mac Address Filtering <br> • Wireless Isolation Between Clients <br> • SSID to VLAN Mapping <br> • Local LAN port based VLAN <br> • Rogue AP Detection <br> • 802.1X Support <br> • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
  Transmission Power	CE: <br> • ≤20 dBm (2.4 GHz, EIRP) <br> • ≤23 dBm (5 GHz, EIRP)

  MANAGEMENT
  Omada App	Yes
  Centralized Management	• Omada Cloud-Based Controller <br> • Omada Hardware Controller (OC300) <br> • Omada Hardware Controller (OC200) <br> • Omada Software Controller
  Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
  Email Alerts	Yes
  LED ON/OFF Control	Yes
  Management MAC Access Control	Yes
  SNMP	v1,v2c
  System Logging	Local/Remote Syslog
  SSH	Yes
  Web-based Management	HTTP/HTTPS
  L3 Management	Yes
  Multi-site Management	Yes
  Management VLAN	Yes
  Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

  OTHERS
  Certification	CE, RoHS
  Package Contents	• Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall <br> • Installation Guide <br> • Mounting Screw
  System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
  Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) <br> • Storage Temperature: -40–70 ℃ (-40–158 ℉) <br> • Operating Humidity: 10–90% RH non-condensing <br> • Storage Humidity: 5–90% RH non-condensing
