• TP-Link Dual Band Wi-Fi Router | ARCHER C54

  Family Wi-Fi.
  Palm-Sized.
  AC1200 Dual Band WiFi Router

  Fast Dual-Band WiFi
  Dual-band Wi-Fi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices.


  Boosted Signal throughout Your Home
  Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signals towards them, even if they are far away or low-powered.


  Talk to Devices Simultaneously
  Equipped with MU-MIMO technology to connect more devices and maintain low latency. Concurrent streamings on 2 different MU-MIMO devices now will just be smooth as connecting only one, as long as you have enough bandwidth from your ISP.

  Multi-Mode 3 in 1


  Router Mode (Default)
  Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.


  Access Point Mode
  Transform your existing wired network into a wireless one.


  Range Extender Mode
  Boost the existing wireless coverage in your house.


  High Integration, Compact Size
  Archer C54’s system structure focuses on creating optimal WiFi. The advanced semiconductor technology helps integrate units including CPU, memory, and multi-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design.


  As Stable as a Larger One
  Archer C54 goes through rigorous repeated testing to ensure a final product reliable under serveral strenuous environments. The final result: 8 randomly selected Archer C54 routers collectively tested for 1,936 hours.


  Place it Anywhere


  Easy Setup at
  Your Fingertips
  Set up Archer C54 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.

• Category	Details
  Wireless
  Standards	Wi-Fi 5 (IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz)
  WiFi Speeds	AC1200 (5 GHz: 867 Mbps, 2.4 GHz: 300 Mbps)
  WiFi Range	3 Bedroom Houses, 4× Fixed Antennas
  Features	Beamforming, Medium WiFi Capacity, Dual-Band, MU-MIMO
  Working Modes	Router Mode, Access Point Mode, Range Extender Mode
  Security
  Network Security	SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
  Guest Network	1× 5 GHz, 1× 2.4 GHz
  WiFi Encryption	WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
  Hardware
  Processor	Single-Core CPU

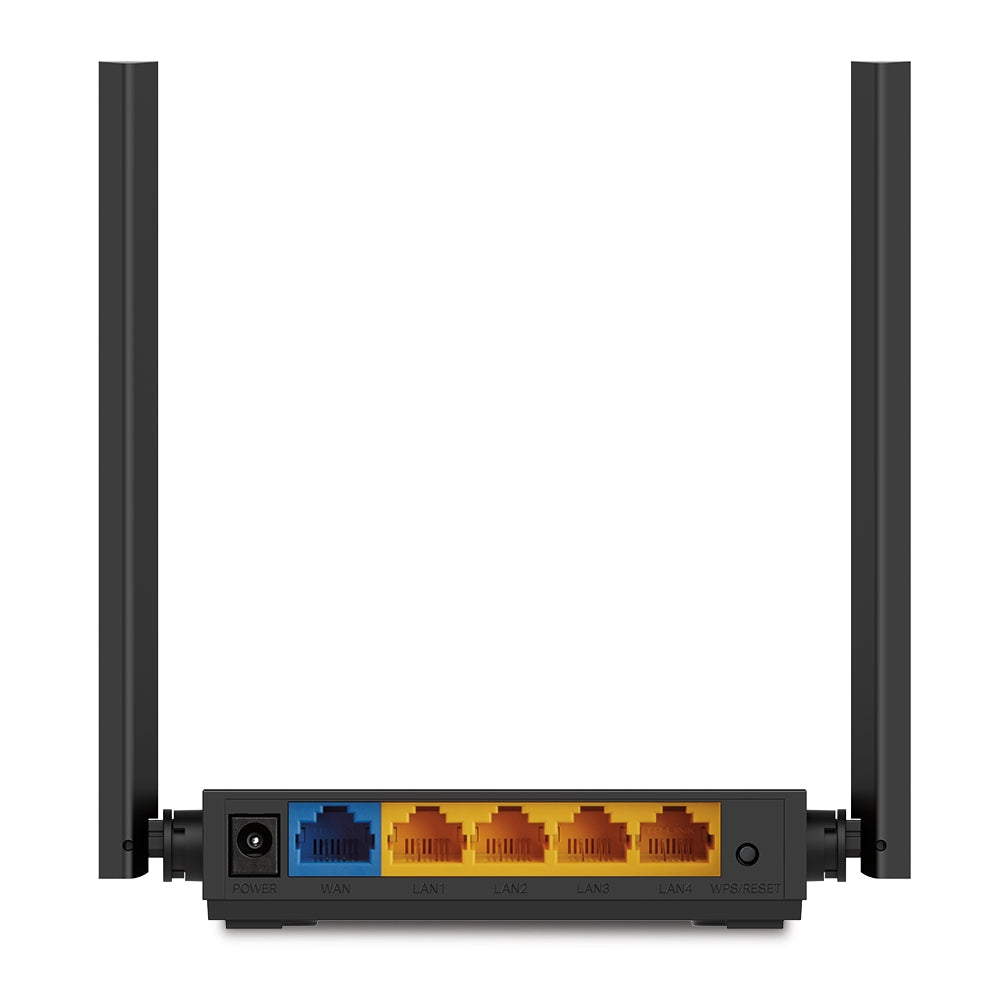

  Ethernet Ports	1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports
  Buttons	WPS/Reset Button
  Power	9 V ⎓ 0.85 A
  Software
  Protocols	IPv4, IPv6
  Parental Controls	URL Filtering, Time Controls
  WAN Types	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
  QoS	QoS by Device
  NAT Forwarding	Port Forwarding, Port Triggering, DMZ, UPnP
  IPTV	IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
  DHCP	Address Reservation, DHCP Client List, Server
  DDNS	NO-IP, DynDNS
  Management	Tether App, Webpage
  Other
  System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JS-enabled browser
  Certifications	FCC, CE, RoHS
  Environment	Operating Temp: 0℃~40℃, Storage Temp: -40℃~60℃, Humidity: 10%-90% non-condensing
  Test Data
  WiFi Transmission Power	CE EIRP: <20dBm(2.4GHz), <23dBm(5GHz); FCC: <30dBm(2.4GHz & 5GHz)
  WiFi Reception Sensitivity	5GHz: 11a 6Mbps:-93dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11n HT40 mcs7:-71dbm
  Physical
  Dimensions (W×D×H)	4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)
  Package Contents	Wi-Fi Router Archer C54, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
