• TP-Link DECO X50-DSL(1-PACK) AX3000 VDSL Whole Home Mesh WiFi 6 Router


  VDSL Modem Router + Mesh WiFi – Save a modem, and gaining a better WiFi experience
  Super VDSL2 Speed – Supports Profile 35b tech to deliver downstream up to 350 Mbps*
  Superior WiFi 6 speeds up to 3.0 Gbps – 2402 Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual-band WiFi with WiFi 6 technology
  Fully Gigabit Ethernet – 4x Gigabit WAN/LAN Ethernet ports provide flexible internet access at warp speed**
  TP-Link HomeShield – Real-time IoT and network protection, robust Parental Controls, and comprehensive reports§
  True Seamless Roaming Mesh WiFi – Walk through your home and stay connected with the fastest possible speeds

  Superior Mesh Wi-Fi, Everywhere
  AX3000 VDSL Mesh Wi-Fi 6 Modem Router

  Less Hassle, More WiFi Coverage
  Armed with a built-in VDSL/ADSL modem, WiFi 6, and TP-Link Mesh technology, Deco X50-DSL saves you a fortune on the DSL modem equipment and delivering an excellent whole-home WiFi experience.

  Meet the Potent Mesh WiFi 6
  Armed with WiFi 6 technology, Deco whole home mesh WiFi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.

  Armed with Wi-Fi 6 technology, Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.

  Faster Streaming, with Less Lag
  The Deco X50-DSL gateway supports Super VDSL with internet downlink speeds up to 350 Mbps, shared by super-fast WiFi 6 with speeds up to 3,000 Mbps, enabling lag-free online activities such as 4K streaming, cloud-gaming, and video calls.

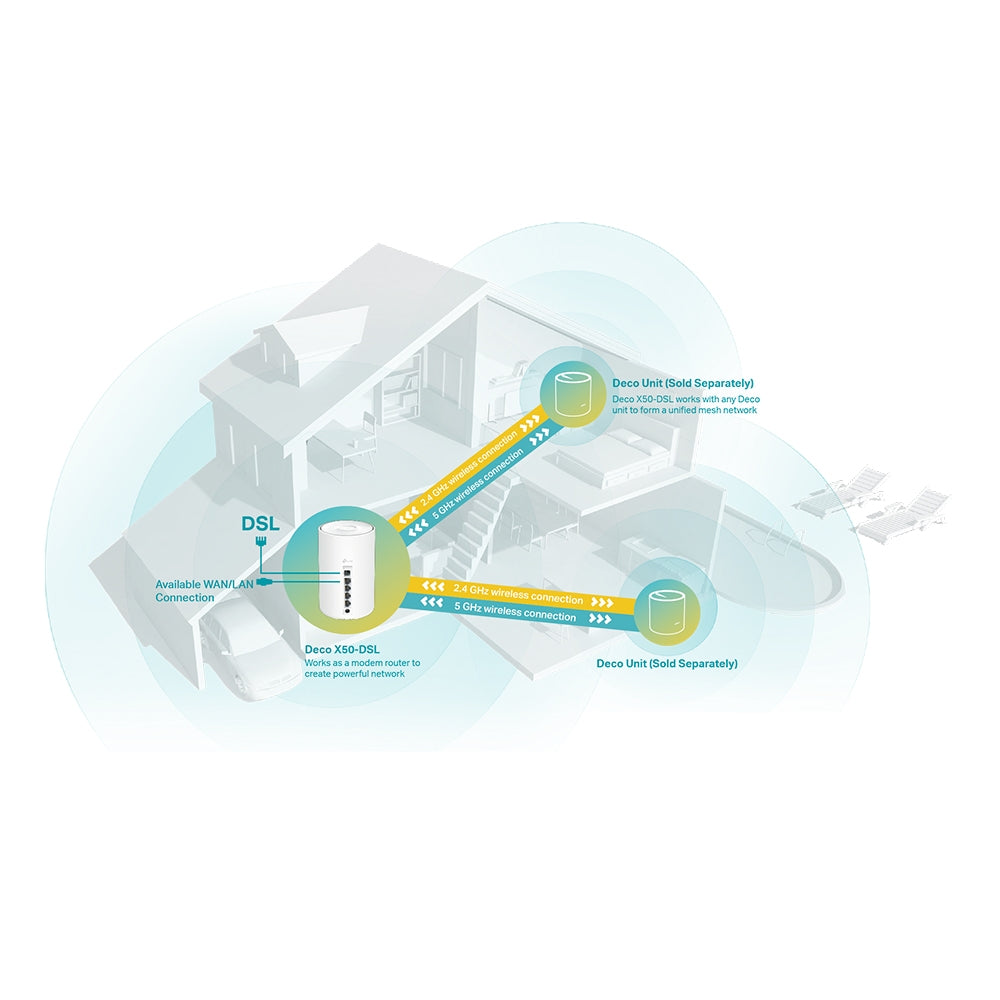

  Seamless Roaming with One Wi-Fi Name
  TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.

  Enjoy Your WiFi with Enhanced Security
  Customize your home network with enhanced security using a kit of features. Whether protecting your sensitive data or limiting the access of kids and guest, Deco X50-DSL provides you the tools you need to fully manage your WiFi.

  Detect cyber threats to keep your privacy and connected devices well protected.

  Manage online time and block inappropriate content to keep families healthy online.

  Prioritize your bandwidth needs to get a faster networking experience.

  Gain full statistics and insights to help you know your home network better.

  Quick Setup with the Deco App
  Unbox Deco, install the app and then simply follow the on-screen directions. Deco will take care of the rest, getting your network up and running in minutes.


  Easy Management
  Manage your WiFi at home or away on the Deco app. See every connected device, prioritize your own, and set up a guest network.

  Voice Control
  Use an Amazon Alexa or Google Assistant-enabled device to control Deco X50-DSL with just your voice.

  All Decos Work Together
  Deco X50-DSL is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.

• SECURITY
  Network Security	SPI Firewall
  Access Control
  	HomeShield Security
  	Real-Time IoT Protection
  	Malicious Site Blocker
  	Intrusion Prevention System
  	DDoS Attack Prevention
  	Home Network Scanner
  Guest Network	1× 5 GHz Guest Network
  	1× 2.4 GHz Guest Network
  WiFi Encryption	WPA-Personal
  	WPA2-Personal
  	WPA3-Personal
  HARDWARE FEATURES
  VDSL2 Standards	ITU G.993.2, Up to 35b profile (POTS)
  	ITU-T G.993.5 (G.vector)
  	ITU-T G.998.4 (G.INP)
  ADSL Standards	Full-rate ANSI T1.413 Issue 2
  	ITU-T G.992.1(G.DMT)
  	ITU-T G.992.2(G.Lite)
  ADSL2 Standards	ITU-T G.992.3 (G.DMT.bis)
  ADSL2+ Standards	ITU-T G.992.5
  WIRELESS
  Standards	Wi-Fi 6
  	IEEE 802.11ax/ac/n/a 5 GHz
  	IEEE 802.11ax/n/b/g 2.4 GHz
  WiFi Speeds	AX3000
  	5 GHz: 2402 Mbps (802.11ax)
  	2.4 GHz: 574 Mbps (802.11ax)
  WiFi Range	1-3 Bedroom Houses (1-pack)
  	TP-Link Mesh Technology
  	Optional Ethernet backhaul work together to
  	link Deco units to provide seamless coverage
  	2× Antennas (Internal)
  	Multiple antennas form a signal-boosting array
  	to cover more directions and large areas
  WiFi Capacity	High
  	Dual-Band
  	Distribute devices to different bands for
  	optimal performance
  	MU-MIMO
  	Simultaneously communicates with multiple
  	MU-MIMO clients
  	OFDMA
  	Simultaneously communicates with multiple
  	WiFi 6 clients
  	4 Streams
  	More than enough bandwidth for connected
  	devices
  Working Modes	DSL (only on Deco X50-DSL)
  	Router Mode
  	Access Point Mode
  	Range Extender Mode
  	WISP Mode
  HARDWARE

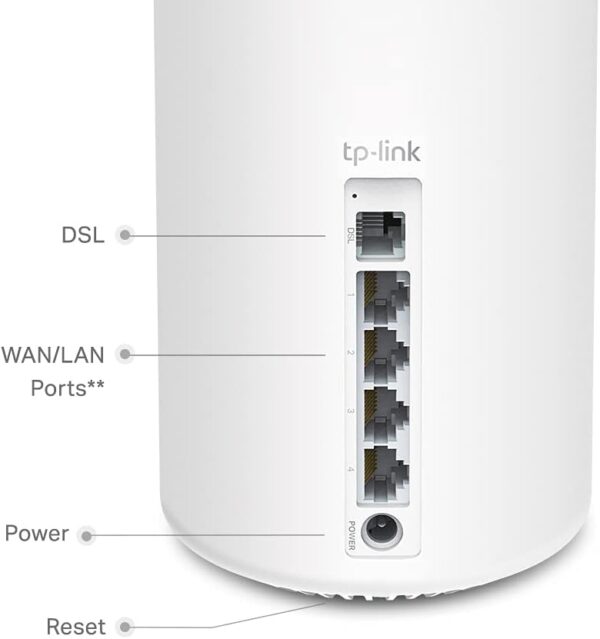

  Ethernet Ports	4× Gigabit Ports Per Deco X50-DSL Unit
  	Supports WAN/LAN auto-sensing
  Buttons	RESET Button
  Ports and Connections	1 DSL Port
  SOFTWARE
  Protocols	IPv4
  	IPv6
  Service Kits	HomeShield
  	Learn More>
  WAN Types	Dynamic IP
  	Static IP
  	PPPoE
  	L2TP
  	PPTP
  	PPPoA
  	IPoA
  	DS-Lite
  Quality of Service	HomeShield QoS
  	QoS by Device
  Cloud Service	OTA Firmware Upgrade
  	TP-Link ID
  	DDNS
  NAT Forwarding	Port Forwarding
  	UPnP
  IPTV	IGMP Proxy
  	IGMP Snooping
  	Bridge
  	Tag VLAN
  DHCP	Address Reservation
  	DHCP Client List
  	Server
  DDNS	TP-Link
  Management	Deco App
  TEST DATA
  WiFi Transmission Power	CE:
  	≤20 dBm (2.4GHz)
  	≤23 dBm (5GHz)
  PHYSICAL
  Dimensions (W×D×H)	Deco X50-DSL:
  	4.13 × 4.13 × 6.57 in
  	(105 × 105 × 167mm)
  PACKAGE CONTENTS	1-pack
  	1 Deco X50-DSL Unit
  	1 RJ45 Ethernet Cable
  	2 RJ11 DSL Cables
  	1 External DSL Splitter
  	1 Power Adapter
  	Quick Installation Guide
  OTHERS
  Certification	Deco X50-DSL:
  	CE, RCM, RoHS
  Environment	Operating Temperature: 0°C40°C (32°F104°F)
  	Storage Temperature: -40°C60°C (-40°F140°F)
  	Operating Humidity: 10%~90%RH
  	Storage Humidity: 5%~90%RH
