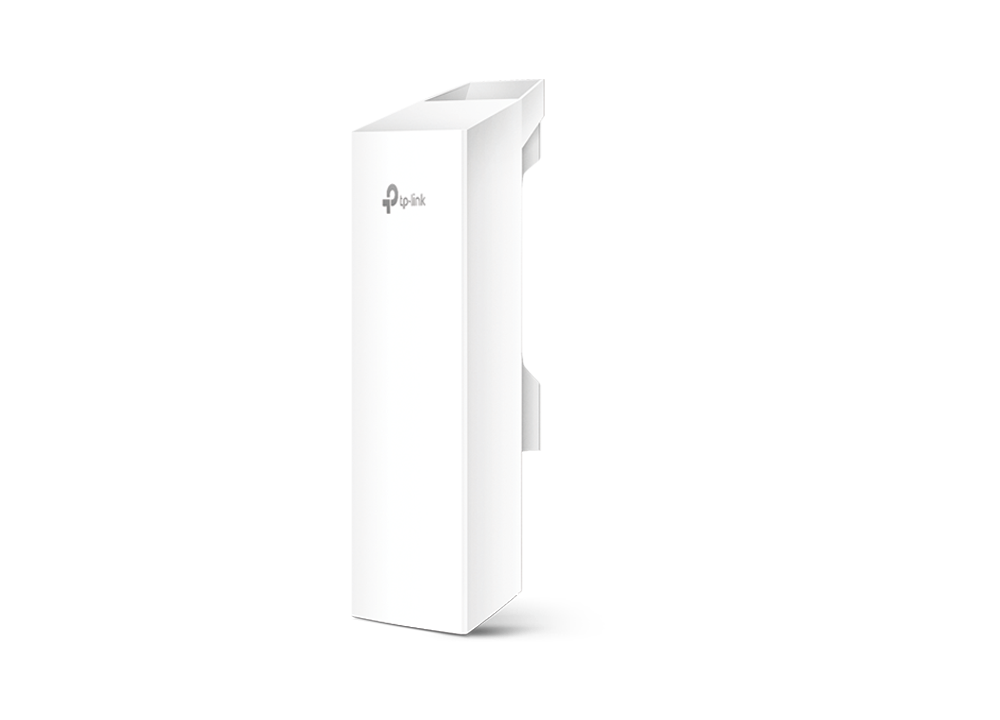

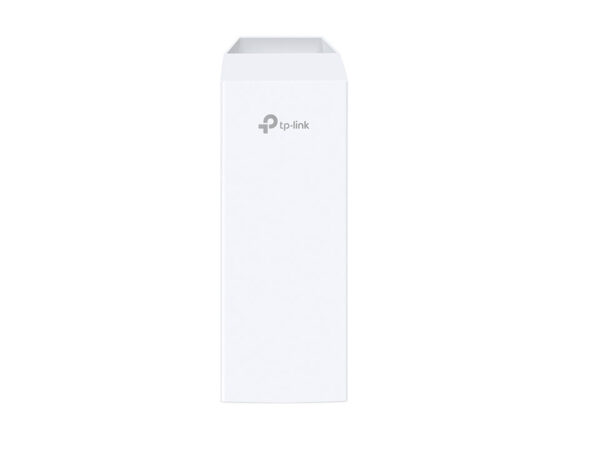

• TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor Long Range Wireless

  TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

  Enterprise Hardware
  With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

  Advanced Antenna System
  Built-in High Gain Dual-Polarized Antenna
  Dedicated metal reflector ensures higher gain
  and lower noise interference

  5km+ Wireless Data Transmission
  Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

  TP-LINK MAXtream TDMA Technology
  As network scale increases, wireless competition and collisions among CPEs and base stations will be
  so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
  experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

  Pharos Control – Centralized Management System
  CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

  PharOS
  User-friendly web-based management system allows professionals to do more specific configurations.

  2.4GHz 300Mbps 9dBi Outdoor CPE CPE210

• Hardware Features	Description
  Processor	Qualcomm Atheros 560MHz CPU, MIPS 74Kc
  Memory	64MB DDR2 RAM, 8MB Flash
  Interface	– 1 10/100Mbps Shielded Ethernet Port (Passive PoE in) – 1 Grounding Terminal – 1 Reset Button
  Power Supply	Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  Voltage Range	16-27VDC
  Power Consumption	10.5 Watts Max
  Dimensions	8.8 x 3.1 x 2.4 in.
  Antenna Type	Built-in 9dBi 2×2 Dual-polarized Directional Antenna
  Beam Width	65° (H-Plane) / 35° (E-Plane)
  Protection	– 15KV ESD Protection – 6KV Lightning Protection
  Enclosure	Outdoor ASA stabilized plastic material
  Certification	IPX5 waterproof Certification

  Wireless Features	Description
  Wireless Standards	IEEE 802.11b/g/n (with Pharos MAXtream disabled)
  Proprietary Protocol	TDMA Mode (with Pharos MAXtream enabled)
  Wireless Speeds	See below
  Frequency	2.4~2.483GHz
  Transmission Power	27dBm/500mw (1dBm step adjustable)

  Software Features	Description
  Wireless Configurations	See below
  Management	– Discovery and Remote Management via Pharos Control application – HTTP/HTTPS Web-based management – System Log – SNMP Agent(v2c) – Ping Watch Dog – Dynamic DDNS – SSH Server

  POE Adapter Features	Description
  Dimensions	4.3 x 2.2 x 1.3 in
  Interfaces	– 1 AC Jack with Earth Ground – 1 10/100Mbps Shielded Ethernet Port (Power + Data) – 1 10/100Mbps Shielded Ethernet Port (Data) – Remote Reset Button

  Others	Description
  Certification	FCC, RoHS, IPX5
  Package Contents	– Outdoor Wireless CPE – 24VDC Passive PoE Adapter – Pole Mounting Straps – AC Power Cord – Installation Guide
  Environment	– Operating Temperature: -40℃70℃ (-40℉158℉) – Storage Temperature: -40℃70℃ (-40℉158℉)
