TP-Link AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter | ARCHER TX3000E

• Description
• Specifications
• Downloads

• TP-Link AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter


  Unrivaled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
  Smoother Experience—75% lower latency ensures ultra-responsive real-time gaming
  Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
  Wider Signal Coverage—Two multi-directional antennas with magnetized base are designed for optimum signal reception
  Bluetooth 5.0—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
  Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
  Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
  Backward Compatibility – Full support for 802.11ac/a/b/g/n standards

  Arm Your PC with Next-Gen Wi-Fi Technology
  AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter
  Archer TX3000E

  Next-Level Gaming
  The very latest Wi-Fi 6 standard guarantees extreme speed, ultra-low latency, and uninterrupted connectivity. Utilizing the Wi-Fi 6 foundation, Archer TX3000E is designed to liberate your gaming from cables and fully optimize your gameplay. Discover the missing component of your gaming arsenal!

  Stay Immersive
  1024-QAM and a 160 MHz bandwidth deliver powerful, continuous Wi-Fi to fully unlock the potential of your Wi-Fi 6 router. Achieving speeds 3× faster than standard AC Wi-Fi drives your PC to peak performance so your setup keeps pace with your jaw-dropping skills.

  Incredibly Smooth Gameplay
  Lower latency is essential to gaming success. Revolutionary OFDMA reduces lag by up to 75%. Enjoy ultra-responsive real-time gaming or immersive VR experiences.

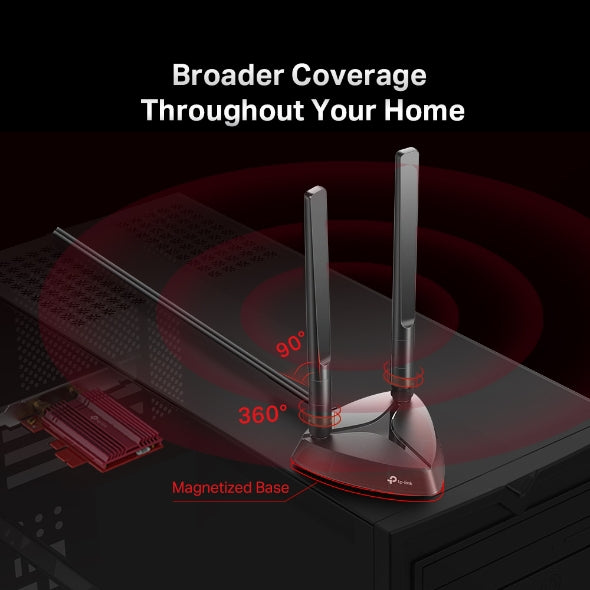

  Broader Coverage
  Two multi-directional and high-performance antennas with a magnetized base extends your existing Wi-Fi reception capabilities, allowing you to game anywhere and anytime. Place the magnetized antenna base anywhere on your desktop to find the optimal location for signal reception.

  Simultaneous Entertainment for All
  A revolutionary combination of OFDMA and MU-MIMO technologies ensures the most efficient Wi-Fi connection for your PC. OFDMA technology divides band resources into smaller units while MU-MIMO allows more devices to communicate simultaneously—without lag.

  Bluetooth 5.0 Compatible
  Archer TX3000E is compatible with the latest Bluetooth 5.0 Technology, achieving 2× faster speed and 4× broader coverage than Bluetooth 4.2. Connect as many devices as you want, including game controllers, headphones, and keyboards, to enjoy a smoother experience than ever before.

  Advanced Security
  The latest security enhancements—WPA3 provides more secure and individualized encryption in personal password safety, protecting your network from wireless hacking. Always keep your network safe while gaming online.

  Fine Crafting for
  Ultimate Performance
  Built with a specialized heatsink crafted to improve stability and reliability even in hot environments. Careful attention to every detail, such as gold plating on every contactor to resist oxidation, delivers a superior network experience.

• Category	Features
  HARDWARE FEATURES
  Dimensions	3.7 x 4.8 x 0.8 in (95.2 x 120.8 x 21.5 mm)
  Antenna Type	Two High-Gain Dual Band Antennas
  	Magnetized Antenna Base
  Chipset	Intel Wi-Fi 6 Chipset
  WIRELESS FEATURES
  Wireless Standards	IEEE 802.11ax/ac/n/a 5 GHz
  	IEEE 802.11ax/n/g/b 2.4 GHz
  	Bluetooth 5.0/4.2/4.0
  WLAN Signal Rate	5 GHz:
  	– 11ax: Up to 2402 Mbps(dynamic)
  	– 11ac: Up to 1733 Mbps(dynamic)
  	– 11n: Up to 300 Mbps(dynamic)
  	– 11a: Up to 54 Mbps(dynamic)
  2.4 GHz:	– 11ax: Up to 574 Mbps(dynamic)
  	– 11n: Up to 300 Mbps(dynamic)
  	– 11g: Up to 54 Mbps(dynamic)
  	– 11b: Up to 11 Mbps(dynamic)
  WLAN Reception Sensitivity	5 GHz:
  	– 11ax HT160: -56.25dBm
  	– 11ax HT80: -59dBm
  	– 11ax HT40: -62.25dBm
  	– 11ax HT20: -65dBm
  	– 11ac HT160: -62dBm
  	– 11ac HT80: -65.5dBm
  	– 11ac HT40: -69.75dBm
  	– 11ac HT20: -73.75dBm
  	– 11n HT40: -74.5dBm
  	– 11n HT20: -77.5dBm
  	– 11a 54Mbps: -77.75dBm
  	– 11a 6Mbps: -94.5dBm
  2.4 GHz:	– 11ax HT40: -60.75dBm
  	– 11ax HT20: -63.75dBm
  	– 11n HT40: -73dBm
  	– 11n HT20: -76.25dBm
  	– 11g 54Mbps: -76.5dBm
  	– 11b 11Mbps: -89dBm
  WLAN Transmit Power	5 GHz:
  	– 27dBm(FCC) / 23dBm(CE) (EIRP)
  2.4 GHz:	– 26dBm(FCC) / 20dBm(CE) (EIRP)
  WLAN Modes	Infrastructure mode
  Wireless Security	Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
  Modulation Technology	DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
  Bluetooth Profiles	Archer TX3000E support the native BT profiles implemented in Windows 10.
  	For the latest information on Windows 10 BT profiles please refer to Microsoft Support
  OTHERS
  Certification	CE, FCC, RoHS
  Package Contents	Archer TX3000E
  	Magnetized Antenna Base with 1m RF Cable
  	Two High Gain Antennas
  	Low-Profile Bracket
  	Bluetooth Header Cable
  	Quick Installation Guide
  	Resource CD
  System Requirements	Windows 11/10(64-bit) only
  Environment
  Operating Temperature	0°C40°C (32°F104°F)
  Storage Temperature	-40°C70°C (-40°F158°F)
  Operating Humidity	10%~90% non-condensing
  Storage Humidity	5%~90% non-condensing
