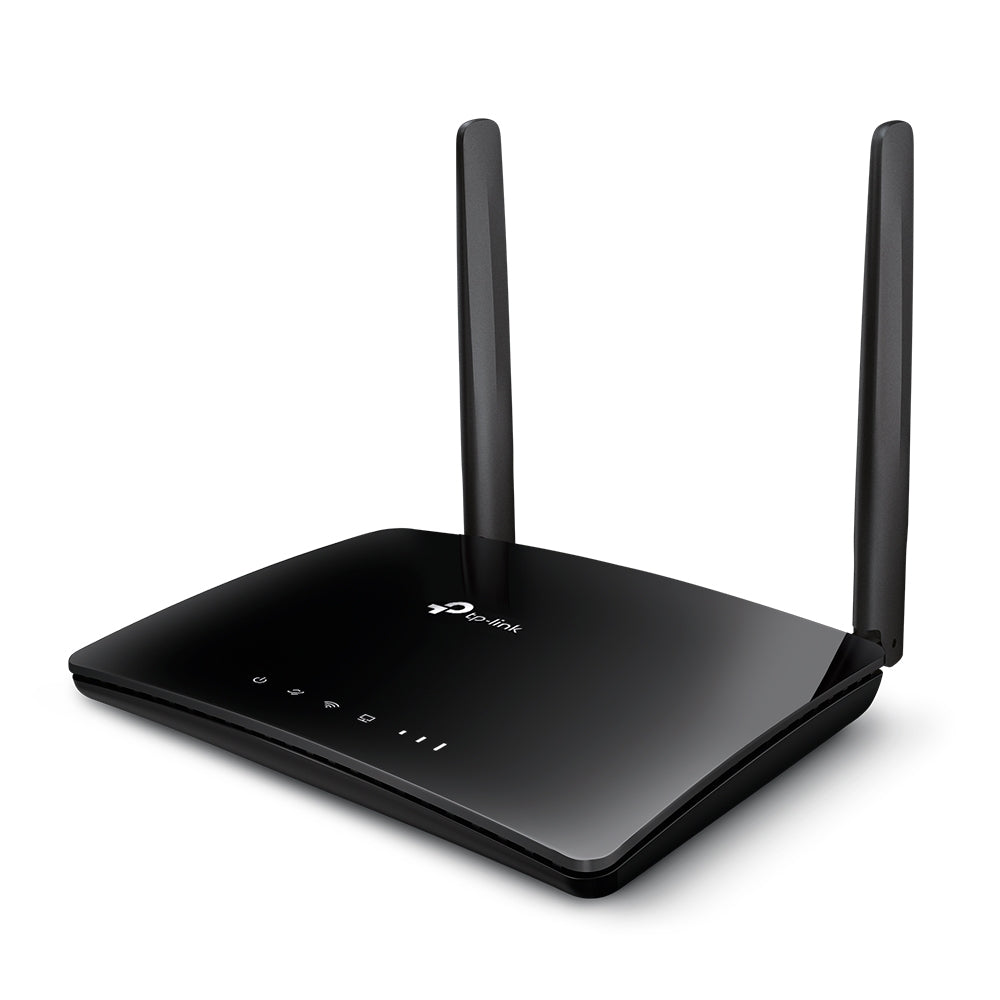

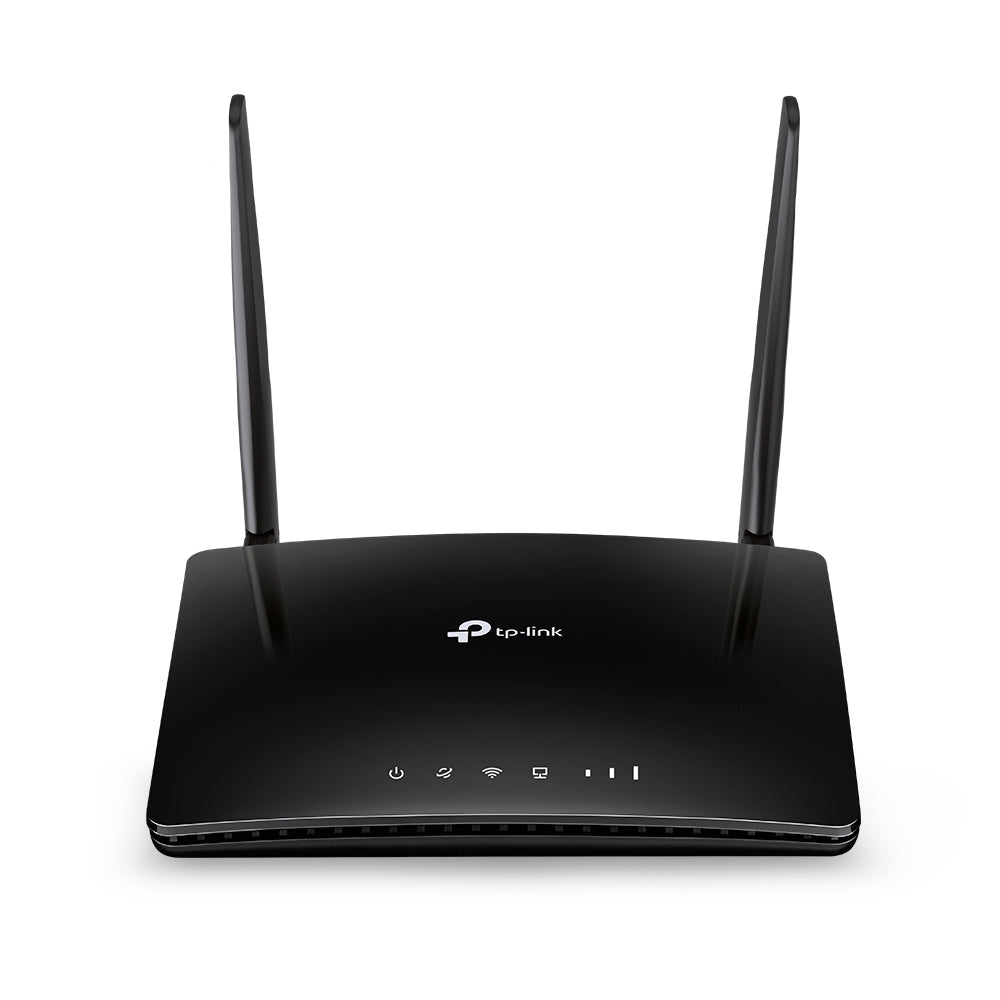

TP-Link ARCHER MR400/AC1200 Wireless Dual Band 4G LTE Router

• Description
• Specifications
• Downloads

• TP-Link ARCHER MR400/AC1200 Wireless Dual Band 4G LTE Router


  4G LTE with AC1200 Wi-Fi to Stream from Everywhere
  AC1200 Wireless Dual Band 4G LTE Router

  Archer MR400

  Got SIM Card?
  Then Plug and Play!
  With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a nano SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

  Share Your 4G LTE Network
  Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

  Wi-Fi Where You Need It
  Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a nano SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.

  Internet Access for
  up to 64 Devices Simultaneously
  Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.

  Support TP-Link OneMesh™
  Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
  *OneMesh Range Extender or Powerline Adapter sold separately.

  Personalize Your Home Network
  Archer MR400 provides a wealth of advanced tools for personalized management.

  Available WAN Connection
  The WAN/LAN port enables Archer MR400 to work as a traditional wireless router that is compatible with cable, fiber, and DSL modems. And when it’s set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.

  Easy Setup and Management
  Set up the Archer MR400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

• HARDWARE FEATURES
  Interface	3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Micro SIM Card Slot
  Button	WPS/RESET Button, Wi-Fi ON/OFF Button
  External Power Supply	12V/1A
  Dimensions (W x D x H)	6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)
  Antenna	2× Detachable External 4G LTE Antennas

  WIRELESS FEATURES
  Wireless Standards	IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
  Frequency	2.4 GHz and 5 GHz
  Signal Rate	300Mbps at 2.4GHz, 867Mbps at 5GHz
  Reception Sensitivity	5 GHz:<br>11a 54M: -77 dBm<br>11ac VHT20 MCS0: -95.5 dBm<br>11ac VHT20 MCS8: -73 dBm<br>11ac VHT40 MCS0: -93 dBm<br>11ac VHT20 MCS9: -68 dBm<br>11ac VHT80 MCS0: -90 dBm<br>11ac VHT20 MCS9: -65 dBm<br>2.4 GHz:<br>11g 54M: -74.5 dBm<br>11n HT20 MCS0: -92 dBm<br>11n HT20 MCS7: -73 dBm<br>11n HT40 MCS0: -89 dBm<br>11n HT40 MCS7: -70 dBm
  Transmit Power	< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
  Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
  WAN Failover	Yes
  Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
  Network Type	4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)<br>TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)<br>3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)

  SOFTWARE FEATURES
  Quality of Service	Prioritizes network traffic by device or application
  Operating Modes	3G/4G Router, Wireless Router
  WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
  Management	Access Control, Local Management, Remote Management, reboot schedule
  DHCP	Server, Client, DHCP Client List, Address Reservation
  Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
  Dynamic DNS	DynDns, NO-IP
  VPN	PPTP VPN, OpenVPN
  Access Control	Parental Control, Local Management Control
  Firewall Security	DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
  Protocols	Supports IPv4 and IPv6
  Guest Network	2.4GHz guest network x 1, 5GHz guest network x 1

  OTHERS
  Certification	CE, RoHS
  Package Contents	AC1200 Wireless Dual Band 4G LTE Router, Archer MR400<br>RJ45 Ethernet Cable<br>Power Adapter<br>Quick Installation Guide
  System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10<br>MAC OS, NetWare, UNIX or Linux<br>Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers<br>Nano SIM Card
  Environment	Operating Temperature: 0℃~40℃ (32℉ 104℉)<br>Storage Temperature: -40℃70℃ (-40℉ ~158℉)<br>Operating Humidity: 10%~90% non-condensing<br>Storage Humidity: 5%~90% non-condensing
