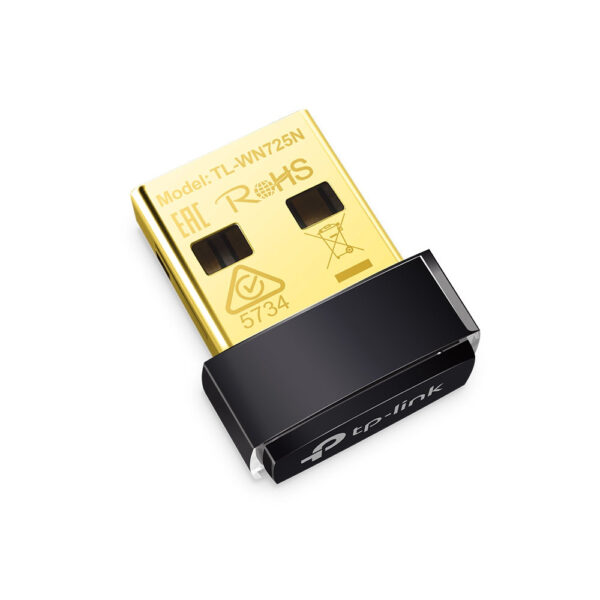

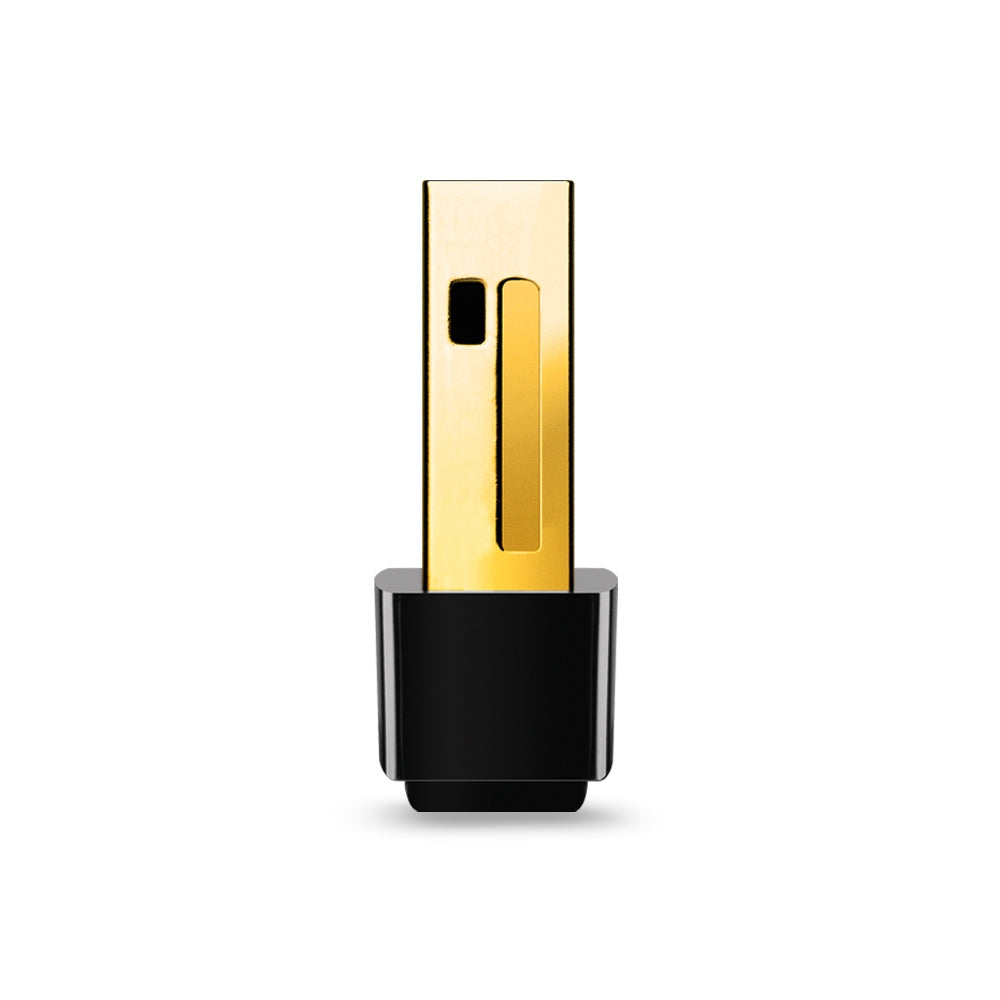

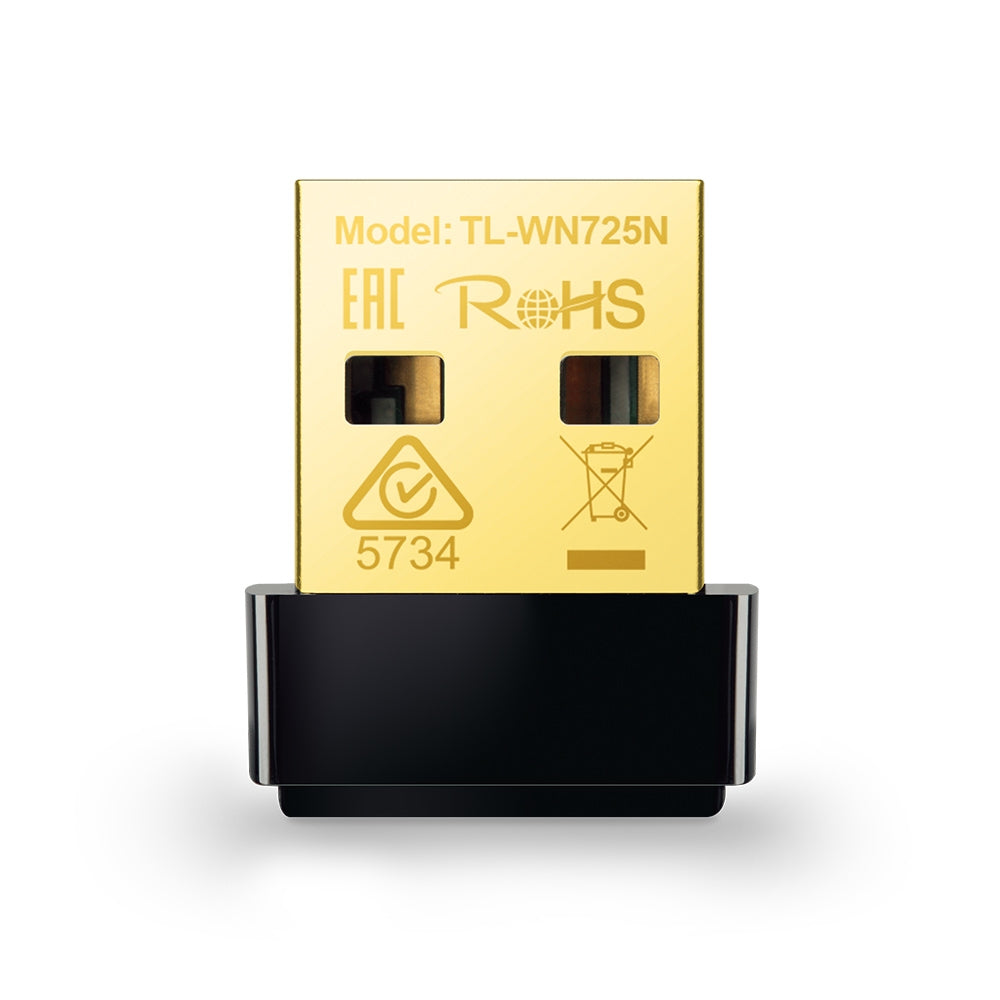

TP-Link 150Mbps Wireless N Nano USB Adapter | TL-WN725N

• Description
• Specifications
• Downloads

• TP-Link 150Mbps Wireless N Nano USB Adapter


  Add on, Leave on
  150Mbps Wireless N
  Nano USB Adapter

  TL-WN725N

  Great Surfing Experience with Nano USB Adapter
  As a Wireless N Nano USB adapter, TL-WN725N allows users to connect a desktop or notebook computer to a wireless network at speed of up to 150Mbps, which is ideal for smooth video streaming, voice streaming and online gaming.

  Miniature Design Brings Infinite Convenience
  TL-WN725N is designed to be as convenient as possible. With its miniature size and sleek design, users can connect the nano adapter to any USB port and leave it there, no matter when they are traveling or at home.


  Easy Setup
  A friendly user interface on a CD for simple installation

  Advanced Security
  WPA/WPA2 encryption standards ensure wireless connection’s safety.

  Operating System
  Supports Windows, Mac OS, Linux

• HARDWARE FEATURES
  Interface	USB 2.0
  LED	Status
  Weight	0.07 ounces / 2.1 grams
  Dimensions (W x D x H)	0.73×0.59×0.28in.(18.6x15x7.1mm)
  Antenna	Internal antenna

  WIRELESS FEATURES
  Wireless Standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  Frequency	2.400-2.4835GHz
  Signal Rate	11b: Up to 11Mbps (dynamic)
  	11g: Up to 54Mbps (dynamic)
  	11n: Up to 150Mbps (dynamic)
  Reception Sensitivity	130M: -68dBm@10% PER
  	108M: -68dBm@10% PER
  	54M: -68dBm@10% PER
  	11M: -85dBm@8% PER
  	6M: -88dBm@10% PER
  	1M: -90dBm@8% PER
  Transmit Power	<20dBm
  Wireless Modes	Ad-Hoc / Infrastructure mode
  Wireless Security	Supports 64/128 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES), supports IEEE 802.1X
  Modulation Technology	DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

  OTHERS
  Certification	CE, FCC, IC, RoHS
  Package Contents	150Mbps wireless N Nano USB adapter TL-WN725N
  	Resource CD
  	Quick Installation Guide
  System Requirements	Windows 11/10/8.1/8/7/XP, Mac OS X, Linux
  Environment	Operating Temperature: 0℃40℃ (32℉104℉)
  	Storage Temperature: -40℃70℃ (-40℉158℉)
  	Operating Humidity: 10%~90% non-condensing
  	Storage Humidity: 5%~90% non-condensing
