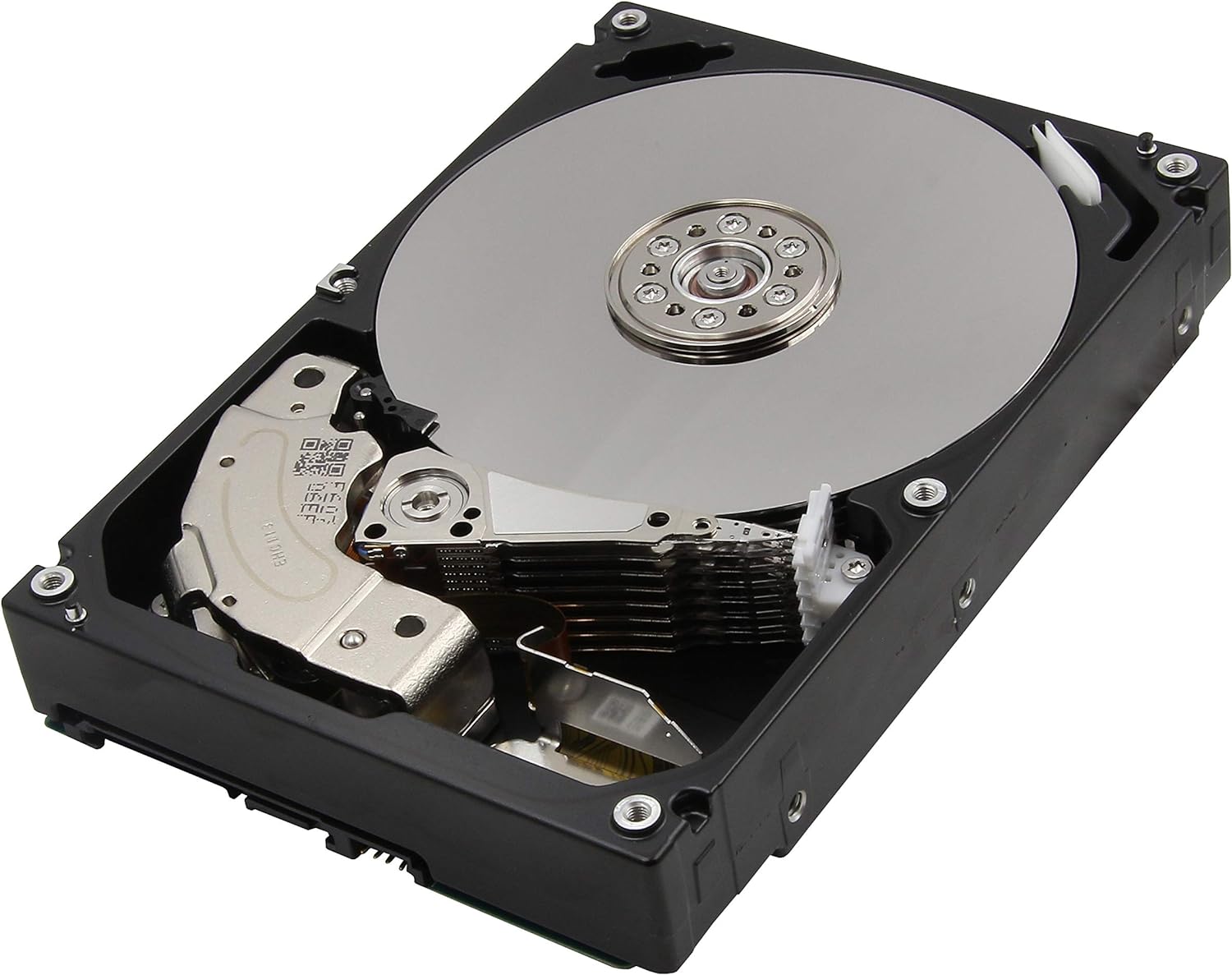

Toshiba 3.5″ 10000 GB SAS Internal Hard Drive
Toshiba Persistent Write Cache technology helps enhance performance while also maintaining data integrity in the event of a sudden loss of power. Equipped with 12 Gbit/s SAS interface, the Enterprise Capacity MG06SCA models help save rack space and reduce the footprint and operational burden of business critical servers and storage systems.
Large capacity
7,200 rpm performance
Dual-port 12 Gbit/s SAS interface
Advanced Format Sector Technology
Toshiba Persistent Write Cache Technology to help maintain data integrity during power-loss events -
General Device Type Hard drive – internal – nearline Capacity 10 TB Form Factor 3.5″ Interface SAS 12Gb/s Buffer Size 256 MB Bytes per Sector 512 Features Dual Port, advanced format 512e, 24×7 availability, Persistent Write Cache technology, Power Loss Protection (PLP), 512 emulation ( 512e ), workload up to 550 TB per year Width 101.85 mm Depth 147 mm Height 26.1 mm Weight 770 g Performance Drive Transfer Rate 1.2 GBps (external) Internal Data Rate 237 MBps Spindle Speed 7200 rpm Reliability MTBF 2,500,000 hours 24×7 Operation Yes Non-Recoverable Errors 10 per 10^16 Load / Unload Cycles 600,000 Expansion & Connectivity Interfaces 1 x SAS 12 Gb/s Compatible Bay 3.5″ Power Power Consumption 7.49 Watt (active idle), 10.78 Watt (random read/write) Environmental Parameters Min Operating Temperature 5 °C Max Operating Temperature 55 °C Min Storage Temperature -40 °C Max Storage Temperature 70 °C Humidity Range Operating 5 – 90% (non-condensing) Shock Tolerance (operating) 70 g @ 2 ms Shock Tolerance (non-operating) 250 g @ 2 ms Vibration Tolerance (operating) 0.75 g @ 5-300 Hz Vibration Tolerance (non-operating) 3 g @ 5-500 Hz Sound Emission 34 dB - Toshiba 3.5″ 10000 GB SAS Internal Hard Drive DataSheet Downloads
