• TOA VX-050DA 31 V DC Operating Range System Amplifier

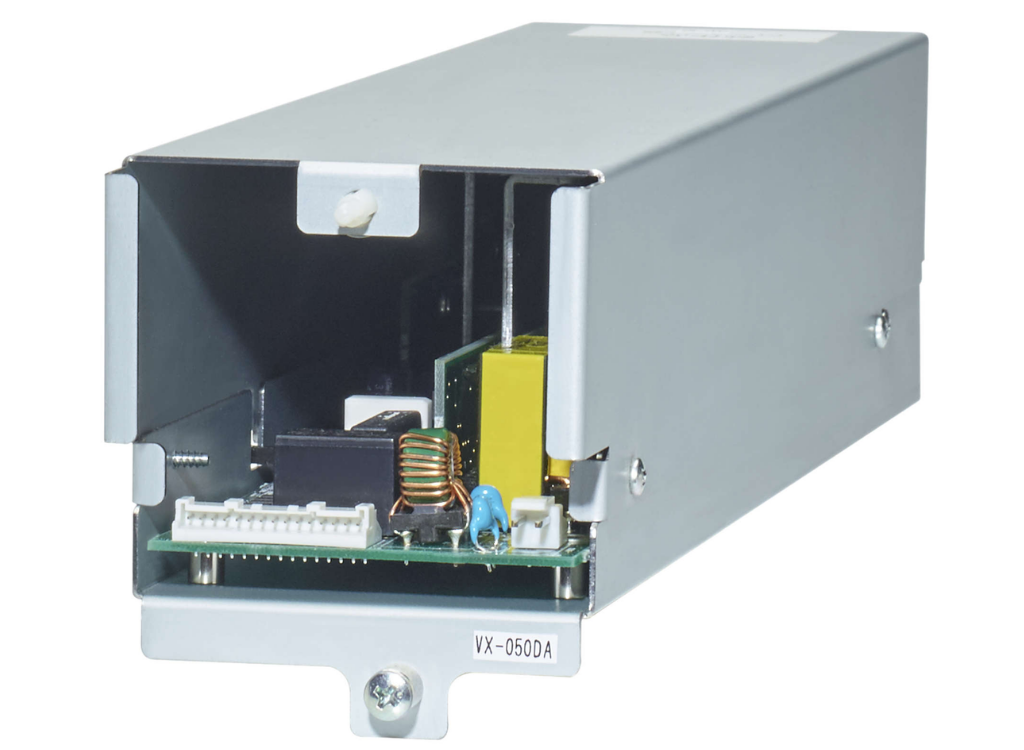

  The VX-050DA is an Digital power amplifier used for the VX-3000 systems which is compliant with the European Standard EN54 for fire alarm systems. It is a module type with 1 channel of class-D digital power amplifier, which contribute to energy-saving and light weight design. The VX-050DA also features standby mode to be set for reducing standby power consumption. It requires a dedicated control units VX-3004F, VX-3008F, VX-3016F and power supply unit VX-3000DS.

  Low loss modular class-D amplifiers
  Modules to be mounted in the frame units
  Rated power at 100 V: 500 W
  Can easily be removed or replaced
  Dust filter, easy to clean
  50/70/100 V Output without transformer resulting in light-weight units
  Fuse easily accessible from rear


  Discover our products in 3-D view – and project them via AR into any room and get 3-D all-round view in real time

  How can I turn, enlarge, move the object?

  Rotate /Turn: Hold left click and drag at the same time or on a touch screen please drag with one finger.

  Zoom: To zoom in or out, please scroll with the mouse wheel or on a touch screen please work with pinch-to-zoom i.e. pull the object apart with 2 fingers to zoom in.

  Move the entire object: Hold right-click and drag or on a touchscreen please drag with 2 fingers.

  Project into my own space: Click AR (Augmented Reality) at the bottom right of the window. Now you can scan the QR code or simply open the link on your mobile device.

  Application examples for this product:
  Public buildings
  Airports
  Hotels
  Industrial facilities
  Educational facilities
  Hospitals / Health care
  Retail stores

• Specification	VX-050DA
  Power source	31 V DC operating range: 20 – 33 V DC
  Power / current consumption	1.3 W (standby mode), 16 W (idle), 100 W (EN 62368-1: 1/8 rated output), 590 W (rated output)
  Frequency response	40 Hz – 20 kHz
  Rated output	500 W 100 V
  Finish	Steel plate
  Dimensions	79 x 91 x 358.2 mm (W x H x D)
  Weight	1.4 kg
  Distortion	< 1 % (at 100 V line, A-weighted)
  S/N ratio	100 dB(A) (or more at 100 V, A-weighted)
  Inputs	DA control link (15-pin connector)
  Outputs	100 V/70 V/50 V selectable
  Number of channels	1
