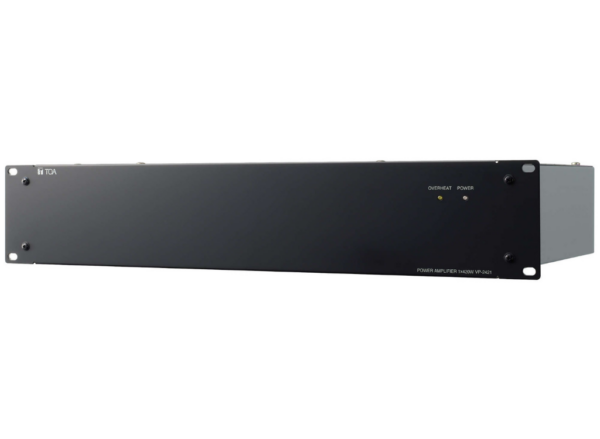

• TOA VP-2421 INCL 420 W x 1 Channel System Amplifier

  The VP-2421 Power Amplifier features a 420 W-by-1 channels configuration, and uses the VP-200VX Power Amplifier Module per channel.

  Power configuration: 420 W x 1 Channel (VP-2421)
  Usable as zone or standby amplifierr
  Power Amplifier uses 1 VP-200VX or VP-200VX-BGM Power Amplifier Input Module per channel
  Programmable power amplifier standby function extends battery-powered operation time in emergency cases


  Application examples for this product:
  Shopping centers
  Hotels
  Hospitals / Health care
  Exhibition centers
  Educational facilities
  Railway stations
  Supermarkets
  Retail stores

• Specification	VP-2421incl
  Power Source	28 V DC (operating range: 20 – 40 V DC) M4 screw terminal
  Frequency Response	40 Hz – 16 kHz
  Rated Output	1 x 420 W
  Finish	Steel plate, black
  Dimensions (W x H x D)	482 x 88.4 x 340.5 mm
  Weight	9.5 kg
  Distortion	< 1 % (at 1 kHz, rated input/output)
  Current Consumption	7.6 A
  S/N Ratio	80 dB(A)
  Inputs	Specified by input module VP-200VX

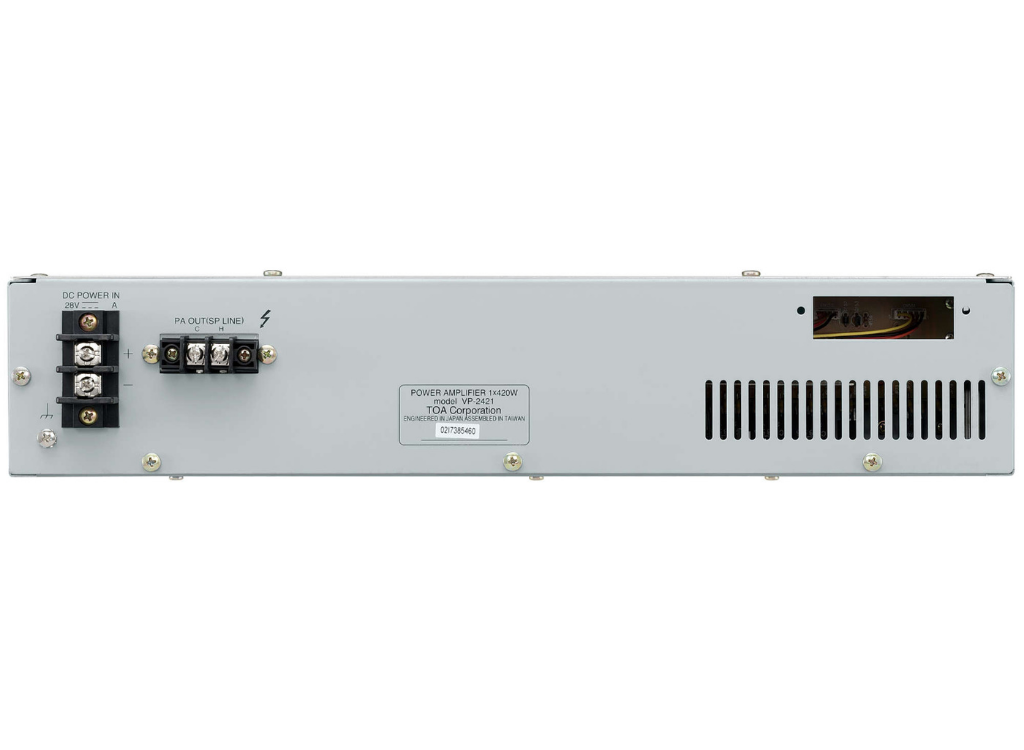

  Outputs	Power amplifier output (speaker line): M3.5 screw terminal
  Number of Channels	1
  Indicator	Channel power indicator: 4 channels, dual colour LED; Overheat indicator: Yellow LED
