• TOA A-5006 Half-Rack 1-Unit Size 60 W Desktop Mixer Power Amplifier

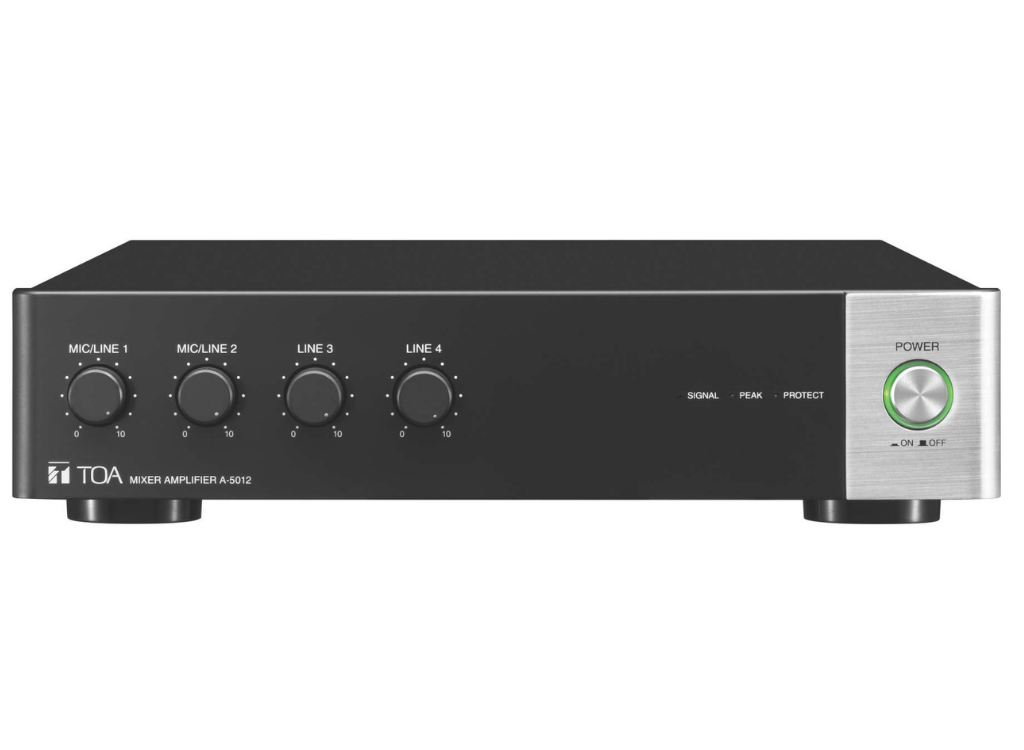

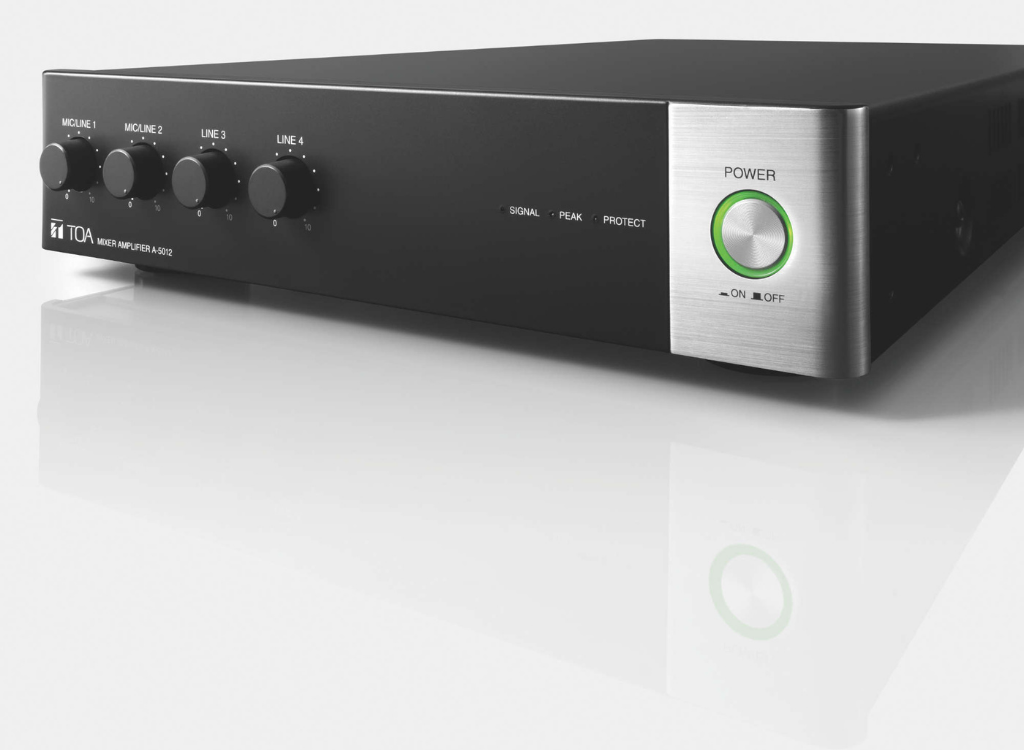

  The A-5006 is a half-rack 1-unit size 60 W desktop mixer power amplifier. Inputs 1 and 2 can be set for either MIC or LINE sound sources, and its output is compatible with both high-impedance (100 V and 70 V lines) and low-impedance (4 Ω) speaker connections. Functions can be set with a PC using the dedicated setting software. The A-5006 is ideal for use as a power amplifier in small commercial facilities and conference rooms. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack  (1 unit size).

  60 W
  2 x mic/line inputs with mute function
  5-band Parametric Equalizer for each input and output (DSP)
  Remote Master Volume Control
  Mute (Mic 1 priority: Manual mute)
  Compressor for both input 1 and 2


  Application examples for this product:
  Restaurants
  Bars
  Hotels
  Retail stores
  Auditoriums

• Specification	A-5006
  Power / Current Consumption	106 W (rated output), 20 W (based on cULus standards)
  Frequency Response	50 Hz – 20 kHz
  Rated Output	60 W
  Data I/F	100BASE-TX
  Speaker Output	4 Ω, 70 V (83 Ω), 100 V (170 Ω), removable terminal block (5 pins)
  Control Input	Mute control, Remote master volume control, Ground lift
  Controls	Power ON/OFF switch, Volume: MIC/ Line1, MIC/ Line 2, LINE 3, LINE 4
  Finish	Polystyrene resin, Steel plate, black
  Weight	3.6 kg
  Distortion	< 1 % (at 1 kHz, rated power)
  S/N Ratio	LINE 1 – 4: 70 dB(A) or more, MIC 1, 2: 50 dB(A) or more
  Number of Channels	1
  Connectable Microphones	2
  Inputs	INPUT 1, 2: MIC -60 dBV, LINE -20 dBV, MIC/LINE selectable, 2.2k Ωs, electronically-balanced, removable terminal block (5 pins); INPUT 3, 4: LINE -20 dBV, 10k Ωs, unbalanced, RCA pin jack
  Outputs	Speaker: 4 Ω, 70 V (83 Ω), 100 V (170 Ω), removable terminal block (5 pins)
