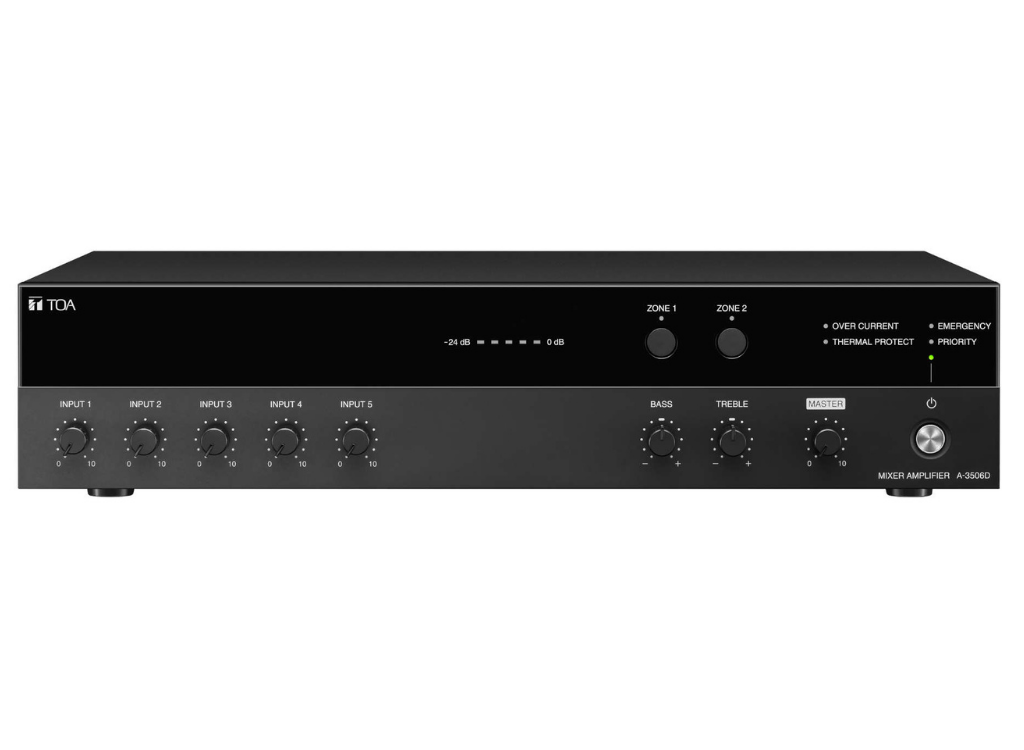

• TOA A-3524D 5 Inputs Digital Mixer Amplifier

  The A-3524D is a class D mixer amplifier with 240 watts output. It comes with emergency and priority paging, is equipped with 3 MIC/LINE inputs, 1 MIC input, 1 AUX input can be also used for music source. With 2-channel speaker zone selectors it is ideal for paging announcements and background music applications in retail shops, schools, offices and production facilities.- 240 W Class D mixer amplifier for high and low impedance speakers

  – 5 Inputs: 1 Mic, 1 AUX, 3 MIC / AUX (selectable), 2x Phantom power
  – 2 Zone speaker selector (high impedance only)
  – 2 Line out, 1 Rec out
  – 2 Zone control inputs / outputs
  – 1 Emergency output


  Application examples for this product:
  Bars
  Supermarkets
  Sport facilities
  Restaurants
  Houses of worship

• Specification	Details
  Power Source	100 – 240 V AC, 50 / 60 Hz
  Power/Current Consumption	314 W (at rated output), 70 W (EN62368-1)
  Frequency Response	50 Hz – 20 kHz
  Rated Output	240 W
  Speaker Output	Direct, zones 1 & 2
  Control Input	2 channels, no-voltage make contact input, open voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 5 pins)
  ZONE Control	No-voltage make contact input, open voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)
  Control Output	Power remote, emergency, zone control: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins)
  Operating Temperature	–10 to +40 °C
  Finish	ABS resin, Steel plate, black
  Dimensions	420 x 96 x 313 mm (W x H x D)
  Weight	4.9 kg
  Distortion	≤ 1 % (at 1 kHz, rated power)
  Amplifier	Class D
  S/N Ratio	88 dB(A) (A-weighted)
  Connectable Microphones	3
  Inputs	INPUT 1, 2: –60 dB* (MIC)/–20 dB* (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 5 pins)/ø6.3 mm phone jack (2P) INPUT 3: –60 dB*, 600 Ω, electronically-balanced, ø6.3 mm phone jack INPUT 4: –60 dB* (MIC)/–20 dB* (LINE) selectable, 600 Ω, electronically-balanced, ø6.3 mm phone jack (2P) INPUT 5: –20 dB*, 10 kΩ, unbalanced, RCA pin jack x 2 PWR AMP:IN: 0 dB*, 600 Ω, unbalanced, RCA pin jack
  Outputs	REC, LINE 1/1: 0 dBV, 600 ohms, unbalanced, RCA pin jack SPEAKER direct, zones 1 and 2: 4-16 ohms in total or 100 V

• Description	Downloads
  Datasheet	Downloads
