TOA A-2240DD 1.0 Channels Audio Amplifier

• Description
• Specifications

• TOA A-2240DD 1.0 Channels Audio Amplifier

  Digital Mixer Amplifiers

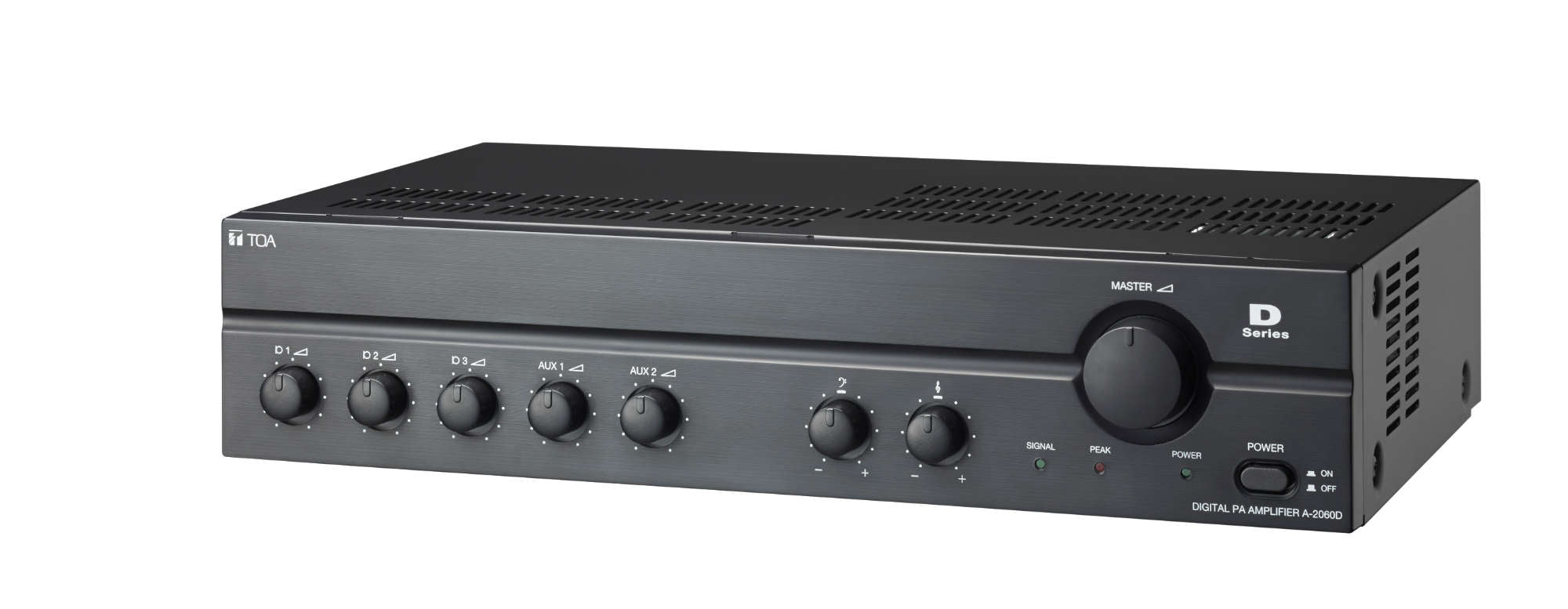

  The A-2240DD-EB is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

  • 3 microphone inputs, 2 AUX input and 1 recording output.
  • DD-varieties with 2 phone jacks and 1 5-pin DIN input.
  • D-varieties with 3 phone jacks.
  • Speaker output of constant voltage distribution system (100 V).
  • Independent tone control of boost and cut type for both high and low frequency.
  • MIC 1 with phantom power and mute function.
  • Current limiter to prevent damage due to current overload.
  • Excess heat limit to protect the transistor and power transformer.
  • Available in 30 W, 60 W, 120 W and 240 W rated output.

• Feature	Details
  Type	Mixing Amplifier
  Single/Pair	Single
  Power Output	240W
  Mixer Amplifier	Yes
  Weight	4 Kg
  Dimensions (W x D x H)	420 x 380.3 x 100.6 mm
