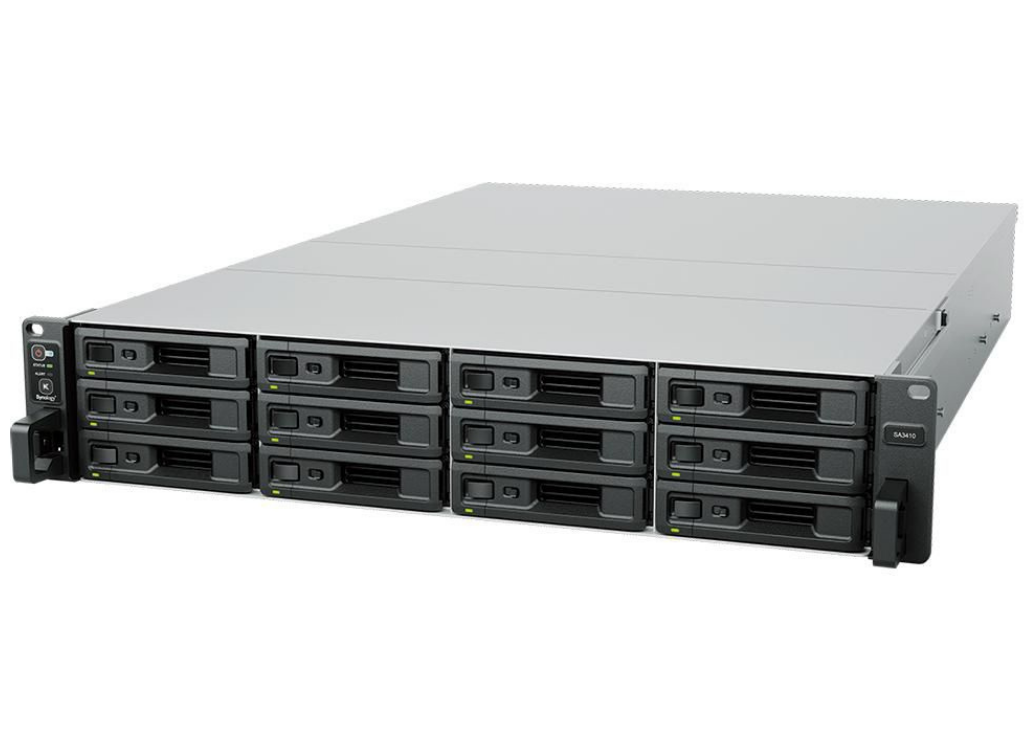

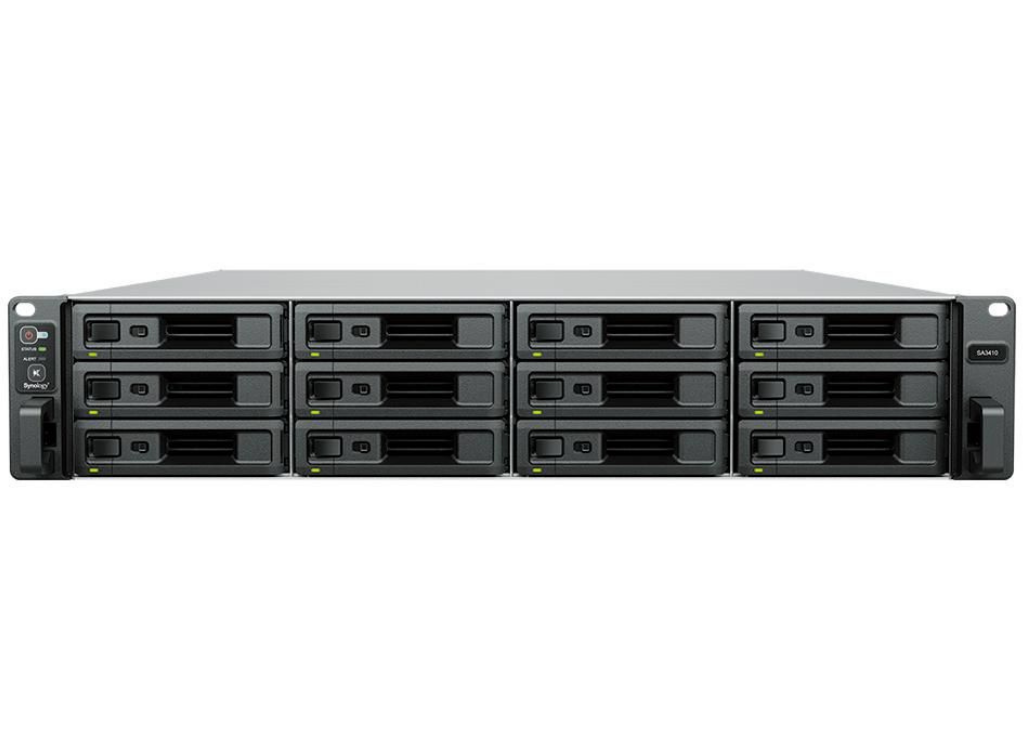

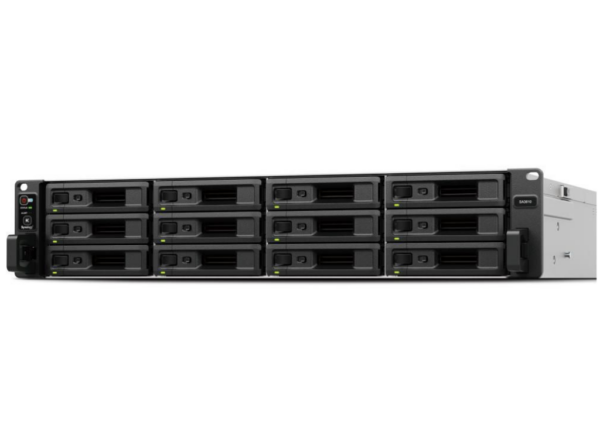

Synology Rackstation NAS/Storage Server Rack – 12-BAY, Intel 8-CORE, 16GB RAM | SA3410

• Specifications
• Downloads

• Synology Rackstation NAS/Storage Server Rack – 12-BAY, Intel 8-CORE, 16GB RAM | SA3410

  Category	Specification
  Battery
  Battery Type	UN3091 – Lithium METAL inside equipment
  Lithium Weight (g)	0.064 g
  Certificates
  Certification	BSMI/CCC/CE/EAC/FCC/KC/RCM/UKCA/UL/VCCI
  RoHS Compliance	Yes
  Design
  Built-in Display	No
  Built-in Speaker(s)	No
  Chassis Type	Rack (2U)
  Cooling Type	Active
  Fan Diameter	8 cm
  LED Indicators	Yes
  Number of Fans	4 fan(s)
  Product Colour	Black/Grey
  Legal Information
  UNSPSC Code (Icecat)	43201835
  Memory
  ECC	Yes
  Internal Memory	16 GB
  Internal Memory Type	DDR4
  Maximum RAM Supported	128 GB
  Memory Form Factor	RDIMM
  Memory Slots	4
  Network
  Copper Ethernet Cabling Technology	1000BASE-T/100BASE-TX/10BASE-T/10GBASE-T
  Ethernet LAN	Yes
  Ethernet LAN Data Rate Supported (Max)	10000 Mbit/s
  Ethernet LAN Data Rates	10/100/1000/10000 Mbit/s
  iSCSI Support	Yes
  Link Aggregation	Yes
  Supported Network Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPS, FTP, SNMP, LDAP, CalDAV
  Wake-on-LAN Ready	Yes
  Operational Conditions
  Operating Humidity	5 – 95 %
  Operating Temperature	0 – 35 °C
  Storage Humidity	5 – 95 %
  Storage Temperature	-20 – 60 °C
  Other Features
  Compliance Certificates	CE/RoHS
  Package Dimensions
  Gross Weight (Package)	14.51 kg
  Packaging Content
  Cables Included	AC
  Power Cables Quantity	1
  Performance
  Access Control List (ACL)	Yes
  Backup Features	Cloud/iSCSI LUN
  Backup Function	Yes
  Browser Supported	Google Chrome, Firefox, Microsoft Edge, Safari
  Built-in FTP Server	Yes
  Built-in UPnP AV Media Server	Yes
  Buzzer	Yes
  Card Reader Integrated	No
  Device Class	Small & Medium Business
  Management Protocols	SNMP
  Multilingual Support	Yes
  Noise Level	49.8 dB
  On/Off Switch	Yes
  Reset Button	Yes
  Security Algorithms	AES
  Snapshot	Yes
  System Log	Yes
  Type	NAS

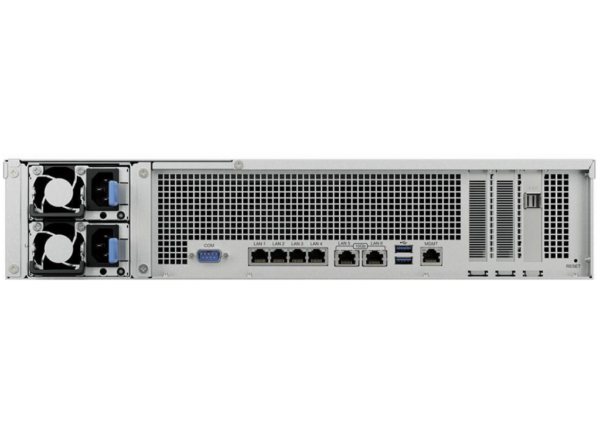

  Ports & Interfaces
  Ethernet LAN (RJ-45) Ports	7
  PCI Express x8 (Gen 3.x) Slots	2
  Serial Ports Quantity	1
  USB 3.2 Gen 1 Type-A Ports	2
  USB Port	Yes
  Power
  AC Input Frequency	50 / 60 Hz
  AC Input Voltage	100 – 240 V
  Number of Power Supply Units	1
  Power Consumption (Typical)	136.15 Watt
  Power Supply Location	Built-in
  PSU Capacity	550 Watt
  Redundant Power Supply Support	No
  Processor
  Conflict-Free Processor	Yes
  CPU Configuration (Max)	1
  Number of Processors Supported	1
  Processor Boost Frequency	2.7 GHz
  Processor Cores	8
  Processor Family	Intel® Xeon®
  Processor Frequency	2.1 GHz
  Processor Manufacturer	Intel
  Processor Model	D-1541
  Product Dimensions
  Net Weight (Product)	14.5 kg
  Depth	72.4 cm
  Height	8.8 cm
  Width	48.2 cm
  Software
  Operating System Installed	DiskStation Manager
  Storage
  Hot-Swap Drive Bays	Yes
  Installed Storage Drive Type	No
  Number of Drives Installed	0
  Number of Drives Supported	12
  Online RAID Expansion	Yes
  Online RAID Migration	Yes
  RAID Levels	0/1/10/5/6/F1/JBOD
  RAID Support	Yes
  Storage Drive Sizes Supported	2.5/3.5 “
  Storage Drives Installed	No
  Supported File Systems	BTRFS/exFAT/ext3/ext4/FAT/HFS+/NTFS
  Supported Storage Drive Interfaces	Serial ATA/Serial Attached SCSI (SAS)
  Supported Storage Drive Types	HDD & SSD
  Total Installed Storage Capacity	0 TB
  Sustainability
  Sustainability Compliance	Yes
  Technical Details
  Sustainability Certificates	CE/RoHS
  Vendor Information
  Brand Name	Synology
  Warranty
  Duration	3 Year(s)
