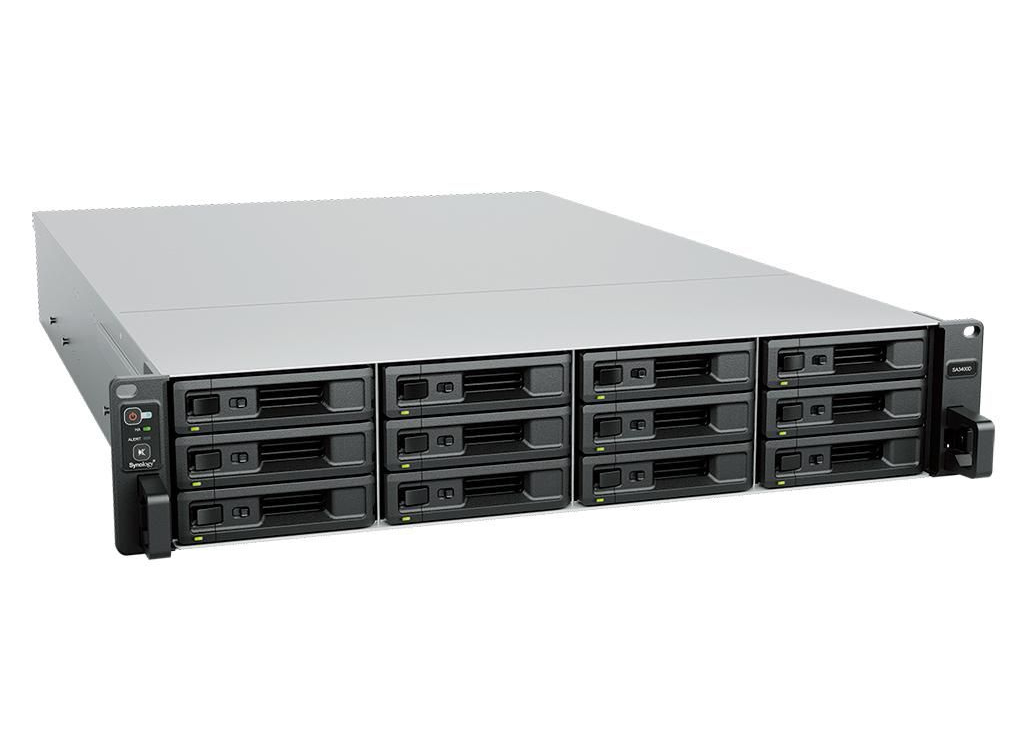

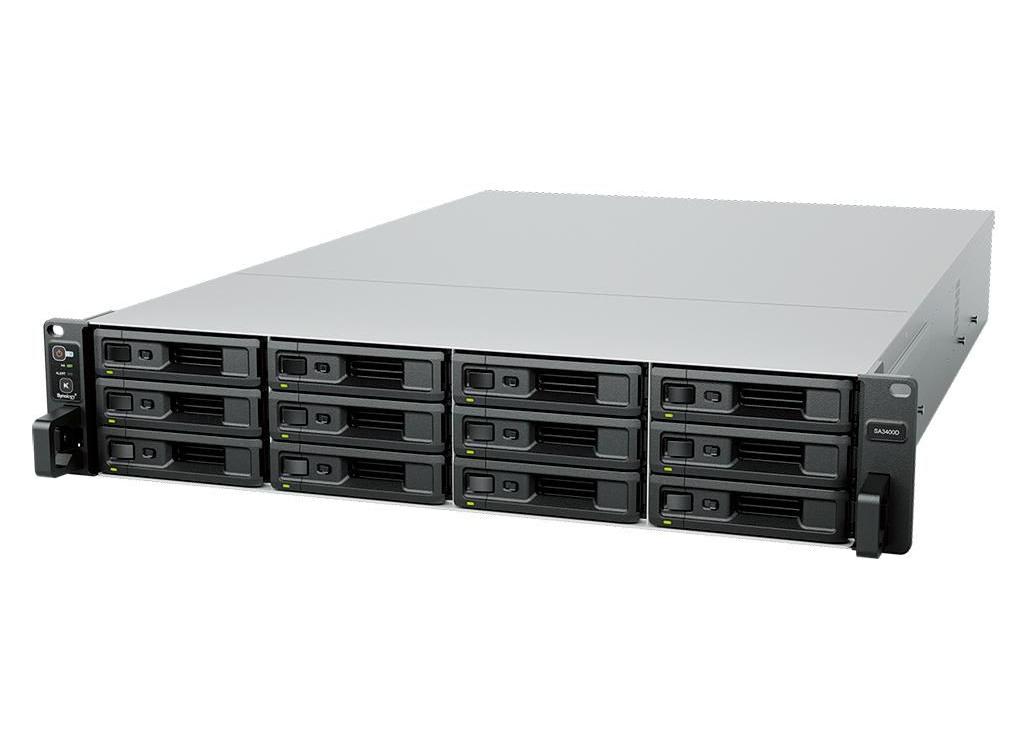

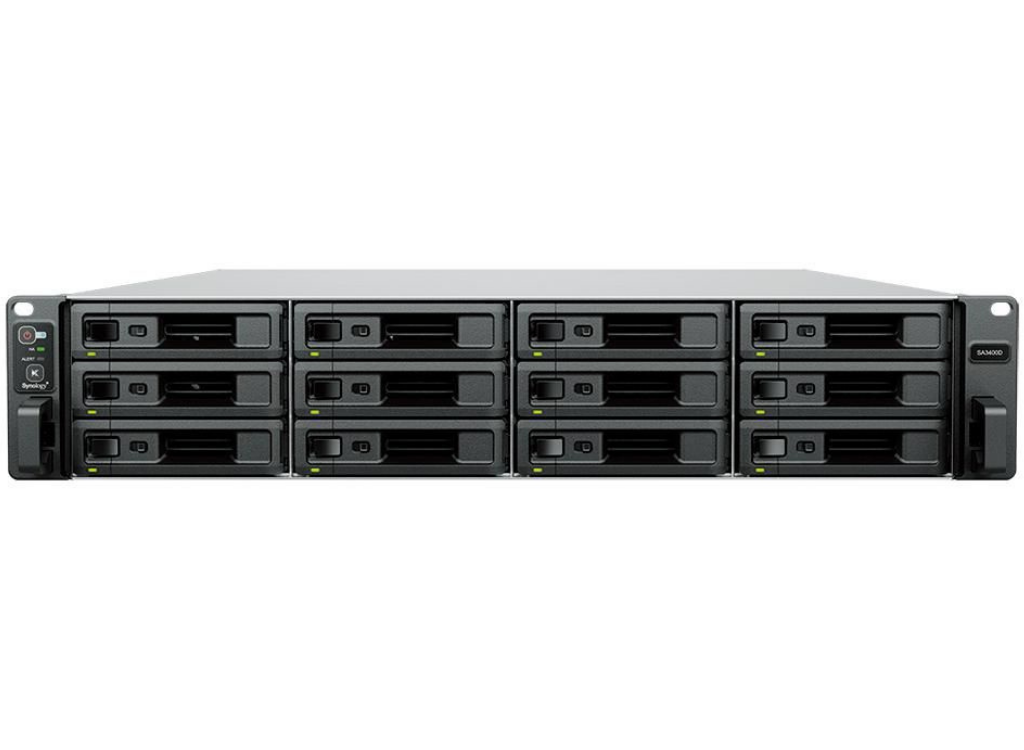

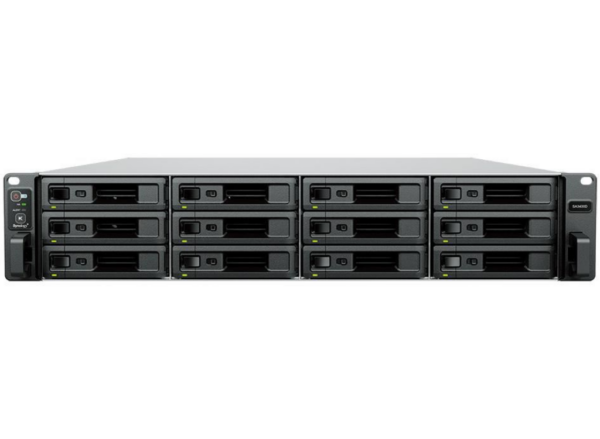

• Synology NAS/Storage Server – Keep Services Online With Efficient High-Availability Storage | SA3400D

  Built-in High Availability
  Keep file sharing services, block storage, backups, and other office applications online with automatic minute-level failover. Defend against operational disruptions with two independent and hot-swappable controllers operating in an active-passive configuration.

  Made for demanding environments
  The SA3400D is engineered to provide outstanding performance in both NAS and SAN storage roles. Its throughput and random I/O performance support efficient SMB and NFS file serving as well as a range of iSCSI and Fibre Channel block storage applications.

  Consolidate your data infrastructure
  Manage, protect, and share data with versatile business solutions. Empower team collaboration, sandbox applications, and provide VM storage on a unified platform.

  Flexible options to meet changing needs
  Flexibly scale storage capacity, optimize I/O performance, and meet different network needs with a range of expansion options.

  Add storage capacity on demand
  Scale server capacity up to 576 TB7 when your data storage needs increase by adding two 12-bay RXD1219sas expansion units.

  Boost network and I/O performance
  Add 10/25GbE connectivity with optional add-in cards.8 Create all-flash storage volumes with SAS SSD for lightening-fast I/O, or boost IOPS and cut down latency on HDD volumes by creating SAS SSD read/write cache volumes.

  Performance backed by Synology drives
  Engineered to handle intensive workloads, Synology hard drives consistently deliver top-grade performance.

• Category	Specification
  Battery
  Battery Type	UN3091 – Lithium METAL inside equipment
  Lithium Weight	0.064 g
  Design
  Chassis Type	Rack (2U)
  Cooling Type	Active
  Fan Diameter	6 cm
  Number of Fans	2 fan(s)
  Legal Information
  UNSPSC Code (Icecat)	43201835
  Memory
  Internal Memory	8 GB
  Internal Memory Type	DDR4
  Maximum RAM Supported	64 GB
  Network
  Ethernet LAN	Yes
  Link Aggregation	Yes
  Supported Network Protocols	SMB1/SMB2/SMB3, NFSv3/NFSv4/NFSv4.1, iSCSI, Fibre Channel, HTTP/HTTPs, FTP, SNMP, LDAP, CalDAV
  Operational Conditions
  Operating Relative Humidity	5 – 95 %
  Operating Temperature	0 – 35 °C
  Storage Temperature	-20 – 60 °C
  Package Dimensions
  Gross Weight	3.9 kg
  Performance
  Access Control List (ACL)	Yes
  Backup Function	Yes
  Number of Users	16,000 user(s)
  Reset Button	Yes
  Type	NAS

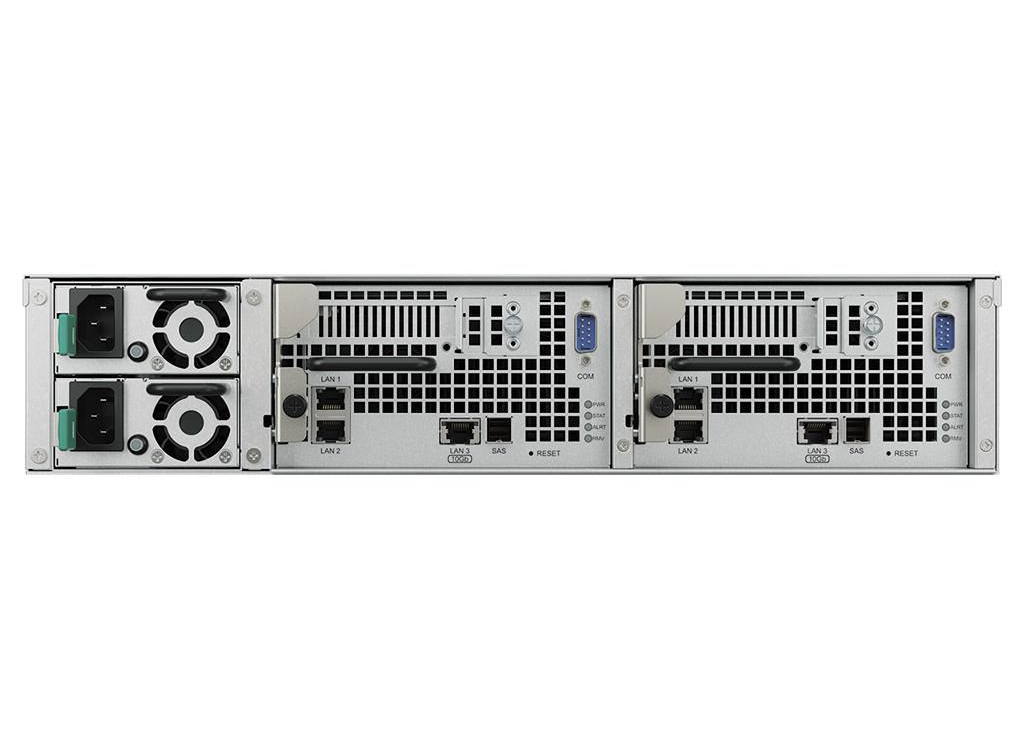

  Ports & Interfaces
  Ethernet LAN (RJ-45) Ports	3
  USB Port	No
  Power
  AC Input Frequency	50/60 Hz
  AC Input Voltage	100 – 240 V
  Number of Power Supply Units	2
  PSU Capacity	500 Watt
  Redundant Power Supply (RPS)	Yes
  Processor
  CPU Configuration (Max)	1
  Processor Boost Frequency	2.7 GHz
  Processor Cache	12 MB
  Processor Cores	8
  Processor Family	Intel® Xeon® D
  Processor Frequency	2.1 GHz
  Processor Manufacturer	Intel
  Processor Model	D-1541
  Processor Special Features	Intel Secure Key Technology v1.00, Intel TSX-NI v1.00
  Product Dimensions
  Net Weight	3 kg
  Depth	72.4 cm
  Height	8.8 cm
  Width	48.2 cm
  Storage
  Hot-Swap Drive Bays	Yes
  Installed Storage Drive Type	No
  Number of Drives Supported	12
  RAID Levels	0/1/10/5/JBOD
  RAID Support	Yes
  Storage Drive Interface	Serial Attached SCSI (SAS)
  Storage Drive Sizes Supported	2.5/3.5 “
  Storage Drives Installed	No
  Supported File Systems	BTRFS/ext4
  Supported Storage Drive Types	HDD & SSD
  Vendor Information
  Brand Name	Synology
  Warranty	1 Year(s)
