• Startech USB VGA Console Extender Over CAT5 UTP (500 ft) – TAA

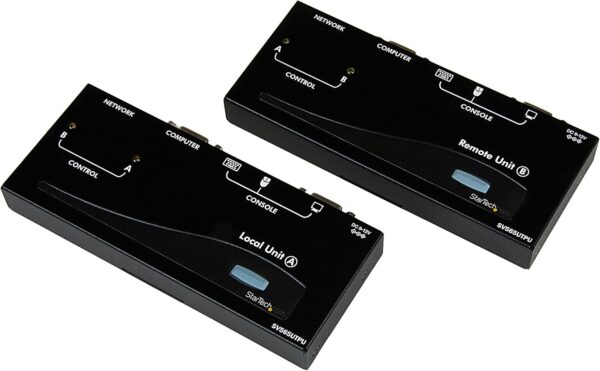

  The SV565UTPUGB USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution.

  You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

  This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.


  Applications
  Monitor computer-controlled equipment in a factory or warehouse
  Use one or more servers in a server room from a remote location
  Control remote machines and security monitoring systems

  The StarTech.com Advantage
  Low cost way to convert existing standard KVM units into remotely accessible hardware extending your hardware’s capabilities
  Maintain network security with long distance local access without being exposed over IP
  Broad support for newer USB keyboards, mice, and even most combo/wireless configurations

• Category	Details
  Warranty Information	Warranty: 2 Years

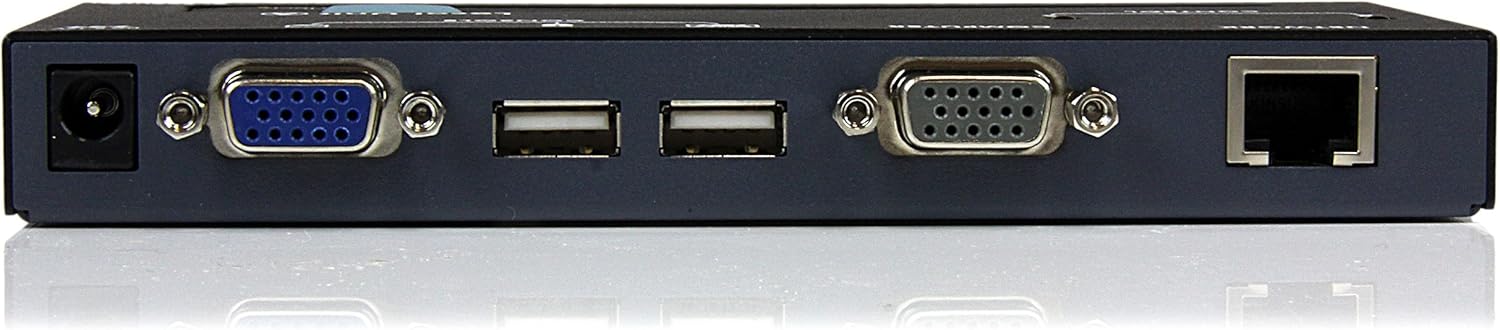

  Connector(s)	Console Interface(s): 1 – VGA (15 pin, High Density D-Sub), 2 – USB 2.0 Type-A (4 pin, 480Mbps) Host Connectors: 1 – VGA (15 pin, High Density D-Sub) Other Interface(s): 1 – RJ-45
  Environmental	Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -20°C to 60°C (-4°F to 140°F) Humidity: 0~80% RH
  Hardware	Audio: No KVM Ports: 2 PC Interface: USB PC Video Type: VGA Number of Monitors Supported: 1 Rack-Mountable: No
  Packaging Information	Package Quantity: 1 Package Length: 30 cm [11.8 in] Package Width: 25 cm [9.8 in] Package Height: 90 mm [3.5 in] Shipping (Package) Weight: 1.7 kg [3.8 lb]
  Performance	IP Control: No Max Transfer Distance: 150m [492ft] Supported Resolutions: 1280×1024 @ 300ft(100m), 1024×768 @ 500ft(150m) MTBF: 126000 hours
  Physical Characteristics	Color: Black Material: Steel Product Length: 75 mm [3.0 in] Product Width: 15.5 cm [6.1 in] Product Height: 2 cm [0.8 in] Weight of Product: 299 g [10.6 oz]
  Power	Power Source: AC Adapter Included Input Voltage: 100 – 240 AC Input Current: 0.2 A Output Voltage: 9V DC Output Current: 0.6 A Center Tip Polarity: Positive Plug Type: M Power Consumption (In Watts): 5.4
  Software	OS Compatibility: OS independent; No software or drivers required
  Special Notes / Requirements	Note: Product weights, measurements and connectors indicate a single unit only (either Host or Remote)

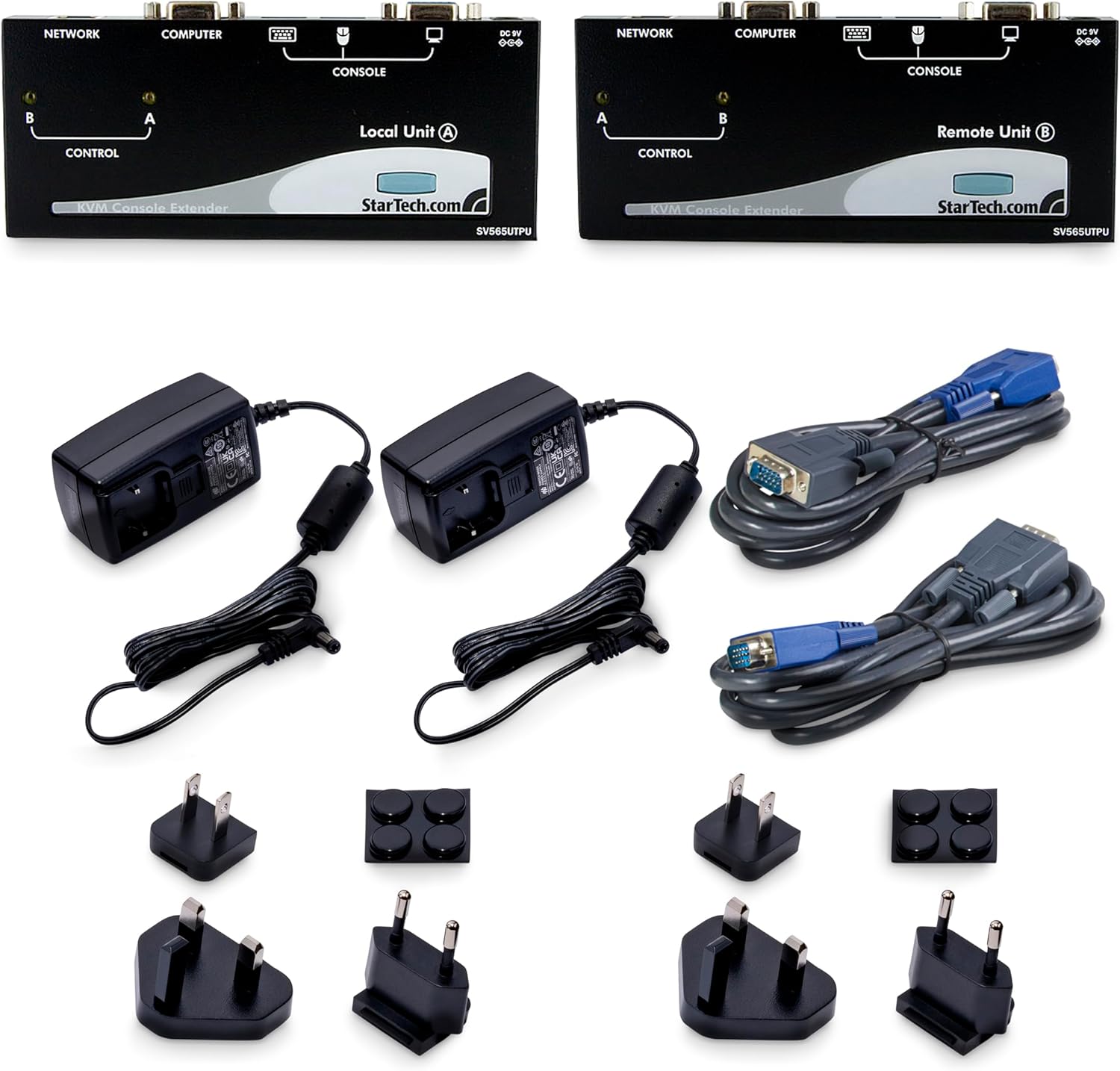

  What’s in the Box	Included in Package: 1 – Host Unit, 1 – Remote Unit, 2 – 6 ft 2-in-1 USB VGA KVM cables, 2 – Packs Rubber Feet, 1 – Power Adapter, 1 – Manual

• Description	Downloads
  Startech USB VGA Console Extender Over CAT5 UTP (500 ft) – TAA | SV565UTPUGB DataSheet	Downloads
  Startech USB VGA Console Extender Over CAT5 UTP (500 ft) – TAA | SV565UTPUGB User Manual	Downloads
