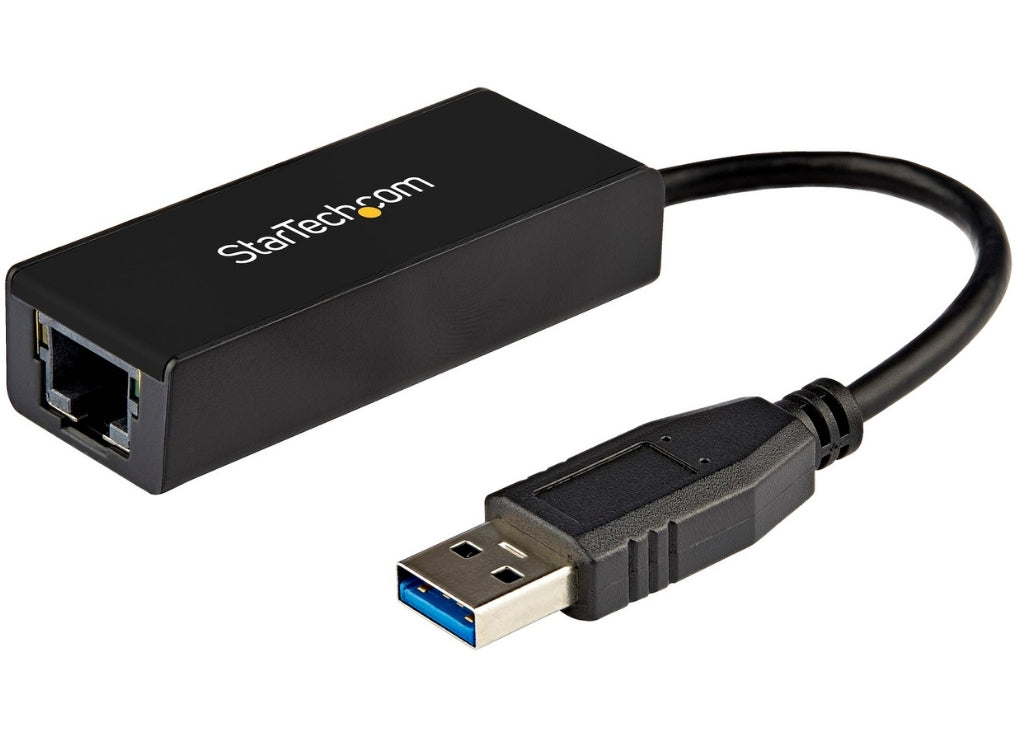

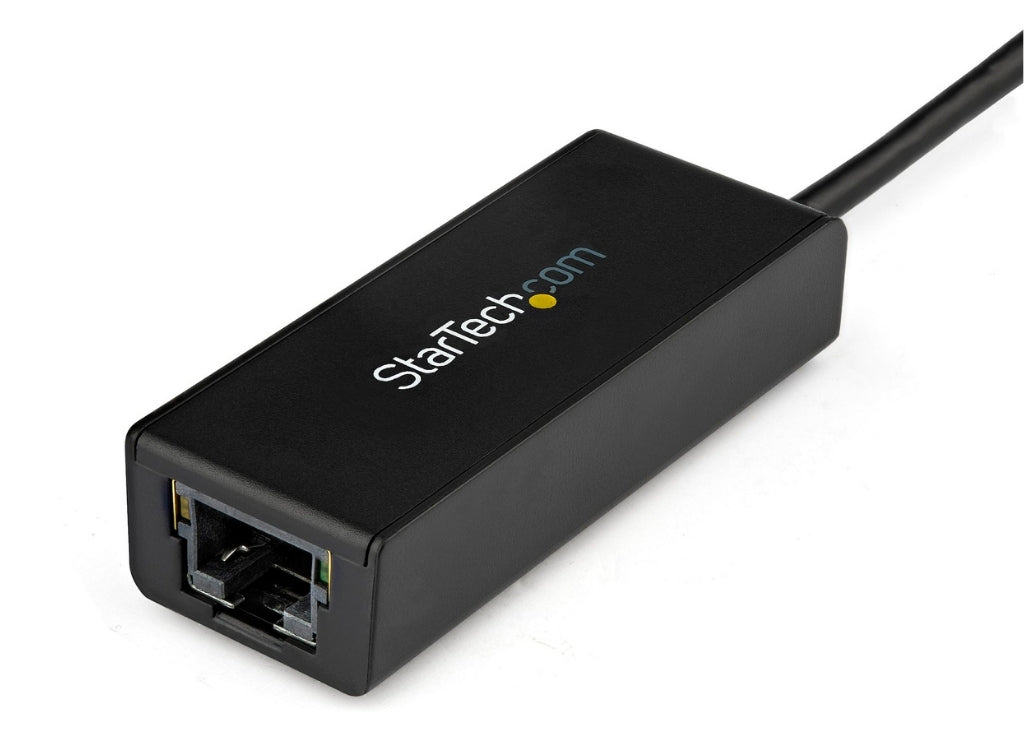

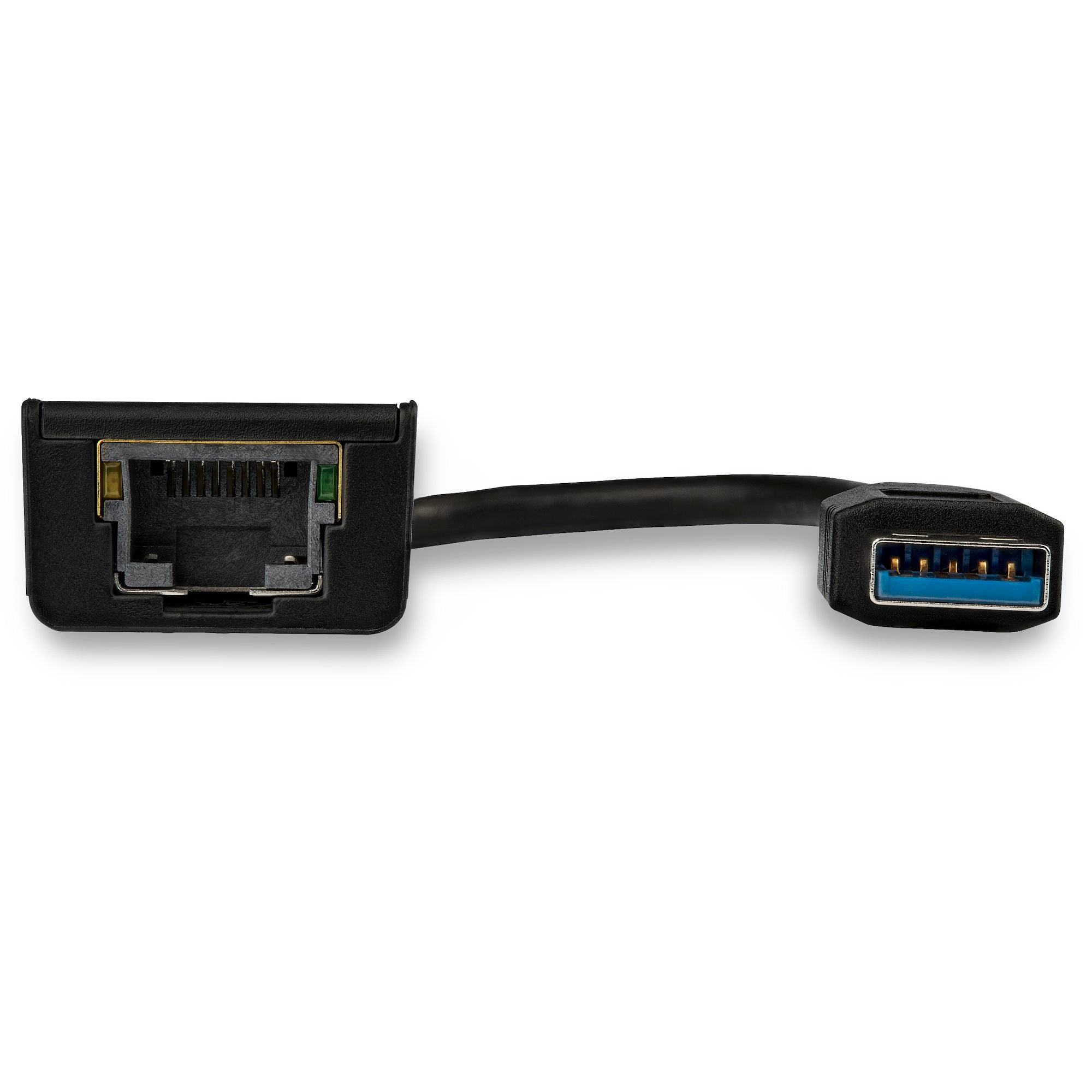

StarTech USB 3.0 to Gigabit Ethernet Adapter – USB31000S

StarTech USB 3.0 to Gigabit Ethernet Adapter – USB31000S

• Description
• Specifications
• Downloads

• StarTech USB 3.0 to Gigabit Ethernet Adapter – USB31000S


  USB NETWORK ADAPTER
  USB to RJ45 adapter adds an Ethernet port to your computer supporting up to Gigabit speeds on 10/100/1000 Mbps Networks; Ideal for reliable wired gigabit network connections, or as an alternative to WiFi

  FULL FEATURED
  USB to Ethernet dongle; Uses ASIX AX88179A Chipset for native compatibility with laptops and desktops, and 2-in-1’s computers; USB Bus Powered; Status & Activity LED’s indicators

  OS COMPATIBILITY
  USB NIC adapter for laptop; Works with Windows versions 7 and up, Windows Server, macOS 10.14 and up, Linux distributions with kernel 4.11 and up (LTS only), and ChromeOS, TAA Compliant

  TECHNICAL SPECS
  USB 3.2 Gen 1 Type-A (5 Gbps); Compatible with USB 3.0/2.0; 1x RJ45; 4K Jumbo Frames; VLAN Tagging; Wake on LAN; Energy Efficient Ethernet (EEE); Supports twisted pair crossover & auto detection (Auto-MDIX); Color: Black

  CONNECTIVITY TOOLS
  Provided with this device, the application improves performance and security, featuring MAC Address Changer & Wi-Fi Auto Switch utilities

  The USB31000S USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth, unlike USB 2.0 adapters.

  This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers a versatile Gigabit network solution for home and business users alike.

  The USB31000S USB 3.0 Gigabit adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.

  Applications
  Add Gigabit Ethernet capabilities to a desktop or laptop, without opening the computer or taking up an available expansion slot
  Replace a failed integrated network adapter with an external, USB Gigabit Ethernet connection, instead of having to open a desktop or laptop computer case
  Connects your laptop PC to a Gigabit network or backbone – perfect for small or home offices, departmental network applications and network gaming
  Transfer very large files over the network with access to true Gigabit speeds that USB 2.0 adapters cannot provide

  The StarTech.com Advantage
  Compatible with Gigabit Ethernet networks and powered via USB for versatility and portability as an add-on or replacement
  Uses built-in Checksum and Large Send Offload support and Jumbo Frames, the Gigabit USB adapter helps conserve system resources
  Backed by a StarTech.com 2-year warranty and free lifetime technical support

• Compatibility
  Windows®	XP, Vista, 7, 8, 8.1, 10, 11
  	Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
  macOS	10.6 to 10.15, 11.3 to 14.0 (VLAN tagging not supported)
  Linux	Kernel 2.6.25 and up – LTS Versions only
  ChromeOS	55+
  Specifications
  Warranty Information
  Warranty	2 Years
  Connector(s)
  Connector Type(s)	1 – RJ-45
  	1 – USB Type-A (9 pin, 5 Gbps)
  Environmental
  Operating Temperature	0°C to 40°C (32°F to 104°F)
  Storage Temperature	-20°C to 60°C (-4°F to 140°F)
  Humidity	< 80% RH
  Hardware
  Ports	1
  Interface	RJ45 (Gigabit Ethernet)
  Bus Type	USB 3.2 Gen 1 (5Gbps)
  Chipset ID	ASIX – AX88179A
  Indicators
  LED Indicators	1 – Link (Amber), 1 – Activity (Green)
  Packaging Information
  Package Height	4.0 cm [1.6 in]
  Package Length	15.8 cm [6.2 in]
  Shipping (Package) Weight	138.0 g [4.9 oz]
  Package Width	13.4 cm [5.3 in]
  Package Quantity	1
  Performance
  Wake On Lan	Yes
  Max Distance	100 m / 330 ft
  Type and Rate	USB 3.0 – 5 Gbit/s
  Compatible Networks	10/100/1000 Mbps
  Auto MDIX	Yes
  Full Duplex Support	Yes
  Jumbo Frame Support	4K max.
  Physical Characteristics
  Form Factor	Attached Cable
  Weight of Product	28.0 g [1.0 oz]
  Color	Black
  Material	Plastic
  Cable Length	135 mm [5.3 in]
  Product Length	21.5 cm [8.5 in]
  Product Width	2.6 cm [1.0 in]
  Product Height	1.6 cm [0.6 in]
  Power
  Power Source	USB-Powered
  Input Voltage	5V DC
  Output Voltage	5 DC
  Software
  OS Compatibility	Windows®, macOS, Linux, ChromeOS
  Special Notes / Requirements
  System and Cable Requirements	Available USB port
  Note	Jumbo Frames not supported in macOS
  What’s in the Box

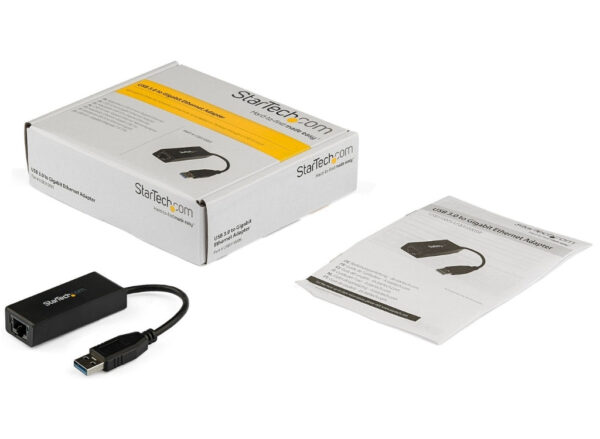

  Included in Package	1 – USB 3.0 Gigabit Adapter, 1 – Instruction Manual

• Description	Downloads
  StarTech.com USB31000S USB 3.0 to Gigabit Ethernet Adapter DataSheet	Downloads
  StarTech.com USB31000S USB 3.0 to Gigabit Ethernet Adapter User Manual	Downloads
