StarTech ST124HDMI2 4-port HDMI Splitter And Signal Amplifier

• Description
• Specifications
• Downloads

• StarTech ST124HDMI2 4-port HDMI Splitter And Signal Amplifier

  The ST124HDMI2 4 Port High Speed HDMI® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality. Mounting brackets are included for a tidy, professional installation.

  Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 50 ft (15.2 m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.

  A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.

  This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.


  Applications
  Connect HDMI® enabled projectors, monitors, plasma screens, commercial billboards, and wall display systems

  Ideal for business conference rooms and trade show displays

  Perfect for classrooms and business multimedia presentations

  Great for digital signage applications displaying video advertisements with audio in retail environments

  Financial applications include stock tickers or promotion of new products/services

  Display information in waiting rooms or to patients in healthcare facilities

• Category	Specification
  Warranty Information	2 Years
  Connector(s)	1 – 3.5 mm Mini-Jack (3 Position)
  	1 – HDMI (19 pin)
  	4 – HDMI (19 pin)
  	4 – 3.5 mm Mini-Jack (3 Position)
  Environmental	Operating Temperature: 0°C to 40°C
  	Storage Temperature: -20°C to 60°C
  	Humidity: 0%~80%
  Hardware	Ports: 4
  	AV Input: HDMI
  	AV Output: HDMI
  	Cabling: HDMI
  	Audio: Yes
  	Industry Standards: High Speed HDMI®, HDCP, EDID
  	Daisy-Chain: Yes
  	Indicators: 1 – Power (Green) / Input Signal (Blue), 4 – Green Port signal indicator
  Packaging Information	Package Height: 8.3 in [21.0 cm]
  	Package Length: 16.1 in [41.0 cm]
  	Shipping (Package) Weight: 4.3 lb [2.0 kg]
  	Package Width: 3.5 in [9.0 cm]
  	Package Quantity: 1
  Performance	Maximum Cable Length: 50.0 ft [15.2 m]
  	Maximum Digital Resolutions: HDTV 1080p / PC 1920×1200
  	Supported Resolutions: 1080p (1920 x 1080), VGA (640 x 480), SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200)
  	Wide Screen Supported: Yes
  Physical Characteristics	Weight of Product: 34.1 oz [966 g]
  	Color: Black
  	Material: Steel
  	Product Length: 8.7 in [22 cm]
  	Product Width: 5.3 in [13.5 cm]
  	Product Height: 1.7 in [4.4 cm]
  Power	Power Source: AC Adapter Included
  	Input Voltage: 100 – 240 AC
  	Input Current: 0.8A
  	Output Voltage: 12V DC
  	Output Current: 1.5A
  	Center Tip Polarity: Positive
  	Plug Type: M
  	Power Consumption (In Watts): 18

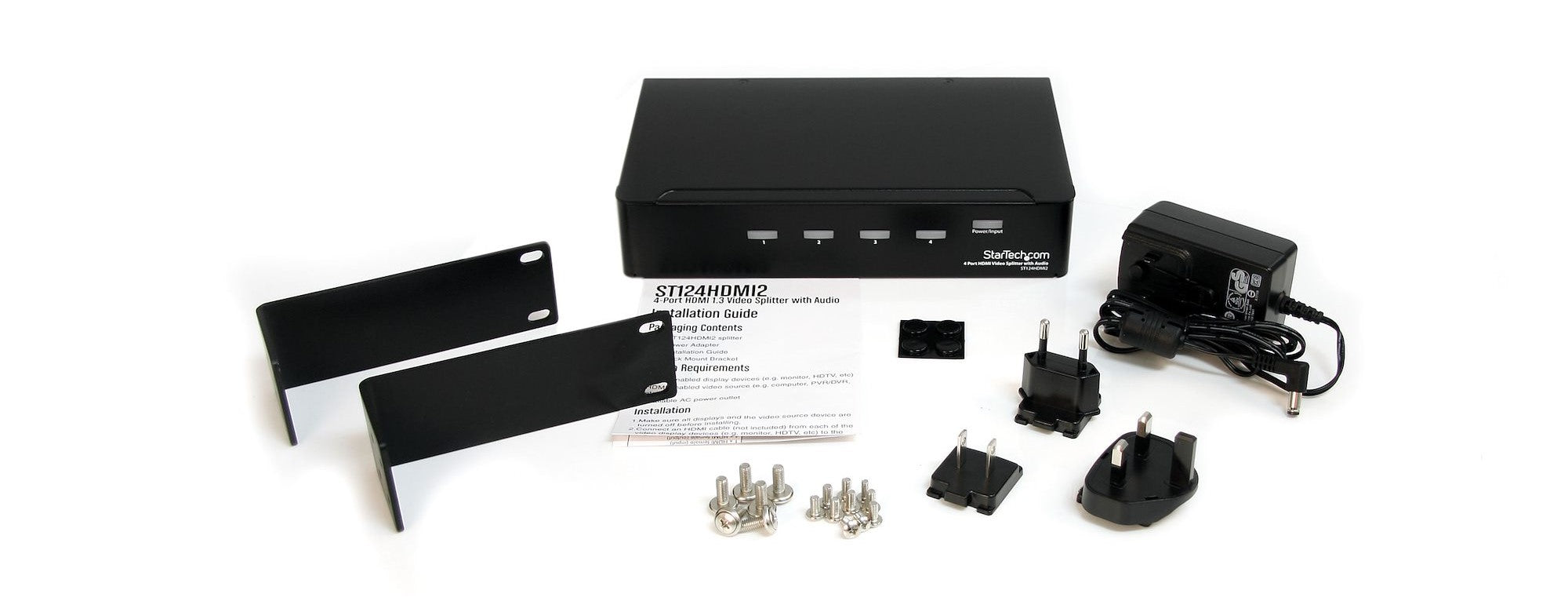

  What’s in the Box	1 – HDMI splitter
  	1 – Mounting hardware and screw kit
  	1 – Universal power adapter (NA / EU / UK / AU)
  	1 – Instruction manual
