StarTech ST121UTPEP VGA to Cat 5 Monitor Extender Kit (250ft/80m)

• Description
• Specifications
• Downloads

• StarTech ST121UTPEP VGA to Cat 5 Monitor Extender Kit (250ft/80m)

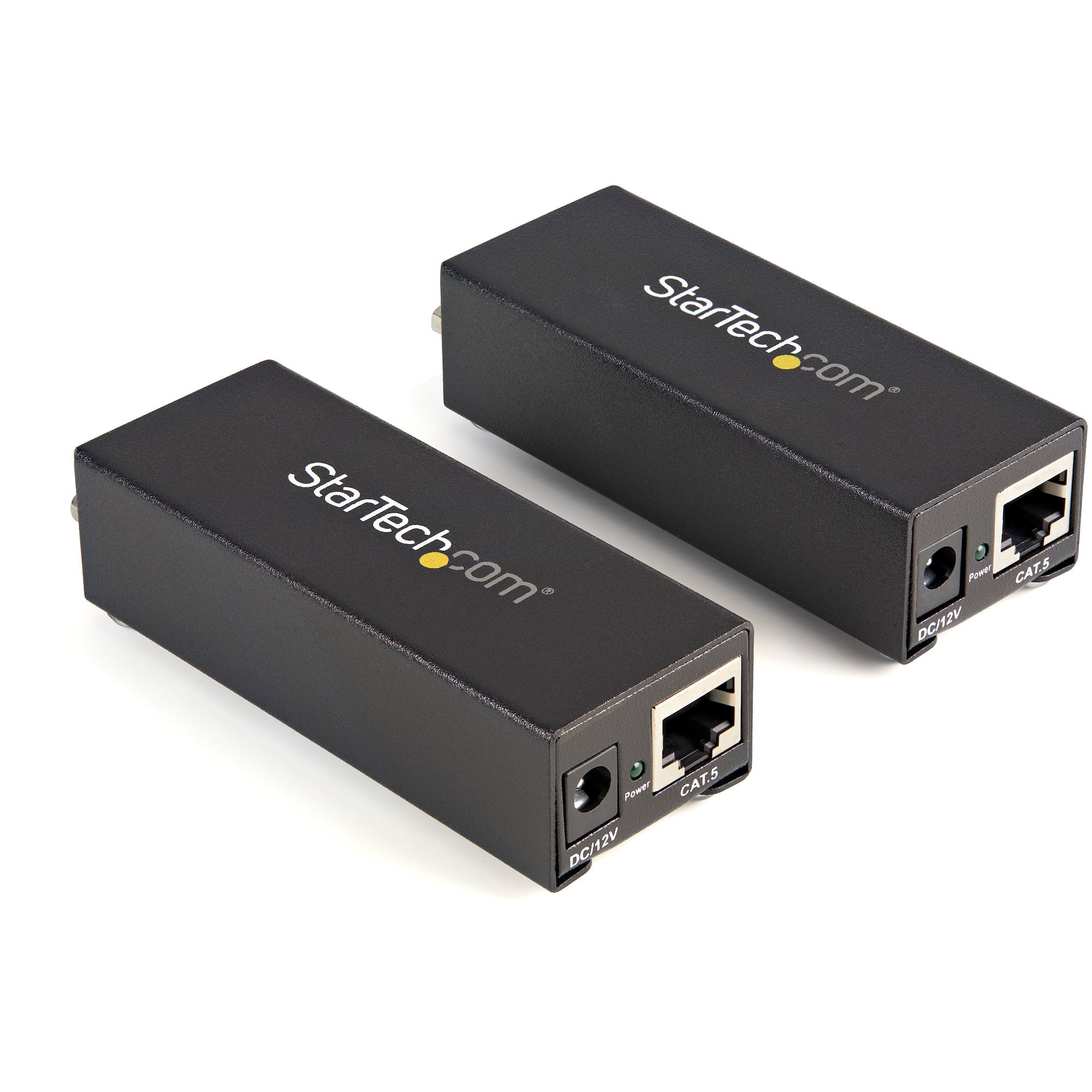

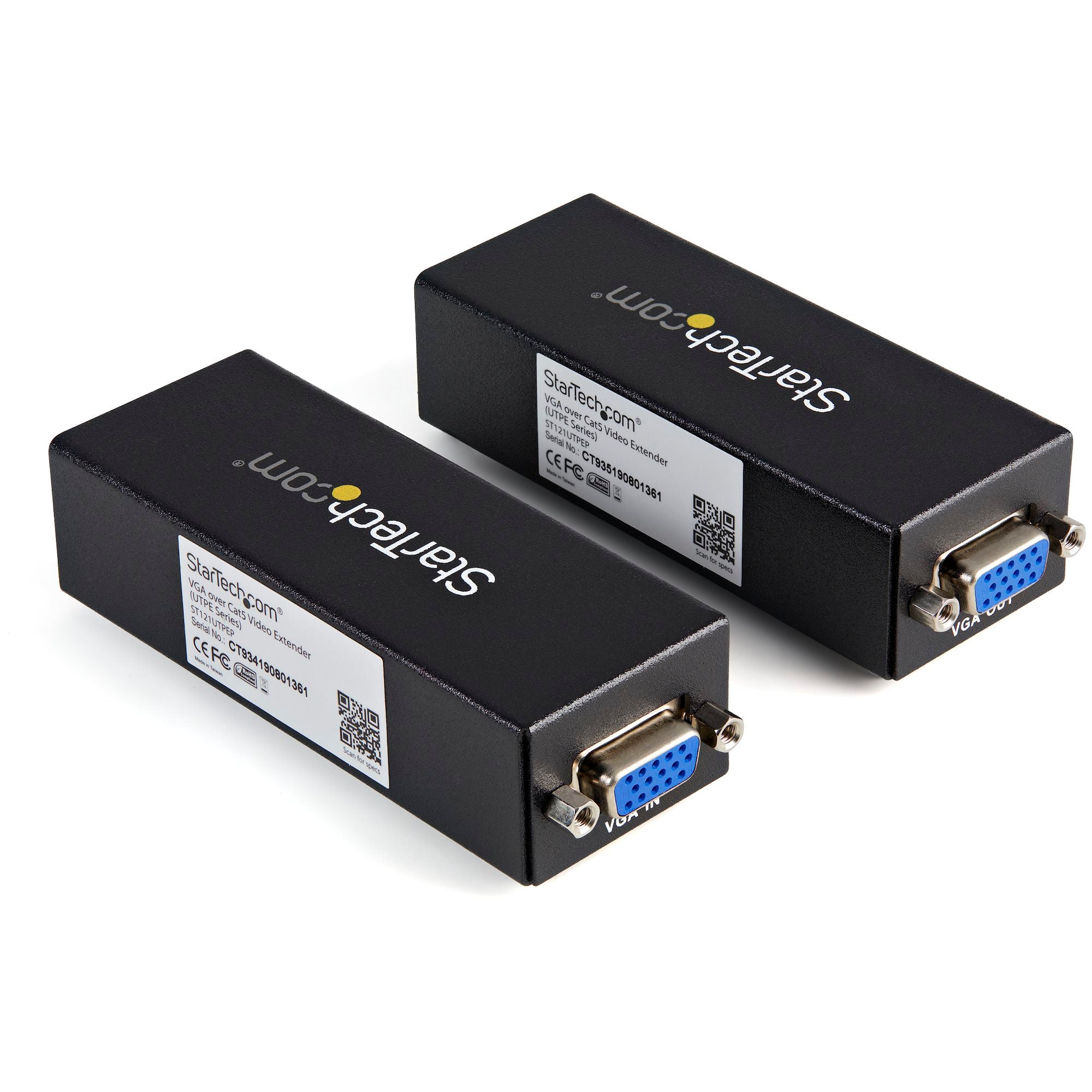

  The ST121UTPEP VGA Video Extender over Cat5 – Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).

  Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.

  To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.

  Backed by a StarTech.com 2-year warranty and free lifetime technical support.


  Applications
  Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
  Ideal for digital signage applications in financial, educational, and business sectors
  Extend your display across harsh environment industrial sites
  Perfect for video conferencing solutions in boardrooms and office settings
  Optimize placement of your demo stations at tradeshows and in auditoriums

• Category	Specification
  Warranty	2 Years

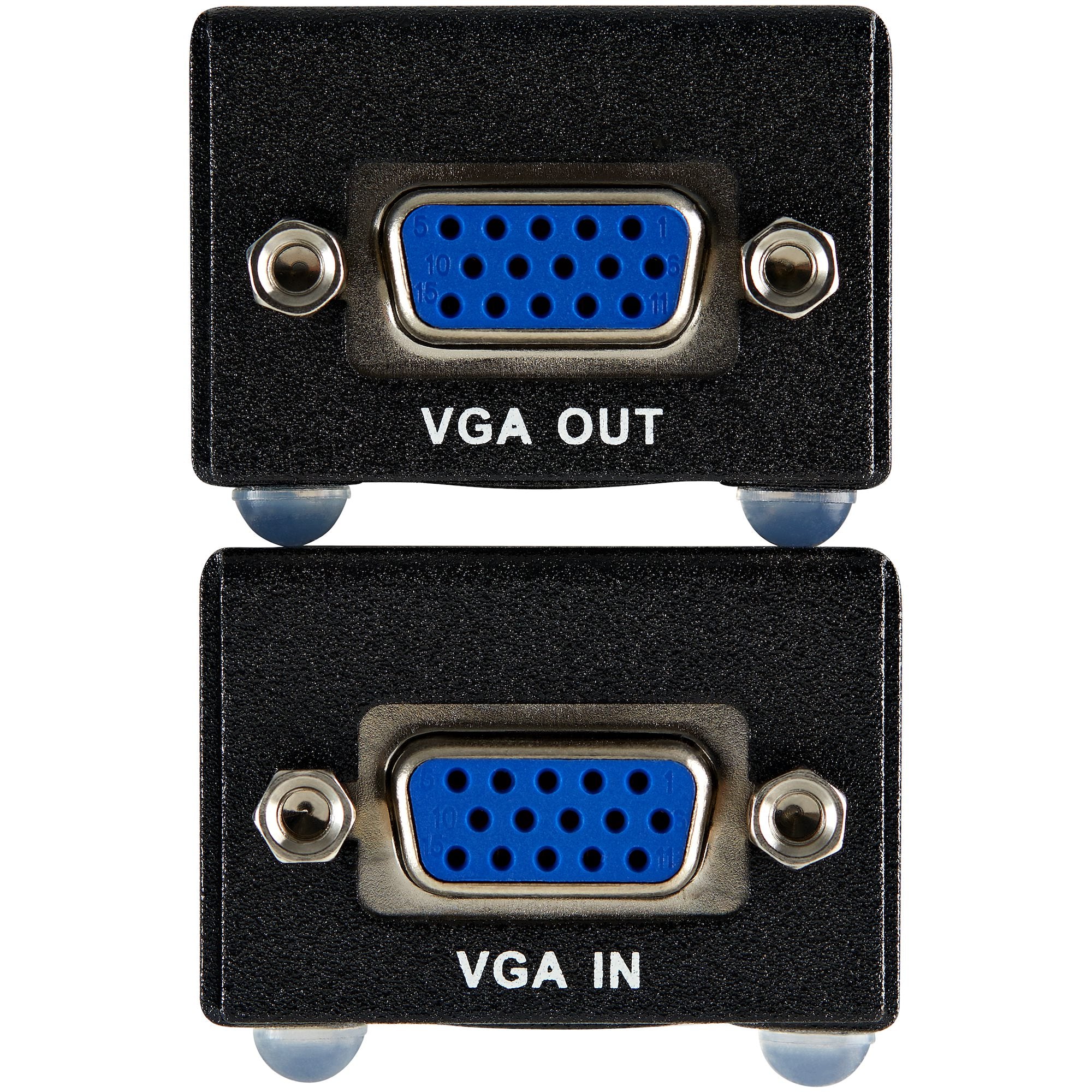

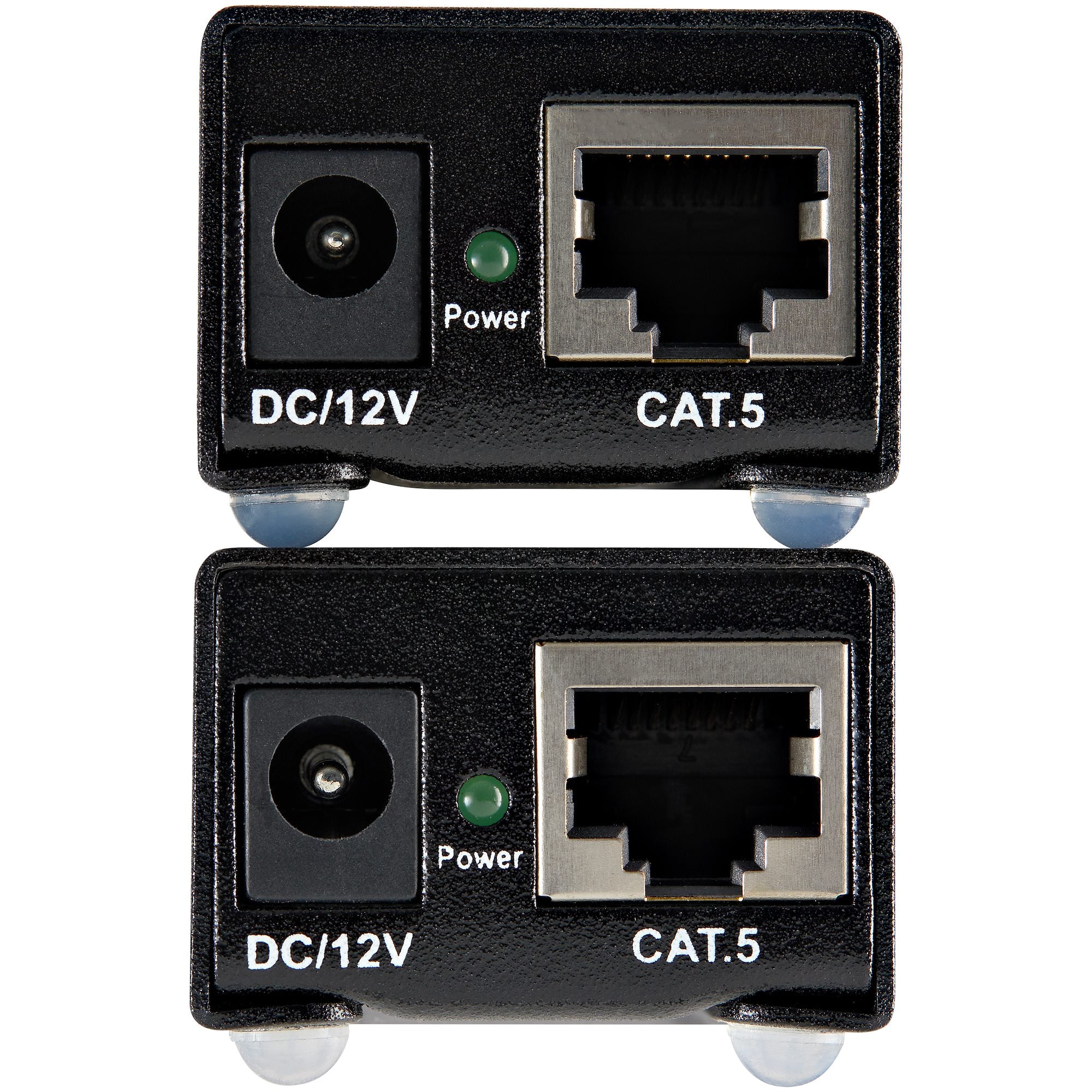

  Local Unit Connectors	1 – RJ-45, 1 – VGA (15 pin, High Density D-Sub)
  Remote Unit Connectors	1 – VGA (15 pin, High Density D-Sub), 1 – RJ-45
  Ports	1
  Cabling	Cat 5 UTP
  Audio	No
  Daisy-Chain	No
  Package Height	6.2 cm [2.4 in]
  Package Length	31.6 cm [12.4 in]
  Shipping Weight	0.8 kg [1.7 lb]
  Package Width	14.4 cm [5.7 in]
  Package Quantity	1
  Max Distance	80m [263ft]
  Supported Resolutions	1920×1200 @ 50m (164ft), 1280×1024 @ 80m (260ft)
  Weight of Product	263.0 g [9.3 oz]
  Color	Black
  Material	Aluminum
  Product Length	10.0 cm [3.9 in]
  Product Width	13.8 cm [5.4 in]
  Product Height	2.5 cm [1.0 in]
  Power Source	AC Adapter Included
  Output Voltage	12V DC
  Output Current	0.6A
  Center Tip Polarity	Positive
  Plug Type	M
  Power Consumption	7.2 Watts
  Special Notes / Requirements	Resolution may vary at distances depending on cable quality. Cat 5e UTP cables are recommended.
  Included in Package	1 – VGA over Cat5 Transmitter, 1 – VGA over Cat5 Receiver, 1 – Installation Bracket (w/ screws), 1 – VGA Cable, 1 – Universal Power Adapter (NA/UK/EU/AUS), 1 – Instruction Manual
