StarTech ST121HDBT20L HDMI Over CAT6 Extender – Power Over Cable – Up to 100 m (328 ft.)

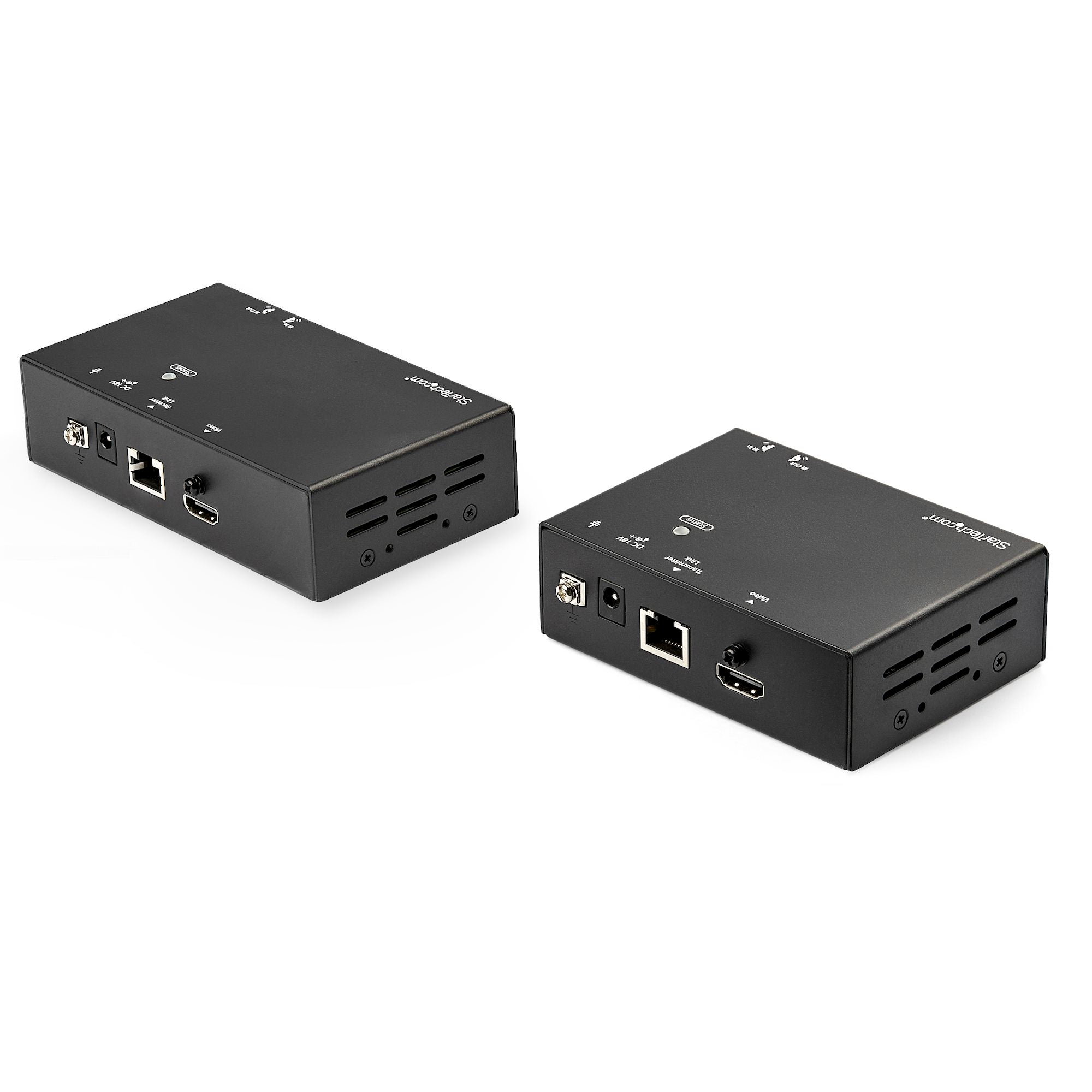

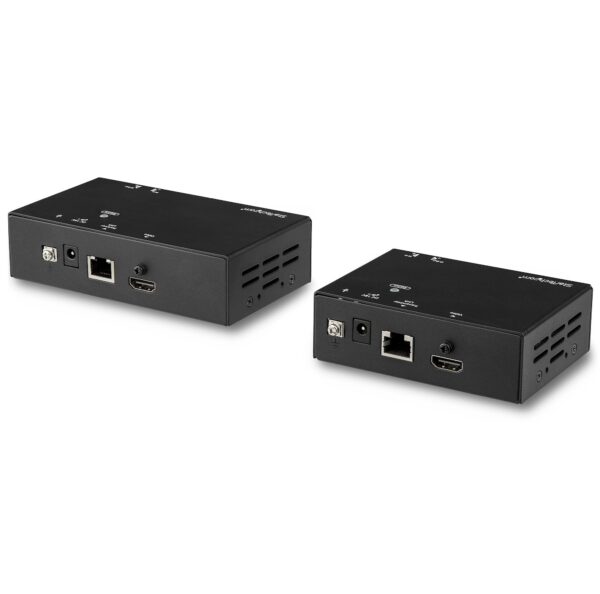

This HDMI Over CAT6 extender transmits your HDMI audio/video signal to a remote location up to 100 m (328 ft.) away.
Get 4K at 60Hz from 70 m (230 ft.) away
This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 70 m (230 ft.) away from your video source. If you’re not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 100 m (328 ft.) from your HDMI source.With full support for your HDMI 2.0 equipment, including 4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.
Simplify your setup
The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you extend an HDMI signal using existing infrastructure that’s already in your building. Plus, this HDMI extender supports Power Over Cable (POC), which means you’ll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation.Applications
Distribute HDMI in large buildings such as commercial shopping centers, stadiums, schools, and hospitals
Extend your HDMI audio/video signals to locations where power outlets are limited, such as industrial sites
Integrators and system designers can use existing CAT5 or CAT6 infrastructure to create digital signage solutions -

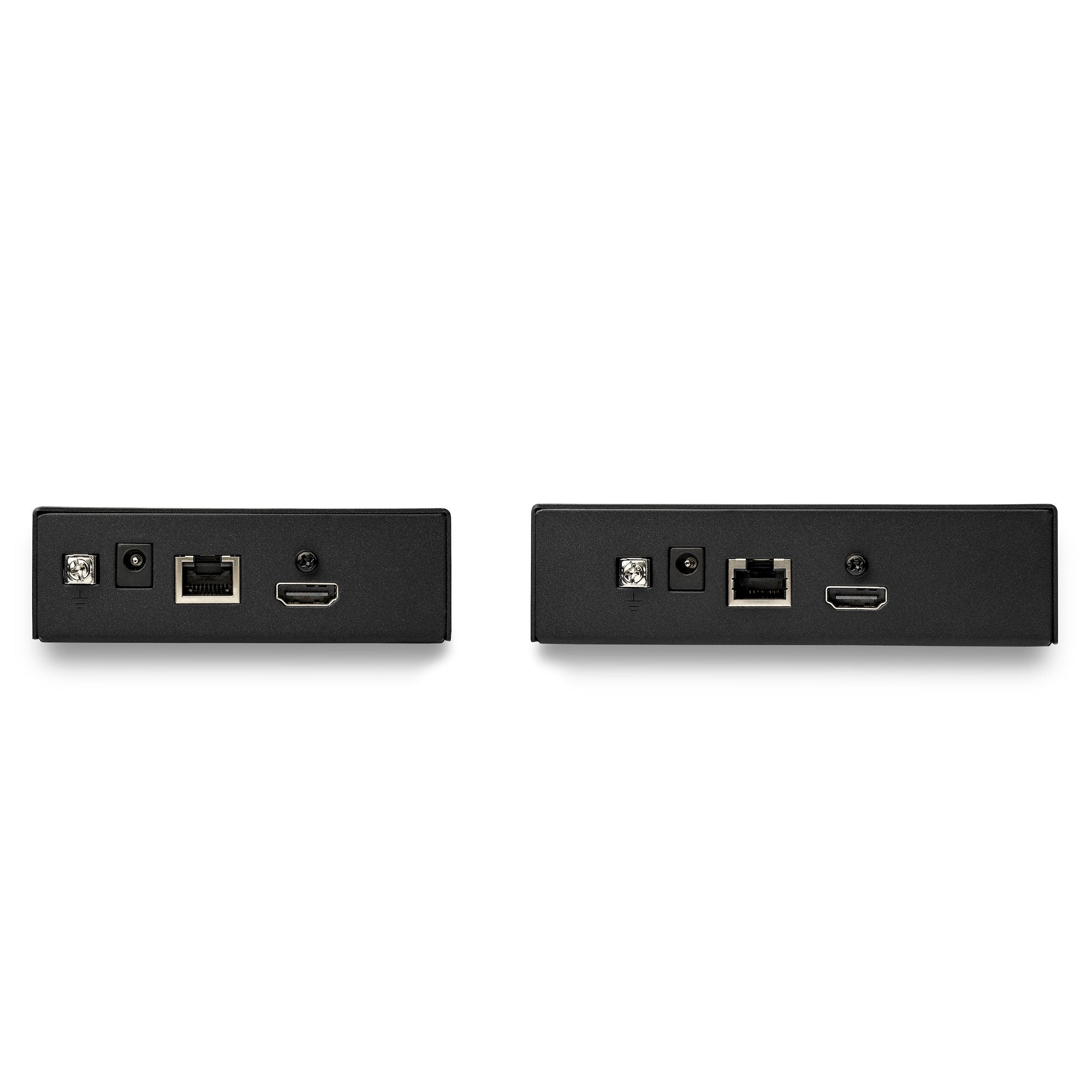

Category Specification Warranty 2 Years Local Unit Connectors 1 – HDMI (19 pin) 1 – RJ-45 Remote Unit Connectors 1 – RJ-45 1 – HDMI (19 pin) Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -10°C to 60°C (14°F to 140°F) Humidity 0% – 80% RH (non-condensing) Ports 1 Cabling Cat 5e UTP or better Audio Yes Daisy-Chain No Indicators 1 – status LED (local) 1 – status LED (remote) Shipping Weight 1.6 kg [3.5 lb] Package Quantity 1 Package Length 29.8 cm [11.7 in] Package Width 21.2 cm [8.3 in] Package Height 6.6 cm [2.6 in] Maximum Cable Length 100.1 m [328.4 ft] Max Distance 100m [328 ft] Maximum Resolutions Up to 70 m: 4096 x 2160 (4K) @ 60 Hz Up to 100 m: 1080p @ 60Hz Supported Resolutions 3840×2160 (4K) @ 60 Hz 2560×1600 1920×1200 @ 60 Hz 1920×1080 (1080p) 1280×720 (720p) Wide Screen Supported Yes Audio Specifications HDMI – 7.1 Channel Audio Color Black Material Aluminum Product Length 10.2 cm [4.0 in] Product Width 7.6 cm [3.0 in] Product Height 2.6 cm [1.0 in] Weight of Product 110.0 g [3.9 oz] Power Source AC Adapter Included Input Voltage 100 – 240 AC Input Current 0.6A Output Voltage 18 DC Output Current 1 A Center Tip Polarity Positive Plug Type M Power Consumption 18 Watts Included in Package 1 – HDMI over CAT6 transmitter 1 – HDMI over CAT6 receiver 1 – universal power adapter (NA/JP, EU, UK, ANZ) 1 – IR blaster 1 – IR receiver 2 – mounting brackets 8 – rubber feet 1 – quick-start guide -
