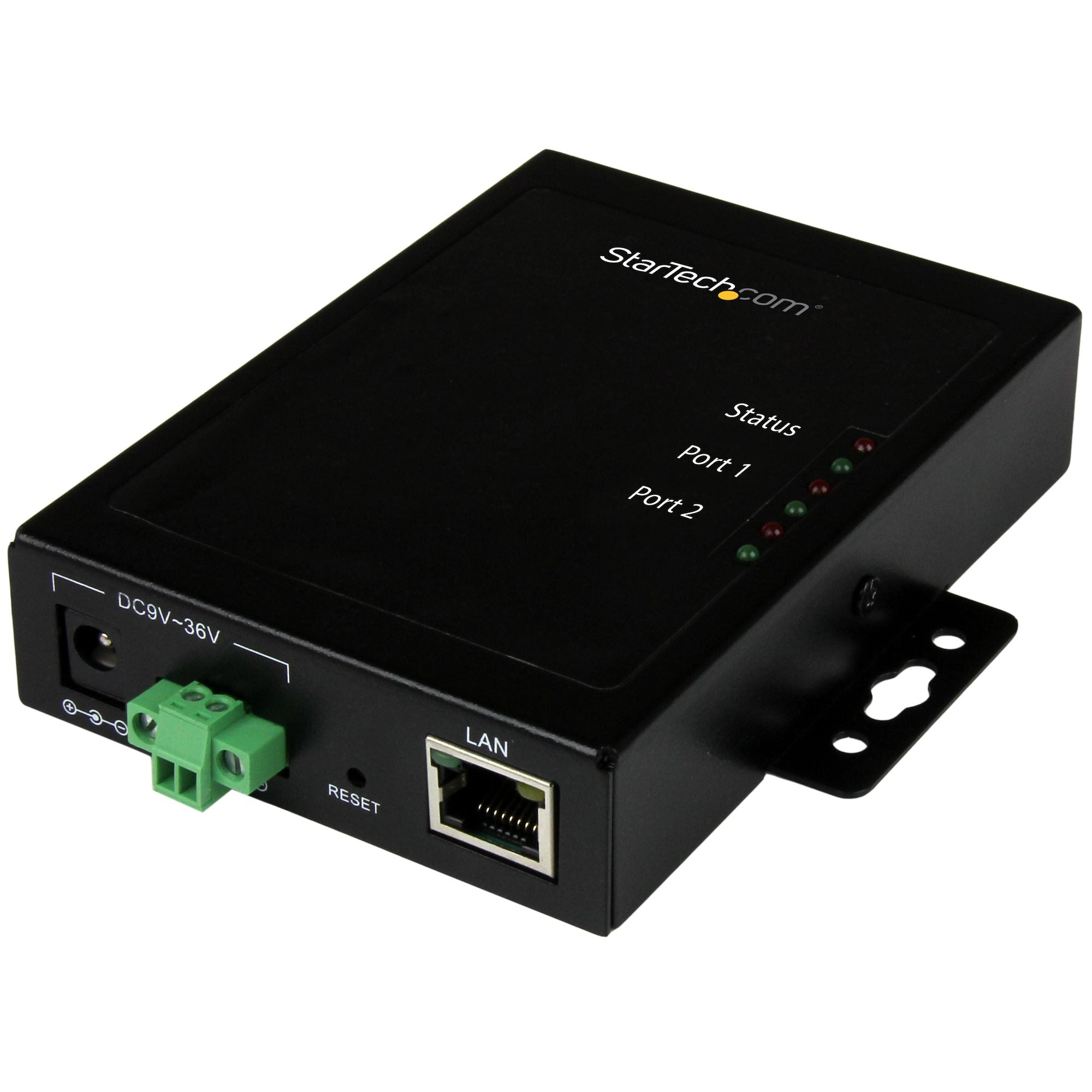

• StarTech RS-232 Serial Server – NETRS2322P

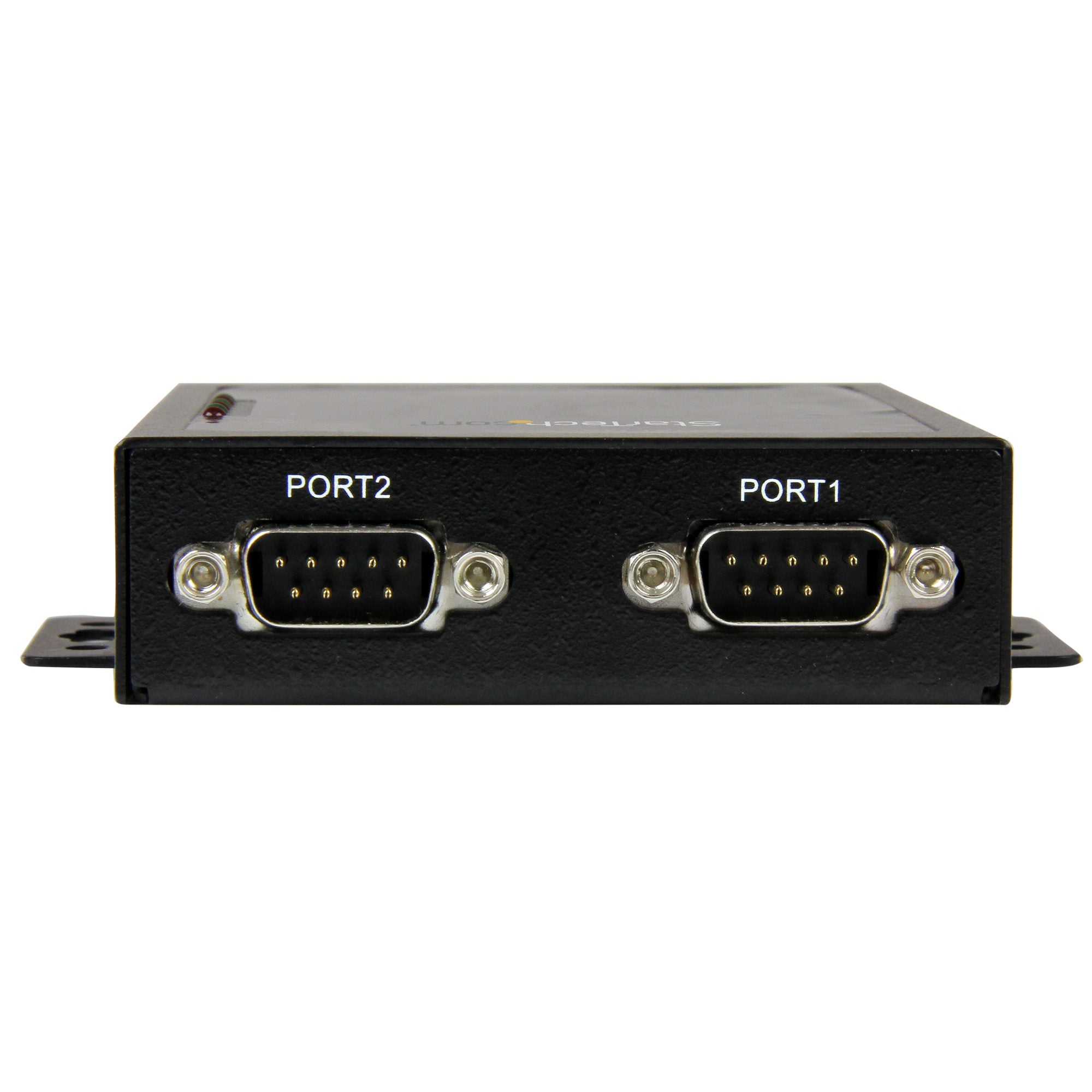

  Two RS232 (DB9) serial ports, integrated into a durable, metal housing that’s ideal for industrial environments
  Built-in mounting brackets let you easily install the device server to a wall or surface
  Redundant power input using the provided power adapter, or 9~36V DC terminal block input
  Extended operating temperature range — 0°C to 85°C (32°F to 185°F)
  Up to 460.8Kbps serial baud rate
  Remote management and customization using the provided Windows based VCOM software or the Web interface
  Supports Telnet, ICMP, IP, TCP, UDP, DHCP, HTTP, and BOOTP protocols
  15kV Air and 8kV contact ESD (Electrostatic Discharge) Protection
  10/100Mbps RJ45 port that supports IEEE 802.3 (10BASE-T) and IEEE 802.3u (100BASE-TX) protocols

  This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it’s perfect for factory and industrial settings.

  Flexible installation, in a range of environments
  If you’re looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.
  Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.

  Backup power keeps your devices connected

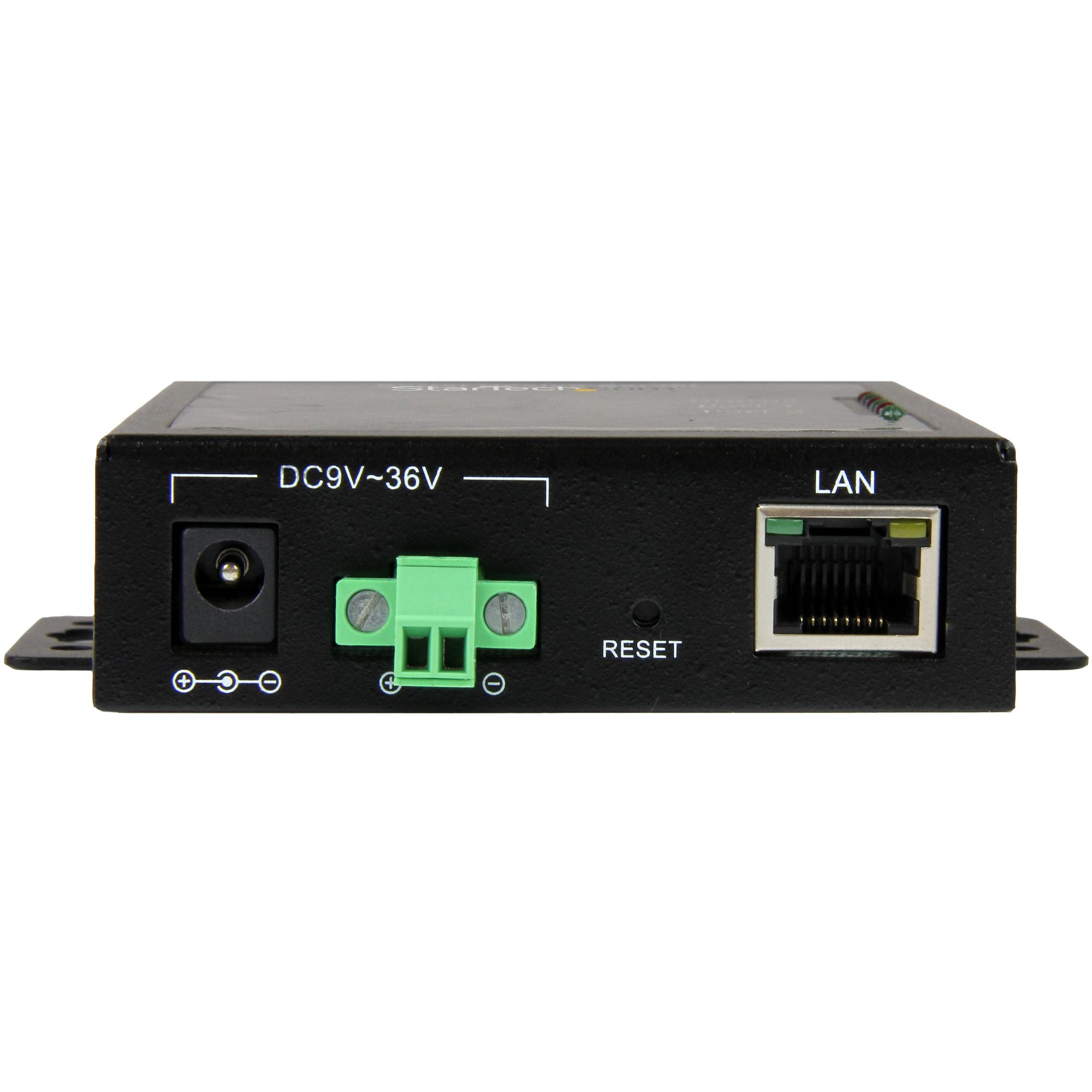

  With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.
  Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.

  Completely customizable
  This highly customizable device server is easy to configure to suit your application. For easy setup, Windows® users can use the provided Virtual COM port software, or the versatile Web-based interface.
  The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux®). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.
  The NETRS2322P is backed by a StarTech.com 2-year warranty and free lifetime technical support.

  Applications
  Integrate into industrial, warehouse, or factory environments that are subject to harsh conditions and large temperature variances
  Fasten to a wall or desk, using the integrated mounting brackets
  Ideal for settings where critical equipment requires continuous power, with two power inputs
  Use with CNC machinery and process control equipment, as well as environmental control, and point-of-sale (POS) devices

• Feature	Description
  Warranty	2 Years
  Auto-Negotiation	Yes
  Connector Type(s)	2 – DB-9 (9 pin, D-Sub), 1 – RJ-45, 1 – Terminal Block (2 Wire)
  Operating Temperature	0°C to 85°C (32°F to 185°F)
  Storage Temperature	-45°C to 130°C (-49°F to 266°F)
  Humidity	20~80% RH (Non-condensing)
  Ports	2
  Interface	Serial
  Industry Standards	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
  LED Indicators	2 – Status, 2 – Port 1, 2 – Port 2, 1 – 10/100Mbps LAN, 1 – Link / Activity
  Package Height	5.0 cm [2.0 in]
  Package Length	21.6 cm [8.5 in]
  Shipping (Package) Weight	0.7 kg [1.5 lb]
  Package Width	15.2 cm [6.0 in]
  Serial Protocol	RS-232
  Max Baud Rate	460.8 Kbps
  Data Bits	7, 8
  Flow Control	XON/XOFF, RTS/CTS, None
  Parity	None, Even, Odd, Space, Mark
  Remote Management Ability	Yes
  Isolation	2500 Vrms
  Surge Protection	ESD (Electrostatic Discharge) Protection: 15kV Human Body Model (HBM), 15kV IEC1000-4-2 Air, 8kV IEC1000-4-2 Contact
  Compatible Networks	10/100 Mbps
  Auto MDIX	Yes
  Full Duplex Support	Yes
  Supported Protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP
  Color	Black
  Material	Steel
  Product Length	11.2 cm [4.4 in]
  Product Width	8.1 cm [3.2 in]
  Product Height	2.3 cm [0.9 in]
  Weight of Product	320.0 g [11.3 oz]
  Power Source	AC Adapter Included
  Input Voltage	100 – 240 AC
  Input Current	1.5 A
  Output Voltage	12V DC
  Output Current	3 A
  Center Tip Polarity	Positive
  Power Consumption (In Watts)	36
  OS Compatibility	Virtual COM software – Windows® Only: Windows Vista, 7, 8, 8.1, 10, 11; Windows Server® 2008 R2, 2012, 2016, 2019, 2022

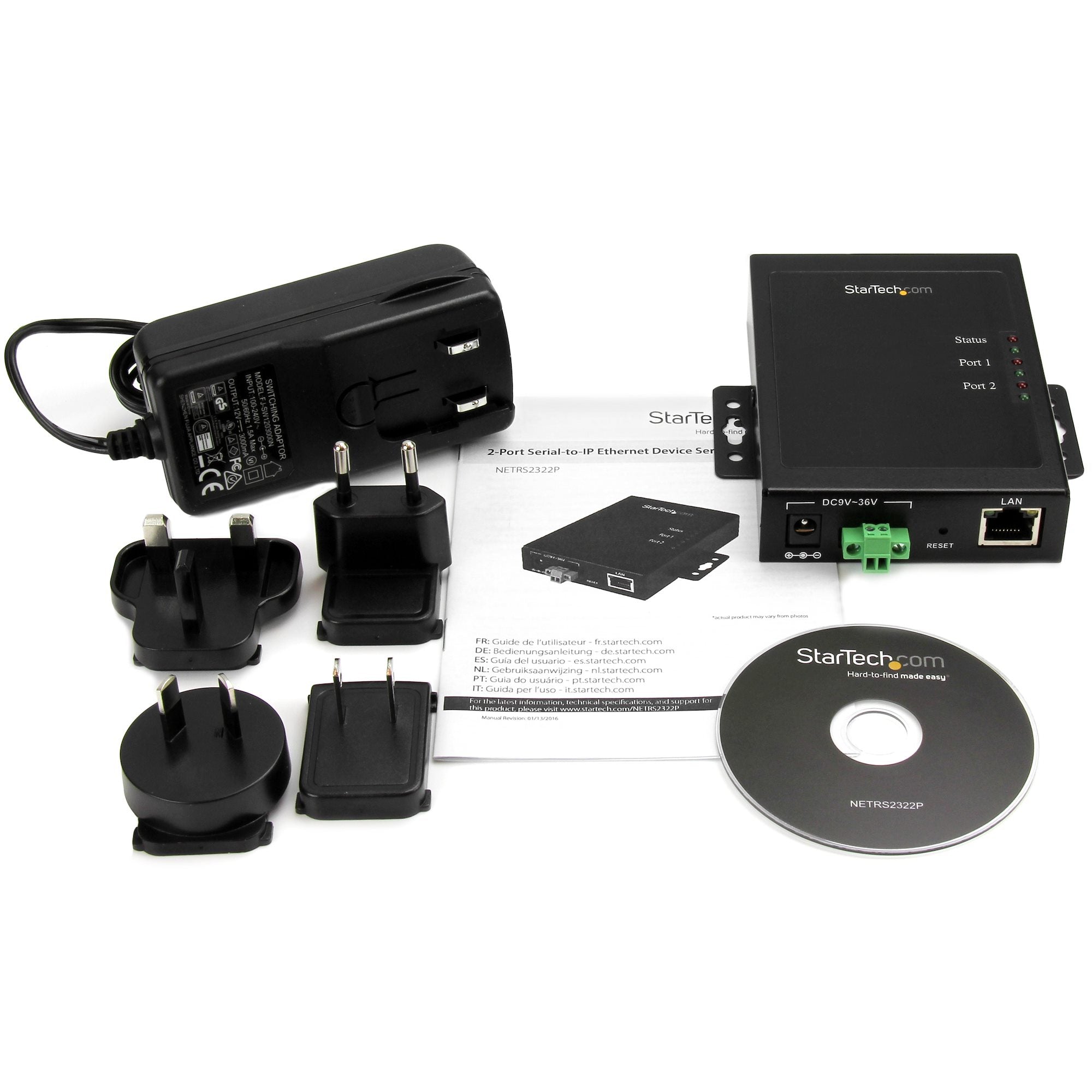

  Included in Package	1 – 2-port serial device server, 1 – terminal block (2-wire), 1 – universal power adapter (NA/EU/UK/AU), 1 – software CD, 1 – quick start guide
