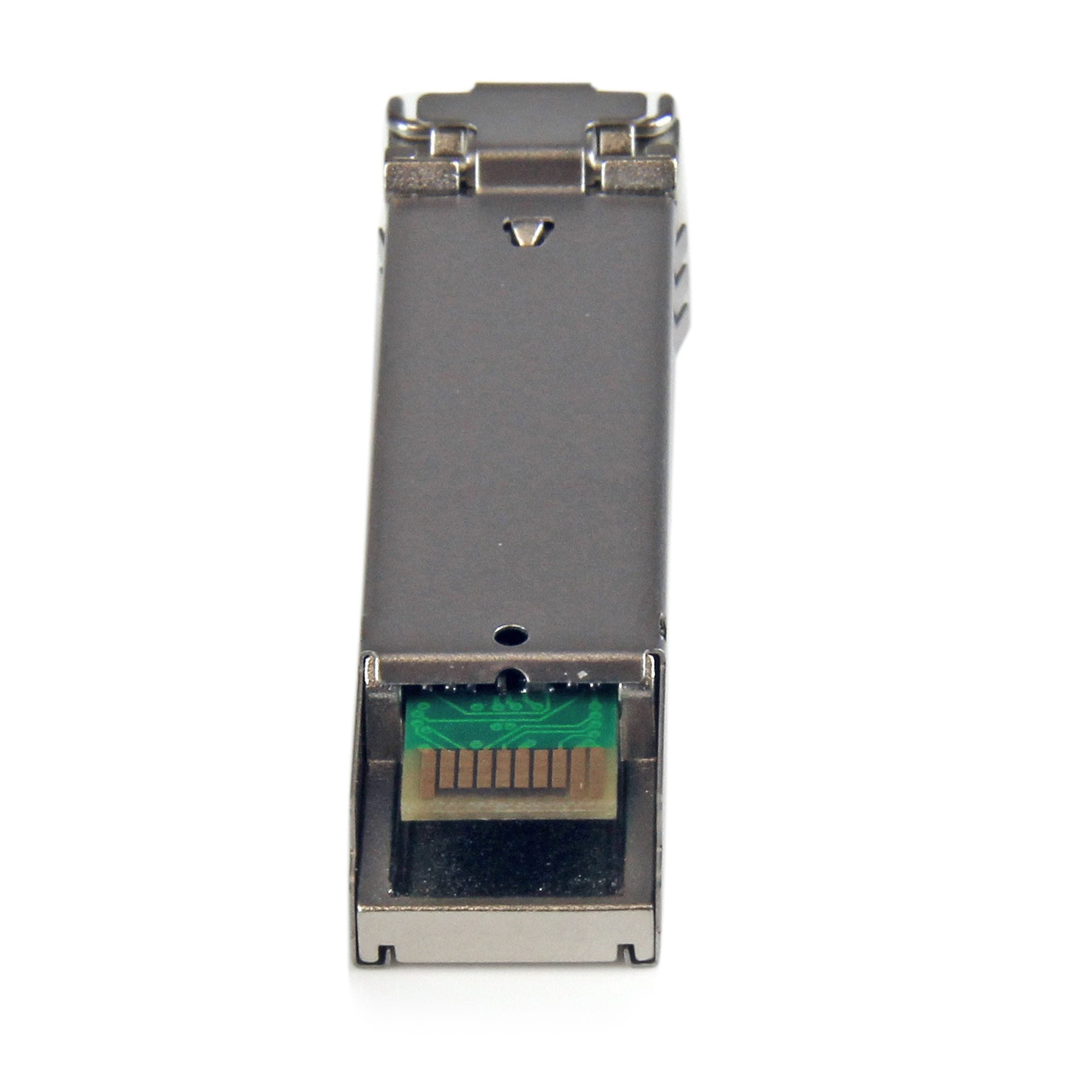

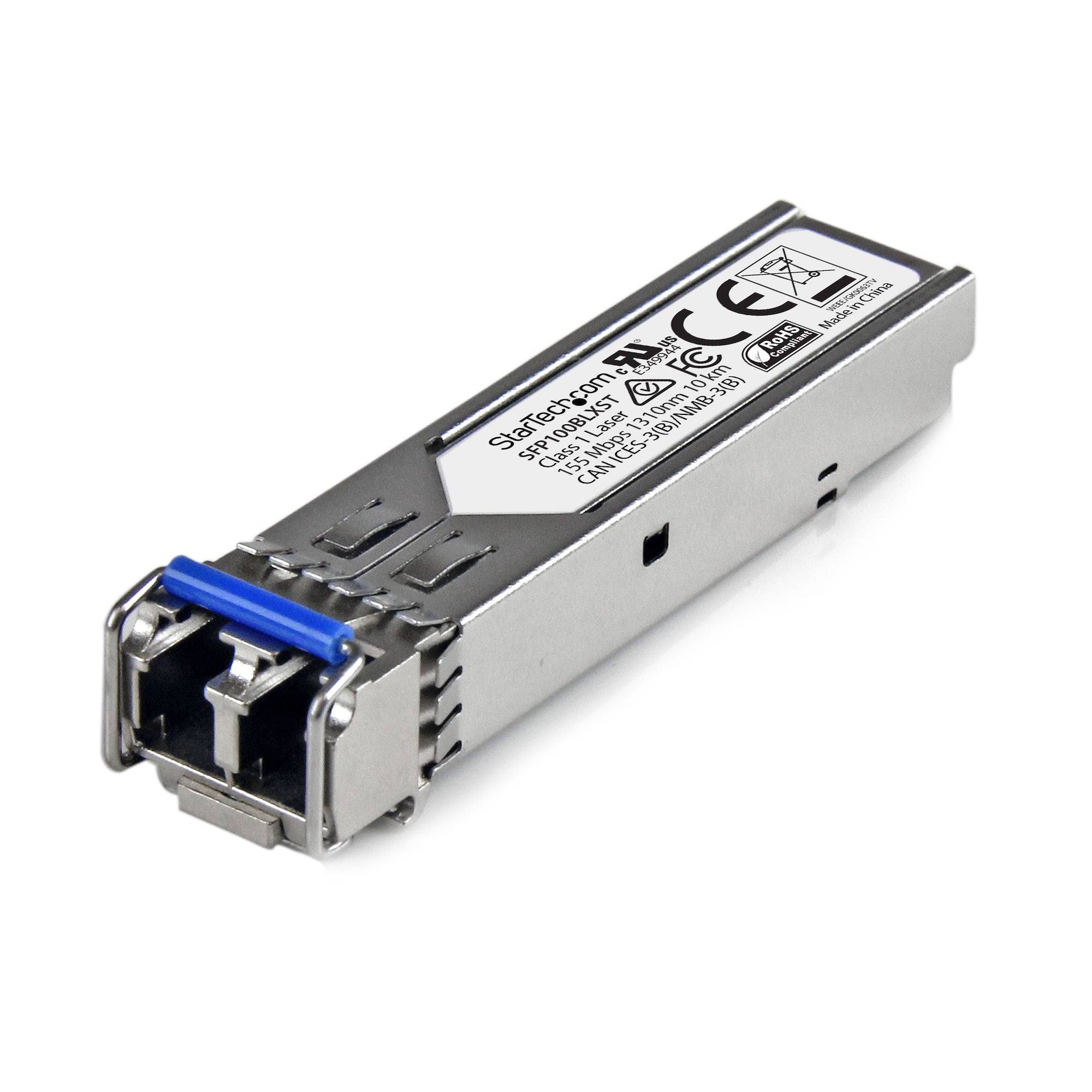

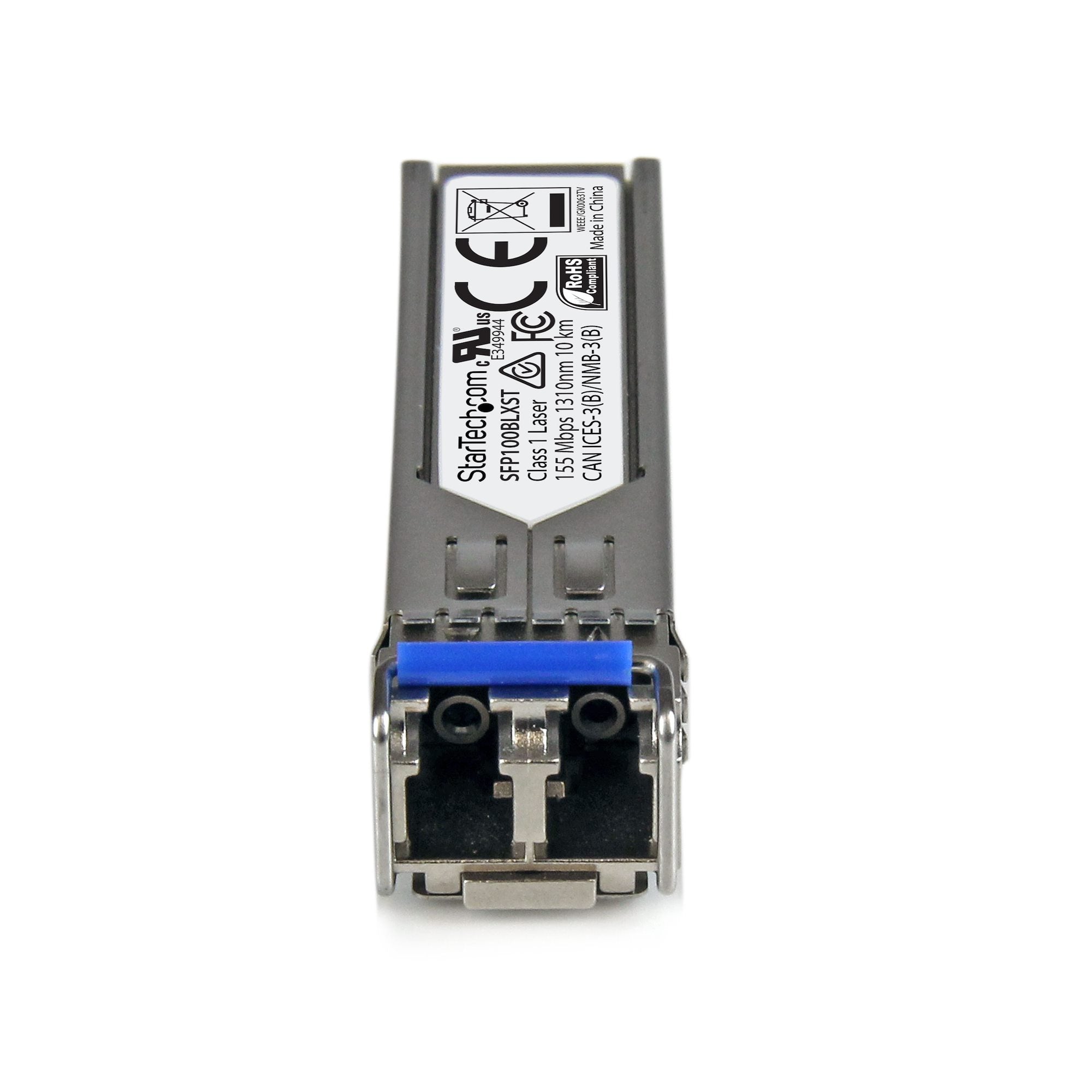

StarTech Network Transceiver Module Fiber Optic 155 Mbit/s – SFP100BLXST

• Description
• Specifications
• Downloads

• StarTech Network Transceiver Module Fiber Optic 155 Mbit/s – SFP100BLXST


  100% MSA UNCODED SFP TRANSCEIVER
  Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 100MbE connectivity

  TECHNICAL SPECS
  100BASE-LX | 100Mbps | Single Mode (SMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi)

  TESTED FOR COMPATIBILITY
  Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver’s status to most SNMP network management tools.

  WORKS WITH MSA COMPLIANT SWITCHES
  Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules

  THE IT PRO’S CHOICE
  Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance

  The SFP100BLXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.

  StarTech.com SFPs
  All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

  Applications
  Replace defective or damaged SFP modules
  Expand your network to remote segments

• Specifications
  Warranty Information
  Warranty	Lifetime
  Package Quantity	1
  Color	Silver
  Material	Aluminum
  System and Cable Requirements	MSA compliant SFP port
  Connector(s)	Local Unit Connectors: 1 – Fiber Optic LC Duplex
  Environmental
  Operating Temperature	0°C to 70°C (32°F to 158°F)
  Storage Temperature	-40°C to 85°C (-40°F to 185°F)
  Humidity	5~95% RH
  Hardware
  Compatible Brand	MSA Compliant
  WDM	No
  Industry Standards	IEEE 802.3u 100BASE-LX
  Packaging Information
  Package Length	11.2 cm [4.4 in]
  Package Width	9.4 cm [3.7 in]
  Package Height	3.4 cm [1.3 in]
  Shipping (Package) Weight	48.0 g [1.7 oz]
  Performance
  Maximum Data Transfer Rate	155 Mbps
  Max Transfer Distance	10 km (6.2 mi)
  Type	Single Mode
  Wavelength	1310nm
  Fiber Operating Mode	Half/Full-Duplex
  DDM	Yes
  Compatible Networks	100 Mbps
  Power Consumption (In Watts)	< 1 W
  Physical Characteristics
  Product Length	59.0 mm [2.3 in]
  Product Width	1.4 cm [0.6 in]
  Product Height	1.3 cm [0.5 in]
  Weight of Product	30.0 g [1.1 oz]
  Special Notes / Requirements	Note: For use in 100 Mbps fiber networking equipment and media converters
  What’s in the Box	Included in Package: 1 – SFP transceiver
