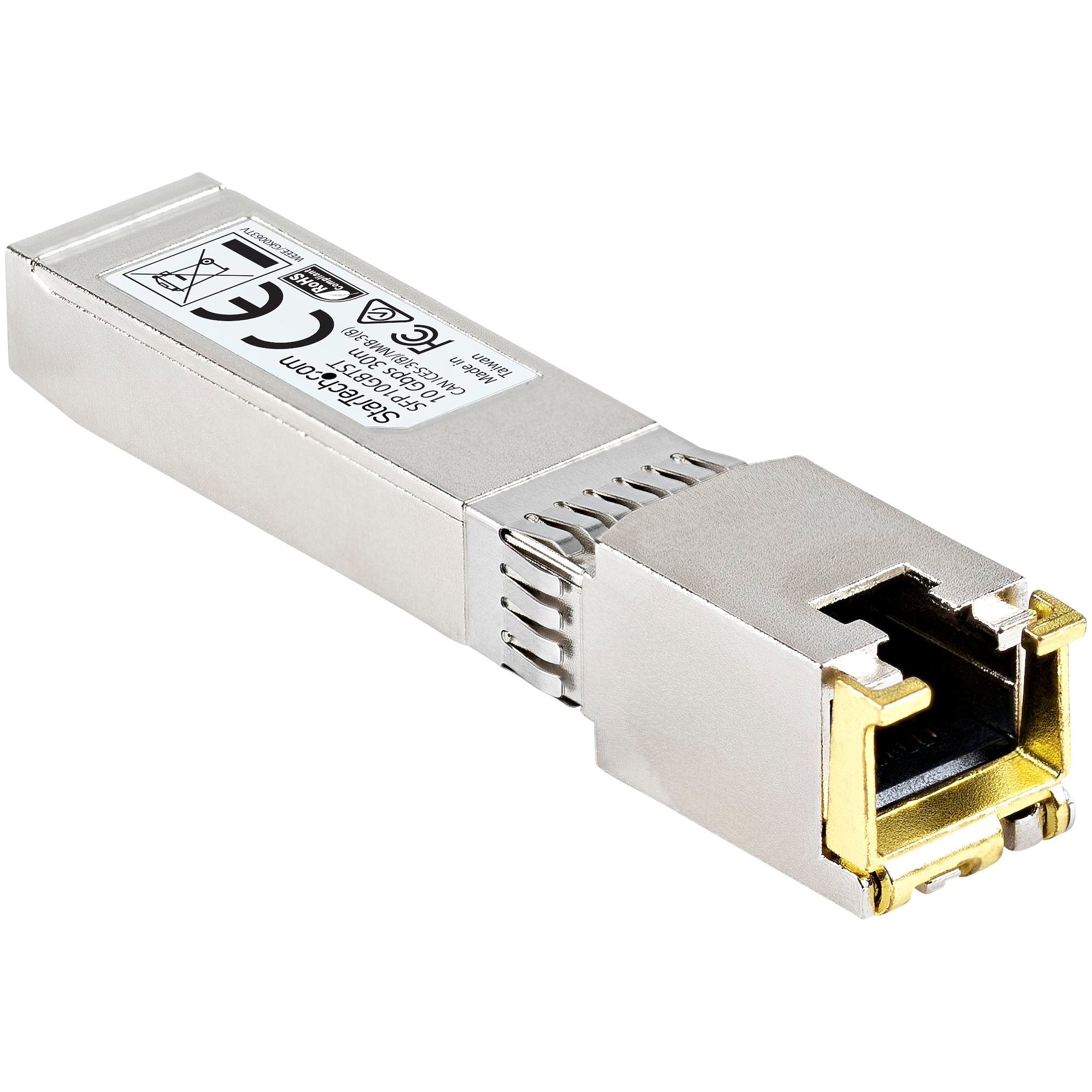

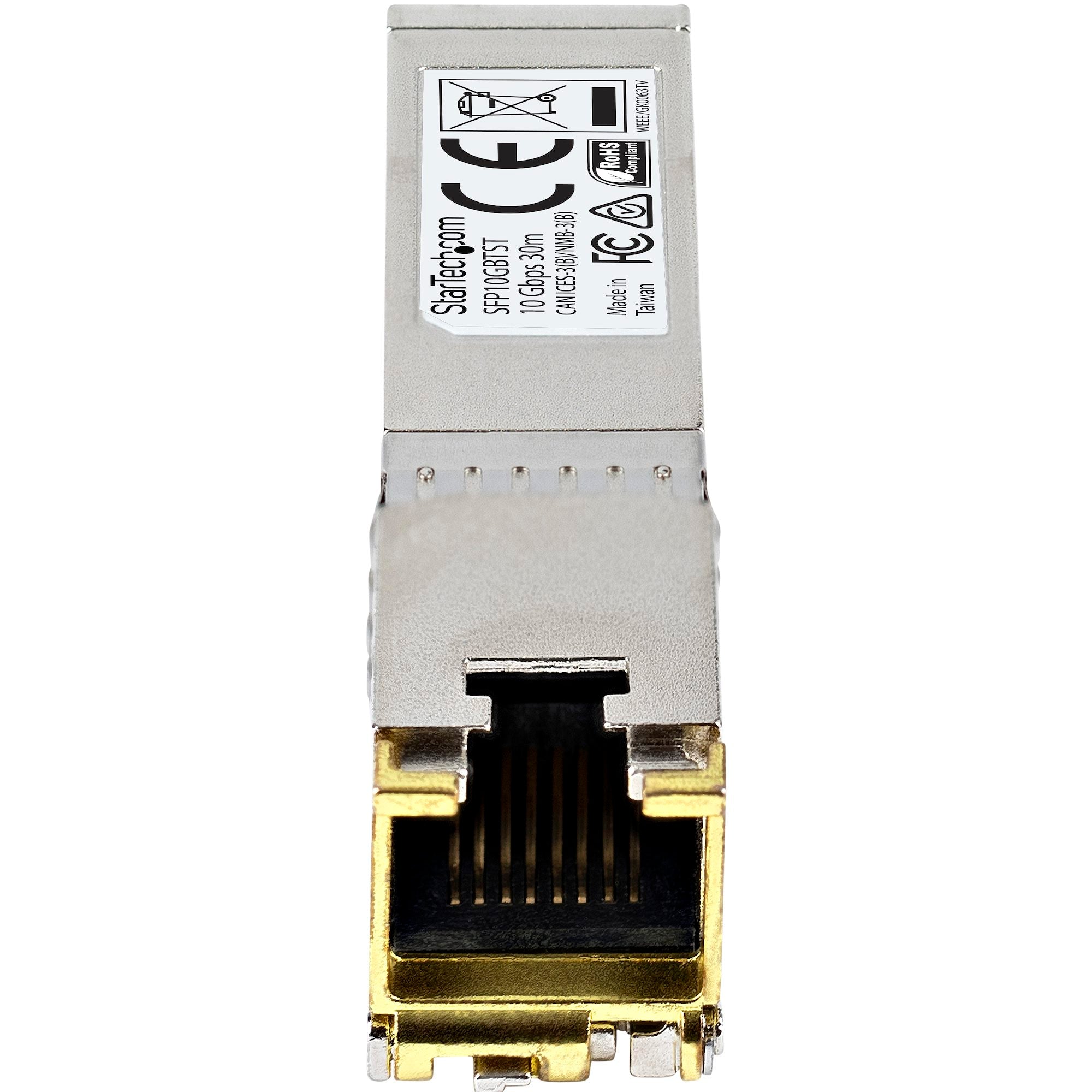

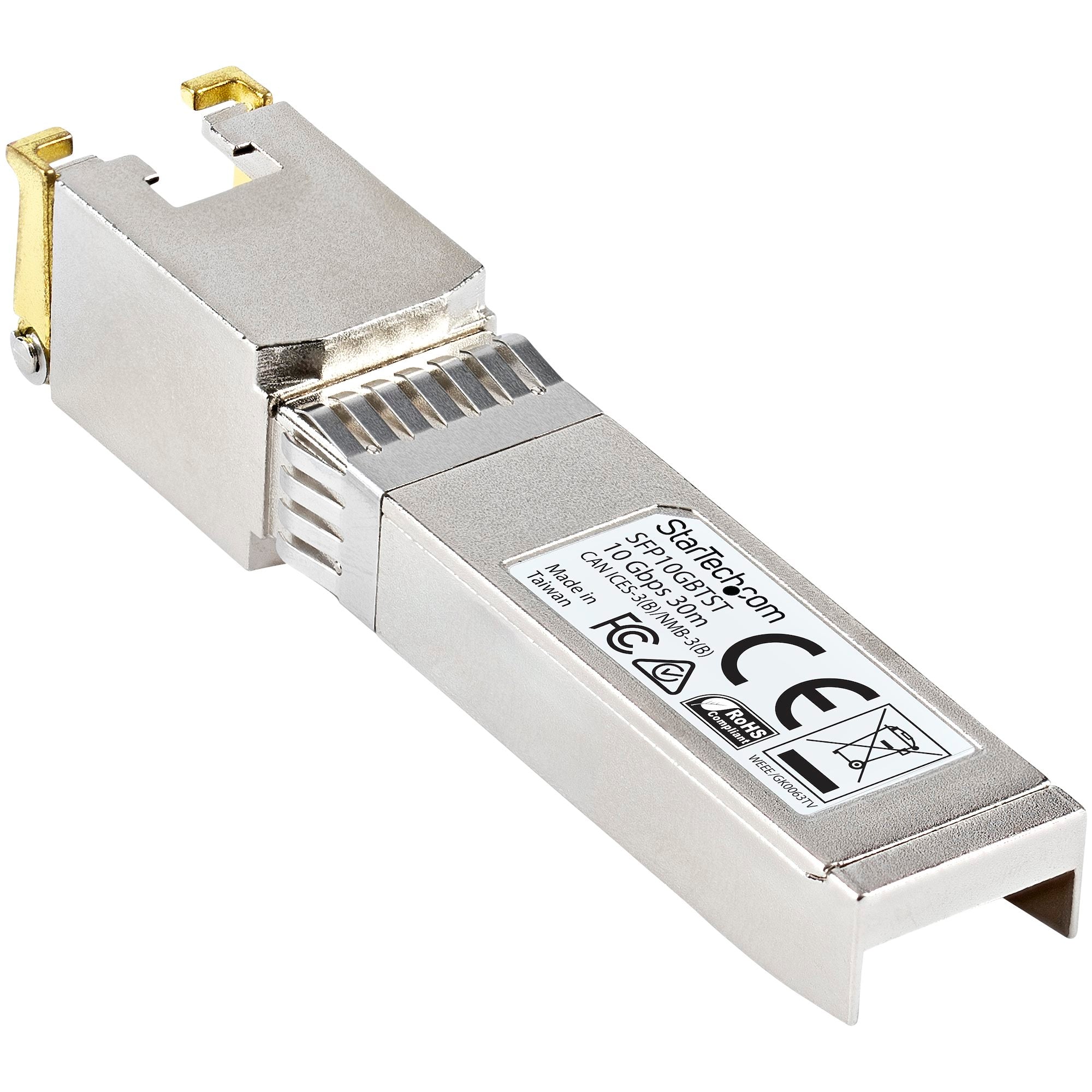

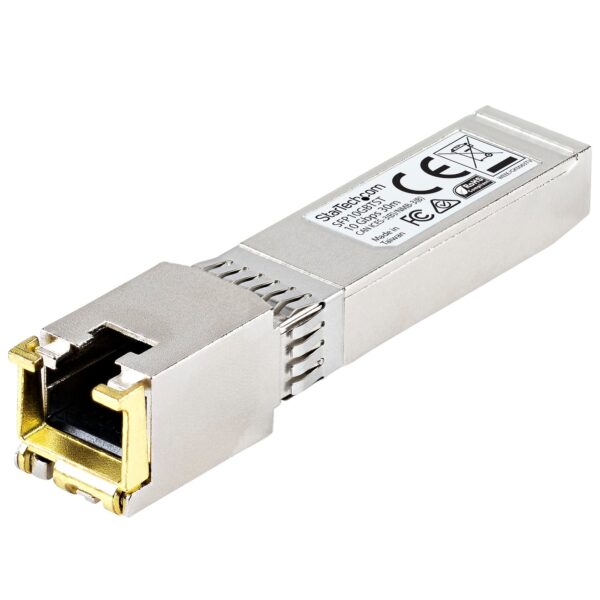

• StarTech Network Transceiver Module Copper 10000 Mbit/s SFP+


  100% MSA UNCODED SFP+ TRANSCEIVER
  Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 10GbE connectivity
  TESTED FOR COMPATIBILITY
  Hot-swappable in MSA Compliant routers and switches
  WORKS WITH MSA COMPLIANT SWITCHES
  Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
  THE IT PRO’S CHOICE
  Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance

  The SFP10GBTST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.

  Technical Specifications
  Maximum Data Transfer Rate: 10 Gbps
  Type: Copper
  Connection Type: RJ45 Connector
  Maximum Transfer Distance: 30 m (98.4 ft.)
  MTBF: 4,598,430 hours
  DDM: No >
  This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

  StarTech.com SFPs
  All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

  Applications
  Replace defective or damaged SFP+ modules
  Expand your network to remote segments

• Specifications
  Warranty	Lifetime
  Package Quantity	1
  Industry Standards	IEEE 802.3an 10GBASE-T, Auto MDIX
  Color	Silver
  Material	Zinc Alloy
  System and Cable Requirements	MSA compliant SFP+ port
  Local Unit Connectors	1 – RJ-45
  Environmental
  Operating Temperature	0°C to 70°C (32°F to 158°F)
  Storage Temperature	-40°C to 85°C (-40°F to 185°F)
  Humidity	5~95% RH
  Hardware
  Compatible Brand	MSA Compliant
  Industry Standards	IEEE 802.3an 10GBASE-T
  Packaging Information
  Shipping Weight	56.0 g [2.0 oz]
  Package Length	11.8 cm [4.6 in]
  Package Width	7.8 cm [3.1 in]
  Package Height	1.2 cm [0.5 in]
  Performance
  Maximum Data Transfer Rate	10 Gbps
  Max Transfer Distance	30 m (98.4 ft)
  Type	Copper
  Fiber Operating Mode	Full-Duplex
  DDM	No
  Compatible Networks	10 Gbps
  MTBF	4,598,430 hours
  Power Consumption (In Watts)	2.3 W (max.)
  Physical Characteristics
  Product Length	70.0 mm [2.8 in]
  Product Width	1.4 cm [0.5 in]
  Product Height	1.3 cm [0.5 in]
  Weight of Product	28.0 g [1.0 oz]
  What’s in the Box
  Included in Package	1 – SFP+ transceiver
