• StarTech Network Card Internal 100 Mbit/s – PEX100S


  Single 10/100Mbps RJ45 Ethernet port
  Compliant with IEEE802.3 CSMA/CD, 802.3 10Base-T and 100Base-TX standards
  Crossover Detection & Auto-Correction (Auto-MDIX)
  Full and Half duplex mode support
  Link speed and duplex mode auto-negotiation
  Link/Activity and 10/100Mbps LED indicators
  Supports Wake-on-LAN
  Full/Low Profile installation brackets included

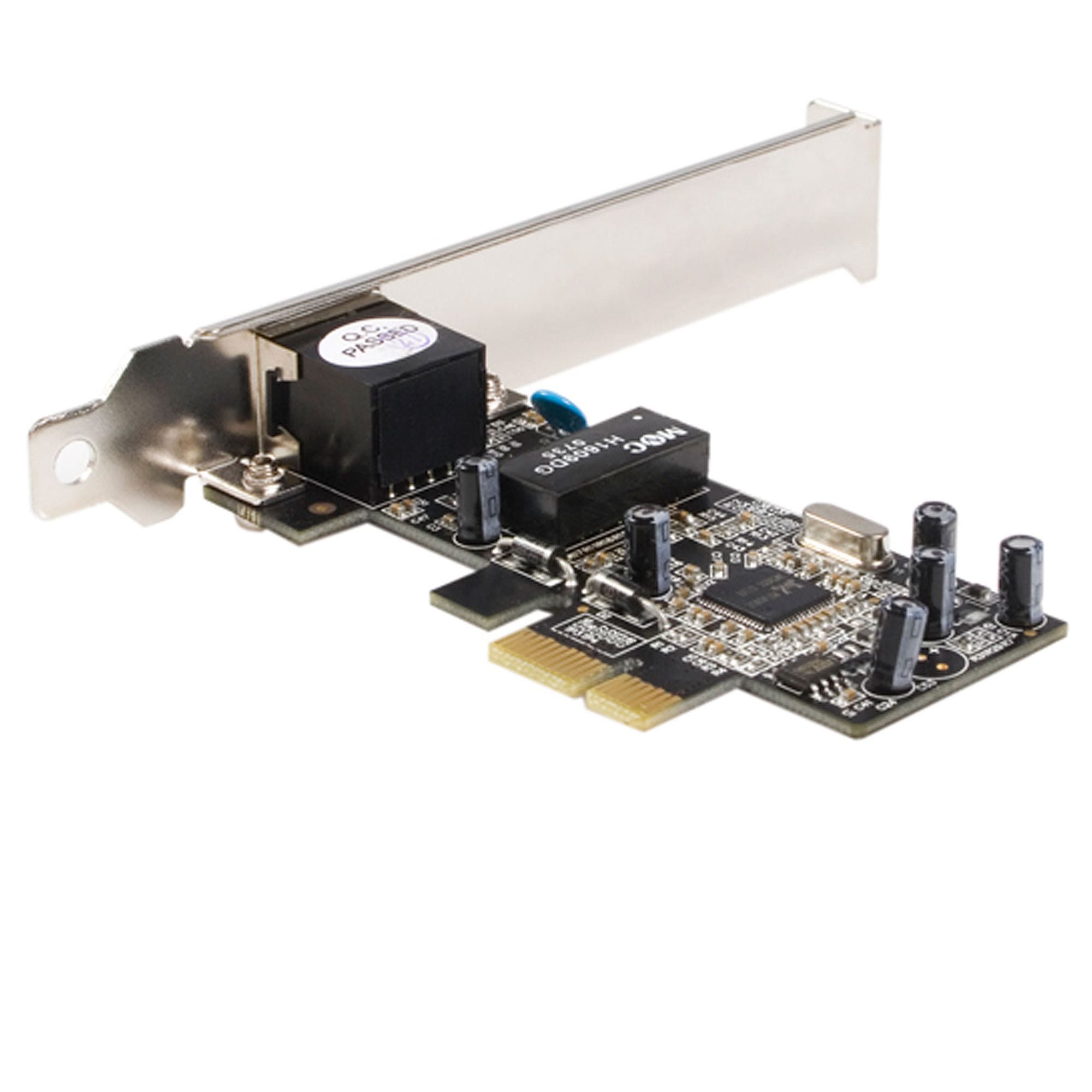

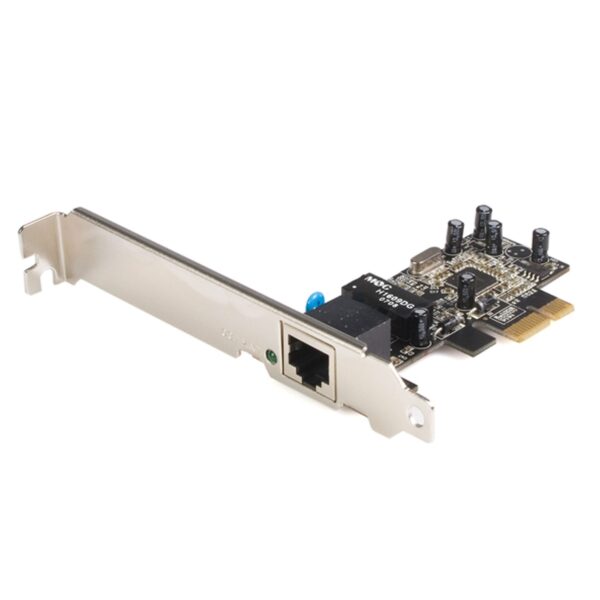

  This PCI Express based 10/100 Ethernet Card provides a simple way to connect a PCIe enabled server or workstation to a 10/100 Ethernet network and offers a broad range of features and functions, including support for both Full and Half Duplex operation as well as Wake On LAN (WOL) Power Management.

  The PEX100S Ethernet Card includes both standard and low profile brackets and is compatible with most mATX (Slimline) and ATX system form factors, and features Auto MDI/MDIX automatic configuration, which helps to simplify installation and configuration.

  Applications
  Replacement Ethernet card for a home or office desktop computer
  Adding Ethernet network connectivity for broadband Internet access to an old desktop computer
  Adding a second or redundant network connection for a workstation or server
  The StarTech.com Advantage
  Cost effective and simple Ethernet networking for a desktop computer systems
  Backed by a StarTech.com lifetime warranty and free lifetime technical support

• Category	Details
  Compatibility
  Operating Systems	Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11  Windows Server® 2003, 2008 R2, 2012, 2016, 2019  Linux 2.6.x and up – LTS Versions only
  Specifications
  Warranty	Lifetime
  Connector(s)	1 – PCI Express x1
  External Ports	1 – RJ-45
  Hardware
  Ports	1
  Interface	RJ45 (10/100 Ethernet)
  Bus Type	PCI Express
  Card Type	Standard Profile (LP bracket incl.)
  Chipset ID	Realtek – RTL8105E
  Indicators	LED Indicators: 1 – Link Status
  Packaging Info
  Package Height	30 mm [1.2 in]
  Package Length	16.8 cm [6.6 in]
  Shipping Weight	120.0 g [4.2 oz]
  Package Width	14.2 cm [5.6 in]
  Package Quantity	1
  Performance
  Max Data Rate	100 Mbps
  Compatible Networks	10/100 Mbps
  Physical
  Product Weight	32 g [1.1 oz]
  Color	Black
  Material	Steel
  Product Length	92.5 mm [3.6 in]
  Product Width	12 cm [4.7 in]
  Product Height	2.1 cm [0.8 in]
  Software
  OS Compatibility	Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11  Windows Server® 2003, 2008 R2, 2012, 2016, 2019  Linux 2.6.x and up – LTS Versions only

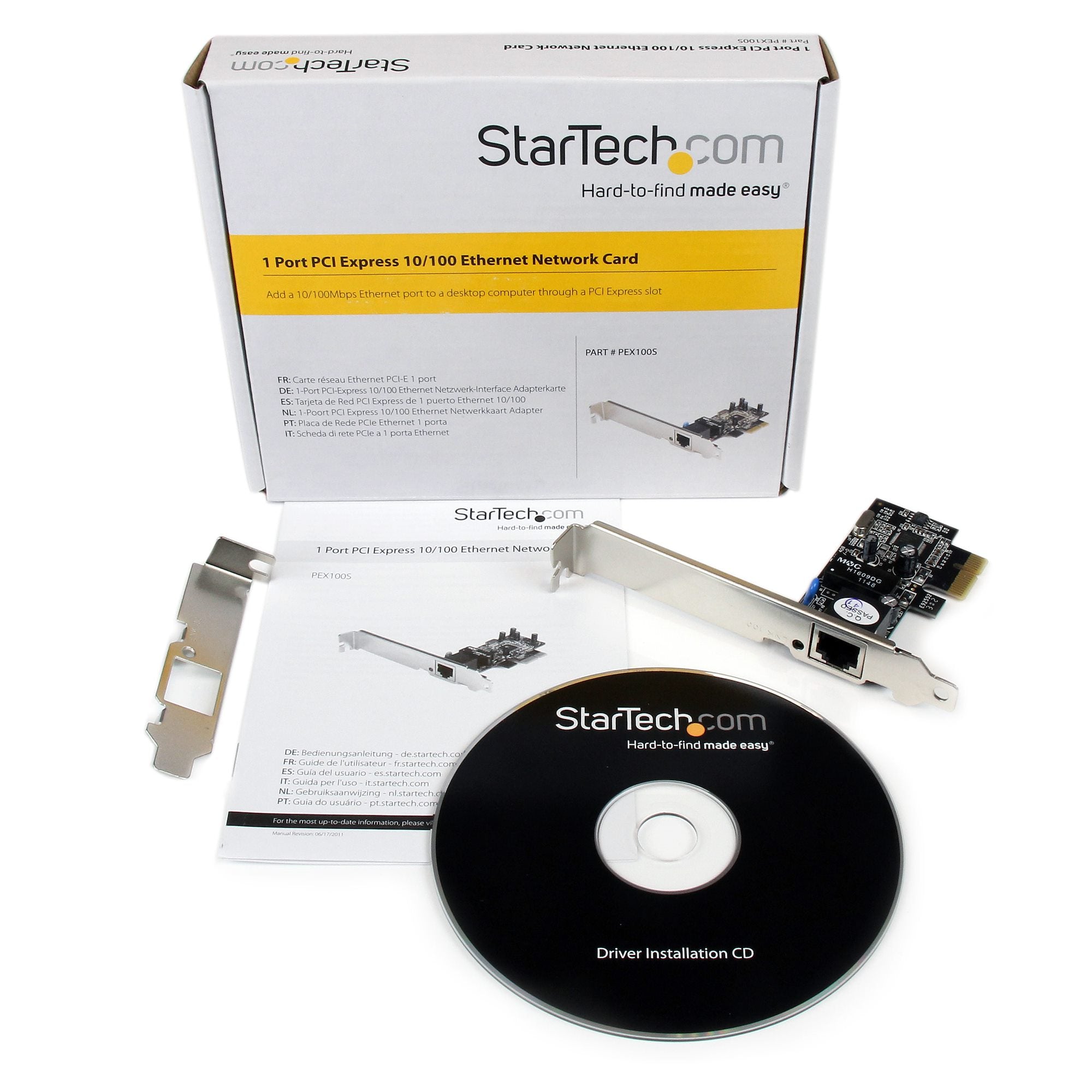

  What’s in the Box	Included in Package: 1 – 10/100 PCI-Express Ethernet Card  1 – Low Profile Bracket  1 – Driver CD  1 – Instruction Manual
