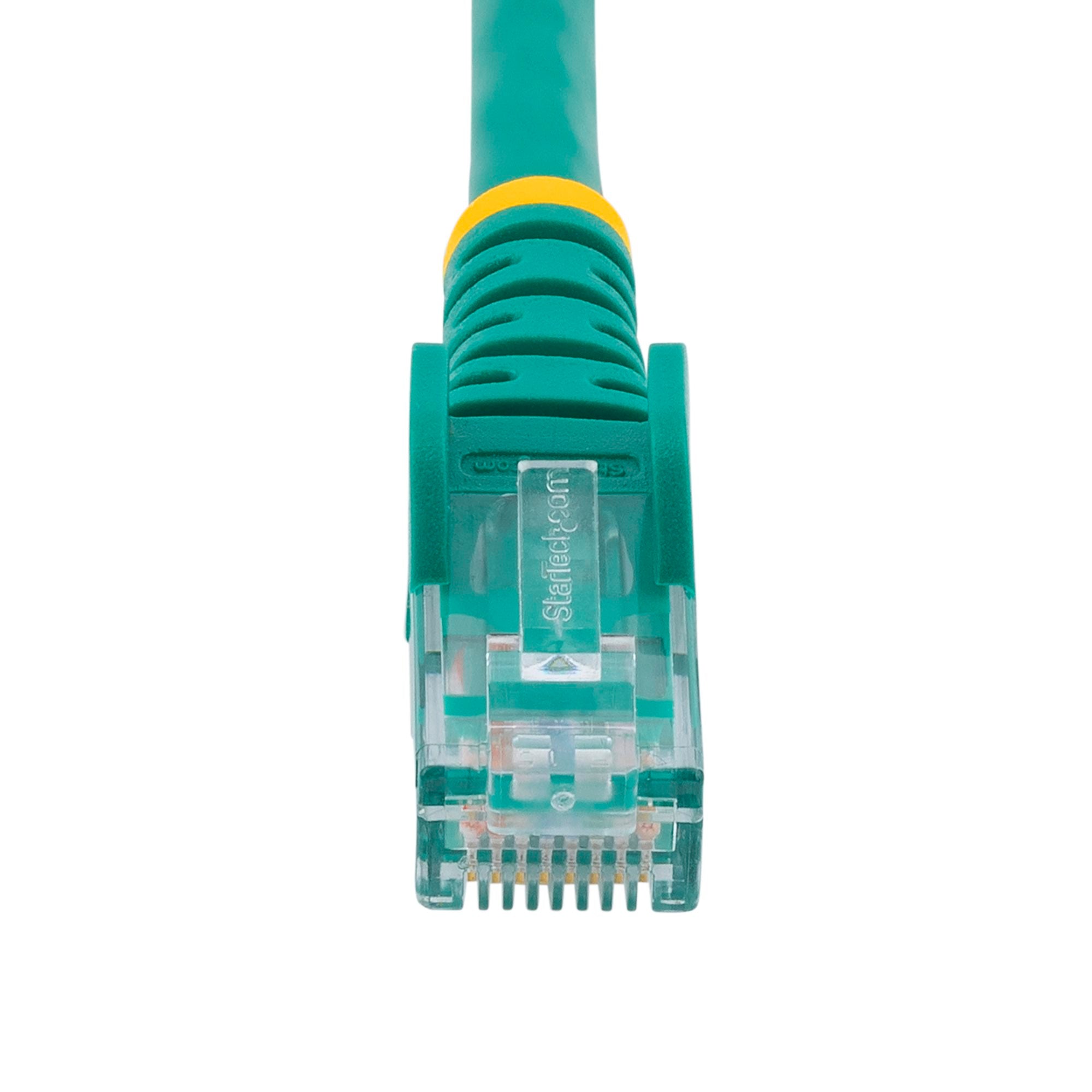

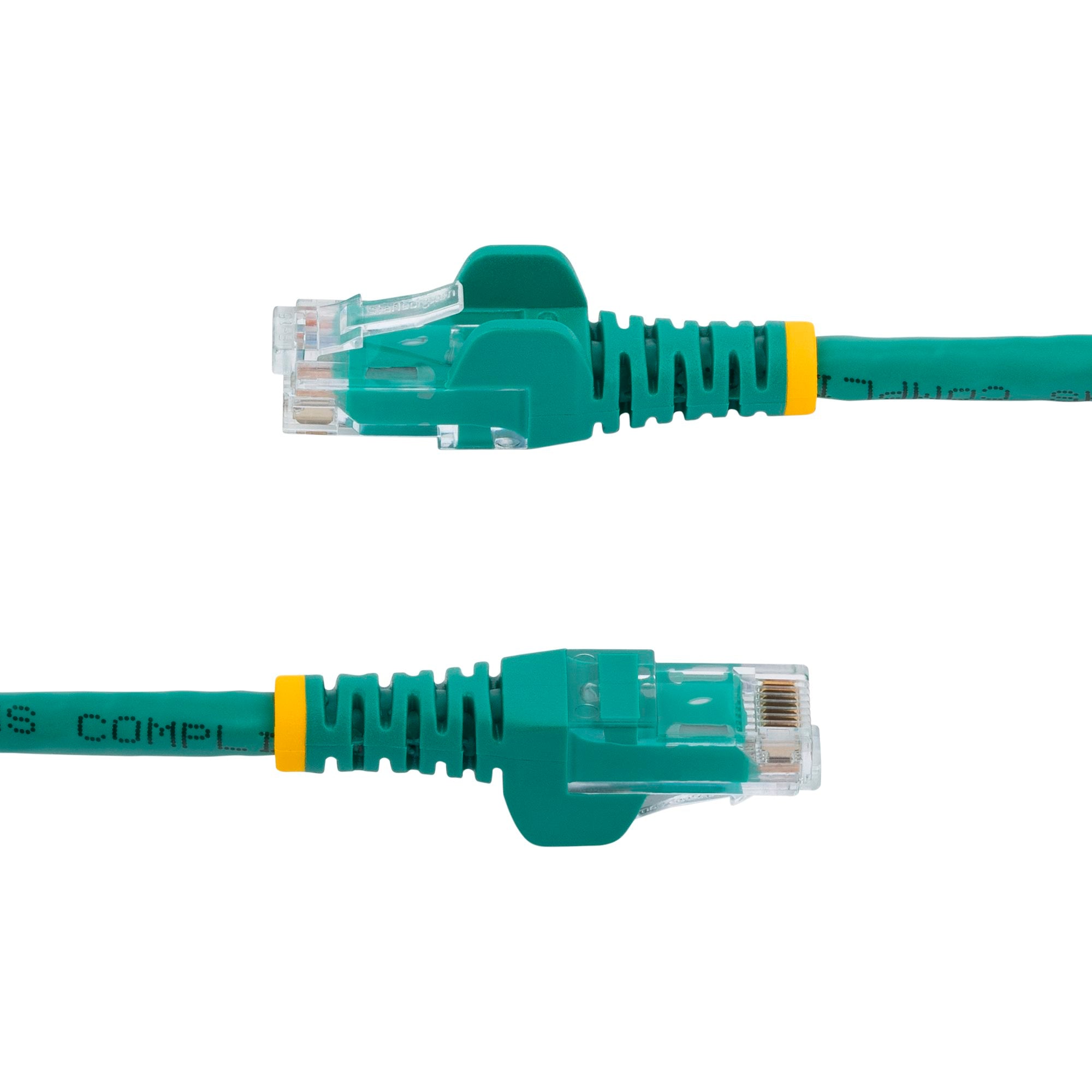

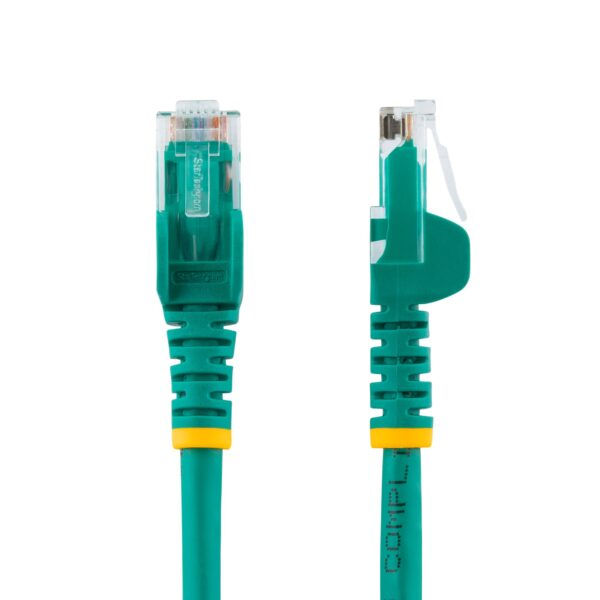

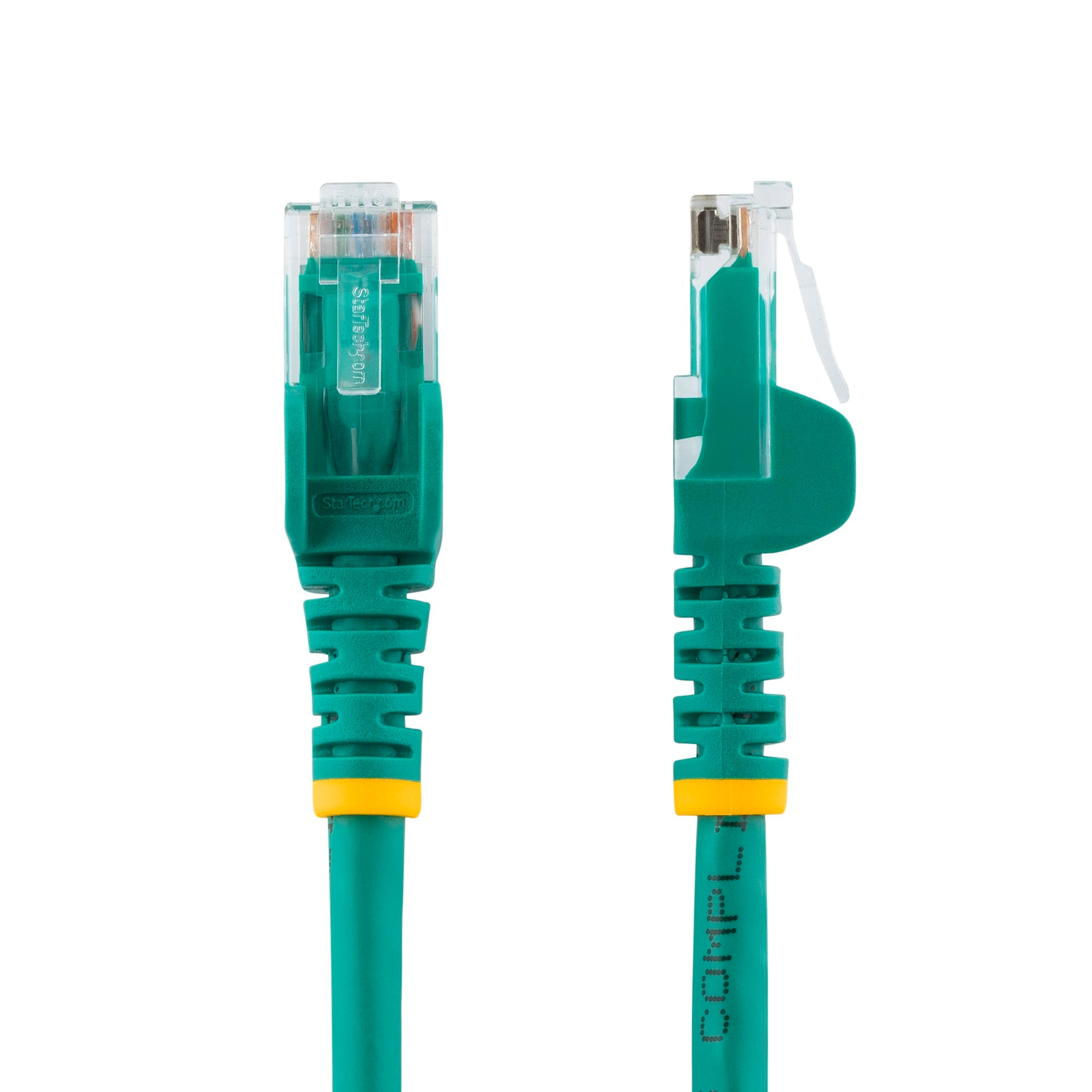

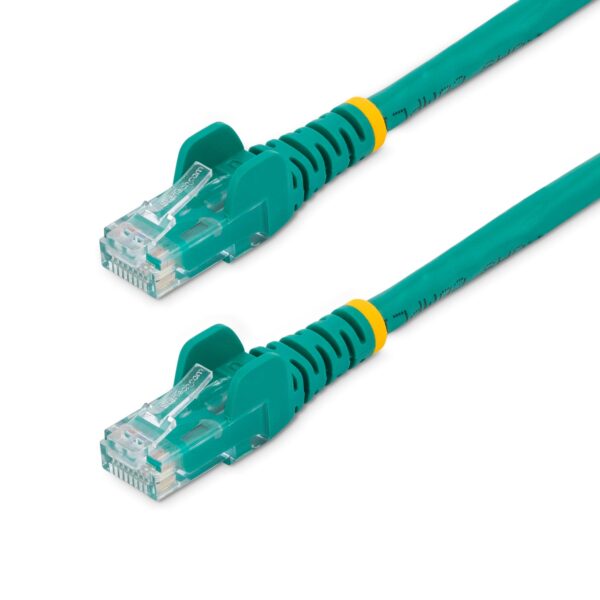

StarTech N6PATC50CMGN 50cm CAT6 Ethernet Cable – Green CAT 6 Gigabit Ethernet Wire

• Description
• Specifications
• Downloads

• StarTech N6PATC50CMGN 50cm CAT6 Ethernet Cable – Green CAT 6 Gigabit Ethernet Wire

  The N6PATC50CMGN Cat 6 patch cable (0.5m) meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable green PVC jacket that enables you to color code your network cable runs as needed.

  To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles, reducing the risk of cable failure.

  Constructed of only top quality materials, this Cat 6 patch cord delivers reliable performance and is backed by our lifetime warranty.

  100% copper for outstanding value
  Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.

  24-gauge wire for high-performance network connection
  Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.

  50-micron gold connectors provide peak conductivity
  Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

  Applications
  Designed for use with Gigabit networks
  Patches from hub to distribution panel
  Connects workstation to wall outlet

• Warranty Information
  Warranty	Lifetime
  Connector(s)
  Connector A	1 – RJ-45
  Connector B	1 – RJ-45
  Hardware
  Number of Conductors	4 pair UTP
  Connector Plating	Gold
  Cable Jacket Material	PVC – Polyvinyl Chloride
  Fire Rating	CMG Rated (General Purpose)
  Cable Type	Snagless
  Wiring Standard	TIA/EIA-568-B.1-2001 T568B
  Packaging Information
  Package Height	12.0 mm [0.5 in]
  Package Length	22.0 cm [8.7 in]
  Shipping (Package) Weight	35.0 g [1.2 oz]
  Package Width	20.0 cm [7.9 in]
  Package Quantity	1
  Performance
  Cable Rating	CAT6 – 650 MHz
  Physical Characteristics
  Product Height	0.0 cm [0.0 in]
  Product Width	0.0 cm [0.0 in]
  Color	Green
  Wire Gauge	24 AWG
  Conductor Type	Stranded Copper
  Cable Length	0.5 m [1.6 ft]
  Product Length	0.5 m [1.6 ft]
  Weight of Product	26.0 g [0.9 oz]
  What’s in the Box	Included in Package
  	1 – 0.5m Green Snagless Cat6 UTP Patch Cable – ETL Verified

• Description	Downloads
  N6PATC50CMGN:Datasheet	Downloads
