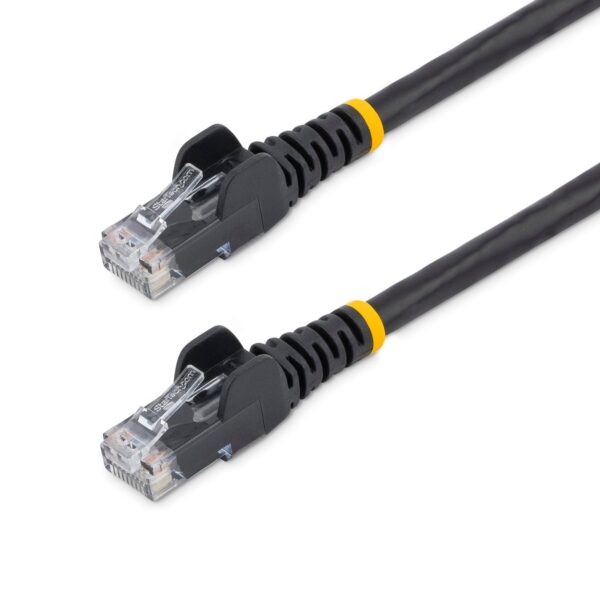

StarTech N6PATC3MBK 3m CAT6 Ethernet Cable – Black CAT 6 Gigabit Ethernet Wire

• Description
• Specifications
• Downloads

• StarTech N6PATC3MBK 3m CAT6 Ethernet Cable – Black CAT 6 Gigabit Ethernet Wire

  The N6PATC3MBK Cat 6 Patch Cable (3m) meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable black PVC jacket that enables you to color code your network cable runs as needed.

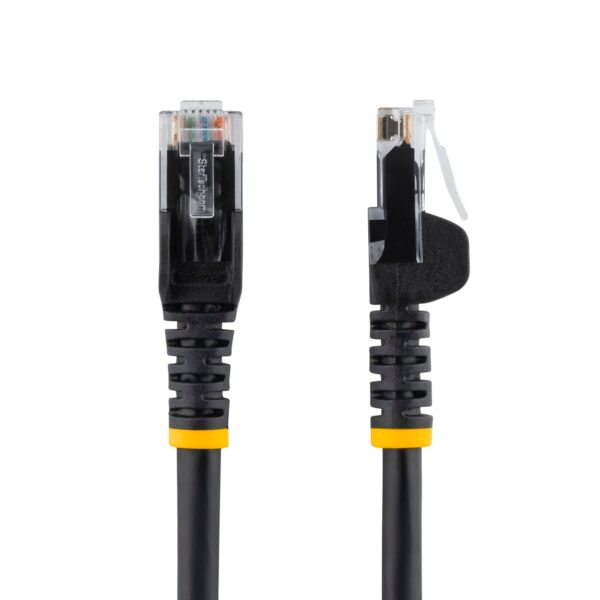

  To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles – reducing the risk of cable damage, which could decrease network performance.

  Constructed of only top quality materials, this Cat 6 Patch Cord delivers reliable performance and is backed by our Lifetime Warranty.

  100% Copper – a better value
  StarTech.com Cat6 cables are manufactured using high-quality copper conductors. While many cable manufacturers offer a “cheaper” cable based on a copper-coated aluminum core, we make no compromises on quality to ensure you receive top value and performance for your network cable investment.

  24 AWG Wire
  This Cat6 cable is constructed with 24 gauge copper wire, to support a broad range of Ethernet applications such as Power over Ethernet (PoE). Because we use a high quality copper wire, our cables easily sustain the power required for Power over Ethernet applications, whereas the inferior quality offered by copper-coated aluminum cables may be subject to insufficient power delivery, heat buildup, equipment damage and potentially, fire.

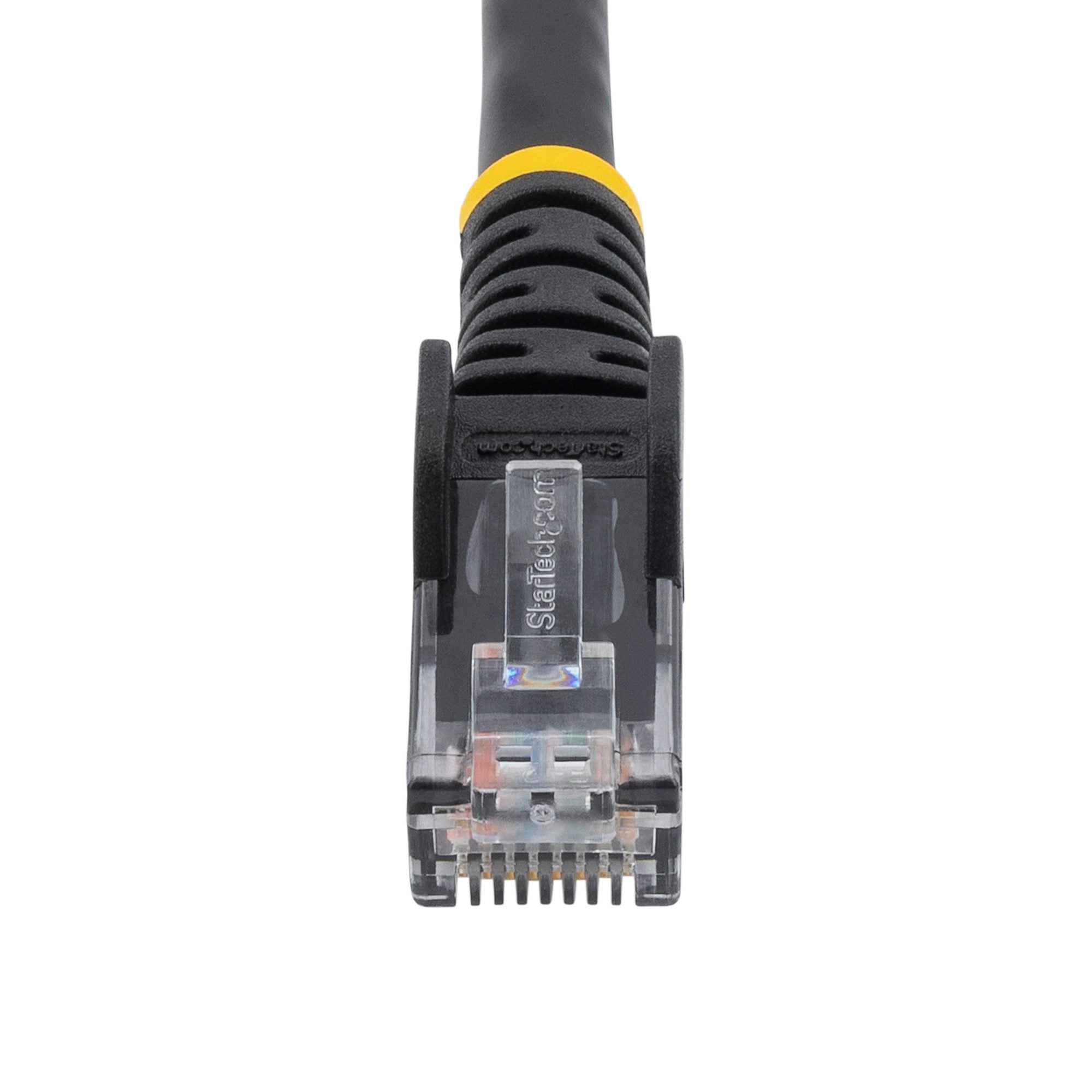

  50-micron Gold Connectors
  This Cat 6 patch cable offers high quality connectors comprised of 50-micron gold, to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

  Applications
  Designed for use with Gigabit networks
  Patches from hub to distribution panel
  Connects workstation to wall outlet

• Warranty Information
  Warranty	Lifetime
  Connector(s)
  Connector A	1 – RJ-45
  Connector B	1 – RJ-45
  Hardware
  Number of Conductors	4 pair UTP
  Connector Plating	Gold
  Cable Jacket Material	PVC – Polyvinyl Chloride
  Fire Rating	CMG Rated (General Purpose)
  Cable Type	Snagless
  Wiring Standard	TIA/EIA-568-B.1-2001 T568B
  Packaging Information
  Package Height	1.4 cm [0.6 in]
  Package Length	22.0 cm [8.7 in]
  Package Width	20.0 cm [7.9 in]
  Package Quantity	1
  Shipping (Package) Weight	133.0 g [4.7 oz]
  Performance
  Cable Rating	CAT6 – 650 MHz
  Physical Characteristics
  Product Height	1.6 cm [0.6 in]
  Product Width	1.3 cm [0.5 in]
  Color	Black
  Wire Gauge	24 AWG
  Conductor Type	Stranded Copper
  Cable Length	3 m [9.8 ft]
  Product Length	3.0 m [9.8 ft]
  Weight of Product	122.0 g [4.3 oz]
  What’s in the Box
  Included in Package	1 – 3 m Black Snagless Cat6 UTP Patch Cable – ETL Verified

• Description	Downloads
  N6PATC3MBK:Datasheet	Downloads
