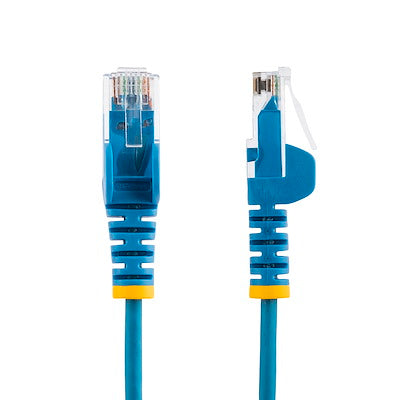

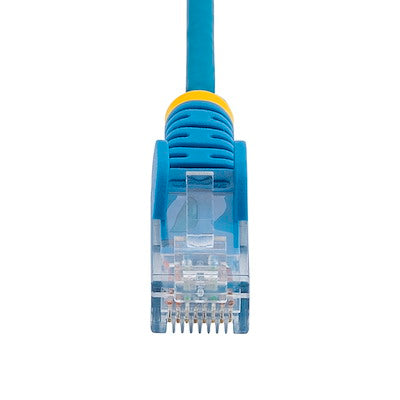

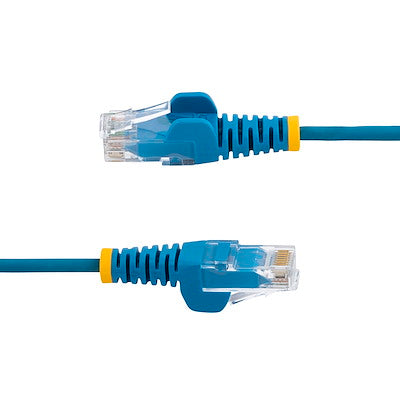

StarTech N6PAT200CMBLS 2m CAT6 Cable – Slim – Snagless RJ45 Connectors – Blue

• Description
• Specifications
• Downloads

• StarTech N6PAT200CMBLS 2 m CAT6 Cable – Slim – Snagless RJ45 Connectors – Blue

  Easy Cable Runs
  The design of this slim CAT6 patch cord is 36% thinner than standard networking cables, which allows better airflow and heat dissipation in tight spaces. The cable is also more flexible than standard Ethernet cables, so cable runs are easier in crowded network racks.

  This cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break as you pull them through narrow spaces.

  Protect Your Equipment
  This CAT6 patch cable is tested to comply with ANSI/TIA 568 C.2 Category 6 requirements ensuring a reliable connection to your networking equipment. Certified with Low Smoke Zero Halogen (LSZH) fire rating, this patch cord ensures a safe connection.

  The 50-micron gold connectors on the patch cable deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.

  High-Quality Construction
  Each CAT6 cable is manufactured using high-quality copper conductors and is carefully constructed and tested to keep Near-End Crosstalk (NEXT) well within acceptable limits. Plus, each cable is built with 28 AWG copper wire, to ensure peak performance for your demanding Ethernet applications.

  N6PAT200CMBLS is backed by StarTech.com lifetime warranty and free lifetime technical support.

  Applications
  For installation in high-density data centers
  Designed for use with Gigabit networks

• Category	Description
  Warranty Information
  Warranty	Lifetime
  Connector(s)
  Connector A	1 – RJ-45
  Connector B	1 – RJ-45
  Hardware
  Number of Conductors	4 pair UTP
  Connector Plating	Gold
  Cable Jacket Material	PVC – Polyvinyl Chloride
  Fire Rating	LSZH Rated (Low Smoke Zero Halogen)
  Cable Type	Snagless
  Wiring Standard	TIA/EIA-568-B.1-2001 T568B
  Packaging Information
  Package Height	0.1 mm [0.0 in]
  Package Length	20.0 cm [7.9 in]
  Shipping (Package) Weight	52.0 g [1.8 oz]
  Package Width	22.0 cm [8.7 in]
  Package Quantity	1
  Performance
  Cable Rating	CAT6 – 250 MHz
  Physical Characteristics
  Product Height	1.5 cm [0.6 in]
  Product Length	2.0 m [6.6 ft]
  Weight of Product	42.0 g [1.5 oz]
  Product Width	3.0 cm [1.2 in]
  Color	Blue
  Wire Gauge	28 AWG
  Conductor Type	Stranded Copper
  Cable Length	2 m [6.6 ft]
  What’s in the Box
  Included in Package	1 – 2 m Slim CAT6 Cable

• Description	Downloads
  N6PAT200CMBLS:Datasheet	Downloads
