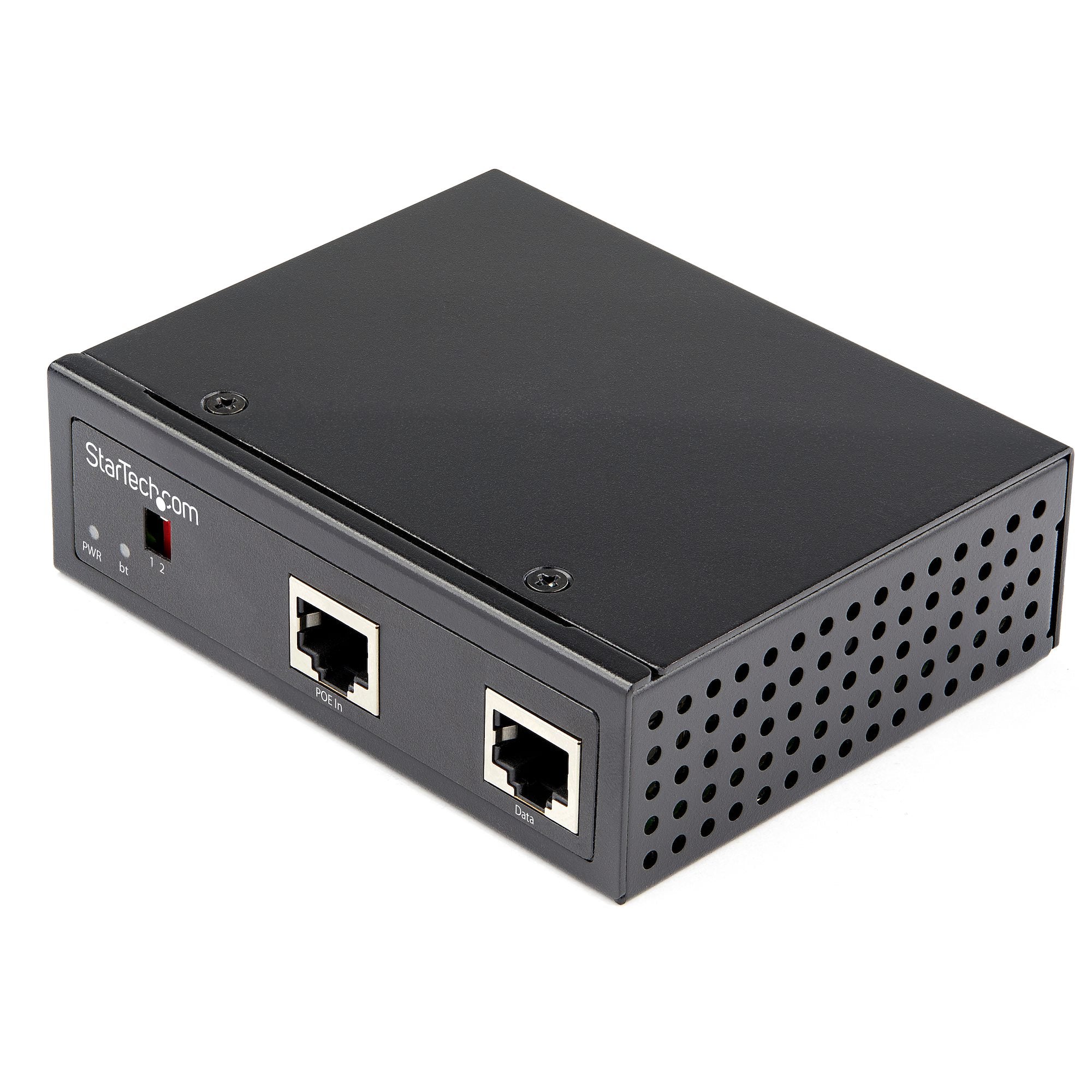

• StarTech Industrial Gigabit PoE Splitter – 90W High Speed Power over Ethernet PoE+++ Splitter | POESLT1G48V

  Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.

  Power Non-PoE Devices
  Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:

  Security (card swipe or proximity boxes)
  Environmental monitoring (temperature/moisture sensors)
  Telco (analog interface systems/conversion)

  Straightforward Deployment
  Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).

  The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.


  Designed for Harsh Environments
  Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

  Vibration: EN 60068-2-6
  Shock: EN 60068-2-27
  Free-Fall: EN 60068-2-32

  600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

  The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.

• Category	Details
  Warranty Information	Warranty: 2 Years
  	PoE: Yes
  Connector(s)	Connector Type(s): 1 x RJ-45 (PoE+), 1 x RJ-45, 1 x Terminal Block (4 Wire)
  Environmental	Operating Temperature: -40°C to 75°C
  	Storage Temperature: -40°C to 85°C
  	Humidity: 5 to 95% (non-condensing)
  Hardware	Ports: 2
  	Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3af
  	Chipset ID: Texas Instruments TPS2372-4
  Indicators	LED Indicators: 1 – Power, 1 – bt
  Packaging Information	Package Height: 6.6 cm [2.6 in]
  	Package Length: 21.4 cm [8.4 in]
  	Package Width: 16.8 cm [6.6 in]
  	Shipping Weight: 378.0 g [13.3 oz]
  	Package Quantity: 1
  Performance	Maximum Cable Length: 100 m [328.0 ft]
  	Compatible Networks: 10/100/1000 Mbps
  	Auto MDIX: Yes
  	Full Duplex Support: Yes
  	Jumbo Frame Support: 9K max.
  General Specifications	ESD Standard: IEC 61000-4-2 (Contact: 6KV; Air: 8KV)
  	EFT Standard: IEC 61000-4-4 (Power: 2KV; Signal: 2KV)
  	Surge Standard: IEC 61000-4-5 (Power: 2KV; Signal: 2KV)
  	Vibration Standard: EN 60068-2-6
  	Shock Standard: EN 60068-2-27
  	Free-Fall Standard: EN 60068-2-32
  	Housing Standard: IP-30
  	Safety Standard: EN60950-1
  	MTBF: 622,154 hours
  	Supported Protocols: IEEE 802.3bt, CSMA/CD, IEEE 802.3at, IEEE 802.3af
  Physical Characteristics	Product Height: 3.2 cm [1.3 in]
  	Product Length: 10.4 cm [4.1 in]
  	Weight: 150.0 g [5.3 oz]
  	Product Width: 8.2 cm [3.2 in]
  	Color: Black
  	Material: Steel
  Special Notes / Requirements	Patents and Licenses: U.S. Patents (expired and active), Applications

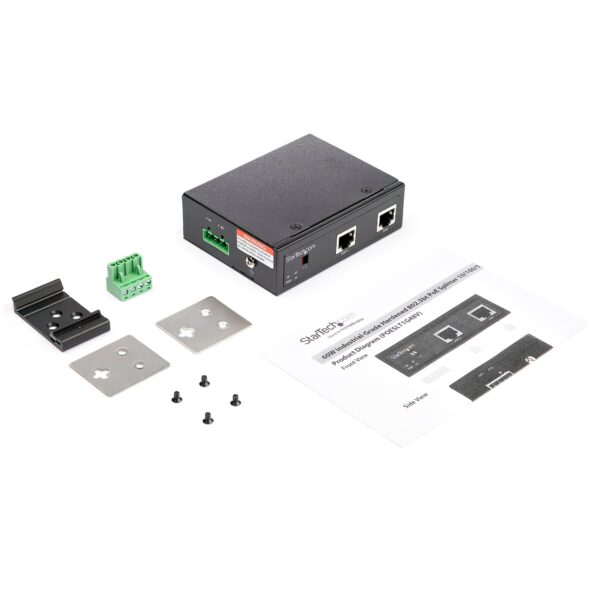

  What’s in the Box	Included: Industrial-Grade Hardened PoE Splitter, Terminal Block, Hardware Mounting Kit, Quick-Start Guide
